Wide belt sander

Griggio

Condition: good (used), Year of construction: 2001, cutting height (max.): 240 mm, cutting width (max.): 410 mm, Surface planer and thicknesser GRIGGIO FS 410 Laedpsy S E Ukefx Aiijb Year of manufacture: 2001 Planing width: 410 mm Thicknessing height: 9-240 mm Spindle speed: 5000 rpm Footprint: 2100 x 1500 mm Immediately available

Condition: excellent (used), Year of construction: 2017, machine/vehicle number: 17E000332104800, functionality: fully functional, operating hours: 300 h, 1. AUTOMATIC EDGEBANDING MACHINE Model GTM 4/3 – GRIGGIO The automatic edgebanding machine model GTM 4/3, manufactured by the Italian company GRIGGIO, is a new model launched in 2017, replacing the previous GB 4/3 model. It features a modern concept designed for straight panel edgebanding with PVC and ABS materials. The machine is equipped with the following working units: a) Gluing unit for hot-melt adhesive, featuring rapid heating and a fully Teflon-coated tank for easy cleaning. b) Pressure unit for bonding the edging to the panel – equipped with three rollers: the first is a large-diameter driven roller, while the remaining two are idler rollers with opposing tapers. c) End trimming unit with high-frequency motors designed to trim the overhanging edging flush with the panel at both the front and rear ends at a 90º angle • Installed power: 0.38 kW • Blade speed: 12,000 rpm d) Top & bottom trimming unit with two independent high-frequency motors for removal of excess edging from the top and bottom of the panel • Motor power: 0.55 kW e) Scraper unit for optimal finishing of 2 mm PVC or ABS edge banding applied to the panel edge • Supplied with a pair of knives for use with 2 mm ABS edging f) Buffing unit • Two independent motors for cleaning/polishing the edge banding • Installed power: 0.19 kW • Equipped with 100 mm diameter brushes Maximum panel thickness: 45 mm Minimum panel width: 90 mm Minimum panel length: 200 mm Feed speed: 9.5 m/min Edgebanding overhang (top + bottom): 4 mm (2+2) Pneumatic system pressure: 6 bar Frequency inverter: 200 Hz for motors, enabling 12,000 rpm rotational speed General features: • The machine frame is constructed from a single-piece, high-rigidity steel sheet. • Panel feed system is of the caterpillar type, with skids covered with high-adhesion rubber. • The skids move on dual steel guides – one round and one flat, both hardened and ground, ensuring straight movement and resistance to lateral forces from the working groups. • Upper pressure unit made of aluminum, featuring rubber pressure wheels mounted on bearings, ensures improved linear piece movement. Included spare parts kit (in machine price): - 2 upper rubber pressure rollers - 1 rubber roller for end trimming unit - 2 cotton buffing discs - 5 rubber pads for feed conveyor track - 4 adhesive pot heating elements - 1 temperature probe EXW price: €10,000 (excluded VAT) Manufactured in EU Excellent condition No pre-milling unit Operating hours: 300 h Lasdpfsw Tkl Nox Aiijb

Condition: excellent (used), CATALOG NUMBER 6679 TECHNICAL DATA - Maximum workpiece width: 250 mm - Maximum workpiece height: 170 mm 6 spindles: 1) Lower horizontal 250 mm 5.5 kW 2) Right vertical 170 mm 5.5 kW Ledpfey Rzkfjx Aiioab 3) Left vertical 170 mm 5.5 kW 4) Upper horizontal 250 mm 7.5 kW 5) Lower horizontal 250 mm 7.5 kW 6) Universal 250 mm, 360° adjustable, 5.5 kW - 6th spindle electrically adjustable up/down - All spindles adjustable up/down, right/left - Spindle diameter: 40 mm - Top: 6 powered, toothed, infeed rollers including 2 double rollers - Top: 6 powered, rubber, smooth, outfeed rollers including 2 double rollers - Top: 2 hold-downs - Bottom: 1 powered, toothed, swivelling infeed roller before the first spindle - Bottom: 2 powered, metal, smooth outfeed rollers - Bottom: 4 lateral pressure rollers - Feed drive using Cardan shafts - Pneumatic pressure rollers - Infinitely variable feed speed via inverter: 6–30 m/min - Feed motor: 4 kW - Working pressure: 8–10 bar - Electric thickness adjustment - Lifting motor: 1.1 kW - Central table lubrication - Infeed table length: 2180 mm - Extraction port diameter: 6 x 150 mm - Dimensions (L/W/H): 5000 x 1800 x 1900 mm - Weight: approx. 4600 kg ADVANTAGES – Italian manufacture – 6-head configuration – Full DTR technical documentation + CE certification – Ideal for both wet and dry wood – Universal spindle – Excellent condition / as new Net price: 134,900 PLN Net price: 32,100 EUR Net price calculated at 4.2 PLN/EUR (price may vary in case of significant exchange rate fluctuations)

Condition: good (used), Year of construction: 2007, GRIGGIO Model TYP NPC/A 30/19 AF-BO, S/N B3720207. Through-feed press for bonding natural veneer, laminate, etc. Working width: 1830 mm. Max length: 3010 mm. Price includes Osama S4 R/P-2000 glue rollers. Ljdpfoyk Dnfex Aiisab

Condition: excellent (used), Year of construction: 1999, functionality: fully functional, Tilting Spindle Moulder MAKA SF 4510 / GRIGGIO with Power Feed Very good condition, the machine comes from a small village carpentry shop with 3 people. Everything works perfectly. All bearings and guides are in excellent condition; the machine runs very smoothly. Equipped with a moulder fence, with one fence jaw adjustable in depth and featuring fine adjustment with scale, enabling jointing work, e.g., for a glue joint profile. The entire fence can also be adjusted via a set screw, allowing for very precise settings. With spindle locking via clamping lever. Chip extraction is very effective, with two 120mm diameter extraction ports on the fence and machine. Comes with a 30mm spindle, continuously tiltable from -5° to 45°, adjusted via handwheel, with a precise degree scale. Selectable clockwise/counterclockwise rotation. We deliver the machine in person anywhere in Germany for 220.00 EUR and carry out a demonstration, so you have no risk with your purchase. Delivery to other EU countries is also possible. Large table opening, adjustable with rings (this allows the use of cutters with a very large diameter and safe cutting with small cutters). Spindle speeds: 3200, 4200, 6000, and 8000 rpm. Spindle height adjustment via handwheel with locking screw. Spindle is exchangeable (a 40mm spindle can also be used). Optimal power transmission via V-belt drive. Machine table is 1070mm wide and 940mm deep. The machine is ready for immediate use. Lsdjy Rh Nzopfx Aiioab 380V, 5500W, with motor protection switch against overload. Year of manufacture: 1999. Weight: approx. 700kg. The machine has a CE certificate. Comes with manual, motor brake, and emergency stop switch, fully compliant with all requirements of the woodworking trade association (Holz-BG). Included is also a 3-roller power feed from HAFFNER with 8 speeds. Optimal, simple, fast, and safe operation.

Condition: good (used), Year of construction: 1994, functionality: fully functional, Forward and reverse operation, 3-1000 rpm, Brake motor with Haffner 3-roller feed unit, 8 speeds in good condition 5.5 kW Transport available at extra cost! Lsdjybv A Ajpfx Aiisab

Condition: excellent (used), functionality: fully functional, type of input current: three-phase, number of blades: 4, overall weight: 700 kg, working width: 520 mm, number of planer blades: 4, working height: 250 mm, GRIGGIO PSA 520 thicknesser Specifications: - condition - used - manufacturer - GRIGGIO - model - PSA 520 - max working width - 520 mm - max working height - 250 mm - length of worktop - 985 mm - power of main engine - 6,0 kW - total power - 6,75 kW Ledjvgm Upepfx Aiioab - shaft for 4 system knives TERSA - sliding roller in the lower worktop - pulling roller - spiral - two steel rollers behind planer shaft - electrical up/down adjustment - analogue planing thickness indicator - diameter of planer shaft - 120 mm - planer shaft speed - 5000 rpm - 2 feed speeds - diameter of the exhaust stub - 150 mm - weight - approx. 700 kg - overall dimensions - 115 x 110 x 120 cm ( W x L x H )

Condition: excellent (used), input current: 16 A, Four-sided planer Griggio G18/4 Quadromat in good condition. A handy and space-saving machine, perfect for both smaller workshops and professional use. Specifications: Planing width: 180 mm Spindle diameter: 40 mm Can be operated on 16 A 4-sided planing for efficient processing Ideal for planing boards, beams, and strips with high precision. Included: Laodpfxsy Dt Szo Aiieb Complete set of cutters Can be shipped throughout Europe at a competitive price.

Condition: excellent (used), working width 430mm 4-knives shaft Ledpfx Aisw Ad N Ijisab fence with angle regulation tables length 2080mm delta/star start manual regulation of thicknesser table two feeding speed horizontal drill

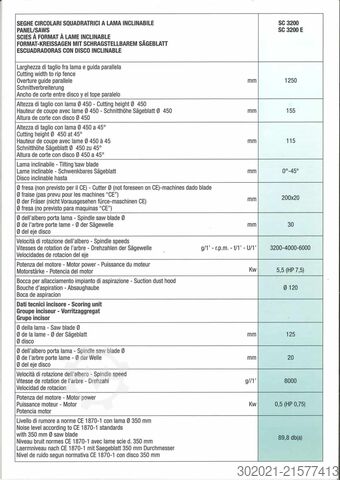

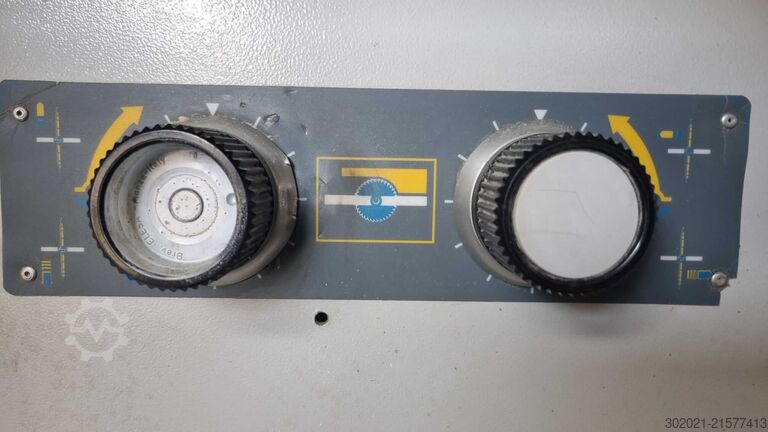

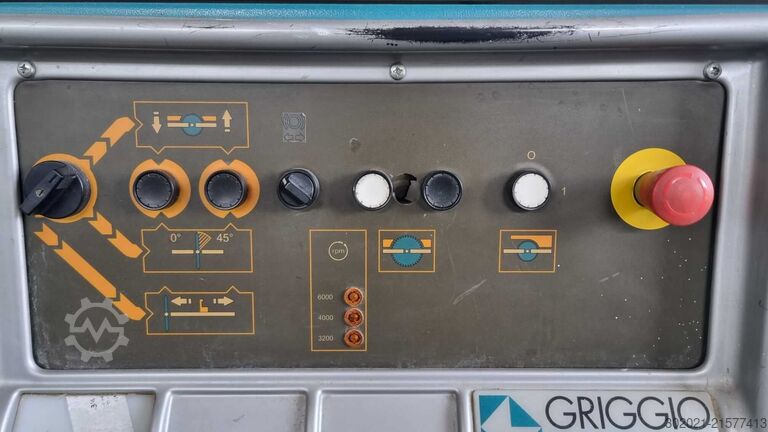

Condition: used, Tilting Blade Circular Saw (for precise angled cuts) Sliding table: 3800 mm Electric adjustment for blade lifting and tilting Cutting capacity Cutting width between blade and parallel guide: 1250 mm Cutting height with Ø 450 mm blade (90°): 155 mm Cutting height with Ø 450 mm blade at 45°: 115 mm Blade tilt: 0° – 45° Main blade Max blade diameter: Ø 450 mm Blade shaft diameter: 30 mm Rotation speed: 3200 / 4000 / 6000 rpm Main motor power: 5.5 kW (7.5 HP) Dust extraction Extraction outlet: Ø 120 mm Scoring unit Scoring blade diameter: Ø 125 mm Scoring shaft diameter: 20 mm Lasdpfx Aisywt Agjisb Rotation speed: 8000 rpm Scoring motor power: 0.5 kW (0.75 HP)
