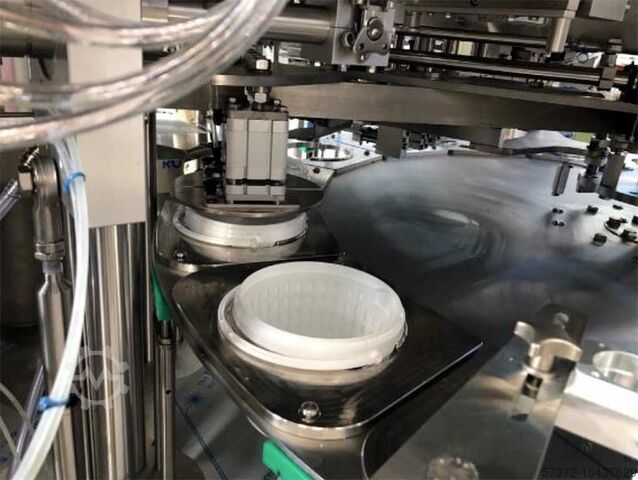

Cup Filling and Sealing Machine

Grunwald ROTARY 12.000E

Condition: new, Year of construction: 2025, Fully automatic liquid filling machine with 6 filling heads for filling volumes of different alternative ranges e.g. 50-500ml – customized configurations are possible. The volume is adjustable within the filling range by adaptation of the capacity of the air cylinder – uncomplicated controlled by software, without using additional modules. Operating principle: feeding of the bottles via infeed conveyor, positioning of the bottles, feeding of the filling needles into the bottles, filling by filling lances, exact dosing controlled by air cylinders. Electronic components: PLC and Touchscreen by SIEMENS, optical sensors by Sick. Pneumatic parts predominantly by AIRTAC. CIP (cleaning in place system) is customizable via software and hardware. - Specifications: number of filling heads: 6; max. speed of the machine in neutral: 35 cycles/minute; accuracy: depending on chosen filling range and real filling volume; stainless steel version SS304 – all parts in contact with the filling material are made of SS316; power: 220V, 0.5kW; compressed air: 4-6bar, 0,4m³; machine dimensions LxBxH: 3500x1350x1800mm; weight: 850kg. - Mounting of servo motors instead air cylinders for dosing possible at a surcharge. Machine dimensions of servo version LxWxH: 3500x1350x1900mm. That machine/system is available in different versions for different packaging sizes and with different packaging speeds. Please note that our new prices are often below the usual used prices. Please feel free to inquire and tell us your packaging task. - Usually 30-50 different new machines are available immediately from stock. In addition, we have very short delivery times from approx. 3 weeks for customized machines. Deviations from the sample photo are possible. - All machines are available with full warranty. Dujdpfjv Nk Rtjx Albow

Condition: used, Year of construction: 1987, Manufacture : Goavec SA Year : 1987 Previous application: Cream tank (fluid/thick) Volume : 5000 Litres Material : 304 stainless steel (Thickness : 25/10) Jacket + insulation Pressure inside tank: + 0.1 bar Jacket pressure: 3.5 bar (water) / 2 bar (steam) Agitation : 1.8 KW - 41 rpm 1 fixed paddle: counter-stirring Wash balls: 2 units Inspection hatch: manhole Removable guardrail Dedex R Dkbjpfx Albeuw Drawing available (digital version)

Condition: used, Used stainless steel container / transport container / IBC Last intended use: Pharmaceuticals, cosmetics Article number: 10804 Volume: 1000 liters Type: Standing in galvanized stacking frame Material (in contact with media): 1.4571 / AISI316 Manhole: 400mm Design: Single-walled Operating pressure according to nameplate: ATM Container dimensions: Total width: 1020mm Total length: 1220mm Total height: 1640mm Materials: Djdev Dt Nnopfx Albjuw Inside: 1.4571 / AISI316 Outside parts: 1.4301 / AISI 304 Facilities: Nameplate: No Outlet diameter: DN50 Outlet valve: Disc valve Distance from drain to floor: 280mm
