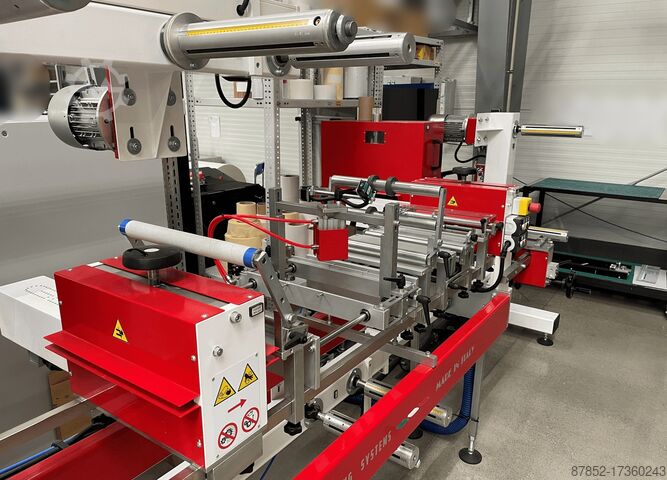

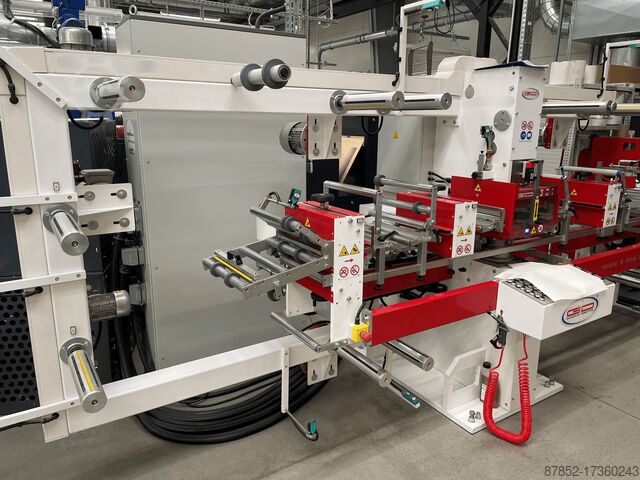

Labelling machine

Guidolin Girotto GD 301D

Guildolin Girotto GD 301D - automotive parts /labelling systems reel-to-reel / reeel-to-sheet machine

The machine is NEW! Available immediately.

- CONTINUOUS AUTOMATIC MECHANICAL-ELECTRONIC DIE- CUTTING
MACHINES MOD. GD 301D - 10 tons of power – cutting plates 320 x 320 mm
Useful cutting area 290 x 290 mm
- fixed run 40 mm
- electronic variator of speedy from 30 to 150 strokes per minute
- KD/FM SYSTEM: triple unwind, the upper shaft is an unwind and it can be used as friction or motorised, the middle shaft can be used as motorised rewind or friction unwind, lower shaft is an unwind and it can be used as friction or motorised – according to the requirements. The motors at variable speed from digital inverter are placed on slides and the KD/FM group is assembled on the machine
# n.3 photocells of end material
# n.2 photocell of automatic feed
# n.3 pneumatic expansion shafts diam.76mm with valve in the head
# n.3 electronic brakes managed by ultrasonic sensors which detect the diameter of the
roll of material and adjust the power of the brakes, managed by potentiometer.
- guides on rolls on the inboard side
- feeder rolls system on the inboard side before the change liner
- the feeder rolls are covered in silicone rubber and motorized
- KR SYSTEM: upper single motorised rewind controlled by inverter assembled on the
machine and complete with 1 pneumatic expansion shaft diameter 76 mm with valve in the head
for inflation
- KF SYSTEM: upper friction unwind with guides and roll assembled to the machine and complete
with n.1 pneumatic expansion shaft diam.76mm with valve on the head for inflation.
N.1 electronic brake managed by ultrasonic sensor which detects the diameter of the
roll of material and adjust the power of the brake, managed by potentiometer.
- feeder rolls system on the inboard side after the change liner
- the feeder rolls are covered in silicone rubber and motorized
- touchers at rolls placed before and after the cutting plate
- extractable rectified steel plate support cutting-knife and counter cutting-knife
- the plate support cutting-knife is with guides at swallow tailed for a speed and easy
change of the cutting-knife
- K2 SYSTEM : scrap separator with transversal bar and roll covered with anti-adherent material
- KR SYSTEM : upper single motorised rewind controlled by inverter assembled
Dwodpfx Agouv Hnxshec
on the machine to rewind the waste removed by the K2 system complete with n.1 pneumatic
expansion shaft diameter 76 mm with valve in the head for inflation. this shaft is equipped also
with frontal mechanical friction for a lightly adjustment.
- K3 SYSTEM: placed between the cutting head and the outboard feeder rolls group :
# pneumatic group of evacuation pieces synchronized and run by the machine controller.
The evacuation position is adjustable on the X. Y. Z. axes.
This system is complete with support brackets for the counter matrix.
- TL SYSTEM: longitudinal cut system with 5 razor blades and adjusting of the position
of the blades on their axe
- feeder rolls system on the inboard side after the TL system
- the feeder rolls are covered in silicone rubber and motorized

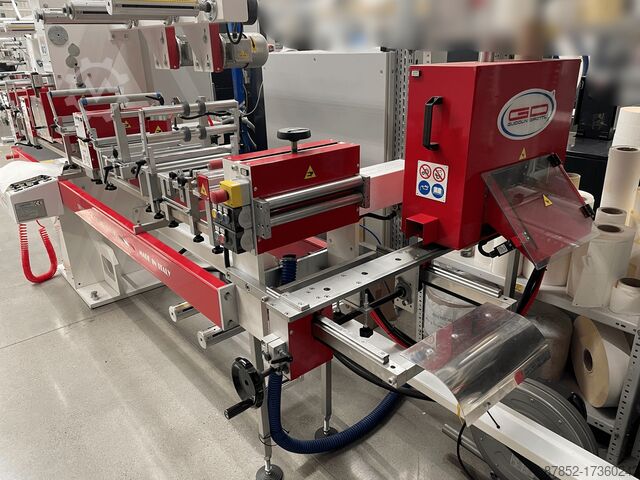

- CTT SYSTEM : passage of material 320 mm - pneumatic cutter assembled on machine for the
transversal cut, heavy version for cutting materials with max thickness 15 mm, complete with
motorized feeder rolls for the correct positioning of the material under the blades
