Chip Extraction

Höcker Polytechnik K 40/400

Condition: new, Jartek dry and green board sorting line Fgsdpex Ddhkjfx Afush

Year of construction: 2002, condition: used, machine/vehicle number: 001, Description Offered is an automated side board processing line with singulation, trimmer for end trimming, 2 stacking machines, additional discharge, and end trimming of stacking slats: Boards 2000-5280 mm long, 16 - 40 mm thick, 70 - 260 mm wide, cycle rate of 29 or 58 pieces/minute, operated by one person sitting at a joystick: - Boards are conveyed laterally using a 4-strand overhead chain cross conveyor - Singulation steep conveyor 6000 mm wide, 3000 mm inclined - Alignment roller conveyor - Chain cross conveyor as a layer former - Star turner and sorter before the trimmer Nlewsy Uzhfj D A Tmcob - Edge detection (ALFHA-Edger) - Trimmer with 11 saws in a 50.5 cm grid: The operator (sitting) at the joystick assesses: without re-trimming, 5000 mm to stacking machine 1, alternatively: without re-trimming, 4000 mm to stacking machine 1 with re-trimming, 4000 mm to stacking machine 2 with re-trimming, 3000 mm to stacking machine 2 with re-trimming, short lengths for discharge into a box, with re-trimming, short lengths for discharge into a box with re-trimming, 2 or 3 x 101 cm for stacking slats, with re-trimming, 2 or 3 x 101 cm for stacking slats or waste cut - trimming length 505 mm for the underlying vibration channel - 2 stacking machines: 1 x 2500 to 5280 mm and 1 x 2000 to 4280 mm - automatic lowering of the finished packages and transfer to automatic strapping - FROMM strapping with 16 mm plastic band and automatic transfer to the discharge roller conveyor - ALFHA control with Siemens S 7 - ensures perfect operation. Performance records / daily logs - Control cabinets with Siemens components, SEW motors, Telco light barriers For example, one employee processed, packaged, and strapped approximately 15,000 boards of side lumber 4000/17 x 76 mm in 9 hours. The system is still assembled, but the upstream chipping plant has already been dismantled. Therefore, the system is immediately available. It is very robustly built and has always operated smoothly and without any problems. A video of the process can be shown via WhatsApp! Fsdpfxjy Uzldo Afuegh

Condition: new, functionality: fully functional, Aerial work platform, work basket with platform for forklift (like new) Fgjdpfxezyu Tis Afuoh Width: 870mm Depth: 870mm Guardrail height: 1020mm / 1500mm / Total height of forklift protection mast: 2330mm Includes extension: 480mm with side access With forklift mounting distance: min: 550mm – max: 940mm Forklift tine receiver: width max. 190mm x height 90mm Available in stock.

Year of construction: 1993, condition: ready for operation (used), Various old sawmill machines are available. 1) Costa Leonard twin-shaft saw, max. cutting height: 200mm, max. cutting width: 350mm, weight: approx. 5000kg. 2) Esterer WD step feeder, max. log length: 6000mm. 3) Esterer HD 30 saw frame, frame opening: 710mm, stroke: 600mm. Including accessories. 4) Zeno drum chipper, drive power: 55kW. 5) Zimac board stacking machine, working length range: 800mm-3000mm. 6) Schicks steel chimney, height: approx. 50m, diameter: approx. 1400mm. Documentation available. An on-site inspection is possible. Individual sale by arrangement is possible. Fgsdpfxeyw Sv Eo Afuoh

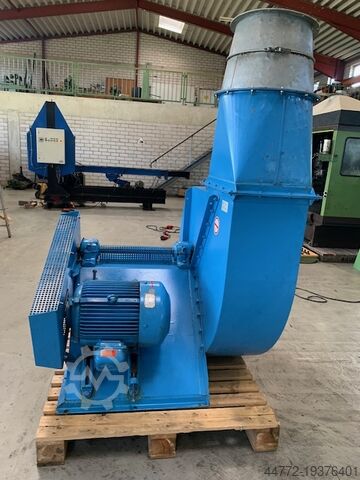

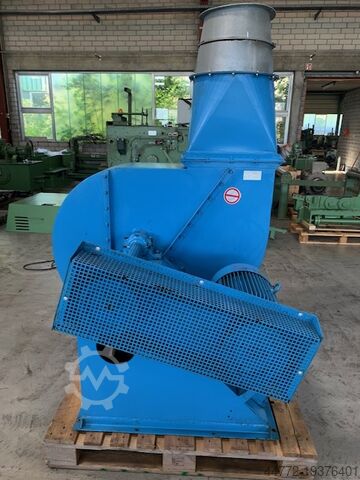

Condition: good (used), Radial fan, radial ventilator, radial blower, chip extraction fan, fan, extraction, chip blower, high-performance fan -Manufacturer: Schuko, radial fan chip extraction fan type K 350 -Volume flow: 9690 m³/h Fjdpfx Asv Ni Uwsfuogh -Total pressure: 3038 Pa -Motor: AEG 18.5 kW 1460 rpm -Connection input: Ø 350 mm -Connection output: Ø 360 mm -Base plate: 1000 x 340 mm -Fan wheel: Ø810 x 200 mm -Dimensions total: 1220/785/H1500 mm -Weight: 396 kg

Condition: good (used), Complete feed of gang saw Esterer HDN 600 Fjdsr Hmhnopfx Afujgh was recently removed due to conversion to frequency-controlled feed. immediately available Location: Austria, near Wels

Condition: good (used), Centering in front of creel or other saws. Fsdpfomhggujx Afusgh Lateral adjustment. Centering rollers. Lifting and lowering trough. Ideal also for model.

Condition: excellent (used), functionality: fully functional, Complete hydraulic feed unit for EWD Esterer creel type HDE. Fgjdpfx Afsrrxtpeujh Very well maintained. Infinitely variable from 0 - 12m / min.

Condition: good (used), Trak do drewna Esterer HDN600 przeswit 710mm skok ramy 600mm rozsuwane pily wozek podawczy hydrauliczny wozek pomocniczy urzdzenie rozdzielcze pila kapujaca Fedpfx Afsvpiukjujgh

Condition: good (used), Trak do drewna Esterer HDN600 przeswit 710mm skok ramy 600mm napinanie pil wozek hydrauliczny wozek pomocniczy urzadzenie rozdzielcze stan bardzo dobry Fodpfxjvnlb Ro Afuegh
