Drying kiln

Höcker Polytechnik

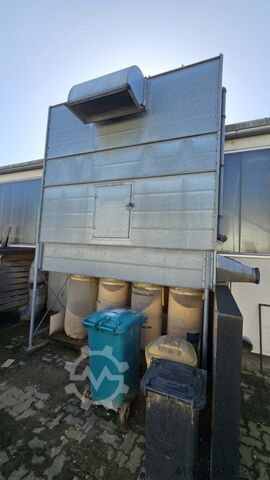

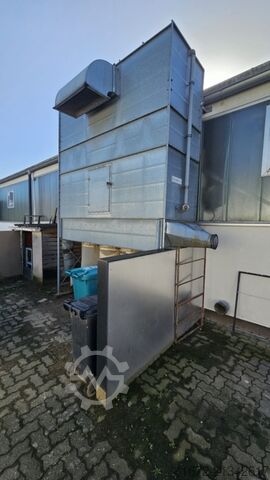

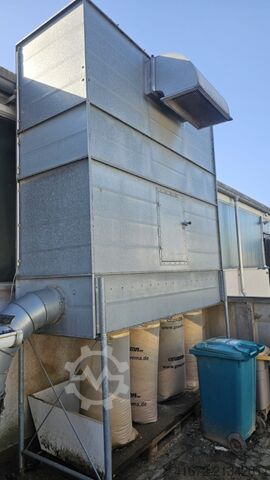

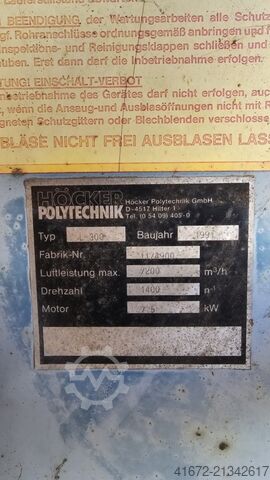

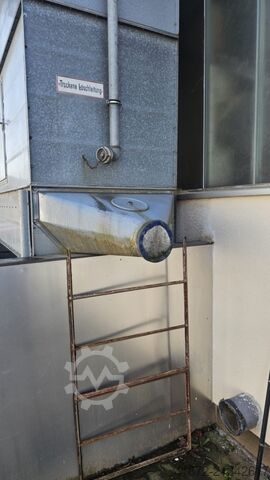

Condition: good (used), Year of construction: 1991, material Stahl weight 300 kg turning speeds 1400 U/min motor 75 kW The Höcker Polytechnik L 300 industrial blower, built in 1991, impresses with its robust construction and an impressive air flow rate of 7,200 m³/h. With a Hsdpsynmp Hefx Afcji 7.5 kW motor and a speed of 1,400 rpm, it is ideal for extraction and conveying tasks in workshops, production facilities, and filter systems. The fan runs reliably, is designed for durability, and comes from a renowned German manufacturer. Perfect for anyone looking for a solid and powerful solution for air and material transport.

Condition: used, Year of construction: 2009, Extraction diameter: 250 mm Rated volumetric flow: 3534 m³/h Filter area: 22.6 m² Motor: 5.5 kW Briquetting: throughput approx.: 30 kg/h Briquette diameter: 65 mm Motor: 3.0 kW Storage location: Nattheim Hjdpfxoydql Dj Afcei

Condition: like new (used), Year of construction: 2023, machine/vehicle number: DED000302, functionality: fully functional, operating hours: 5 h, power: 5.5 kW (7.48 HP), input voltage: 400 V, input current: 10 A, input frequency: 50 Hz, type of input current: three-phase, volume flow: 5,500 m³/h, noise level: 73 dB, total height: 2,500 mm, total length: 2,650 mm, total width: 1,030 mm, overall weight: 760 kg, extraction nozzle diameter: 250 mm, negative pressure: 2,950 Pa, rotational speed (max.): 3,000 rpm, We are selling a Höcker Polytechnik extraction system, model "Vacumobil VT250-L", year of manufacture 2023. Only 5 operating hours! The unit was used exclusively with our edge banding machine in the showroom and is in 100% working condition. The chip collection containers have never had to be emptied, as the machine was operated only minimally. ▪ Suitable for installation directly in the working area (depending on dust type) ▪ Low residual dust content < 0.1 mg/m³ (H3) in accordance with TRGS 553 ▪ 100% utilization of thermal energy through air recirculation ▪ Large discharge volume of 3 or 4 tonnes ▪ Online filter cleaning available (at additional cost) ▪ Height less than 2.5 m ▪ PLC control, standard with automatic start and text display ▪ Drive with IE3 efficiency class ▪ Optimized filter cleaning ▪ Integrated automatic fire suppression system ▪ Certified back-pressure flap integrated ▪ No explosion venting required for St1 dusts ▪ BG-certified filter material (separation efficiency 99.95%) ▪ Low energy consumption and high extraction performance The machine is available for immediate collection. No known defects. Warranty has expired. Hodsx N Tb Hopfx Afcji

Condition: excellent (used), Year of construction: 2016, functionality: fully functional, power: 7.5 kW (10.20 HP), input voltage: 400 V, input current: 32 A, input frequency: 50 Hz, type of input current: three-phase, volume flow: 6,000 m³/h, intake vacuum (max.): 2,700 mbar, suction capacity: 5,100 m³/h, intake manifold diameter: 300 mm, filter area: 28 m², noise level: 75 dB, actuation type: electric, overall weight: 900 kg, Equipment: CE marking, documentation/manual, Höcker extraction unit in very good condition, clean-air system designed for installation in the workshop (recirculation principle with no heat energy losses!). Filter renewal (total area 28 m²) with support baskets and fire extinguisher service scheduled for 2025. Optionally available with ducting (diameter 300 mm) up to connection point at the central extraction system. Mobile design. Additional features: Pneumatic jet cleaning (compressed air connection 4.5-5 bar), extinguishing device with dry powder extinguisher, chip/dust disposal via 4 mobile collection containers, simple insertion and removal of polyester needle felt filters (72 filter bags with support baskets). Dimensions: 3210 mm long, approx. 1200 mm deep. Hedoymw Udspfx Afcei Additional information available on request.

Condition: used, Total height 6500 mm Floor space 2000 x 2000 mm Outdoor installation Compact filter series Model PKFP – 1 element – 1.92 x 1.92 Shaking filter Overpressure operation Filter hose length 2500 m long – 180 mm diameter - then 105 m2 filter area 2 raw air fans – 2 pipes (diameter 300 mm) 1 x fan KT 300, 15 kW power 6361 m³/h built in 1999 1 x fan S 25 / 300, 7.5 kW power 7400 m³/h, built in 1993 1 x transport fan 6.1 kW, power 57 m³/min, built in 1996 Total approx. 14,000 m3/h volume flow Briquette press Höcker Polytechnik type BrikStar C 3 - 12. 1225 Motor 3.0 kW, briquette diameter 65 mm, output approx. 40-45 kg/h depending on the specific weight of the material. Hjdpfxovviyto Afcoi Storage location: Nattheim

Condition: excellent (used), Year of construction: 2000, For sale is a very well-maintained extraction system from Höcker Polytechnik. The system operates perfectly. Further details to follow… Including pipework. Dismantling can be arranged at an additional cost. Sale on behalf of a customer. Hsdpsylciwsfx Afcji Shipping available.

Condition: used, Year of construction: 2018, machine/vehicle number: 519553, Central extraction system Höcker Polytechnik with rotary valve and/or dust bins.(Option: rotary valve instead of dust bins) Manufacturer: Höcker Polytechnik Type: Multistar JQ6/5 131/20717A Year of manufacture: 11/2018 Dust properties: Dust and chips Material throughput: Unknown Jet cleaning of filters Volume flow: Approx. 22,000 m³/h Disposal type: Open Clean air duct: Air recirculation Residual dust content: 0.1 mg/m³ based on dust. 1 piece Filter system, galvanized - Year of manufacture 11/2018 - Multistar JQ6/5 131/20717A - Filter area: approx. 131m² - Filter bags: 120 - Filter bag diameter: 170mm - Filter bag length: 2,070mm - Filter cleaning Air Jet, compressed air - Filter housing made of galvanized sheet steel - Inspection door, access ladder, standing platform - Tested pressure relief areas - Raw gas section as large expansion chamber - Exhaust air connection according to local requirements - Filter base frame in welded steel construction, hot-dip galvanized. - Includes dry extinguishing line, C connection - *Optionally with 6 chip bins or large rotary valve*2 pieces Clean air fans DER 404/400/18.5-2 - Volume flow: 11,000 m³/h per fan - Directly driven fans - Galvanized sheet steel - Installed horizontally in Multistar series - Electrical power of each fan 18.5 kW - Total volume flow 22,000 m³/h - Total pressure increase: 4,600 Pa 1 piece Pipe components Air recirculation - Including galvanized ducts - Must be supplemented for a new location . 1 piece Hodpsya Idvofx Afcoi Control cabinet With PLC Siemens S7-1200 Dustproof sheet steel standard housing control cabinet as wall cabinet, built and completely wired, in accordance with VDE regulations 0100, 0113, and DIN 57113. The scope of delivery includes all components required for control components and the circuit igned for: · Jet cleaning control · Control of 2 fans · 6 automatic start-up of the fans when the machine starts · Pressure monitoring indicator light · 3 control butterfly valves · Rotary valve controlDimensions: - Length: 3,960 mm - Width: 3,380 mm - Height: 5,900 mm (may vary depending on equipment) Electrical connection value: - approx. 38 kW - 400 V/50 Hz - Control voltage 230 V AC/24 V DC Location at warehouse

Condition: ready for operation (used), Year of construction: 2012, functionality: fully functional, Exhaust system Hocker Polytechnik Type MultiStar JP5 Year: 2012 Capacity: 20,000 m³ Motor: 30 kW with briquetting press BrikStar C-3 18 Negative pressure Filter area: 121.3 m² Filter bags: 100 pieces Bag length: 2300 mm Hodpeyk Acbofx Afcji Bag diameter: 170 mm (externally pressurized) Compressed air connection: 6.0 bar, 1" Operating pressure: 4.5 bar Compressed air consumption: approx. 216 Nl per bag row, at a pulse duration of 200 ms Noise level - Jet extraction: approx. 75 dB(A), depending on local conditions Footprint, L x W: 2540 x 2420 mm Required space, L x W: 3500 x 3380 mm Connection, bottom: 2300 x 2300 mm inside Total height: 4430 mm Weight, approx.: 1960 kg Duct bend 90° 2mm Ø 900 x 800mm, 1 pc In bolted construction, made of galvanized sheet steel, 2 mm Duct dimension 1: 900 x 800 mm Duct dimension 2: 900 x 650 mm Shape: asymmetric 460406 Duct 2mm, 750mm long, 900 x 800mm, 2 pcs in bolted construction of galvanized sheet steel, 2 mm 1 blank cover 2mm 900 x 800mm 1 pc Y-piece for MS xP to BrikStar 1 pc 300 x 2300mm for existing briquetting press Manufacturer: Gross (approx. 1100 x 1100 mm / press height: 1260 mm)

Condition: used, Year of construction: 2025, As-new demonstration unit! List price €8,200, including control panel (operator side), pressure regulating valve LR 1/2. The key design features are: galvanized steel sheet construction; space-saving due to compact design; ATEX-compliant; FSA-tested for pressure shock resistance; low energy consumption with high performance thanks to high-efficiency clean-air fan fitted with special impeller; two large-capacity collection containers with liner bags, collection volume 350 l; high operational safety and extended service life due to BGIA-tested filter bags; compressed air pulse cleaning (‘jet’ cleaning) with time-dependent control for filter surface regeneration; Alpha control system with automatic start (slide control available for a surcharge); connection cable, 5 m long, with plug; residual dust content in exhaust air below 0.1 mg/m³; passed GS-H0-14 "GS-H3" test. Suction nozzle arrangement: left. Rated air flow*: 1,447 m³/h; max. air flow: 1,900 m³/h. Negative pressure at interface (at rated air flow): 3,500 Pa; (at max. air flow): 2,700 Pa. Filter surface: 10 m². Suction nozzle: 160 mm. Motor – fan: 2.2 kW, 400 V, 50 Hz, IE3. Collection volume: approx. 350 liters. Compressed air connection: 1" (on-site). Sound pressure level: 72.0 dB(A). Dimensions (L x W x H): 1,840 x 1,020 x 1,990 mm. Location: Hodpfx Ajx Hwqgefcji

Condition: used, Year of construction: 2000, functionality: fully functional,
