CNC lathe, with milling and sub spindle

HAAS DS-30

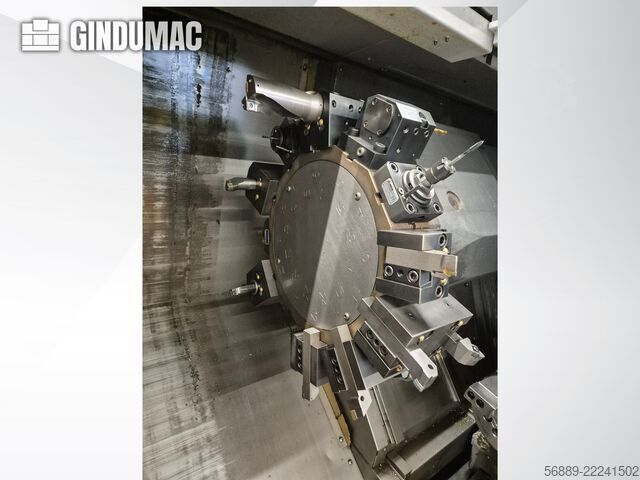

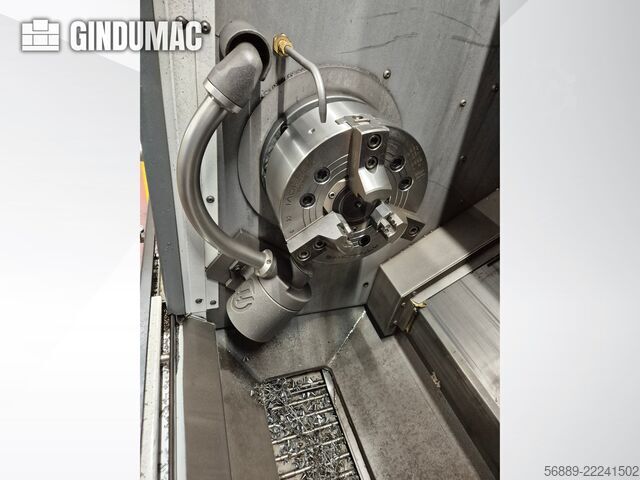

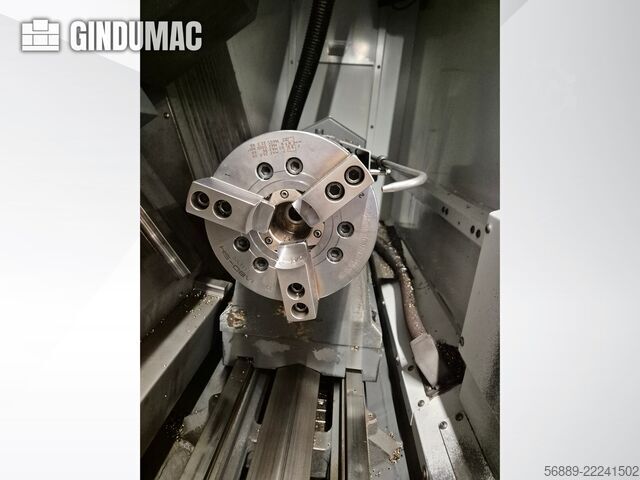

Condition: ready for operation (used), Year of construction: 2023, operating hours: 2,408 h, spindle speed (max.): 4,500 rpm, travel distance X-axis: 239 mm, travel distance Y-axis: 102 mm, travel distance Z-axis: 584 mm, spindle motor power: 22,400 W, overall weight: 5,534 kg, number of axes: 4, This 4-axis HAAS DS30Y horizontal turning machine was manufactured in 2023. It features a maximum part swing of 533 mm and a maximum cutting diameter of 349 mm. The machine is equipped with a robust turret that accommodates 12 tools, ensuring versatility in operations. If you are looking to get high-quality turning capabilities, consider the HAAS DS30Y machine we have for sale. Contact us for further details. • Capacities: • Chuck size (main): 10.0 in / 254 mm • Max part swing: 21.0 in / 533 mm • Max cutting diameter (with BMT65 turret): 13.75 in / 349 mm • Max cutting length (varies with workholding): 32.5 in / 826 mm • Bar capacity: 3.00 in / 76 mm • Between centers: 32.5 in / 826 mm • Feedrates (rapids): • X: 472 ipm / 12.0 m/min • Y: 472 ipm / 12.0 m/min • Z: 945 ipm / 24.0 m/min • Axis motors (max thrust): • X: 4100 lbf / 18238 N • Y: 2300 lbf / 10231 N • Z: 5100 lbf / 22686 N • Main spindle: • Spindle nose: A2-6 • Drive system: Direct speed, belt drive • Max torque: 275 ft-lbf @ 500 rpm / 373 Nm @ 500 rpm • Draw tube bore: 3.0 in / 76 mm • Spindle bore: 3.50 in / 88.9 mm • Main spindle C axis: • Max speed: 60 rpm • Max rating: 5.0 hp / 3.7 kW • Positioning (±): 0.01° • Brake diameter: 13.9 in / 353 mm • Brake holding torque: 250 ft-lbf / 339 Nm • Control type: Interpolated motion and positioning • Secondary spindle: • Chuck size: 8.3 in / 210 mm • Spindle nose: A2-5 • Drive system: Direct speed, belt drive • Max rating: 15.0 hp / 11.2 kW • Max speed: 4000 rpm • Max torque: 100 ft-lbf @ 870 rpm / 135.6 Nm @ 870 rpm • Spindle bore ø (non-through): 0.81 in / 20.7 mm • Secondary spindle C axis: • Max rating: 5.0 hp / 3.7 kW • Max speed: 60 rpm • Positioning (±): 0.01° • Brake diameter: 8.5 in / 216 mm • Brake holding torque: 140 ft-lbf / 190 Nm • Control type: Interpolated motion and positioning • Secondary spindle positioning (M119): • Positioning (±): 0.02° • Brake diameter: 8.5 in / 216 mm • Control type: Positioning only • Turret: • Number of tools: 12 stations • OD vs ID tools: Any combination (will vary with turret) • Boring bar rear clearance (from back of turret): 4.00 in / 102.0 mm • Live tooling: • Max speed: 4000 rpm • Drive ratio: 1:1 • Tooling: BMT65 • General: • Coolant capacity: 55 gal / 208 L • Air requirements: • Air required: 4 scfm @ 100 psi / 113 L/min @ 6.9 bar • Inline air hose: 3/8 in Ksdszh Eh Tjpfx Akwonb • Coupler (air): 3/8 in • Minimum air pressure: 80 psi / 5.5 bar • Electrical specification: • Spindle speed: 4500 rpm • Drive system: Direct speed, belt drive • Spindle power: 30.0 hp / 22.4 kW • Input AC voltage (3-phase) – low: 220 VAC; full load amps: 70 A • Input AC voltage (3-phase) – high: 440 VAC; full load amps: 35 A • Dimensions – shipping: • Domestic pallet: 171 in x 90 in x 98 in / 434 cm x 229 cm x 249 cm • Export pallet: 171 in x 90 in x 98 in / 434 cm x 229 cm x 249 cm Technical Specification Counter Spindle Yes Driven Tools Yes

Condition: used, Dual-spindle Haas DS-30Y with only 742 spindle hours — Y axis, full C axes and 6,000-rpm live tooling for complete machining in one setup. Factory-fitted with the ATP tool presetter, LCC3 chip conveyor and auto jet blast on the sub-spindle. Haas DS-30Y — Year of manufacture 2023 CNC CONTROL Controller: Haas Next Generation Control (NGC) X-axis travel mm: 239 Z-axis travel mm: 826 Y-axis travel mm: ± 51 Max. turning length mm: 826 Max. turning diameter mm: ø 349 Swing over bed mm: ø 533 Spindle bore / bar capacity mm: ø 88,9 / 76 Rapid traverse m/min: X/Y: 12 / Z: 24 Tool positions per turret: 12 Tool holder type (VDI / BMT / others): BMT65 Driven tools max. speed rpm: 6.000 MAIN SPINDLE Kodpfx Aszv T Nnokwsnb Max. spindle speed rpm: 4.500 COUNTER / SUB-SPINDLE Counter spindle max. speed rpm: 4.000

Condition: used, Year of construction: 2019, functionality: fully functional, feed length X-axis: 318 mm, feed length Y-axis: 51 mm, feed length Z-axis: 584 mm, number of spindles: 2, spindle speed (max.): 4,500 rpm, spindle bore: 51 mm, Equipment: cooling unit, documentation/manual, The DS-30Y Y-axis turning center combines turning with two spindles, a Y-axis, a C-axis, and powered tooling to create a powerful “one-hit” solution for any workshop. Milling, drilling, and off-center threading can be enhanced for increased machining capabilities. It comes standard with a 12-station BMT65 turret and a synchronized C-axis for versatile 4-axis capabilities. Counter spindles support fully synchronized rotation and enable workpiece transfer during operation to reduce cycle times. Kodozvy D Eepfx Akwsnb Spindle | CHUCK-10"-A2-6 4.8K-20HP-A2-5-DS | CHUCK-8.3"-A2-5 LT-BMT65-12 Live Tooling 4000 rpm CONVEYOR ATP Automatic Tool Presetter PCAT Part Catcher HPC High-Pressure Coolant CABCOOL NGC | 1GB, ETHERNET, WIFI, EPFDM SO, MACRO, RTAP, 8M

Condition: like new (used), Year of construction: 2015, operating hours: 3,300 h, functionality: fully functional, Machine in excellent condition, like new, only 3300 hours. Machine weight 7259,5 kg Max. working length 584,2 mm Max. working diameter 406,4 mm Swing over bed 807,7 mm Ksdpfx Akozmu Utjwjnb Axe X: 317,5 mm Axe Z: 584,0 mm Spindle boring 88,9 mm Number of tool positions 24 Speed 4800 rpm Main motor output 14,0 kW 3-jaw chuck 250mm With opposite spindle. Y axe +/- 50,6mm - live tools in all positions C axe Including automatic bar feeder - max. bar diameter 79mm - max. bar length 1520mm

Condition: ready for operation (used), Year of construction: 2013, operating hours: 9,554 h, spindle speed (max.): 4,500 rpm, travel distance X-axis: 239 mm, travel distance Z-axis: 826 mm, spindle motor power: 22,400 W, number of axes: 4, This 4-axis HAAS DS-30SSY was manufactured in 2013. It features Y-axis milling capability, a sub-spindle, and live tooling, enhancing its versatility for various machining tasks. The machine includes a 12-station bolt-on turret and comes equipped with a chip conveyor and mist collector. If you are looking to get high-quality turning capabilities, consider the HAAS DS-30SSY horizontal turning machine we have for sale. Contact us for further details. • Condition: In good condition • Usage: Motion Time 54,567 h; Servo Time 62,795 h • Spindles: Dual spindle (sub-/counter spindle; rarely used) • Turret: 12-station bolt-on turret (BMT65 style) • Capabilities: Y-axis milling, live tooling • Electrical: 360–480 V, 3-phase, 50/60 Hz; Full load amps 40 A; Largest load 70 A; Short-circuit interrupting capacity 10,000 A Additional equipment • Chip conveyor (Jorgensen) • Mist collector: SARA Ultra-Jet 2 SD Kjdpfxoy R Dikj Akwonb • Parts catcher • Coolant hose • Foot pedals • Samchully MH-206V1 as a counter-spindle chuck Technical Specification Counter Spindle Yes Driven Tools Yes

Condition: ready for operation (used), Year of construction: 2023, operating hours: 1,775 h, spindle speed (max.): 4,500 rpm, travel distance X-axis: 239 mm, travel distance Y-axis: 102 mm, travel distance Z-axis: 584 mm, spindle motor power: 22,400 W, number of axes: 4, This 4-axis HAAS DS30Y horizontal turning machine was manufactured in 2023. It features a maximum part swing of 533 mm and a maximum cutting diameter of 349 mm. The machine is equipped with a robust turret that accommodates 12 tools and offers a maximum cutting length of 826 mm. If you are looking to get high-quality turning capabilities, consider the HAAS DS30Y machine we have for sale. Contact us for further details regarding this machine. • Capacities (S.A.E / Metric) • Chuck size: 10.0 in (254 mm) • Max part swing: 21.0 in (533 mm) • Max cutting diameter (with BMT65 turret): 13.75 in (349 mm) • Max cutting length (varies with workholding): 32.5 in (826 mm) • Bar capacity: 3.00 in (76 mm) • Between centers: 32.5 in (826 mm) Knedpfx Akozhwx Djwjb • Feedrates (S.A.E / Metric) • Rapids on X: 472 ipm (12.0 m/min) • Rapids on Y: 472 ipm (12.0 m/min) • Rapids on Z: 945 ipm (24.0 m/min) • Axis Motors (S.A.E / Metric) • Max thrust X: 4100 lbf (18,238 N) • Max thrust Y: 2300 lbf (10,231 N) • Max thrust Z: 5100 lbf (22,686 N) • Main Spindle (S.A.E / Metric) • Spindle nose: A2-6 • Drive system: Direct speed, belt drive • Max torque: 275.0 ft-lbf @ 500 rpm (373.0 Nm @ 500 rpm) • Draw tube bore: ø 3.0 in (76 mm) • Spindle bore: ø 3.50 in (88.9 mm) • Main Spindle C Axis (S.A.E / Metric) • Max speed: 60 rpm • Max rating: 5.0 hp (3.7 kW) • Positioning (±): 0.01° • Brake diameter: 13.9 in (353 mm) • Brake holding torque: 250 ft-lbf (339 Nm) • Control type: Interpolated motion and positioning • Secondary Spindle (S.A.E / Metric) • Chuck size: 8.3 in (210 mm) • Spindle nose: A2-5 • Drive system: Direct speed, belt drive • Max rating: 15.0 hp (11.2 kW) • Max speed: 4000 rpm • Max torque: 100.0 ft-lbf @ 870 rpm (135.6 Nm @ 870 rpm) • Spindle bore ø (non-through): 0.81 in (20.7 mm) • Secondary Spindle C Axis (S.A.E / Metric) • Max rating: 5.0 hp (3.7 kW) • Max speed: 60 rpm • Positioning (±): 0.01° • Brake diameter: 8.5 in (216 mm) • Brake holding torque: 140 ft-lbf (190 Nm) • Control type: Interpolated motion and positioning • Secondary Spindle Positioning (M119) (S.A.E / Metric) • Positioning (±): 0.02° • Brake diameter: 8.5 in (216 mm) • Control type: Positioning only • Turret (S.A.E / Metric) • Number of tools: 12 stations • OD vs ID tools: Any combination (will vary with turret) • Boring bar rear clearance (from back of turret): 4.00 in (102.0 mm) • Live Tooling (S.A.E / Metric) • Max speed: 4000 rpm • Drive ratio: 1:1 • Tooling: BMT65 • General (S.A.E / Metric) • Coolant capacity: 55 gal (208 L) • Air Requirements (S.A.E / Metric) • Air required: 4 scfm @ 100 psi (113 L/min @ 6.9 bar) • Inline air hose: 3/8 in • Coupler (air): 3/8 in • Air pressure min: 80 psi (5.5 bar) • Electrical Specification (S.A.E / Metric) • Drive system: Direct speed, belt drive • Spindle power: 30.0 hp (22.4 kW) • Input AC voltage (3 phase) - Low: 220 VAC; Full load amps (Low): 70 A • Input AC voltage (3 phase) - High*: 440 VAC; Full load amps (High*): 35 A • Dimensions - Shipping (S.A.E / Metric) • Domestic pallet: 171 in x 90 in x 98 in (434 cm x 229 cm x 249 cm) • Export pallet: 171 in x 90 in x 98 in (434 cm x 229 cm x 249 cm) Additional equipment • Bar feeder Technical Specification Counter Spindle Yes Driven Tools Yes
