Tool Cutter Grinder

HAAS Multigrind

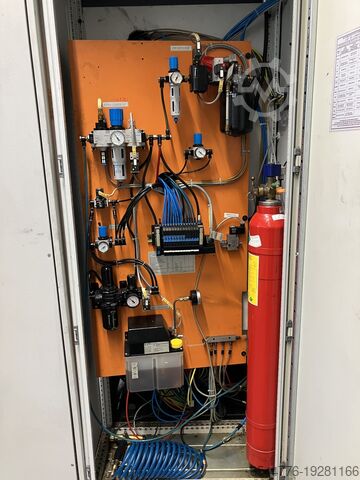

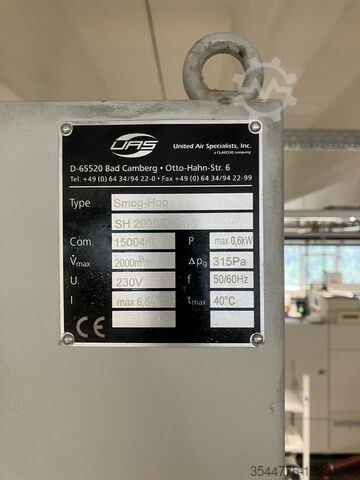

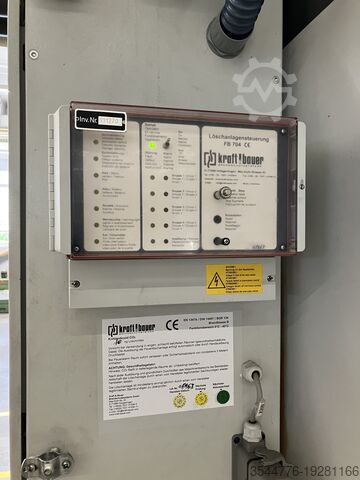

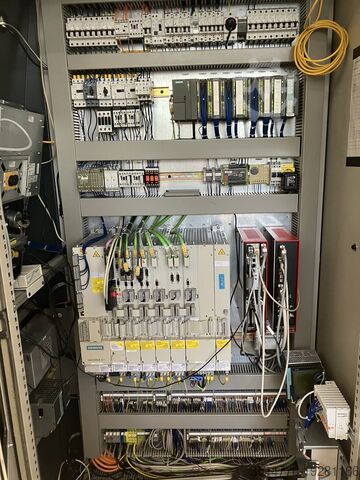

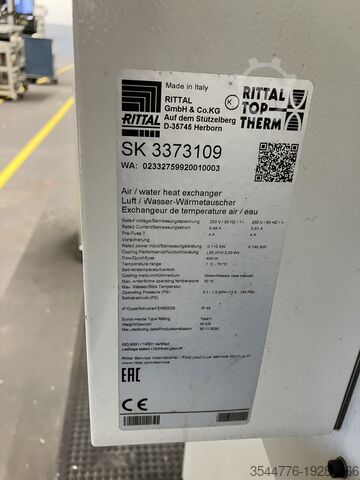

Condition: refurbished (used), Year of construction: 2006, Completely overhauled Haas Multigrind HT grinding machine available from Q4/2025 Suitable for resharpening hobbing cutters / worm gear cutters / cutting rotors / notching cutters / industrial knives / circular knives / slotting wheels / skiving tools / deep-hole drills and other workpieces / components Control: Siemens 840 D X-axis: 650 mm Y-axis: 400 mm Z-axis: 280 mm A-axis (indexing unit): 360° SK50 C-axis (rotary table): 270° X3-axis electric with tailstock Grinding spindle: HSK50 or HSK80 available Dressing unit Tool changer: 10-position magazine disc Coolant system: Turbo separator Nsdpemk Hhcofx Afxjlh Extraction unit: LTA CO2 fire suppression system Additional accessories available ex works Customer-specific software on request Pre-acceptance at the factory, commissioning, training, and final acceptance at the customer’s site Financing / leasing options available Modification requests possible

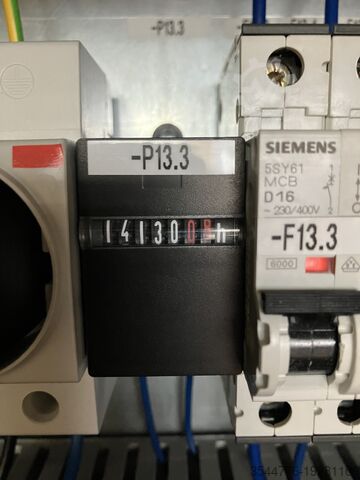

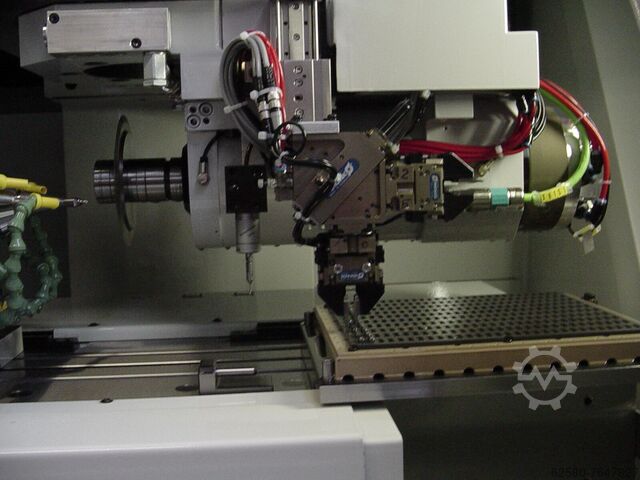

Condition: good (used), Year of construction: 2005, operating hours: 114,129 h, functionality: fully functional, machine/vehicle number: 2820, Control: Siemens Sinumerik Software: Haas Software 7.3 Number of axes: 6 (X, X3, Y, Z, C, A) Grinding spindle: - Infinitely variable up to 8,000 rpm - Haas short taper - Grinding wheel diameter max. Ø200 mm Workpiece spindle: - Up to 1,000 rpm - Center height 175 mm - Collet 3409 - SK50 tool taper - Through hole Ø28.5 mm - Workpiece weight up to 2.5 kg - Indexing accuracy +/- 3.5 angular seconds - Input increment 0.001° Workpiece support: Linear axis X3 with bushing holder Feed drives: - Linear axes with ball screw spindles - Direct position measurement with resolution 0.0001 mm Workpiece dimensions (drills): - Ø 0.8 - 15.0 mm - Overall length 20 - 380 mm - Grinding length 10 - 360 mm - Workpiece weight max. 2.5 kg Chain magazine: - 42 stations - Ø 0.8 - 15.0 mm - Length 80 - 250 mm - Workpiece weight max. 1.5 kg Stack magazine: - Suitable for stack magazine for indexable inserts CCD area camera measuring system: - Tool indexing and positioning by cooling channel (from Ø 0.8 mm) - Measurement of opening angle - Indexing of multi-flute drilling and reaming tools Renishaw probe: - Touching off workpiece length / tool tip - Scanning flute lead angle - Positioning in a coolant hole at the tool tip Electrical connection: - 63A pre-fuse - Supply voltage 400 V - Frequency 50 Hz - Control voltage 24 V - Rated power 21 kW Weight: 8 t Incl.: - Control cabinet cooling: water-water heat exchanger - Fire protection system: Kraft and Bauer extinguishing system - Extraction: Büchel Smog-Hog SH 2000/T - Dressing unit (stationary dresser) - Workpiece retainer ----- Operating procedure for drills: - Manual loading of the chain magazine outside the machine enclosure - Workpiece feeding by automatic handling system - Workpiece clamping by automatic collet chuck - Positioning of workpieces in the working area - Workpiece machining - Automatic return of the workpieces on a driven discharge conveyor Operating procedure for solid carbide indexable inserts: - Manual loading of the stack magazine in the working area - Workpiece feeding by automatic handling system - Automatic clamping using special clamping device - Positioning of workpieces in the working area - Workpiece machining - Automatic return of finished workpieces to the storage system Drill grinding: - Grinding flute profile Nledjwpqkropfx Afxoh - Grinding point - Grinding outer contour - Grinding relief - Grinding circumferential margin - Cylindrical grinding Indexable insert grinding: - Grinding seating surface and pin ----- There are two additional identical machines for sale!

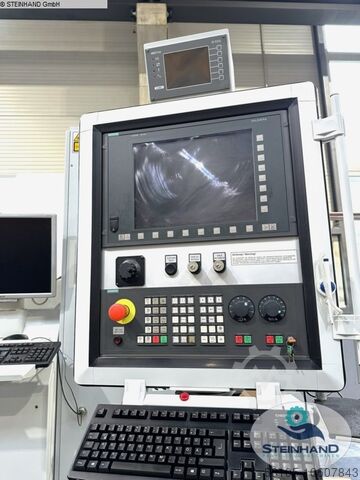

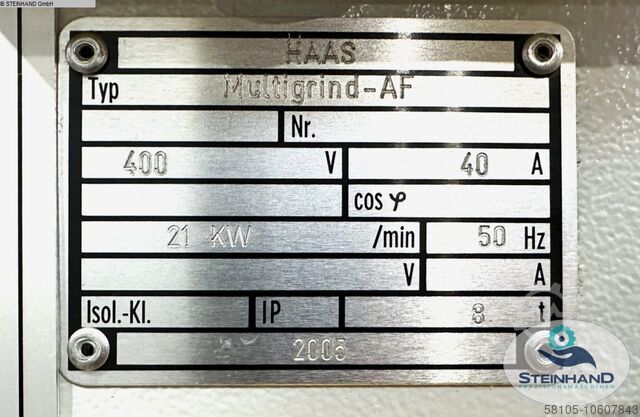

Year of construction: 2006, condition: used, centre height 175 mm centre distance 300 mm number of spindle speeds 2.000 - 8.000 control SIEMENS 840D machine weight ab. 7.500 kg surface area 1.000 x 270 mm number of T-slots 3 groove width 12 H7 mm flute distance 50 mm spindle diameter in front bearing 55 mm Tool and Cutter Grinder | HAAS - MULTIGRIND AF1 Additional equipment: - Tool laser measuring system: Blum - Lasersystem MINI-MICRP-NANO The machine is in a well-maintained condition. Nsdpfx Asmd Didefxslh Please refer to further technical details in the attachement of the offer. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags: AF 1 | AF-1

Condition: like new (used), Year of construction: 2010, Haas Multigrind CB multi axis CNC grinder, 12 station, Siemens Sinumerik 840D control, load / unload, LTA industrial air cleaning unit, (2010) Nsdpev Igg Ijfx Afxelh Full machine specification can be seen on the photographs or can be seen sent via email.

Condition: refurbished (used), Year of construction: 2005, Equipment of the retrofit machine can still be freely selected. Suitable for the production of profile plates, milling tools, dental tools, circular knives and blades, styluses (also CBN) and other tools / components Control: Siemens 840 D X-axis 540 mm Y-axis 300 mm Z-axis 300 mm A-axis (dividing head) 360° C-axis (rotary table) 255° Grinding spindle: HSK50 Tool changer: 4-way Coolant system: Turbo Separator Extraction: LTA CO2 extinguishing system Other accessories: Available from the factory Automation: Available Nedpfjilpwxsx Afxjlh Software: Available to customer specifications Pre-acceptance at the manufacturer's factory Commissioning, training and final acceptance at the customer's site Financing possible!
