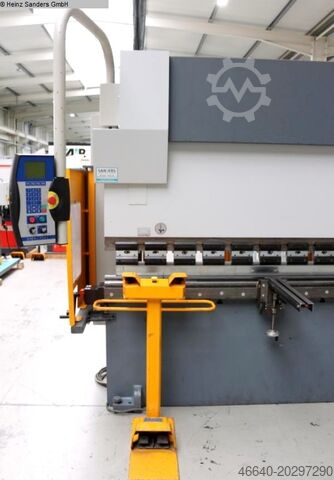

Hydr. pressbrake

HACO ERMS 30-135

pressure 135 t
chamfer lenght 3100 mm
distance between columns 2600 mm
column arm 250 mm
back stop - adjustable 600 mm
Gsdpfxsxnqwme Afpjuh
stroke of upper beam 200 mm
dayligth 400 mm
table height 915 mm
working feed 10.0 mm/sec
return speed 80.0 mm/sec
Control ATS 570
total power requirement 15.0 kW
weight of the machine ca. 7800 kg
machine from a maintenance workshop
good condition (!!)

Features:
- CNC electro-hydraulic press brake
- HACO CNC control model “ATS 570”
* Dustproof 5" monochrome LCD screen
* Memory for 200 programs with a maximum of 400 sets each
* “Teach-in” programming of the immersion depth
* Jog function for backgauge
* Target/actual input for backgauge position
* Piece counter
- CNC electric motor backgauge (X axis)
* With 2x manually adjustable stop fingers (R+Z axis)
* Max. travel range .. 600 mm
* Max. travel speed .. 400 mm/sec
* Backgauge programmable with an accuracy of 0.1 mm
- Manual table crowning incl. analog value display
- Upper tool adapter, with wedge crowning (AMADA system)
* 1x set of split upper tools
- Lower tool rail for AMADA system tools
* 1x set of split 4V dies (16/22/35/50 mm opening)
- 2x front - movable support arms
* including 1x additional set of support arms as spare
- Protective device at the rear + side (swiveling + sliding doors)
- 1x freely movable double foot switch
- Operating instructions for machine + control (PDF)
