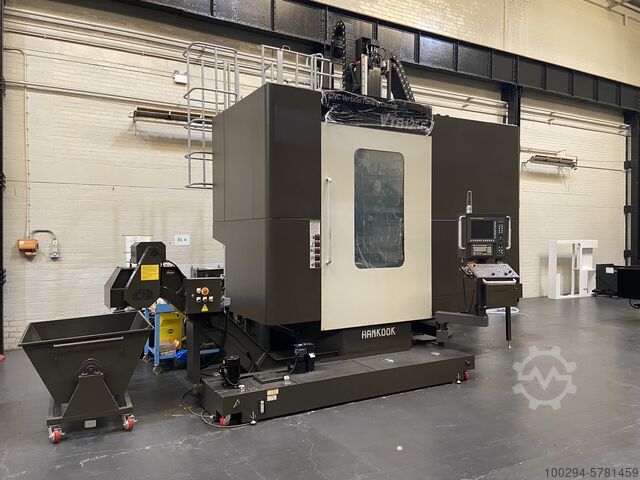

Vertical Turning lathe

Hankook VTB125E

Condition: like new (used), Year of construction: 2018, operating hours: 50 h, functionality: fully functional, Heavy Duty Elevating Crossrail Ram Type CNC Vertical Boring and Turning Machine with Hardened & Ground Box Guideways CAPACITY Maximum Turning Diameter - Ø 1,600mm Maximum Turning Height - 1,400mm Maximum Torque - 17,885 Nm Maximum Cutting Force - 3,000 kgf Ffodpjuu Rybjfx Aamsw Maximum Workpiece Weight - 8,000 kg TABLE Table Diameter - Ø 1,250 mm Table Speed - 0.9 ~ 360 RPM Table Speed Range - Automatic 2 Step RAM HEAD Tool Size - 32 mm² Spindle Taper - ISO 7/24 #50 Ram Cross Section - 220mm² TRAVEL AND FEEDRATE X-Axis Travel (Saddle Horizontal) - 1,060mm Z-Axis Travel (Ram Vertical) - 900mm Vertical Travel of Cross Rail - 700mm Maximum X / Z-Axis Cutting Feedrate - 7,500mm / Min X / Z-Axis Rapid Feedrate - 7,500mm / Min Cross Rail Rapid Traverse - 300mm / Min ATC Type of Tool Holder - MAS BT 50 12 Tool Magazine Capacity Maximum Tool weight - 50kg MOTOR Table Motor (Cont. / 30 min) - AC 37.0 / 45.0 kW X / Z-Axis Servo Motor AC - 7.0 kW POWER SOURCE Input Power Supply - 415V / 50Hz / 3PH Power Capacity - 80 kVA DIMENSIONS AND WEIGHT Height - 5,290 mm External Width (With Chip Conveyor) - 6,760mm External Depth - 4,565m Weight - 25,800 kg STANDARD SUPPLIED MACHINE FEATURES Fanuc 32i-A Control System Table, Servo Drives And Motors 4 Jaw Independent Chuck Automatic Tool Change System Lubrication Oil Cooler Hydraulic Power Unit Automatic Lubrication System For Guides Coolant System And Wash Gun Foundation Bolts And Nuts Tool Box Through Tool Coolant Operator And Programmer Manuals Splash Guard And Safety Guard Rail X-Axis Slideway Protect Steel Cover Work Light Patrol Lamp (Red, Yellow And Green) NC Power Off Chip Pan Levelling Blocks Electrical And Mechanical Manuals FANUC 32I CNC

Condition: excellent (used), Year of construction: 2005, functionality: fully functional, travel distance X-axis: 2,000 mm, travel distance Y-axis: 1,000 mm, travel distance Z-axis: 1,100 mm, Rotary table 1,250 x 1,400 mm (interference circle 1,700 mm) Heidenhain 530 Diagonal milling head with 1° x 1° indexing Speed up to 5,000 rpm Tool holder SK50 Tool changer with 40 positions Internal coolant supply with 19 bar Chip conveyor in longitudinal direction Fodpsx Iuccsfx Aamjfw

Condition: ready for operation (used), Year of construction: 2009, functionality: fully functional, CNC Turning and Milling Center - DMG GILDEMEISTER - CTX gamma 1250 TC YOM: 2009, until 2011 showroom machine, from 2012 operating The machine can be inspected by appointment in the factory under power. Condition: Good (high accuracy), ready for immediate use. Spindle hours (August 1st, 2025): 9.580 h The heart of the machine is the integrated traveling column with turning milling spindle and interpolating B-axis. Machine basic data: * Part hollow clamping device (hydraulic) * C-axis * Cross slide above with turning/milling spindle as motor spindle, with hydraulic clamping in turning, tool holder: Capto C6 * Y-axis: +/- 200 mm * B-axis: +/- 120° * Disc-type tool magazine * Absolute, direct measuring systems in X-, Y-, Z1-axis * USB-interface, Ethernet interface TECHNICAL SPECIFICATIONS: * Control: Heidenhain CNC Pilot 4290, 3-D path control TURN PLUS Working area: * Swing diameter over bed: 630 mm * Turning diameter: 630 mm * Spindle distance: 1.510 mm * Bar diameter max.: 65 mm Main drive I: * Drive power (100% / 40% ED): 24 / 34 kW Fsdpfsw Hg Nljx Aamjfw * Speed range from - up to: - 5.000 rpm * Speed of the C-axis: - 5.000 rpm Turning/milling spindle: * Tool holder: Capto C6 * Spindle speed: - 12.000 rpm * Drive power (100% / 40% ED): 13.2 / 22 kW * Torque (100% / 40% ED): 60 / 100 Nm Tool magazine: * Number of tools: 36 * Dimensions of the machine approx. (Width/Depth/Height): 6.860 x 4.220 x 2.530 mm * Total weight of the machine approx.: 18,5 tons EQUIPMENT: * Well equipped … * No steady rest available * Documentation complete available. Detailed technical data sheet and information on equipment available on request. There is no guarantee for correctness and completeness of the technical details and and accessories.

Condition: used, Year of construction: 2014, travel distance X-axis: 3,000 mm, travel distance Y-axis: 1,200 mm, travel distance Z-axis: 1,500 mm, spindle speed (max.): 6,000 rpm, spindle speed (min.): 20 rpm, RepairFIT by Dornhöfer The Difference. Installation & Commissioning Included! TECHNICAL MAIN DATA Year of manufacture: 2014 Travel/Capacity: Longitudinal (X): mm 3,000 Transverse (Y): mm 1,200 Vertical (Z): mm 1,500 Clamping table/Clamping surface: Length: mm 3,200 Width: mm 1,000 Number of T-slots on table surface: pcs. 7 Fjdpfoygipaox Aamsfw T-slot size: mm 22H12 Reference slot: mm 22H7 Distance between slots: mm 140 Maximum transport load: kg 11,000 Paint: graphite grey RAL 7024 and agate grey RAL 7038 Tool holder: ISO 50, DIN 69871 AD Pull stud: DIN 69872 Form A Main drive: Maximum drive power, from 198 rpm: kW 30 Spindle speed range: Spindle speed: rpm 20-6,000 Maximum torque: Nm 935 Speed control: 3-stage (oil-cooled) with automatic changeover Feed rates: X, Y and Z axes mm/min: 2 – 15,000 Maximum rapid traverse speed: X, Y and Z axes mm/min: 25,000 Maximum feed force: X, Y and Z axes: N 22,000 Space requirements: Length approx. BT3200: mm 8,100 (without cross conveyor +1,280 mm) Height approx. (at Z = 1,500 mm): mm 3,800 Width approx. (at Y = 1,200 mm): mm 5,000 (with spacer 4,500 mm) Weight: approx. kg 20,200 Connected load: approx. KVA 52 HEIDENHAIN iTNC 530 HSCI Automatic MTE universal milling head Diagonal 2.5° x 2.5° Automatic tool changer with 40 positions 2 chip conveyors + cross conveyor Coolant system with 20 bar & through-spindle coolant RepairFIT is our proven offer for a profitable entry into our product lines. The machines available in this line are sourced through a strict selection process and undergo thorough inspection (Deep-Dive Check). After intensive cleaning, any identified obvious defects and faults are professionally repaired by our qualified service team.

Condition: ready for operation (used), Year of construction: 2008, functionality: fully functional, machine/vehicle number: 20194, travel distance X-axis: 4,000 mm, travel distance Y-axis: 1,200 mm, travel distance Z-axis: 1,500 mm, power: 49 kW (66.62 HP), Features High rigidity for heavy-duty machining Large table for oversized workpieces CNC control with HEIDENHAIN TNC 530 for precision operations Fedpfxox S Hgzs Aamsfw Automatic tool changer with 50 positions Centralized lubrication and hydraulic system

Condition: excellent (used), operating hours: 8,064 h, Brand : LAGUN Model : GBM-22E Type : CNC 5 EJES Cnc :HEINDENHAIN 530 Table dimensions : 2.200 x 1000 mm Number and width of T slot: 7 x 22 mm Distance between T slots: 140 mm Axis travels (X,Y,Z) : 2.000 x 1.200 x 1.000 mm Head type : Automático Spindle speed : 4.000 rpm Taper : ISO 50 DIN 2080 Main motor : 28 kw Continuusly variable speeds : 50➗ 4.000 Speed range : 2 Fjdpsyg R Absfx Aamsfw Rapid traverse : 10.000 mm/min Machine weight : 15 tn Electronic hand-wheel : Yes Working hours : Machine running: 22.924 h Control on : 23.132 h Automatic cycle: 8.064 h

Condition: excellent (used), Year of construction: 2018, operating hours: 26,811 h, functionality: fully functional, machine/vehicle number: -, turning length: 1,350 mm, turning diameter over cross slide: 715 mm, turning diameter: 550 mm, spindle motor power: 48 W, spindle speed (max.): 3,000 rpm, spindle bore: 106 mm, travel distance X-axis: 380 mm, travel distance Y-axis: 80 mm, travel distance Z-axis: 1,350 mm, mount diameter: 12 mm, total height: 2,346 mm, total length: 4,088 mm, total width: 2,129 mm, swing diameter over bed slide: 950 mm, overall weight: 10,400 kg, High specification machine with Fanuc 32iTB control. Many options including SMW Autoblok steady rest on programable Servo base, coolant through steady, high pressure coolant, enlarged left hand door to allow 920 mm swing workpiece (950 mm max). Various other options. New cost in 2018 over £200k. Ffedpfx Ajvz Ab Uoamjw

Condition: good (used), Year of construction: 1997, functionality: fully functional, machine/vehicle number: ABCM 1250/3, type of input current: three-phase, Gas burner for I-beams. Ffsdpfxjrbif Te Aamjw manufacturer - Peddinghaus Germany; type - ABCM 1250/3; control - Fagor; The device is connected and functional.

Condition: good (used), Year of construction: 2006, travel distance X-axis: 2,500 mm, travel distance Y-axis: 1,250 mm, travel distance Z-axis: 1,000 mm, Travel paths Longitudinal (X): 2500 mm Vertical (Y): 1250 mm Ffedpsykbxzsfx Aamsw Transverse (Z): 1000 mm Table size (rotary): Length: 1000 mm Width: 1000 mm Max. table load: 5000 kg T-slots: 6 x 22 mm H10 Drive power: 100% duty cycle, 24 kW Tool holder: ISO 50, DIN 69871 - AD Spindle speeds: 20 – 4000 rpm Torque: 479 Nm Feed rates (X, Y, Z): 10 – 10,000 mm/min Rapid traverse (X, Y, Z): 25,000 mm/min Weight: approx. 15,000 kg Equipment: - Internal coolant supply according to DIN 69871 Form AD, including minimum quantity oil lubrication with 15 different dosing levels via programmable M-functions; 20 bar - NC rotary table, size 1000 x 1000 mm, integrated as 4th axis into the CNC control. Max. load capacity 5000 kg, positioning accuracy ±5", table surface with 22 mm T-slots. - Chip conveyor for TA-D 25 - Tool changer Accessories - Front-mounted movable control pendant including Heidenhain iTNC 530 control (1 processor) - Portable electronic handwheel HR 420 with 3 m spiral cable (option) - 3D thermal expansion compensation - Automatically indexing milling head / 2 planes with 2.5° indexing (H200) (option) - Distance spindle nose to table edge: 250 mm - NC rotary table, size 1000 x 1000 mm, integrated as 4th axis into the machine control. Max. load capacity 5000 kg, positioning accuracy ±5", table surface with 22 mm T-slots - Coolant system with 150 l tank capacity, delivery pressure 5 bar, delivery rate 50 l/min, discharge via shower ring around spindle - Splash guard enclosure, fully enclosed on 4 sides with front sliding doors and an additional sliding door on the left side column and viewing windows on all 4 sides - Heidenhain drive motors on all axes with digital drive technology - INA linear roller guide system on all axes - Direct linear measuring system Heidenhain on all axes - Telescopic covers for X-axis guideways - Ball screws on X, Y, and Z axes - Automatic cycle lubrication for all axes and moving components - Electrical equipment by Siemens - Hydraulic system by Vickers

Condition: used, Year of construction: 2008, operating hours: 16,772 h, functionality: fully functional, travel distance X-axis: 4,000 mm, travel distance Y-axis: 1,200 mm, travel distance Z-axis: 1,500 mm, position of the milling head: Automatico 2,5ºx2,5º, spindle speed (max.): 4,000 rpm, table width: 1,000 mm, table load: 10,000 kg, table length: 4,200 mm, total height: 4,000 mm, total width: 3,500 mm, total length: 10,000 mm, overall weight: 21,900 kg, Milling machine LAGUN GBM42 Ffjdpfjyiu Rnox Aamow
