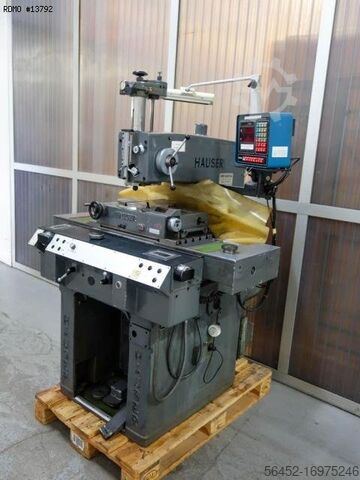

Jig boring machine

HAUSER OP3

Condition: excellent (used), functionality: fully functional, travel distance X-axis: 400 mm, travel distance Y-axis: 250 mm, travel distance Z-axis: 450 mm, spindle speed (max.): 3,000 rpm, spindle speed (min.): 60 rpm, table length: 550 mm, table width: 320 mm, table load: 400 kg, spindle mount: MK 2, total height: 1,750 mm, drill spindle length: 130 mm, total length: 1,400 mm, total width: 1,400 mm, rotational speed (min.): 60 rpm, rotational speed (max.): 3,000 rpm, distance between stands: 600 mm, quill travel distance: 130 mm, quill stroke: 130 mm, space requirement width: 2,100 mm, spindle motor power: 550 W, workpiece weight (max.): 400 kg, overall weight: 1,600 kg, number of previous owners: 2, Equipment: rotational speed infinitely variable, HENRI HAUSER OP3 – Unique piece / excellent condition! (Bienne/Biel, Switzerland) Coordinate drilling machine / gauge drilling machine in excellent condition, second owner (41 years in current ownership). Electrical system partially overhauled and modernized. Comprehensive tool package in new condition, including a HENKA tool cabinet. Machine can be purchased with or without tools. Price with tools + cabinet = 14,500 EUR (negotiable) Price without tools + cabinet = 10,900 EUR (negotiable) The coordinate drilling machine features the rare option of motorized table drive in the X and Y axes with potentiometers. This eliminates the need for laborious manual adjustment of the individual coordinates over long distances using hand cranks. Furthermore, it has rare thermal stabilization and expansion compensation. For this purpose, 2 heaters are provided, which can and must be switched on separately before starting work and to maintain high accuracy and dimensions. This explains the factory-high positioning accuracy of 0.002 mm with a resolution of 0.001 mm. What is unique is that the Hauser has two Heidenhain digital displays with a total of 4 glass scales with 1My resolution, including for the quill feed. This is a major advantage for precise drilling and facing in depth with Wohlhaupter, spindle tools, etc. With the options mentioned and in this first-class condition, it is very rare and most likely no longer available. Those familiar with these machines, which are primarily used in the watch industry, precision engineering, material testing, and the optical industry, know the value of these masterpieces of mechanical engineering. Also ideally suited for engine construction/overhaul, testing laboratories, technical universities and training, materials technology, special machine construction, etc. All documents, manuals, electrical wiring diagrams, etc. are, of course, available in their original form! Technical data: Table length 550 mm, table width = 320 mm, longitudinal travel X-axis = 400 mm, transverse travel Y-axis = 250 mm, vertical travel Z-axis = 400 mm Max. workpiece weight on the table = 400 kg, spindle connection MK 2, stroke of the drilling spindle (Z-axis) = 130 mm Distance table to spindle = 590 mm, spindle speeds continuously variable from 60 rpm to 3000 rpm Crodey Sx Nhjpfx Appoc Feeds: Drilling spindle carriage: 2 stages from 0.03 mm/rev to 0.06 mm/rev Connection 50 Hz 3x 380 Volt, spindle motor 0.80 hp Machine dimensions: Length = 1200 mm, width = 1150 mm, height = 1650 mm Machine weight approx. 1500 kg, weight of the tool cabinet with contents approx. 150 kg. Electrical system partially overhauled and modernized where necessary (see photos). Shipping (direct transport without reloading) within the EU is possible. Price net for export within the EU. Fair offers are welcome!

Condition: used, Field of view on the objective at 50 x: 11.2 x 9.2 mm Field of view on the objective at 100 x: 5.6 x 4.6 mm Crsdpfx Apeb Nxl Iopoc Projection area: 560 x 460 mm Objective stage size: 230 x 165 mm diameter of the glass table: 80 mm Weight approx.: 230 kg Space requirement: 1030 x 780 x 1800 mm

Condition: used, functionality: fully functional, travel distance X-axis: 400 mm, travel distance Y-axis: 250 mm, travel distance Z-axis: 400 mm, spindle speed (max.): 3,000 rpm, spindle speed (min.): 120 rpm, table length: 550 mm, table width: 320 mm, spindle mount: MK 2, total height: 1,500 mm, total length: 1,400 mm, total width: 2,100 mm, rotational speed (min.): 120 rpm, rotational speed (max.): 3,000 rpm, drilling capacity: 75 mm, distance between stands: 600 mm, spindle motor power: 551 W, For sale is a Hauser brand coordinate drilling machine of type OP3 The machine is ready for use and fully functional Technical data: HAUSER OP3 coordinate drilling machine Table: 550 x 320 mm Longitudinal travel: X-axis 400 mm Cross travel: Y-axis 250 mm Vertical travel: Z-axis 400 mm Cone in the spindle: MK 2 Drilling capacity in steel: 20 mm Stroke of the drilling spindle Z-axis: 130 mm Bore diameter: max. 75 mm Distance from table to spindle: 600 mm Spindle speeds: infinitely variable: 120- 3000 rpm Feed rates: Drill spindle slide: Number (steps) 2, 0.03 mm/rev 0.06 mm/rev Spindle motor: 0.75 HP Machine weight: approx. 1500 kg Dimensions: 1400x1500x2100 Transport and loading can be organized throughout Europe on request for an additional charge. Prices plus VAT Crsdpfjvzrx Nsx Appjc Viewings possible by appointment. Contact us, our team will be happy to help you. Trade-in or exchange possible! Machine purchase / sale PURCHASE / SALE OF PRODUCTION & METALWORKING MACHINES AND MUCH MORE. Do you need a high-quality but inexpensive metalworking machine for your production? Or do you want to sell yours? For more information or contact options, visit us on our website
