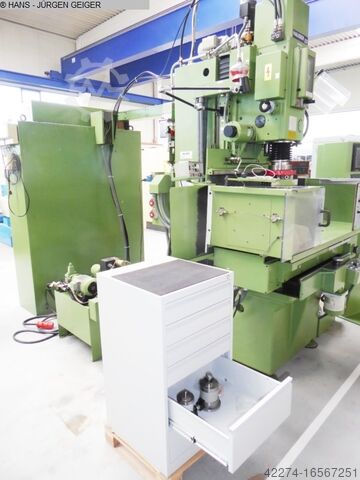

Jig Grinding Machine

HAUSER S 3 - CNC 314

Condition: used, Year of construction: 1990, x-travel 400 mm y-travel 250 mm workpiece height mm Control CNC 314 ELESTA Hjdpjt Hxcnsfx Aqgsfn total power requirement 15 kW weight of the machine ca. 5500 kg dimensions of the machine ca. m H A U S E R (Switzerland) CNC - Controlled High Precision Jig Grinding Machine Model S 3 – CNC 314 Year approx.. 1990 S/N 32086 _____ Table size, approx. 600 x 380 mm Max. load on table, approx. 300 kg Table travel, longitudinal, max. (X Axis) 400 mm Table travel, cross, max. (Y Axis) 250 mm Vertical adjustment of grinding head max. (W Axis) 450 mm Stroke of grinding spindle, max. (Z Axis) 120 mm Table Longitudinal and cross feeds (X/Y-Axis) 0 – 1.500 mm/min Speed of grinding head stroke 15 – 12.000 mm/min Vertical distance between table and grinding spindle, max. 0 – 485 mm Distance between grinding spindle and column 350 mm Conical grinding, up to max. 16 ° Grinding Ø bore approx. 230 mm Planetary speeds (C-Axis) 5 – 250 rpm U Axis, radial infeed 6 mm Total electrical load, approx. 15 kW - 400 V - 50 Hz Weight/Total weight approx. 4.000/5.500 kg Accessories / Special Features: • CNC Continuous Path Control, Model CNC 314, (ELESTA-POLESTA II) with new monitor,for 4 axes (XYC+U) in 2 1/2 dimension (XY+C) Interpolation with a free and easy programming for Linear and circle interpolation. Direct Input of data on keyboard, also loading data on RS 232 connection. There is also a handwheel control device for setting – up purposes. Manual feed correction during the working cycle possible. • Digital Read-out for the Z-Axis, Z-Axis as high speed stroke, also good for blind holes. • W Axis for vertical positioning of grinding head slide, • U Axis for the infeed cycles during bore grinding, grinds different bore-Ø automatically. • C Axis Feed for the of the Planetary Head, grinds radii and contours • 2 grinding motors HAUSER approx.. 22.500 to 60.000 rpm, with some collets and arbors • Built-on Acoustic Grinding Contact Display Device Model KSV 5. • Separate coolant unit with band filter. * Built-on fire extinguishing system. • Separate switch cabinet and control unit, Separate hydraulic unit with oilchiller, • Central lubrication, service tools, collets and grinding arbors/tools. Condition : Very good - Machine can be inspected under power commissioned by a Specialist. Delivery : Ex stock - as inspected under power. Payment : Net, after conclusion of contract

Condition: new, Year of construction: 2026, functionality: fully functional, workpiece weight (max.): 170 kg, grinding spindle speed: 45,000 rpm, spindle speed (min.): 5,000 rpm, spindle speed (max.): 45,000 rpm, clamping diameter: 140 mm, clamping length: 1,100 mm, warranty duration: 12 months, Workpiece Clamping Diameter : ø 3 – 140 mm (Optional: ø 210 mm) Workpiece Diameter : ø 3 – 310 mm Workpiece Length : 50 – 1.100 mm Centre Hole Diameter : ø 1 – 60 mm (Optional ø 100 mm) Hedswv Nq Ropfx Aqgsfn Workpiece Weight : max. 170 kg (Optional 1,000 kg) Center Hole Angle : 60 ° Accuracy : < 1 µm (Submicron accuracy) Spindle Speed : 5.000 – 45.000 rpm Grinding Cone Movements : 3+1 Rotation Orbital rotation Stroke movement +1 Workpeice rotation Quirlig Grinding Technique : Included (Cross-hatched grinding pattern) Semi-Auto Grinding Cone Dressing : Included Workpiece Rotation : Available (as a option) Dust Extraction And Filtration : Available (as a option) Grinding Process : Manual Sectors: : Precision Grinding, Aviation, Automotive, Machinery etc. Benefits: Sub-micron Precision: Achieve sub-micron (< 1 µm) precision in grinding thanks to Swiss engineering and a robust machine design. Sustainable Reliability: Ensure reliable and sustainable processing. Cost Efficiency & High Productivity: Benefit from lower production costs and high productivity due to a short grinding process and reduced production times for subsequent processes (cylindrical grinding). Quirlig Grinding Technique: Experience an optimized grinding process with the Quirlig Grinding Technique. Properly ground center holes that have cross-hatched grinding pattern. The cross-hatched grinding pattern ensures that oil is retained when the workpiece is placed between the centers during the cylindrical grinding process, creating a micro oil layer. The micro oil layer prevents unwanted "dry running" during cylindrical grinding. Low Maintenance Costs: Enjoy low maintenance costs throughout the machine's service life, thanks to Swiss-quality construction. The Zentroflex M-series center hole grinding machines are designed to deliver high-precision cylindrical grinding in the aviation, automotive, and machinery sectors. Additionally, the Zentroflex M-series is the ideal solution for recovering parts distorted after heat treatment or for reducing cylindrical grinding costs. Contact us for more details.

Condition: new,

Condition: new, Year of construction: 2026, functionality: fully functional, workpiece weight (max.): 170 kg, grinding spindle speed: 45,000 rpm, spindle speed (min.): 5,000 rpm, spindle speed (max.): 45,000 rpm, clamping diameter: 140 mm, clamping length: 1,100 mm, warranty duration: 12 months, Workpiece Clamping Diameter : ø 3 – 140 mm (Optional ø 210 mm) Workpiece Diameter : ø 3 – 310 mm Workpiece Length : 50 – 1.100 mm Centre Hole Diameter : ø 1 – 60 mm (Optional ø 100 mm) Workpiece Weight : max. 170 kg (Optional 1,000 kg) Center Hole Angle : 60 ° Accuracy : < 1 µm (Submicron accuracy) Spindle Speed : 5.000 – 45.000 rpm Grinding Cone Movements : 3+1 Rotation Orbital rotation Stroke movement +1 Workpeice rotation Quirlig Grinding Technique : Included (Cross-hatched grinding pattern) Grinding Process : Semi-Automatic, CNC Control Panel : Beckhoff CNC Movements : Z-Axis Indurstry 4.0 Compatibility : Available Semi-Auto Grinding Cone Dressing : Included Workpiece Rotation : Available (as a option) Dust Extraction And Filtration : Available (as a option) Sectors : Precision Grinding, Aviation, Automotive, Machinery etc. Benefits: Sub-micron Precision: Achieve sub-micron (< 1 µm) precision in grinding thanks to Swiss engineering and a robust machine design. Sustainable Reliability: Ensure reliable and sustainable processing. Cost Efficiency & High Productivity: Benefit from lower production costs and high productivity due to a short grinding process and reduced production times for subsequent processes (cylindrical grinding). Quirlig Grinding Technique: Experience an optimized grinding process with the Quirlig Grinding Technique. Properly ground center holes that have cross-hatched grinding pattern. The cross-hatched grinding pattern ensures that oil is retained when the workpiece is placed between the centers during the cylindrical grinding process, creating a micro oil layer. The micro oil layer prevents unwanted "dry running" during cylindrical grinding. Easy to Use CNC Control Panel: Benefit from very simple operation and grinding program recording with the Beckhoff control panel and Z-axis servo movement. Hjdpfjwhi Srex Aqgjfn Industry 4.0: Fully compatible with Industry 4.0 applications, thanks to the Beckhoff control panel. Low Maintenance Costs: Enjoy low maintenance costs throughout the machine's service life, thanks to Swiss-quality construction. The Zentroflex SA-series center hole grinding machines are designed to deliver high-precision cylindrical grinding in the aviation, automotive, and machinery sectors. Additionally, the Zentroflex SA-series is the ideal solution for recovering parts distorted after heat treatment or for reducing cylindrical grinding costs. Z-Axis movement is provided by servo motor in CNC form. The part is loaded-unloaded and clamped manually. Settings are made from CNC control panel and grinding is started by pressing the start button. No other manual setting or control is made during grinding. Contact us for more details.

Condition: used, Year of construction: 1964, Technical details: shaft diameter: max. 120 mm work piece - max.: 800 mm height of profile: Tiefe: max. 90 mm grinding spindle speed: nicht bekannt U/min Table dimensions: Ø 150 mm voltage: 380 V total power requirement: 1,1 kW weight of the machine ca.: 0,675 t dimension machine xH: 0,75 x 0,70 x 2,0 m Application: vertical internal cylindrical grinding of shafts face, and center grinding with shaft grinder. Spindle head technical details: -equipment shank grinder Ø 13mm 60°; clamping element Ø 6mm shank clamping head. -travel=vertical 950mm by handwheel and transversal 80mm by crank handle -abrasive device with diamond, adjustment crosswise= 80mm. Table other specifications: -with fixed tip holder 60°. -speed 63 / 125 rpm. -adjustment vertical 600mm, in height 1.100mm, operation manual. centering block: -prismatic guide Hfedpju Ngr Dsfx Aqgon accessories: -fixed tip L=180mm -fixed tip L=300mm -div. shank grinder -div. clamping and auxiliary tools *

Condition: used, TECHNICA ZSM 5100 center grinder for long shafts max L = 1000 Centering bore diameter 3 - 60 mm, workpiece clamping range 4 - 220 mm, workpiece length 50 - 1000 mm, workpiece weight max. 120 kg, centering bore angle 60°, grinding head adjustement max. 160 mm, grinding spindle speed 10000 - 45000 rpm, dressing stroke of the grinding disc dressing unit max. 40 mm Machine under power in our warehouse Mimu Machine Tools Gussago BS Italy Hodpfxjy Tp Dxo Aqgjfn

Condition: excellent (used), High frequency spindle Make Precise Type SC 60121 Speed 7500 - 30000 Hertz 250-1000 Volt 88-250 Hfodpfju Numvex Aqgon 13 kw Diameter 120 mm Total length 420 mm Weight 22 kg
