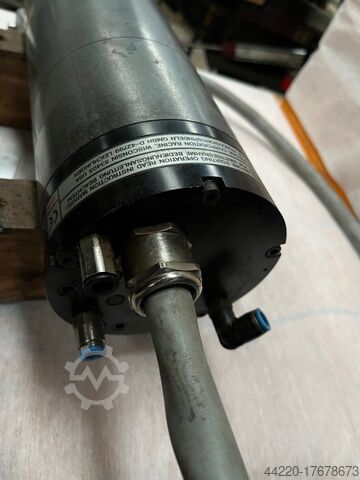

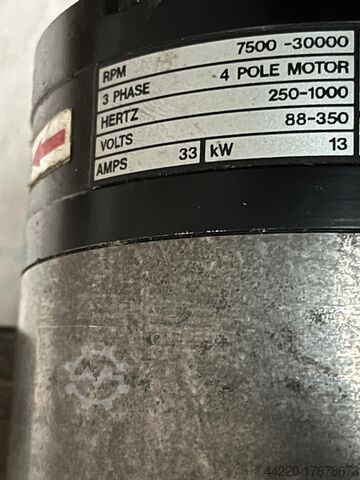

High frequency spindle

Condition: ready for operation (used), Year of construction: 2002, functionality: fully functional, travel distance X-axis: 3,250 mm, travel distance Y-axis: 1,220 mm, travel distance Z-axis: 125 mm, controller model: Homatic 2000 IPC, number of spindles: 28, spindle speed (max.): 24,000 rpm, TECHNICAL DETAILS Working area X-direction: 200 - 3,250 mm Pgsdjy A N Ucopfx Ag Dek Working area Y-direction: 70 - 1,220 mm Working area Z-direction: 12 - 125 mm (clearance 150 mm) Number of tool changer positions: 18 Spindles Total number of drilling spindles: 28 Vertical drilling spindles: 22 Horizontal drilling spindles in X-direction: 4 Horizontal drilling spindles in Y-direction: 2 Milling spindle power: 12 kW Milling spindle max. speed: 24,000 rpm C-axis: 360° interpolation MACHINE DETAILS Vacuum pump capacity: 100 m³/h Control model: Homatic 2000 IPC Control software: WoodWop 4.5 incl. MDE and production list software EQUIPMENT 4-axis Console table 8 supports in X, manually adjustable 3 vacuum suction cups per console Vacuum connection for templates Laser positioning aid for vacuum suction cups Laser projection for positioning the suction cups Liquid circulation cooling Operator terminal Note: Sale does not include the adapters, tools, and HSK holders shown in the images.

Condition: good (used), Centre bore 2- 50 mm Diameter of workpiece 8 - 125 mm Lenght of workpiece 50 - 1000 mm Grinding wheel speeds 13'000 - 45'000 rpm Psderivluspfx Ag Djgk Misc.accessories MARCELS MASCHINEN AG

Condition: ready for operation (used), Year of construction: 2005, operating hours: 60,683 h, functionality: fully functional, turning length: 1,524 mm, turning diameter: 820 mm, spindle speed (max.): 3,300 rpm, rapid traverse X-axis: 40 m/min, milling spindle speed (max.): 10,000 rpm, TECHNICAL DETAILS Turning length: 1,524 mm Turning diameter: 820 mm Travel X-axis: 870 mm Travel Y-axis: 500 mm Travel Z-axis: 1,598 mm Main spindle Max. spindle speed: 3,300 rpm Main spindle drive power: 30 kW / 22 kW Max. torque main spindle: 588 Nm Main spindle nose: A2-11" Spindle bore: 104 mm Indexing: 0.0001 Sub spindle Max. spindle speed: 3,300 rpm Sub spindle drive power: 30 kW / 22 kW Max. torque sub spindle: 588 Nm Sub spindle nose: A2-11" Indexing: 0.0001 Milling spindle Milling spindle drive power: 37 kW Max. torque milling spindle: 260 Nm Milling spindle speed range: 0-10,000 rpm Rapid traverse X-axis: 40 m/min Rapid traverse Y-axis: 40 m/min Rapid traverse Z-axis: 40 m/min MACHINE DETAILS Control: Mazatrol 640M PRO Tool holder: SK50 Number of tool stations: 120 Operating voltage: 400 V / 50 Hz Connected load: 104 kVA Required floor space (L x W): 7 x 3.5 m Operating hours: 60,683 h EQUIPMENT Infinitely variable speed adjustment 120-position tool magazine High-pressure coolant 70 bar Renishaw Laser measuring system for rotating tools Interface set Air / water cooling through the spindle Overload monitoring system Pedey Akpnepfx Ag Dogk Mayfran Consep 2000 chip conveyor SMW quick-change chuck

Condition: ready for operation (used), Year of construction: 2015, operating hours: 2,795 h, functionality: fully functional, travel distance X-axis: 1,500 mm, travel distance Y-axis: 1,500 mm, pump power: 2,200 W, The machine was overhauled in 2026 and serviced every 500 operating hours! Podpsyzz N Aefx Ag Djgk TECHNICAL DETAILS Working area X-axis: 1,500 mm Working area Y-axis: 1,500 mm Cutting capacity steel: 120 mm (recommended: 60 - 80 mm) Cutting capacity aluminium: 120 - 200 mm Cutting capacity plastic, stone etc.: unknown MACHINE DETAILS Pump output: 22 kW (30 HP) Last pump overhaul: 3 operating hours ago EQUIPMENT Spare parts Computer Water softening system

Condition: new, ROGI surface grinder type FSG-2050M Table size ----- 200 x 508 mm Pjdpfxjga T H So Ag Djgk Longitudinal displacement of work table ----- 530 mm Cross displacement of worktable ----- 220 mm Unloading ----- 450 mm Max. permissible workpiece weight ----- 180 kg Grinding stone ----- 220 × 20 × 31.75 mm Motor ----- 2.2 KW Weight ----- 1600 kg Dimension machine ----- 2300 x 2150 mm

Condition: ready for operation (used), Year of construction: 2016, machine/vehicle number: 306533, functionality: fully functional, cutting height (max.): 350 mm, cutting width (max.): 610 mm, overall weight: 550 kg, saw band length: 4,700 mm, TECHNICAL DETAILS Deflection pulley diameter: 630 mm Tool dimensions: 13 x 0.65 x 24 TPI Saw band length: 4,700 mm Loading height: 1,065 mm Cutting height: 350 mm Cutting width without rip fence: 610 mm Cutting width with fence: 150 mm Cutting speed: 10 - 100 m/min Table travel: 600 mm Table feed speed: 0.03 - 0.3 m/min MACHINE DETAILS Extraction connection diameter: 1 x 120 mm + 1 x 100 mm Pgjdpfx Agsyzy Drs Dok Required air velocity: minimum 25 m/s Required air volume flow: 1,725 m³/h Dimensions & Weight Dimensions (L x W x H): 1,850 x 1,200 x 2,300 mm Machine weight: 550 kg Motor power: 0.75 kW Operating voltage: 400 Volt / 50 Hz Power supply: 3 x 400 Volt Fuse protection: maximum 16 Amperes Minimum cross-section: 1.5 mm²

Condition: ready for operation (used), Year of construction: 2018, functionality: fully functional, machine/vehicle number: H18/X2090/202/00162, load capacity: 14 kg, arm reach: 1,000 mm, repeat accuracy: 0.03 mm, TECHNICAL DETAILS Load capacity: 14 kg Arm reach: 1,000 mm Repeatability: 0.03 mm Maximum rotation angle: 350° Maximum rotational speed: 16.8°/s Maximum linear speed: 0.6 m/s Psdoyzyxcjpfx Ag Djgk Platform positioning accuracy: 10 mm MACHINE DETAILS Dimensions & Weight Dimensions (without robot arm, W x D x H): 890 x 1,120 x 1,000 mm Total weight: 730 kg Power supply: 1 x 230 V / 16 A Battery capacity: 5.8 – 8.7 kWh Number of laser scanners: 3 Scan plane height: 150 mm Compressed air tank: 0.75 l / 7 bar Wrist protection rating: IP67 Arm protection rating: IP65 System protection rating: IP20 Average floor surface pressure max.: 10 N/mm² Drive type: Differential drive EQUIPMENT Tool parking station: 4 tools per station Tool changing system: MPS032 Navigation: based on laser scanner data Interfaces: WLAN, LAN, fieldbus Multi-coupling: compressed air, power supply, 2x Cat5e, 26 x 1 mm contacts Optical and acoustic signals: 4 LED units, storage for up to 16 audio files

Condition: used, Year of construction: 1964, Technical details: shaft diameter: max. 120 mm work piece - max.: 800 mm height of profile: Tiefe: max. 90 mm grinding spindle speed: nicht bekannt U/min Table dimensions: Ø 150 mm voltage: 380 V total power requirement: 1,1 kW weight of the machine ca.: 0,675 t dimension machine xH: 0,75 x 0,70 x 2,0 m Application: vertical internal cylindrical grinding of shafts face, and center grinding with shaft grinder. Spindle head technical details: Pedpfxou Ngr De Ag Degk -equipment shank grinder Ø 13mm 60°; clamping element Ø 6mm shank clamping head. -travel=vertical 950mm by handwheel and transversal 80mm by crank handle -abrasive device with diamond, adjustment crosswise= 80mm. Table other specifications: -with fixed tip holder 60°. -speed 63 / 125 rpm. -adjustment vertical 600mm, in height 1.100mm, operation manual. centering block: -prismatic guide accessories: -fixed tip L=180mm -fixed tip L=300mm -div. shank grinder -div. clamping and auxiliary tools *

Condition: ready for operation (used), Year of construction: 2014, functionality: fully functional, machine/vehicle number: 635949, load capacity: 210 kg, arm reach: 2,696 mm, repeat accuracy: 0.06 mm, number of axes: 6, TECHNICAL DETAILS Payload: 210 kg Arm reach: 2,696 mm Outreach: 2,696 mm Axes: 6 Repeatability: 0.06 mm Pgjdpfjyzyvhox Ag Dsk MACHINE DETAILS Control cabinet dimensions (L x W x H): 800 x 560 x 1,060 mm EQUIPMENT Robot Control cabinet Cables Teach pendant

Condition: ready for operation (used), Year of construction: 2008, operating hours: 27,167 h, functionality: fully functional, travel distance X-axis: 850 mm, travel distance Y-axis: 700 mm, travel distance Z-axis: 500 mm, controller model: Heidenhain iTNC 530, rotational speed (max.): 18,000 rpm, TECHNICAL DETAILS Travel X-axis: 850 mm Travel Y-axis: 700 mm Travel Z-axis: 500 mm Spindle speed: 18,000 rpm Tool holder: HSK-A63 Table type: NC-SRT 420 mm Table specification: Pallet clamping system Pallet changer: PW160, 400 x 400 mm MACHINE DETAILS Control: Heidenhain iTNC 530 Internal coolant supply: 80 bar Frequency: 50 Hz Operating hours: 27,167 h EQUIPMENT - Heidenhain DNC - DXF import - Kinematic Opt iTNC - Automatic cabin door - Additional magazine: ZM43 - Linear guides: Dynamic version - Rotary table axis: A-axis (not centered) - Manual cabin roof - Laminated safety glass window - Pallet storage - External MQL (minimum quantity lubrication) - Tool breakage monitoring A2 Blum - Heidenhain touch probe - Preparation for additional touch probe - Event Messenger - Tool identification HSK - Machine license TCS-Soflex - Electronic thermal compensation - Electronic hand control module - Oil mist extraction (prepared & with after-filter) - Flange for oil mist extraction Pgedpfx Aoyzyttjg Dok - Sealing air for measuring units - Chip flushing pistol - Machine bed flushing - Internal & external air blast - Signal light - Coolant filter type: Paper band filter for coolant system - Scraper belt conveyor - Test protocol: C 40 iTNC 530 PW160

Condition: new, Year of construction: 2026, functionality: fully functional, workpiece weight (max.): 170 kg, grinding spindle speed: 45,000 rpm, spindle speed (min.): 5,000 rpm, spindle speed (max.): 45,000 rpm, clamping diameter: 140 mm, clamping length: 1,100 mm, warranty duration: 12 months, Workpiece Clamping Diameter : ø 3 – 140 mm (Optional: ø 210 mm) Workpiece Diameter : ø 3 – 310 mm Workpiece Length : 50 – 1.100 mm Centre Hole Diameter : ø 1 – 60 mm (Optional ø 100 mm) Workpiece Weight : max. 170 kg (Optional 1,000 kg) Center Hole Angle : 60 ° Accuracy : < 1 µm (Submicron accuracy) Spindle Speed : 5.000 – 45.000 rpm Grinding Cone Movements : 3+1 Rotation Orbital rotation Stroke movement +1 Workpeice rotation Quirlig Grinding Technique : Included (Cross-hatched grinding pattern) Semi-Auto Grinding Cone Dressing : Included Workpiece Rotation : Available (as a option) Psdpfx Agswv Nq Rj Dsgk Dust Extraction And Filtration : Available (as a option) Grinding Process : Manual Sectors: : Precision Grinding, Aviation, Automotive, Machinery etc. Benefits: Sub-micron Precision: Achieve sub-micron (< 1 µm) precision in grinding thanks to Swiss engineering and a robust machine design. Sustainable Reliability: Ensure reliable and sustainable processing. Cost Efficiency & High Productivity: Benefit from lower production costs and high productivity due to a short grinding process and reduced production times for subsequent processes (cylindrical grinding). Quirlig Grinding Technique: Experience an optimized grinding process with the Quirlig Grinding Technique. Properly ground center holes that have cross-hatched grinding pattern. The cross-hatched grinding pattern ensures that oil is retained when the workpiece is placed between the centers during the cylindrical grinding process, creating a micro oil layer. The micro oil layer prevents unwanted "dry running" during cylindrical grinding. Low Maintenance Costs: Enjoy low maintenance costs throughout the machine's service life, thanks to Swiss-quality construction. The Zentroflex M-series center hole grinding machines are designed to deliver high-precision cylindrical grinding in the aviation, automotive, and machinery sectors. Additionally, the Zentroflex M-series is the ideal solution for recovering parts distorted after heat treatment or for reducing cylindrical grinding costs. Contact us for more details.

Condition: ready for operation (used), functionality: fully functional, Year of construction: 1997, operating hours: 76,447 h, machine/vehicle number: 605970300001, controller model: DOC 85C, number of axes: 5, overall weight: 1,500 kg, Equipment: bar feeder, TECHNICAL DETAILS Number of axes: 5 Average output: approx. 2,400 sheets/hour Bending capacity round tube R = 45 kg/mm²: 4 - 12.7 x 1.5 mm Bending capacity round tube R = 35 kg/mm²: 4 - 14 x 1 mm Bending capacity round tube Al/Cu/Brass: 4 - 18 x 1.25 mm Positioning speed X-axis: 2,000 mm/s Bending speed H/Z Y-axis: 500 °/s Rotation speed Z-axis: 900 °/s Rotation speed Z-axis: 100 °/s Positioning speed T-axis: 500 mm/s Measuring tolerance X/T-axis: 0.1 mm Measuring tolerance Y/Z/Q-axis: 0.1 mm Maximum reach at maximum acceleration X-Y-Z: 1,000 mm - 90/90/0 - with tube 18 x 1.25 mm MACHINE DETAILS Pjdpfx Agoyzyh Dj Dogk Control: DOC 85C Voltage: 380 V, 50 Hz Hydraulic pressure: max. 120 bar Machine weight: 1,500 kg Operating hours: 76,447 h EQUIPMENT BLM bar feeder BLM CARM 7 Note: The machine is sold without conveyor belt and safety fencing.

Condition: ready for operation (used), functionality: fully functional, Year of construction: 2008, machine/vehicle number: 611080402022, Equipment: bar feeder, TECHNICAL DETAILS Axis Speeds Positioning speed X-axis: 2,000 mm/s Bending speed Y-axis: 400 °/s Rotational speed Z-axis: 900 °/s Rotational speed R-axis: 110 °/s Positioning speed T-axis: 400 mm/s Tolerance Tolerance X-axis: ±0.05 mm Tolerance T-axis: ±0.05 mm Tolerance Y-axis: ±0.05° Tolerance Z-axis: ±0.05° Tolerance R-axis: ±0.05° Bending Capacity Round profile (R = 35 kg/mm²): min. Ø 4 mm, max. Ø 22 x 1.5 mm Round profile stainless steel: min. Ø 4 mm, max. Ø 20 x 1.5 mm Round profile (brass/aluminium/copper): min. Ø 4 mm, max. Ø 28 x 1.5 mm Average output: 1,700–2,000 bends/hour MACHINE DETAILS Hydraulics System Tank capacity: 80 l Pump delivery rate: 13 l/min Pressure MR200E: max. 140 bar Ambient Conditions Ambient temperature: 5 to 40 °C Storage temperature: max. 70 °C, 24 h Relative humidity: 5 to 75 %, 24 h Electrical Data Supply voltage: 400 V ±5 % Power type: Three-phase without neutral Frequency: 50 Hz ±0.1 % Connected load: 9.5 kVA Rated current: 15 A Pgedpfoyzya Tex Ag Dok Dimensions & Weight Dimensions (L x W x H): 3,400 x 1,100 x 1,530 mm Machine weight: 1,850 kg EQUIPMENT BLM bar feeder BLM CARM 7 Bar feeder weight: 650 kg Conveyor belt Note: The machine is sold without safety guards.

Condition: new, Year of construction: 2026, functionality: fully functional, workpiece weight (max.): 170 kg, grinding spindle speed: 45,000 rpm, spindle speed (min.): 5,000 rpm, spindle speed (max.): 45,000 rpm, clamping diameter: 140 mm, clamping length: 1,100 mm, warranty duration: 12 months, Workpiece Clamping Diameter : ø 3 – 140 mm (Optional ø 210 mm) Workpiece Diameter : ø 3 – 310 mm Workpiece Length : 50 – 1.100 mm Centre Hole Diameter : ø 1 – 60 mm (Optional ø 100 mm) Workpiece Weight : max. 170 kg (Optional 1,000 kg) Center Hole Angle : 60 ° Accuracy : < 1 µm (Submicron accuracy) Spindle Speed : 5.000 – 45.000 rpm Grinding Cone Movements : 3+1 Rotation Orbital rotation Stroke movement +1 Workpeice rotation Quirlig Grinding Technique : Included (Cross-hatched grinding pattern) Grinding Process : Semi-Automatic, CNC Control Panel : Beckhoff CNC Movements : Z-Axis Indurstry 4.0 Compatibility : Available Pjdpfx Ajwhi Srjg Degk Semi-Auto Grinding Cone Dressing : Included Workpiece Rotation : Available (as a option) Dust Extraction And Filtration : Available (as a option) Sectors : Precision Grinding, Aviation, Automotive, Machinery etc. Benefits: Sub-micron Precision: Achieve sub-micron (< 1 µm) precision in grinding thanks to Swiss engineering and a robust machine design. Sustainable Reliability: Ensure reliable and sustainable processing. Cost Efficiency & High Productivity: Benefit from lower production costs and high productivity due to a short grinding process and reduced production times for subsequent processes (cylindrical grinding). Quirlig Grinding Technique: Experience an optimized grinding process with the Quirlig Grinding Technique. Properly ground center holes that have cross-hatched grinding pattern. The cross-hatched grinding pattern ensures that oil is retained when the workpiece is placed between the centers during the cylindrical grinding process, creating a micro oil layer. The micro oil layer prevents unwanted "dry running" during cylindrical grinding. Easy to Use CNC Control Panel: Benefit from very simple operation and grinding program recording with the Beckhoff control panel and Z-axis servo movement. Industry 4.0: Fully compatible with Industry 4.0 applications, thanks to the Beckhoff control panel. Low Maintenance Costs: Enjoy low maintenance costs throughout the machine's service life, thanks to Swiss-quality construction. The Zentroflex SA-series center hole grinding machines are designed to deliver high-precision cylindrical grinding in the aviation, automotive, and machinery sectors. Additionally, the Zentroflex SA-series is the ideal solution for recovering parts distorted after heat treatment or for reducing cylindrical grinding costs. Z-Axis movement is provided by servo motor in CNC form. The part is loaded-unloaded and clamped manually. Settings are made from CNC control panel and grinding is started by pressing the start button. No other manual setting or control is made during grinding. Contact us for more details.

Condition: ready for operation (used), Year of construction: 2011, functionality: fully functional, machine/vehicle number: 111146, travel distance X-axis: 1,100 mm, travel distance Y-axis: 610 mm, travel distance Z-axis: 610 mm, rotational speed (max.): 10,000 rpm, controller model: Heidenhain 530, TECHNICAL DETAILS Travel X-axis: 1,100 mm Travel Y-axis: 610 mm Travel Z-axis: 610 mm Spindle nose to table: 120–730 mm Machine table: 1,250 x 610 mm T-slots in table: 5 T-slot width: 18 mm T-slot spacing: 100 mm Spindle speed: 60–10,000 rpm Torque: 332 Nm Power: 13 kW Spindle cooling: Oil-cooled Rapid traverse X/Y/Z: 32 m/min Feed rate: 1–12,000 mm/min Positioning accuracy: ±0.005 mm Repeatability: ±0.003 mm Tool holder: SK40 Pull stud: DIN 69871/72 Tool changer: 30 stations Tool-to-tool change time: 1.5 s Tool weight: max. 7 kg Tool diameter: max. 76 mm Pgsdpfx Agoyzxz No Dok Tool diameter with adjacent station free: max. 140 mm Tool length: max. 300 mm MACHINE DETAILS Control: Heidenhain 530 Compressed air: 3/8", 6–8 bar Power supply: 400 V / 75 A / 35 kVA Hydraulic oil: R32 (ISO 32) Central lubrication: R68 (ISO 68) Coolant tank: 250 l Guides X/Y/Z: Linear 45/45/45 mm Machine bed: Cast iron Machine weight: 7,500 kg EQUIPMENT IKZ 22 bar (internal coolant supply) Tool changer with 30 stations Oil-cooled spindle Central lubrication Coolant tank Linear guides X/Y/Z Chip conveyor Handwheel Note: The machine is sold without tools and vise.
