Wide-belt sander

HEESEMANN MFA 8

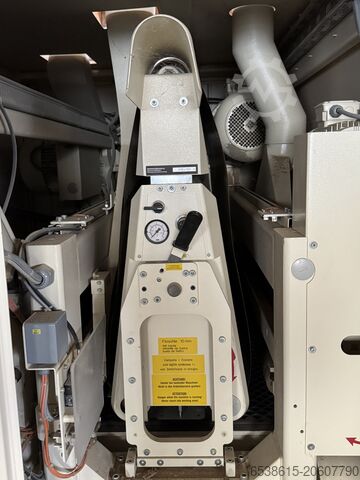

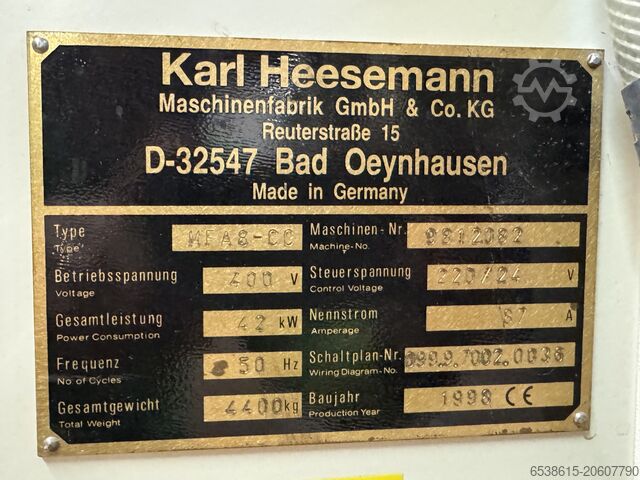

Condition: excellent (used), Year of construction: 1998, functionality: fully functional, machine/vehicle number: 98.12.082, grinding width: 1,300 mm, overall weight: 4,200 kg, working height: 880 mm, power: 38 kW (51.67 HP), grinding belt length: 2,100 mm, grinding belt width: 1,350 mm, Very well-maintained HEESEMANN MFA 8-CC Multi-Purpose Wide Belt Sander Heavy-duty column construction with transport bed and continuous feed belt, equipped with braking system, variable feed speed from 2–10 m/min, frequency controlled. Constant working height of 880 mm; machine upper section can be motor-adjusted according to workpiece thickness (3–140 mm). Integrated electrical cabinets included. Graphical touch screen operator terminal Program memory for saving sanding parameters for up to 20 different programs Cross-belt sanding unit: - Belt dimensions: 4800 x 150 mm - Belt speed: 12 m/s - Drive power: 11 kW - Maintenance-free braking system, complete segmented pressure belt system, pneumatic belt tensioning, workpiece-dependent belt blow-off system Longitudinal sanding unit: - Belt dimensions: 2100 x 1350 mm - Belt speed: 2 – 20 m/s, frequency controlled - Drive power: 15 kW - Maintenance-free braking system, pneumatic belt tensioning, automatic compensation for varying belt edge lengths, workpiece-dependent belt blow-off system, double number of air nozzles at belt blow-off, sanding belt operates against feed; includes calibrating unit on first longitudinal sanding unit, can be activated via terminal Pressure beam: - With computer-controlled selective pressure regulation system CSD offering stepless adjustment of individual pressure elements for flexible, multi-track feed; control roller spacing: 32 mm - Workpiece tolerance compensation up to at least 2 mm - Working width, as well as sanding start and end positions, are electronically controlled Brush roller unit: - Height adjustable, including extraction hood and pressure roller - Brush set: fibre type - Diameter: 150 mm - Drive power: 1.5 kW Operating voltage: 400 V, 50 Hz Aggregate arrangement: cross & longitudinal Belt support/operating side/feed gearbox: right Terminal: right Paint finish/machine: white RAL 9001 Paint finish/doors: blue, NCS 1060 R 90 B Workpiece vacuum clamping system: - Including cleaning device for the feed belt - Fan unit drive power: 5.5 kW Nedexy R Hrjpfx Agpedd The machine is operational and can be tested at any time. A forklift for loading is also available.

Year of construction: 1997, condition: good (used), - Working width (mm): 1300 Ndedpfx Aoidi Ivogpsd - CSD system - Cross sanding unit - Longitudinal sanding unit - Shoe - Brush unit - Ionization

Condition: used, 2 belt cross sander Heesemann MFA 8 for intermediate sanding of varnish and sanding of wood panels and other workpieces. working width: 1300 mm Clearance height: max. approx. 140 mm clearance height: max. approx. 140 mm Aggregate 1: cross-section Unit 1: Electronic print bar Aggregate 2: longitudinal grinding Unit 2: Cross-section Unit 3: longitudinal grind Ndsdpfx Agsxr N I Eopjd Unit 4: cleaning brush

Condition: good (used), Year of construction: 1994, functionality: fully functional, total width: 2,150 mm, total height: 2,250 mm, total length: 2,300 mm, grinding width: 1,300 mm, overall weight: 4,500 kg, power: 41 kW (55.74 HP), Wide Belt Sander The MFA 8 multi-purpose surface sander is used for sanding flat wood materials and/or painted flat wood materials. The sanding width is 1300 mm, the working height is a constant 880 mm. The maximum workpiece clearance is 140 mm. Nodpfx Agowlq Ntepedd The machine is equipped with cross- and longitudinal sanding units and a brush roller. All sanding units are equipped with intermittent sanding belt blasting. Sanding width: 1300 mm Motors: 41 kW 3 units (cross-sanding unit, sanding pad unit, and brush roller) digital and pneumatic control
