Control system

Heidenhain

Condition: excellent (used), Year of construction: 2012, functionality: fully functional, year of last overhaul: 2012, HEIDENHAIN TNC 530 CNC control complete with drives, remote handwheel, and HEIDENHAIN panel for tool change. Product is functional and in excellent condition. Rodpfx Aeyn I Dxsfcop

Condition: used, Control panel - TE 420 Redpfx Afoylz Npocjp ID 313 038-11 SN 10 605 646

Condition: used, HEIDENHAIN Control panel - TE 530 ID 519 441-11 Rsdpfx Afoylz Irocsp SN 17 594 567 A Condition: used (functional)

Condition: like new (used), Year of construction: 2018, operating hours: 4,500 h, functionality: fully functional, machine/vehicle number: 182129019, travel distance X-axis: 1,050 mm, travel distance Y-axis: 600 mm, travel distance Z-axis: 600 mm, rapid traverse X-axis: 40,000 m/min, rapid traverse Y-axis: 40,000 m/min, rapid traverse Z-axis: 40,000 m/min, total height: 2,692 mm, total length: 4,319 mm, total width: 2,226 mm, table width: 600 mm, table length: 1,200 mm, table load: 800 kg, overall weight: 7,000 kg, spindle speed (min.): 50 rpm, spindle speed (max.): 20,000 rpm, operating hours of spindle: 3,000 h, coolant supply: 20 bar, distance table to spindle center: 800 mm, distance table center to spindle nose: 700 mm, spindle motor power: 35 W, spindle nose: HSK A63, number of slots in tool magazine: 30, mount diameter: 125 mm, tool length: 300 mm, tool diameter: 70 mm, tool weight: 8 g, type of input current: three-phase, Equipment: chip conveyor, documentation/manual, rotational speed infinitely variable, VERTICAL CNC MACHINING CENTER AXILE MODEL V-6 TECHNICAL SPECIFICATIONS TABLE - TABLE DIMENSIONS: 1200 x 600 mm - SEVEN T-SLOTS, 18 mm, H8 Rodpfoylxnvjx Afcep - MAXIMUM PERMISSIBLE TABLE LOAD: 800 kg WORKING CAPACITY - X AXIS: 1050 mm - Y AXIS: 600 mm - Z AXIS: 600 mm - DISTANCE SPINDLE NOSE TO TABLE: 150 / 750 mm - DISTANCE SPINDLE AXIS TO COLUMN SURFACE: 800 mm SPINDLE HSK-A63 - SPINDLE DIAMETER: 70 mm - SPINDLE TAPER: HSK-63 - SPINDLE SPEED: 50 to 20,000 rpm - BUILT-IN SPINDLE MOTOR RATING: 25 / 35 kW - SPINDLE TORQUE: 86 / 130 Nm FEED RATES - RAPID TRAVERSE X/Y/Z: 40,000 mm/min - CUTTING FEEDS: 1 to 40,000 mm/min TOOL MAGAZINE - TOOLS: 30 stations - TOOL HOLDER: HSK-A63 - MAXIMUM TOOL DIAMETER: 75 mm - MAX TOOL DIAMETER WITHOUT ADJACENT TOOLS: 125 mm - MAXIMUM TOOL LENGTH: 300 mm - MAXIMUM TOOL WEIGHT: 8 kg - TOOL CHANGE TIME: 2 sec AXIS POSITIONING - POSITIONING ACCURACY: 0.005 mm - REPEATABILITY: 0.005 mm COOLANT SYSTEM - PUMP MOTOR: 900 W - TANK CAPACITY: 660 L - MAX FLOW RATE: 130 L/min MACHINE DIMENSIONS - HEIGHT: 2,692 mm - FOOTPRINT: 4,319 x 2,226 mm - WEIGHT: 7,000 kg - INSTALLED POWER: 60 kVA MACHINE CONFIGURATION STANDARD FEATURES - HEIDENHAIN iTNC 530 CONTROL - SPINDLE MOTOR 25 / 35 kW - SPINDLE SPEED 50–20,000 rpm - TOOL MAGAZINE (HSK-A63) 30 POSITIONS - SPINDLE HEAD COOLING SYSTEM - FULLY ENCLOSED GUARDS WITH WORK LIGHT - CENTER-SPINDLE COOLANT SYSTEM, 20 BAR - CHIP CONVEYOR (BELT TYPE) - COOLANT SYSTEM - PNEUMATIC COUNTERBALANCE FOR Z AXIS - AUTOMATIC LUBRICATION - RIGID TAPPING - REMOTE ELECTRONIC HANDWHEEL - ROLLER LINEAR GUIDEWAYS - LINEAR SCALES ON X, Y, Z AXES - PREPARATION FOR 4TH AXIS - WORK AREA CABINET FLUSHING SYSTEM - USB AND MEMORY CARD SLOT - ETHERNET PORT - SPINDLE EXTENSION COMPENSATION - IN-PROCESS VIBRATION MONITORING - THERMAL COMPENSATION ON X, Y, Z AXES - TRANSFORMER - SERVICE TOOLS AND INSTRUCTION MANUAL - CE MARK

Condition: new, ID 376 846-E8 Rjdpfxoylc Dhe Afcop SN 17 404 874 Type: Rotary encoder ROD 426 2500 03S12-03 Condition: New Stock number: 2065-T503 HEIDENHAIN rotary encoders are used in industrial applications to measure the and position of axes in machines, robots, machine tools and other automated systems. and other automated systems.

Condition: used, weight ca. 12 kg Rsdpfx Afjylc Dbecsp HEIDENHAIN power supply UV105 ID no. 344 980-01

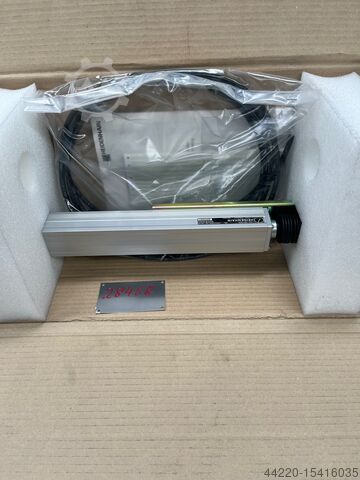

Condition: used, HEIDENHAIN LS 703 - ML 770 mm - Glass scale ID no. 216 750 11 Includes scanning head with cable! Rjdpfxsylc A De Afcjp Length measuring system

Condition: used, power capacity / kW volt / V ampere / A Make: HEIDENHAIN Rsdpfx Ajylc Aqefcsp Type: RCN 727F 32768 03S17-58 .358 654-01 This control element was removed from a functioning machine and dismantled.

Condition: used, Heidenhain TE 400 control panel Condition: used functional Heidenhain TE 400 Rodjylc Akspfx Afcep ID 250 517-03

Condition: used, HEIDENHAIN Monitor BC 120 Rjdpfxjylcz Tj Afcop . 313 037-01
