Crankshaft lathe
Heller DRZ 10-2-500

Year of construction
2019
Condition
Used
Location
Metzingen Germany

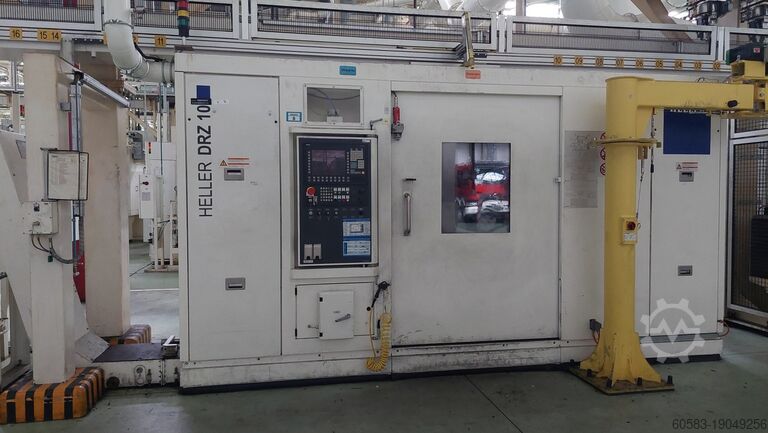

Crankshaft lathe Heller DRZ 10-2-500
Crankshaft lathe Heller DRZ 10-2-500
Crankshaft lathe Heller DRZ 10-2-500
Crankshaft lathe Heller DRZ 10-2-500
Crankshaft lathe Heller DRZ 10-2-500
Crankshaft lathe Heller DRZ 10-2-500
Crankshaft lathe Heller DRZ 10-2-500
Crankshaft lathe Heller DRZ 10-2-500
Crankshaft lathe Heller DRZ 10-2-500
more Images
Heller DRZ 10-2-500
Heller DRZ 10-2-500
Heller DRZ 10-2-500
Heller DRZ 10-2-500
Heller DRZ 10-2-500
Heller DRZ 10-2-500
Heller DRZ 10-2-500
Heller DRZ 10-2-500
Heller DRZ 10-2-500
Show images
Show map

Machine data

Machine type:
Crankshaft lathe
Manufacturer:
Heller
Model:
DRZ 10-2-500
Year of construction:
2019
Condition:
used
Functionality:
fully functional
Operating hours:
15,551 h

Price & Location

Location:
Friedrich-Münzinger-Str. 5, 72555 Metzingen, DE Germany
Call

Technical details

Controller manufacturer:
Siemens
Controller model:
SINUMERIK 840D sl

Details about the offer

Listing ID:
A190-49256
Update:
05.05.2025

Description

General
Year of manufacture: 2019
Operating hours: 15,551
Control: SINUMERIK 840D sl

Maximum workpiece dimensions
Workpiece length up to 600 mm
Maximum cutting circle mm 200
Stroke over center mm 100
Maximum clamping diameter mm 110
Tip diameter mm 30 – 60

Working area
Longitudinal stroke Z-axis mm 705
Longitudinal stroke Z-/W-axis mm 705 / 705
Iisdpfewgm Hkjx Afpjh
Cross stroke X-axis mm 180
Cross stroke X-/U-axis mm 180 / 180
Steady Z3-axis depends on the chuck
Workpiece C21-/C22-axis degrees 360

Tool
Outer diameter mm 700

Tool holder
Short cone according to DIN 55026: Size: 8
Theoretical diameter of cone mm: 139,735

Tool drum bearing diameter
in the front bearing: 160 mm

Chuck mount: 180 mm
Chuck diameter up to 260 mm

Workpiece spindle bearing diameter
in the front bearing: 170 mm

Guidance system for machining units:
Rolling guides with rollers, size 55

Spindle
Maximum power at 100% load: 24 kW
Spindle speed: 0-2000

The listing was translated automatically. Translation errors are possible.
