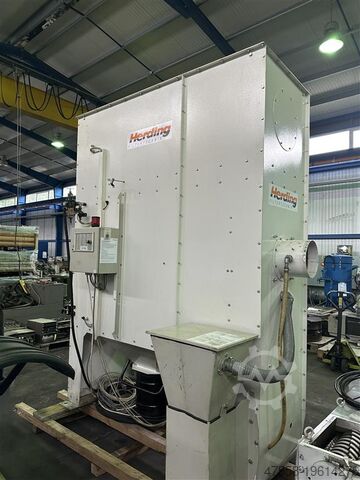

SuctionHerding Filtertechnik
150-14/9 SB
Machine data
- Machine type:
- Suction
- Manufacturer:
- Herding Filtertechnik
- Model:
- 150-14/9 SB
- Year of construction:
- 1998
- Condition:
- used
Price & Location
- Location:
- , Germany
Details about the offer
- Listing ID:
- A196-14276
- Reference number:
- 1087-1300890
- Update:
- 10.10.2025
Description
pipe system - processing diameter: - mm
pipe system - inlet: - mm
volume flow ventilator - shred: - m³/h
connection electric: 400 V
Air volume: 2700 m³/h
filter surface area: 52,5 m²
volume: 18,7 L
max. temperature: 50 Grad
operating pressure: -/+ 0,1 bar
weight of the machine approx.: 1250 kg
Pressure max.: 5 bar
dimensions L x W x H: 2,3 x 2,35 x 2,8 m
Extraction of fibers - Reduction of spillage in transport containers, eg. Big Bags. / YOM approx. 2010
delivery scope:
Suction fan
Manufacturer Dantherm Filtartion, type T 0,56-224 RD0 D1, air supply quantity 2600 Nm³ / h, suction nozzle Ø 150mm to Ø 100mm, blow-out nozzle Ø 130mm to Ø 100mm
Chip separator
Two doors with attached air filter, door opening W x H: 1000 x 1960mm, interior space W x D x H: 1200 x 1160 x 1950mm, with filter attachment 1100 x x1100 x 350mm, filter surface 1200 x 1200mm,
2pcs filter (filter mat) 1200 x 600 x 50mm, insertion nozzle dia. Ø 100mm, with clamping bag attachment
Optional accessories:
-div. clamping bag
-div. connecting tubes Ø 100 x 1000mm
-div. connecting tubes Ø 100 x 300mm
-div. connecting tube Ø 100 x 320mm
-div. angle connections Ø 100mm
Gujdjw Awwfjpfx Afpjh
-div. bayonet catches for pipe connections
i.D.
*
