Machining Center - Universal

HERMLE C 22 U

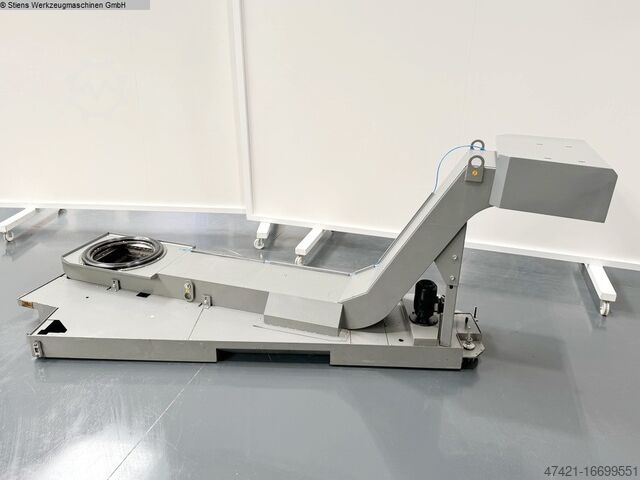

Condition: used, Year of construction: 2016, operating hours: 76,605 h, functionality: fully functional, travel distance X-axis: 450 mm, travel distance Y-axis: 600 mm, travel distance Z-axis: 330 mm, spindle speed (max.): 18,000 rpm, spindle speed (min.): 20 rpm, input voltage: 400 V, controller manufacturer: Siemens 840d sl Operate, number of spindles: 1, rotary table diameter: 320 mm, spindle nose: HSK-A 63, tool diameter: 125 mm, tool length: 250 mm, tool weight: 8,000 g, operating hours of spindle: 18,160 h, Equipment: chip conveyor, documentation/manual, rotational speed infinitely variable, Hermle C22U 5-Axis Machining Centre Year of manufacture: 2016 Machine on-time: 76,605 h, Spindle on-time: 18,160 h Siemens 840D sl Operate 55 tool positions, HSK-A63 NC swivel rotary table SRT320 mm C-axis with worm drive A-axis with single-side drive Standard coolant system, without high-pressure coolant Rear chip conveyor External air blast Dujdpfx Aoxxg Ezoh Sol Spindle center air blast Chip flushing gun Oil mist extractor including afterfilter Automatic cabin door Manual cabin roof Siemens electronic thermal compensation Heidenhain touch probe The machine is fully operational and calibrated. Machine can be inspected and tested under power at any time.

Condition: excellent (used), Year of construction: 2019, Cell with FANUC Arc Mate 100iD welding robot Year of production: 2019 Axes: 6 Reach: 1441 mm Load: 12 kg Fanuc System R-30iB Plus robot controller and 2 m x 2 m x 2.7 m housing (without Kemper extraction system) Duodpfx Ahet Rwwre Sjl

Condition: good (used), Year of construction: 2022, functionality: fully functional, travel distance X-axis: 450 mm, travel distance Y-axis: 600 mm, travel distance Z-axis: 330 mm, rapid traverse X-axis: 50 m/min, rapid traverse Y-axis: 50 m/min, rapid traverse Z-axis: 50 m/min, Hermle C 22 U with RS05 Automation Year of manufacture: 2022 Dodpfsp Eci Tox Ah Ssul Control: Heidenhain TNC 640 X-axis travel: 450 mm Y-axis travel: 600 mm Z-axis travel: 330 mm Table size: ⌀ 800 mm Spindle: HSK-A 63 Spindle speed: 18,000 rpm Tool changer: 55+ ZM216 loaded, 271 tool positions Operating hours: approx. 11,000 h Spindle hours: approx. 7,500 h

Condition: used, Year of construction: 2016, functionality: fully functional, travel distance X-axis: 450 mm, travel distance Y-axis: 600 mm, travel distance Z-axis: 330 mm, rapid traverse X-axis: 30 m/min, rapid traverse Y-axis: 30 m/min, rapid traverse Z-axis: 30 m/min, controller manufacturer: Siemens, controller model: 840D, workpiece height (max.): 370 mm, table width: 320 mm, table length: 320 mm, table load: 300 kg, rotational speed (min.): 80 rpm, rotational speed (max.): 80 rpm, overall weight: 9,000 kg, spindle speed (min.): 15,000 rpm, spindle speed (max.): 15,000 rpm, spindle motor power: 31 W, spindle nose: HSK 63A, tool length: 250 mm, tool diameter: 125 mm, tool weight: 8 g, control type: CNC control, Equipment: chip conveyor, Hermle C22U 5 Axis Machining Centre Siemens 840D Control 5 Axis Simultaneous XYZ: 450 x 600 x 330mm 320mm diameter table Maximum workpiece diameter 320mm maximum workpiece height 265mm Maximum table load 300Kg A axis -/+ 135 degrees spindle speed 15,000rpm 55 station tool changer Dodpfx Asxpil Ssh Seul Swarf Conveyor Coolant Tool Setter Spindle Probe

Condition: used, Year of construction: 2007, x-travel 900 mm Djdjw Rrb Hopfx Ah Ssul y-travel 300 mm z-travel 1000 mm control Siemens Sinumerik 840D max. workpiece diameter 1600 mm max. module 20 mm tip circle diameter 350 mm Milling arbour diameter 375 mm Total closing value 80 kVa weight of the machine ca. 33,5 t dimensions of the machine ca. 10,530 x 6,375 x 4,680 m Feed rate: - X-axis 1 to 3000 mm/min - Y-axis 1 to 3000 mm/min - Z-axis 1 to 4000 mm/min Spindle speeds in rpm: - Tool 26 to 265 - Workpiece table 0 to 8 Equipment/accessories: - M 2 motor milling head - Milling mandrels - Oil cooler - Technical documentation

Condition: excellent (used), Year of construction: 2016, operating hours: 7,460 h, functionality: fully functional, machine/vehicle number: 24627, travel distance X-axis: 450 mm, travel distance Y-axis: 600 mm, travel distance Z-axis: 330 mm, workpiece weight (max.): 150 kg, spindle speed (max.): 18,000 rpm, number of slots in tool magazine: 55, swivel angle A-axis (min.): 135 °, swivel angle A-axis (max.): 135 °, swivel angle C-axis (max.): 360 °, Equipment: chip conveyor, 5-axis machining center with workpiece storage AUTOMATION Eco-Compact 20 workpiece storage and handling system: 20 workpiece storage spaces / Handling system for automatic loading / Integrated, pneumatic interface for Quick-Point clamping towers Swivel device: Easy swiveling of the system to a fixed point Quick-Point automation clamping tower 96: Height: 80 mm / Plate: Ø 176 mm / Body: Ø 246 mm Quick-Point round plate 96: Without holes / Ø 246 x 27 mm / Bolt spacing: 96 mm Macro-Grip automation clamp 77: Length: 170 mm / Clamping range: 0-160 mm TECHNICAL DETAILS X-axis travel: 450 mm Y-axis travel: 600 mm Z-axis travel: 330 mm Control type: Heidenhain TNC 640 Functions: Dynamic Efficiency (ACC, AFC, trochoidal milling), Dynamic Precision (CTC, AVD), HIMS (Hermle Information and Monitoring Software) Workpiece capacity Maximum jaw width: 470 mm Maximum workpiece diameter: Ø 450 mm Maximum workpiece height: 370 mm Interference circle (A-axis) in 0° position: Ø 610 mm Spindle Speed: 18,000 rpm Tool holder: HSK-A63 Power/torque at 20% duty cycle: 31 kW / 35Nm Tool magazine Interface: SK 40 / HSK A63 Magazine locations: 55 Chip-to-chip time: approx. 4.5 s Maximum tool length: 250 mm Maximum tool diameter with corresponding adjacent location occupancy: Ø 125 mm Maximum tool diameter: Ø 80 mm Maximum tool weight: 8 kg Maximum magazine load: 220 kg Rapid traverse and acceleration Rapid traverse linear (dynamic) X-Y-Z: 30 (50) m/min Acceleration linear (dynamic) X-Y-Z: 8 (15) m/s² Feed force linear X-Y-Z: 4,500 N Table Swivel rotary table: Ø 320 mm Clamping surface: Ø 320 mm Swivel range: +/- 135° Drive type C-axis: Torque Speed of swivel axis A (single-sided drive): 25 rpm Speed of swivel axis A (tandem drive): 55 rpm Speed of rotary axis C: 80 rpm Maximum table load: 150 kg Star-shaped T-slots: 4 pieces / 14 H7 Positioning uncertainty Positioning uncertainty (X-Y-Z axis according to ISO 230-2): ≤ 0.006 mm Chip management Chip chute: Space-saving installation on the left or right Capacity of chip chute: 210 l Chip conveyor: Scraper belt conveyor MACHINE DETAILS Switch-on time: 21,883 h Control switch-on time: 23,157 h Program run: 10,584 h Spindle hours: 7,460 h Power consumption: 46 kVA Net weight: 9000 kg Duodpovtmhpofx Ah Sjl Coolant supply Internal coolant supply: 80 bar Additionally required options: Bed flushing paper belt filter or internal coolant supply 80 bar Internal coolant supply 80 bar includes: - Paper belt filter including police filter - Standard coolant device - Flushing air for scales and bed flushing - Production cabin Safety and additional functions Vario valve: available Blow-off device: blown air through the spindle center Chip flushing gun: available Emulsion mist extraction: including post-filter Manual cabin roof: available Polycarbonate safety window: available Electronic equipment Electrical heat compensation: Heidenhain Electrical manual control module: Heidenhain Measuring probe: Renishaw including preparation BLUM tool breakage/measurement A2: available

Condition: used, Year of construction: 2001, table length 600 mm table width 380 mm control FANUC 16i-M longitudinal travel 500 mm cross travel 300 mm largest grinding diameter 230 mm Jig grinding machine | HAUSER - S35-400 Dusdpfx Ajwmwwyeh Sjl The machine is in a well-maintained condition. Please note that the technical details were added from comparable machines. The machine video from the production plant will be shared on request. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags: S35400 | S35 400 | S35CNC400 | S35 | S-35 | S 35

Condition: reconditioned (used), Year of construction: 1998, operating hours: 44,675 h, functionality: fully functional, travel distance X-axis: 650 mm, travel distance Y-axis: 450 mm, travel distance Z-axis: 140 mm, spindle speed (max.): 60,000 rpm, spindle speed (min.): 9,000 rpm, workpiece weight (max.): 800 kg, table width: 860 mm, table load: 1,500 kg, travel distance W-axis: 635 mm, Equipment: documentation/manual, Fully overhauled and in perfect condition as per original specifications and accuracy. 6 Axis X-Y-Z-C-U 7th axis CNC-rotary table with tailstock in option Control: Fanuc 15 MB Grinding Spindle 60S speed 9,000 to 60,000 rpm Dodpfx Aswb Db Uoh Soul Hi-Cut system with full enclosure CBN Form rotary dressing with Fischer spindle and Dr. Kaiser diamond wheel This machine is under power and can be seen in our facility in Gals, Switzerland Garantee of 6 months Shipment, installation and training can be provided

Condition: used, Year of construction: 2012, DMG CTX 620 linear Turning diameter: 600 mm Turning length: 2000 mm Control: Siemens 840 D powerline Main spindle speed: 2,500 rpm Total power requirement: 72 kVA Dsdexzccbopfx Ah Ssul Machine weight approx. 12 t

Condition: used, Year of construction: 1999, table length 600 mm table width 380 mm control FANUC 16-M longitudinal travel 500 mm cross travel 300 mm largest grinding diameter 230 mm Jig grinding machine | HAUSER - S35-400 The machine is in a well-maintained condition. Djdpfx Aow Eyk Hsh Ssul Please note that the technical details were added from comparable machines. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags: S35400 | S35 400 | S35CNC400 | S35 | S-35 | S 35
