CNC Machining Center

Hermle C 800 U

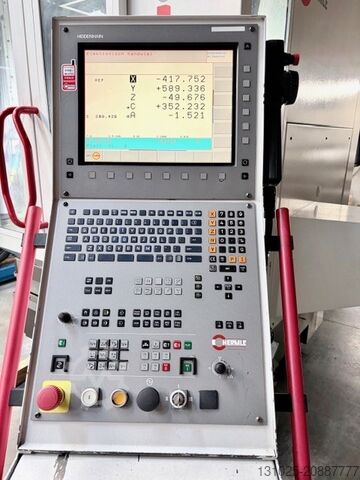

Condition: ready for operation (used), Year of construction: 1998, functionality: fully functional, travel distance X-axis: 800 mm, travel distance Y-axis: 600 mm, travel distance Z-axis: 500 mm, rapid traverse X-axis: 30 m/min, rapid traverse Y-axis: 30 m/min, rapid traverse Z-axis: 30 m/min, controller manufacturer: Heidenhain, controller model: TNC430, total height: 2,930 mm, total length: 2,700 mm, total width: 2,210 mm, table width: 540 mm, table length: 540 mm, rotary table diameter: 630 mm, overall weight: 7,500 kg, spindle speed (min.): 20 rpm, spindle speed (max.): 15,000 rpm, operating hours of spindle: 20,086 h, spindle nose: ISO40, number of slots in tool magazine: 30, input voltage: 400 V, Equipment: chip conveyor, documentation/manual, rotational speed infinitely variable, This Hermle C800 U has been taken out of production in working order and can also be viewed in working order at our location. Comes standard with machine feet, LANG clamping table for centre clamps, documentation. Swivel range; 20° to the machine / 90° against the machine at 250 kg. Coolant reservoir capacity 300L (40 L/min at 3 bar) Ksdpfjxxlr Hox Aayedw Machine dimensions; 2.70x2.21x2.93 (LxWxH) Weight approx. 7500 kg

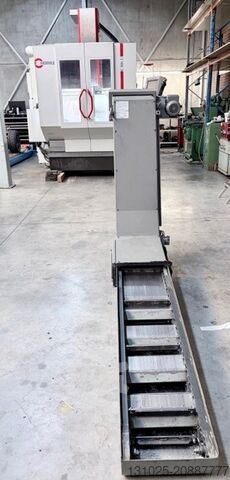

Condition: used, Year of construction: 2000, functionality: fully functional, travel distance X-axis: 800 mm, travel distance Y-axis: 600 mm, travel distance Z-axis: 500 mm, controller manufacturer: HEIDENHAIN, controller model: 460, rotational speed (max.): 15,000 rpm, spindle nose: HSK 63A, number of slots in tool magazine: 30, Equipment: chip conveyor, documentation/manual, rotational speed infinitely variable, Used HERMLE C800U high-speed 5-axis continuous vertical machining center; this is a medium-sized CNC machine equipped with a gantry granite structure, weighing 8,200 kg. Axis travels: X 800 mm, Y 500 mm, Z 600 mm, with a 5-axis table featuring a 280 mm diameter platter. Year of manufacture: 2000, fitted with HEIDENHAIN TNC 430, HSK 63A spindle at 15,000 rpm (max 19 kW) cooled by a dedicated chiller, 30-position pick-up type tool changer, and remote electronic handwheel. Kdsdexryfzspfx Aayow The equipment is completed by a KNOLL chip conveyor, high-pressure through-spindle coolant, and a RENISHAW MP10 wireless 3D workpiece probe.

Condition: excellent (used), Year of construction: 2002, Great opportunity to buy a 5 axis vertical machining center HERMLE C800U in very good condition. The machine can be inspected under power upon appointment in Belgium and it is immediately available for delivery. Including: Internal cooling Tool measuring probe Chip conveyor Optional: STARK clamping system ca. 60 pallets More info and videos available on request. Control Heidenhain iTNC 530 X-AXIS Movement 800 mm Y-AXIS Movement 600 mm Z-AXIS Movement 500 mm A-AXIS Movement +90° to -90° C-AXIS Movement 360° Type of tool holder SK40 Kedexr Rk Ispfx Aayjdw Max spindle speed 16000 rpm NC swivel rotary table ø 280 Number of positions in tool magazine 87

Year of construction: 2002, condition: excellent (used), HERMLE C 800 U CNC machining center Accessories incl.: among others: 3D touch probe, tool holder set, various clamping devices, chip tray, hydr. aggregate, double back-up Technical Data speed: 0- 18`000 rpm spindle nose: HSK-A63 Feeding speed: 1-35 m/min feed force: 8000 N X-axis: 800 mm Y-axis: 600 mm Z-axis: 500 mm dimensions of the machine: 2700 x 2210 x 2930 mm Weight: 8500 kg No responsibility is taken for the accuracy, completeness and timeliness of the information. Kedpfx Asmqk E Tsaysdw

Condition: good (used), Year of construction: 2001, Hermle C 800 U optionally with automation, year of manufacture 2001, Heidenhain iTNC 530 control, travel X/Y/Z 800/600/500 mm, 2-axis NC swiveling rotary table Spreitzer 3-way, tool magazine with 87 stations, HSK 63 interface, laser tool breakage detection, 3D touch probe Renishaw, interface for automation, automatic door, oil mist extraction. OPTIONAL WITH AUTOMATION: 3-axis robot, System 3R SWE, year of manufacture 2014, magazine with 60 pallets, 23 pallets, zero-point clamping system 3R Macro, System 3R Macro with 40 centric clamps Spreitzer MZQ 110 - 60 PA. Kdjdpfx Aexlq T Ajayew

Condition: excellent (used), HEIDENHAIN TNC430 with B + C axis Working travels 800 x 600 x 500 mm Table size Ø 280 mm Table swivelling +/-110° Table rotating 360° Spindle taper HSK63 Kjdpsk Dz Ngefx Aayedw Spindle speeds -15'000 rpm tool changer 30 pos. Coolant through spindle 3D tracer Renishaw MARCELS MASCHINEN CH

Condition: ready for operation (used), Year of construction: 2003, Make: HERMLE Type of machine: C 800 U Year of manufacture: 2003 Control system: Siemens 840D Machine's weight: 9.000,- Tool holder: SK40 Ksdpfxetmtxms Aayedw x-travel: 800 mm y-travel: 600 mm z-travel: 500 mm Speed range: 16.000 min-1 Number of tools in the magazine: 80 Pl.

Condition: ready for operation (used), Year of construction: 2001, functionality: fully functional, travel distance X-axis: 800 mm, travel distance Y-axis: 600 mm, travel distance Z-axis: 500 mm, table width: 1,000 mm, table length: 560 mm, TECHNICAL DETAILS Travel distances x-axis travel: 800 mm y-axis travel: 600 mm z-axis travel: 500 mm Table Clamping surface: 1,000 × 560 mm Spindle Milling spindle speed: 10,000 rpm Tool holder – diameter: SK40 mm Control CNC control: TNC430 Tool magazine Number of tools: 30 MACHINE DETAILS Electrical data Total power requirement: 35 kW Kedpfx Aswynucsayedw Weight and dimensions Machine weight: approx. 8.50 t Space requirement: approx. 2.90 × 3.50 × 3.00 m EQUIPMENT Swivel vice integrated into the left side panel with counter bearing (controlled 4th axis) Centre height 160 mm / centre width 500 mm Wireless measuring probe MP10 Chip tray with coolant pump
