Machining Center - Universal

HERMLE C 800 U

Condition: good (used), Year of construction: 2003, Opportunity to buy a 5 axis vertical machining center HERMLE C800U in good condition. The machine is located in the Netherlands and it is immediately available for delivery. Including: Cooling through the spindle Heidenhain measuring probe (TS632) and receiver. Chip conveyor Stark quick-release clamping system with grid plate Control Heidenhain iTNC 530 Djdpfxox Sribe Ah Secb X-AXIS Movement 800 mm Y-AXIS Movement 600 mm Z-AXIS Movement 500 mm A-AXIS Movement +90° to -90° C-AXIS Movement 360° Type of tool holder SK40 Max spindle speed 16000 rpm NC swivel rotary table ø 630 Number of positions in tool magazine 30

Condition: excellent (used), Polish production Rafamet lathe for sale, efficient machine in good condition after employing electrics and management by Rafamet. The machine worked until the very end, currently disassembled loading machine. Technical data Track width (for normal version) - 1435 mm Djdpfsmidwcox Ah Secb Track width (for special execution) - 1524 or 1676 mm Wheel diameter - 800-1500 mm The minimum distance between the axes of the sets - 1500 mm Maximum axle clamping on the rails - 25 tons Rotation of drive rollers (stepless) - 15-82 rpm Circumferential speed of drive rollers - 7.5-43 mm/min Feeds of copying supports (stepless) - 0.95-34 mm / min Travel of external jacks - 540 mm/min Travel of hydraulic jacks - 410 mm/min Slide travel - 2300 mm/min Sliding rail travel - 9000 mm/min Weight including standard equipment 25 200 kg Installed power 83kW (after modernization 58kW)

Condition: used, controller manufacturer: Heidenhain, controller model: i TNC 530i, For sale: Hermle 5-axis machining centre type C 800U (5-axis simultaneous) equipped with a Heidenhain i TNC 530i control. The machine is in good condition and available from stock, subject to prior sale. The machine features a table size of Ø 630 mm. X, Y, and Z axis travels are 800 x 600 x 500 mm. The machine also offers a maximum spindle speed of 16,000 rpm, spindle cooling with a maximum pressure of 40 bar. Included are a Heidenhain probe, a Stark zero-point clamping system, and a chip conveyor. Dodpjx Ry Nmefx Ah Socb

Condition: used, Year of construction: 2000, functionality: fully functional, travel distance X-axis: 800 mm, travel distance Y-axis: 600 mm, travel distance Z-axis: 500 mm, controller manufacturer: HEIDENHAIN, controller model: 460, rotational speed (max.): 15,000 rpm, spindle nose: HSK 63A, number of slots in tool magazine: 30, Equipment: chip conveyor, documentation/manual, rotational speed infinitely variable, Used HERMLE C800U high-speed 5-axis continuous vertical machining center; this is a medium-sized CNC machine equipped with a gantry granite structure, weighing 8,200 kg. Axis travels: X 800 mm, Y 500 mm, Z 600 mm, with a 5-axis table featuring a 280 mm diameter platter. Year of manufacture: 2000, fitted with HEIDENHAIN TNC 430, HSK 63A spindle at 15,000 rpm (max 19 kW) cooled by a dedicated chiller, 30-position pick-up type tool changer, and remote electronic handwheel. The equipment is completed by a KNOLL chip conveyor, high-pressure through-spindle coolant, and a RENISHAW MP10 wireless 3D workpiece probe. Dcsdpfxexryfzs Ah Seb

Condition: excellent (used), Year of construction: 1991, functionality: fully functional, travel distance X-axis: 500 mm, travel distance Y-axis: 350 mm, travel distance Z-axis: 120 mm, travel distance W-axis: 450 mm, For sale: Hauser coordinate grinding machine, model S35-400 The machine is in excellent condition and underwent a partial overhaul in 2024 for €15,000. The machine is equipped with 6 high-quality grinding motors, a face motor, and turbines. TECHNICAL DATA Distance between column and spindle: 365 mm Clearance between table and spindle: 485 mm Main spindle diameter: 100 mm X-axis: 500 mm Y-axis: 350 mm Z-axis: 120 mm W-axis: 450 mm U-axis: 5.5 mm Maximum taper grinding: 16° Table size: 600 x 380 mm T-slots: 6 units, 10 mm width, 50 mm spacing Table load capacity: 300 kg Speeds and Tool Holders Speed 22S: 4,500 - 22,500 rpm 45S/45ST: E19 Speed 45S/45ST: 9,000 - 45,000 rpm 80S: F6 Speed 80S: 40,000 - 80,000 rpm T10/T16: Ø 3 mm Speed T10/T16: 100,000 / 160,000 rpm Slot grinding attachment: 2,900 - 34,500 rpm Planetary movement: 5 - 250 rpm C-axis: 0 - 5 rpm X/Y feed: 0 - 1,200 mm/min W-axis feed: 900 mm/min Z-axis feed: 0.5 - 12,000 mm/min MACHINE DETAILS Digital measuring accuracy: 0.001 mm Base deviation: 0.003 mm Power: 7.5 kW Compressed air requirement: 20 m³ System pressure: 5 bar Footprint: 3.5 x 4.4 m Machine height: 3.5 m Connection value: 8.3 kVA Weight: 3.1 t EQUIPMENT - Slot grinding attachment - Rotary table, 300 mm diameter - Swivel table, 200 mm diameter - Coolant system - Extraction unit - Very high-quality accessories included Transportation and loading can be arranged across Europe at extra cost upon request. Prices plus VAT. Viewing by appointment is possible. Contact us—our team is happy to assist you. Trade-in or exchange possible! Dcsdpowtqthjfx Ah Sjb MACHINE PROCUREMENT / SALES PURCHASE / SALE OF PRODUCTION & METALWORKING MACHINES AND MORE. Are you looking for a high-quality yet affordable metalworking machine for your production? Or do you want to sell yours? For more information or contact options, visit our website.

Condition: excellent (used), Year of construction: 2000, functionality: fully functional, travel distance X-axis: 800 mm, travel distance Y-axis: 600 mm, travel distance Z-axis: 500 mm, rapid traverse X-axis: 30 m/min, rapid traverse Y-axis: 30 m/min, rapid traverse Z-axis: 30 m/min, controller manufacturer: Heidenhain, controller model: TNC430, rotary table diameter: 540 mm, spindle speed (max.): 16,000 rpm, operating hours of spindle: 32,000 h, spindle nose: HSK63, number of slots in tool magazine: 30, Equipment: rotational speed infinitely variable, Very well-maintained HERMLE C800-U. Swiveling rotary table: 540 x 540mm Program runtime only approx. 34,000 hours. Field of application: Toolmaking Service carried out by the manufacturer. Last spindle head replacement: 04/2017 New A-axis drive Heidenhain iR probe Dcodpfx Ajx Hg E Tsh Sob

Condition: excellent (used), Year of construction: 1998, x-travel 800 mm y-travel 600 mm Dcodpfsx Dndcsx Ah Ssb z-travel 500 mm

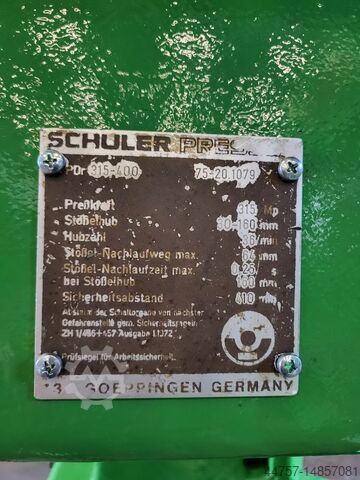

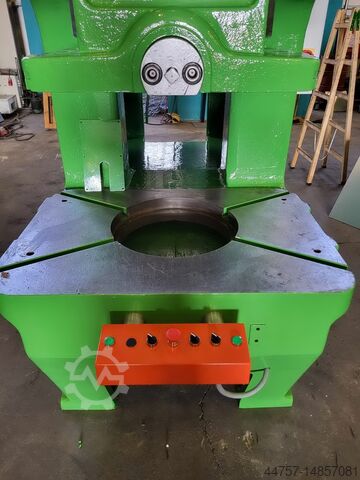

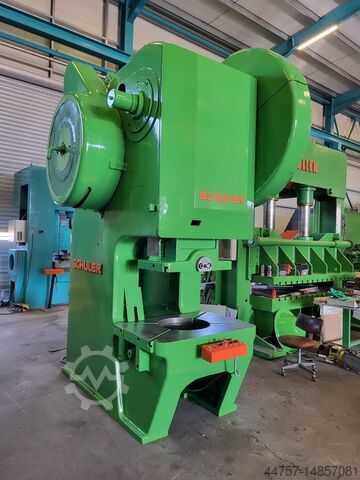

Condition: used, SCHULER TYPE 315-400 Dcodpsrgp N Hjfx Ah Sob PRESSURE: 315t LENGTH OF STROKE: 30-160mm STROKES PER MIN: 36

Condition: good (used), Year of construction: 2002, HERMLE C800 U 5 AXIS MACHINING CENTRE WITH HEIDENHAIN ITNC 530 CONTROL Table Dimension Ø280mm (4 'T' Slots). Maximum Table Load 300kg. Axis Travel 'X'=800mm, 'Y'=600mm, 'Z'=500mm, 'B'=220° (±110° ), 'C'=360° . Rapid Traverse 30m/min. Spindle Taper ISO 40. Maximum Spindle Speed 12,000rpm. 87 Position ATC. S/No. 15650 (2002). Dcedpfx Ahox A Hf Ae Sob

Year of construction: 2002, condition: excellent (used), HERMLE C 800 U CNC machining center Accessories incl.: among others: 3D touch probe, tool holder set, various clamping devices, chip tray, hydr. aggregate, double back-up Dcedpfx Ajmqk E Toh Ssb Technical Data speed: 0- 18`000 rpm spindle nose: HSK-A63 Feeding speed: 1-35 m/min feed force: 8000 N X-axis: 800 mm Y-axis: 600 mm Z-axis: 500 mm dimensions of the machine: 2700 x 2210 x 2930 mm Weight: 8500 kg No responsibility is taken for the accuracy, completeness and timeliness of the information.

Condition: excellent (used), Year of construction: 2004, functionality: fully functional, Description WE OFFER AN NICE WORKING CONDITION INDEX ABC 42 - TWO MACHINES WE HAVE AWAILIBLE TWIN SPINDLE TWIN TURRET INCLUDIN COMPLETE TOOLINGS AND SPARE PARTS MACHINE IS CONECTED ON POWER AND CAN BE INSPECTED UNDER POWER FOR CUSTOMER WE CAN ORGANIZE TRANSPORT AS WELL Machine Category CNC Turning- and Milling Center Make INDEX Type ABC 42 (*934) Year 2004 Control C200-4 / 840C Siemens Country of origin Germany Other information CNC - Turning- and MillingCenter INDEX - ABC 42 - two turrets - live tool stations - subspindle on upper turret - 1x back drilling device - with percussion unit - many accessories Technical Details Backside processing: C-Axis 0,001 ° change-time tool to tool 0,2 sec clamping diameter max. 42 mm clamping length max. 38 mm control C200-4 / 840C Siemens dimensions of the machine ca. 7,0 x 3,0 x 2,5 m Driven Tool Positions: 8 Feed force X: 8,3 / Z: 5,5 kN Fixed tools max. 5 pos Main spindle: max. Torque 7,5 Nm number of toolpositions 6 pos. power capacity - driven tools 3,3 kW power capacity - main spindel 13 / 21 kW rapid traverse X: 16 / Z: 24 m/min shaft cross cut 25 x 48 DIN 69880 spindle bore 15,5 mm spindle diameter in front bearing 85 mm spindle hollow 36 mm spindle passage 36 (42) mm Spindle speed - driven tools 6.000 min -1 Spindle speed range subspindle max. 4.500 min/-1 Subspindel: total power requirement ca. 30 kW travel -x axis 81 mm travel -z axis 80 mm turning length max. 280 mm turning speed range - main spindle max. 6.300 min/-1 Turret 1: Turret 2: weight of the machine ca. 3,0 t Accessories bar feeder Index LM 3200 Dcedpfx Aevk E Nmjh Seb Chip conveyor Coolantsystem Documents driven tool stations hydraulic system parts catcher Subspindle Turret 2x

Condition: excellent (used), HEIDENHAIN TNC430 with B + C axis Working travels 800 x 600 x 500 mm Table size Ø 280 mm Table swivelling +/-110° Table rotating 360° Spindle taper HSK63 Dsdpjk Dz Ngofx Ah Socb Spindle speeds -15'000 rpm tool changer 30 pos. Coolant through spindle 3D tracer Renishaw MARCELS MASCHINEN CH

Condition: good (used), Year of construction: 2001, Hermle C 800 U optionally with automation, year of manufacture 2001, Heidenhain iTNC 530 control, travel X/Y/Z 800/600/500 mm, 2-axis NC swiveling rotary table Spreitzer 3-way, tool magazine with 87 stations, HSK 63 interface, laser tool breakage detection, 3D touch probe Renishaw, interface for automation, automatic door, oil mist extraction. OPTIONAL WITH AUTOMATION: 3-axis robot, System 3R SWE, year of manufacture 2014, magazine with 60 pallets, 23 pallets, zero-point clamping system 3R Macro, System 3R Macro with 40 centric clamps Spreitzer MZQ 110 - 60 PA. Dsdpfoxlq T Ajx Ah Sjcb

Condition: used, WIDTH 1250 MM DEPTH 1700 MM Dcjdpfx Ahot Hrymj Sob HEIGHT 5000 MM (3000 + 2000) NR 20 T-SLOTS

Condition: ready for operation (used), Year of construction: 2001, Travel X/Y/Z: 800mm/600mm/500mm, tool holder: HSK63, spindle speed: 12000rpm, tool positions: 87, control: Heidenhain iTNC530, spindle hours: 18706h. 3-axis robot System 3R WorkPal 1 Macro, year of manufacture: 2014, transfer weight: 50kg, stroke: 1450mm, pallet positions: 60. Including Renishaw laser tool breakage detection, Renishaw digital 3D probe, and oil mist extraction. Documentation available. An on-site inspection is possible. Dcodpoxg Rh Njfx Ah Seb
