Milling machine

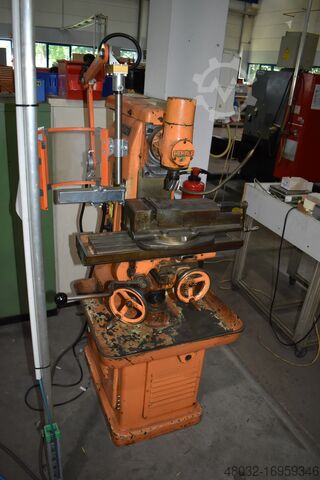

Hermle H 2

Condition: used, Technical details: travel -y axis: Schlitten auf Balken: 200 mm spindle taper ISO: SK 40 spindle head swivable left - right: je 90° ° quill stroke: 80 mm turning speed range: 90 - 900 / 5 step U/min distance table - lower edge spindle: min./max.: 50 / 400 mm table surface area: Anbaufläche:760 x 200 mm table surface area: Spannfläche: 630 x 200 mm max. table load: 100 kg x-travel: Tisch längs: 320 mm z-travel: Tisch vertical 350 mm table swivelabel +/-: re/li je 30° distance table - lower edge spindle: min./max.: 50 / 400 mm feed:: Tisch: stufenlos 14 - 71 mm/min total power requirement: 4,0 kW weight approx.: 1.200 kg dimension machine xH: 1,3 x 1,5 x 1,8 m Hfedpfx Aeu Ndb Ajhusb Equipped with Heidenhain DRO for X and Y travel Swiveling work spindle The feed works via variator gear. The table is swivelable. Spindle speeds operate in 3 levels via gears and in 2 levels electrically. Cooling device diverse tool holders SK40 Der Fräsbalken ist um ca. 350mm ausfahrbar. The machine vise is not included in the delivery scope (see picture), but can be purchased additional! *

Condition: ready for operation (used), machine/vehicle number: 1124, table mounting size: 300 x 1300 mm table movement x: 950 mm table movement y: 220 mm table movement z: 400 mm spindle taper horizontal: MK 4 spindle turning speed range: 25 - 1250 rpm carriages longitudinal and cross: 7,5 - 635 mm/min carriages vertical: 3 - 250 mm/min electrical connection: 380 V, 4 kW space needed: 1670 x 1500 x 1580 mm Hfodpfx Ajd H Ilrohusb weight: 2600 kg

Condition: used, Year of construction: 1976, x-travel 350 mm y-travel 150 mm z-travel 340 mm table surface area 600 x 210 mm spindle taper SK 40 spindle turning speed range 40 - 2000 U/min feeds 5 - 500 mm/min rapid traverse 1,2 m/min total power requirement 1,9 kW weight of the machine ca. 0,7 t Hfsdpowwwr Eofx Ahusb - machine out of teaching shop - Accessories: solid table, vertical head with quill retraction, DRO on 3 axis HEIDENHAIN, various tool fixtures, various collets, original DECKEL tool cabinet
