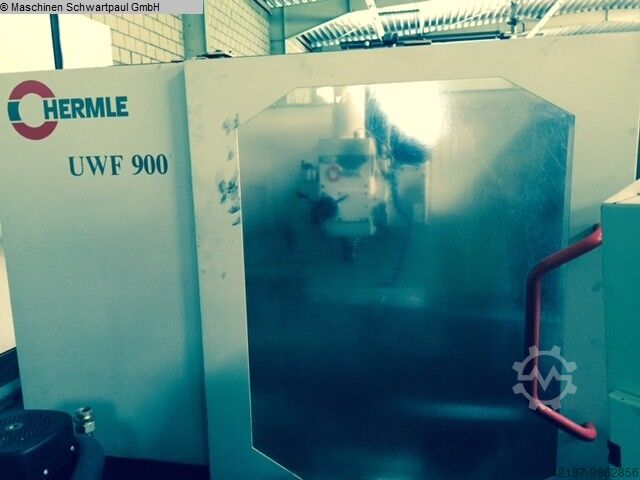

Universal Milling Machine

HERMLE UWF 900

Condition: ready for operation (used), Year of construction: 1991, functionality: limited functionality, machine/vehicle number: 9731, feed length X-axis: 5,000 mm, feed length Y-axis: 5,000 mm, feed length Z-axis: 5,000 mm, travel distance X-axis: 600 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 420 mm, feed rate X-axis: 7 m/min, feed rate Y-axis: 7 m/min, feed rate Z-axis: 6 m/min, quill stroke: 75 mm, quill travel distance: 75 mm, quill diameter: 55 mm, spindle speed (max.): 4,000 rpm, spindle speed (min.): 20 rpm, rapid traverse X-axis: 7 m/min, rapid traverse Y-axis: 6 m/min, rapid traverse Z-axis: 7 m/min, table length: 900 mm, table width: 458 mm, table height: 900 mm, type of input current: three-phase, total height: 1,890 mm, total length: 3,970 mm, total width: 3,740 mm, overall weight: 2,300 kg, input voltage: 380 V, space requirement width: 3,740 mm, space requirement length: 3,970 mm, space requirement height: 1,890 mm, milling spindle length: 75 mm, year of last overhaul: 2015, grinding spindle motor power: 59 W, Equipment: documentation/manual, rotational speed infinitely variable, Control system: HEIDENHAIN TNC 407 Kedezyp Twjpfx Ab Donb Travel range: X = 600, Y = 400, Z = 420 mm Spindle speed range: 20 – 4000 rpm Gear stages: 3 Tool holder: SK 40 Arbor stroke: 75 mm Spindle motor: 5.9 kW Feed rate range: 1 – 5000/6000 mm/min (manual/program) Rapid traverse rate x, y: 7 m/min Rapid traverse rate z: 6 m/min Clamping area: 900 x 458 mm Weight: approx. 2300 kg With coolant system, electric handwheel, various tools (without cabinet).

Condition: good (used), Year of construction: 1990, CNC Universal Milling Machine MAHO MH600-C Control MAHO 432 with universal clamping table . Spindle holder : ISO 40 Travels : X 600 mm Y 400 mm Z 500 mm Spindle speeds up to 2 000 rpm with work area enclosure Machine documentation available . Machine from tool shop in good clean general condition Kjdpsurcybjfx Ab Denb Ready for demonstration under power .

Condition: good (used), Year of construction: 1995, Control: HEIDENHAIN TNC 415 B Travel: X= 600, Y= 400, Z= 420 mm Speed range: 20 – 4000 rpm Gear stages: 3 Kodpfx Abew Uin Sj Donb Spindle taper: SK 40 Quill stroke: 75 mm Spindle motor: 5.9 kW Feed range: 1 – 5000/6000 mm/min (manual/programmed) Rapid traverse x, y: 7 m/min Rapid traverse z: 6 m/min Clamping area: 900 x 458 mm Weight: approx. 2300 kg With coolant system, electronic handwheel, various tools (without cabinet)

Condition: good (used), Year of construction: 1991, Control: Heidenhain TNC 407 Travel range: X = 600, Y = 400, Z = 420 mm Kedpowvif Uefx Ab Donb Spindle speed range: 20 – 4000 rpm Gear stages: 3 Tool holder: SK 40 Quill stroke: 75 mm Spindle motor: 5.9 kW Feed rate range: 1 – 5000/6000 mm/min (manual/program) Rapid traverse rate x, y: 7 m/min Rapid traverse rate z: 6 m/min Clamping surface: 900 x 458 mm Weight: approx. 2300 kg With coolant system, electric handwheel, and measuring probe (defective).

Condition: excellent (used), Year of construction: 2010, functionality: fully functional, Kunzmann WF4/3 Tool Milling Machine with Heidenhain TNC 320 Contouring Control – Excellent Condition, CE-compliant, from a Training Workshop!! Technical Data: >> Year of manufacture: 2010, Machine No. 347247 >> Fixed angle table >> Infinitely variable spindle speed up to 4,500 rpm >> Infinitely variable feed on 3 axes from 0 to 2,000 mm/min >> Rapid traverse X and Y axis: 5,000 mm/min Z axis: 4,000 mm/min >> Travel X/Y/Z: 400/350/400 mm >> Table surface: 650 x 350 mm >> Table load capacity: 250 kg >> Vertical quill stroke: 60 mm >> Vertical and horizontal quill - SK40 >> Hydraulic tool clamping system >> Weight: approx. 1,800 kg >> Space requirement: approx. 2.3 x 2 x 2 m Knsdpjxupc Uefx Ab Deb >> Drive power: 15 KVA Accessories and Features: >> Heidenhain TNC 320 contouring control >> Hydraulic clamping for vertical and horizontal axes >> Automatic central lubrication system >> Spindle brake >> Technical documentation, spare parts diagrams, operating manual for the control, and programming examples >> Handwheels >> Coolant system >> Electronic handwheel HR410 About the Machine: Offered here is a Kunzmann WF4/3 tool milling machine equipped with a Heidenhain TNC 320 contouring control. This universal milling machine is in excellent condition, with very few operating hours. Previously used exclusively for training purposes, it features a highly user-friendly control system. The machine offers hydraulic clamping for both vertical and horizontal operation. Conversion from vertical to horizontal milling is extremely easy via the tilting vertical head. Guideways are continuously lubricated via the central lubrication system. The Kunzmann has been mechanically and electrically inspected by us. You are welcome to view and test the Kunzmann machine under power at our facility. A total of 7 Kunzmann WF4/3 milling machines with TNC 320 Heidenhain controls are available. The machines are immediately available.

Year of construction: 1996, condition: ready for operation (used), Travel X/Y/Z: 600mm/400mm/420mm, feed rate X/Y/Z: 6m/min, rapid traverse: 6m/min, spindle power: 8kW, speed: 4500rpm, quill stroke: 75mm, table dimensions X/Y: 900mm/450mm. Machine dimensions X/Y/Z: approx. 2800mm/2200mm/2100mm, weight: approx. 2800kg, control: Heidenhain 415B, hours: approx. 56193h. Includes cooling lubricant system and 3D measuring probe. The brake of the Z axis is to be replaced. Documentation available. An on-site inspection is possible. Knsdpfx Abjyifk As Djb

Condition: ready for operation (used), Year of construction: 1992, functionality: fully functional, travel distance X-axis: 600 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 420 mm, spindle speed (max.): 4,000 rpm, controller model: Heidenhain 407, No minimum price – guaranteed sale to the highest bidder! TECHNICAL DETAILS Knjdpszpxfhjfx Ab Djb Travel range X-axis: 600 mm Travel range Y-axis: 400 mm Travel range Z-axis: 420 mm Spindle speed max.: 4,000 rpm Tool holder: SK 40 Distance from spindle to table: 127–567 mm Spindle diameter in the front bearing: 55 mm MACHINE DETAILS Control system: Heidenhain 407 EQUIPMENT Handwheel Network connection

Condition: good (used), Year of construction: 2001, feed length X-axis: 600 mm, feed length Y-axis: 400 mm, feed length Z-axis: 400 mm, CNC milling machine KUNZMANN - WF7/3 X-Axis: 600mm Y-Axis: 400mm Z-Axis: 400mm Table Length:650mm Table Width: 400mm Table load: 250 Stroke pinole:40mm Length: 2800mm Width: 2400mm Height: 2100mm Kodpjwq Ndgsfx Ab Denb Weight: 2000kg

Condition: used, Travel ranges and axes • X-axis (longitudinal): 600 mm • Y-axis (transverse): 400 mm • Z-axis (vertical): 420 mm Spindle • Speed range: 20 to 4,000 rpm • Tool holder: SK 40 (ISO 40) • Milling head: Manual • Spindle drive power: approx. 6 – 7 kW Work table • Clamping area: 900 x 460 mm • Max. table load: 400 kg • T-slots: 7 pieces (standard 14 mm H7, spacing 63 mm) Feeds and speeds • Working feed (X/Y/Z): 1 to 5,000 / 6,000 mm/min • Rapid traverse X and Y axis: 7 m/min • Rapid traverse Z axis: 6 m/min Electrical connection data and dimensions • Total power requirement: approx. 12 – 13 kW • Machine weight: approx. 2,300 kg • Space requirement (L x W x H): approx. 4.0 x 3.8 x 2.0 m Control system • CNC control: Heidenhain HS412 Knsdpfezh Evwox Ab Deb Technical data without guarantee Machine is fully functional and in good condition.

Condition: used, Year of construction: 1992, Technical details: x-travel: 600 mm y-travel: 400 mm z-travel: 420 mm spindle taper ISO: SK 40 control: Heidenhain TNC 360 quill stroke vertical: 75 mm turning speed range: 20 ... 4000 U/min spindle head swivable left - right: 90° links / rechts ° feed:: X/Y/Z: 1...6000 mm/min. feed:: X/Y: 7 m/min. + Z: 6 m/min. Table dimensions: 900 x 460 mm table load capacity: 400 kg weight approx.: 2300 kg dimension machine xH: 4,0 x 3,8 x 2,0 m total power requirement: 13 kW Equipment: - separated production cell - coolant system - control panel with swivel-mounted boom - measuring probe SK 40 Heidenhain TS 120 - oil collecting basin Ksdpfxju Nc U Ij Ab Dsnb *

Condition: new, 8 St. range L-W-H 710 x 510 x 900 mm weight 67 kg Schubladen schrank mit 8 Schubladen Schubladenabmessung 600 x 435mm Knodjvblhqopfx Ab Dsb Schubladenhöhe: Lade 1 - 8, 81mm

Condition: used, Year of construction: 1990, x-travel 600 mm y-travel 400 mm z-travel 420 mm control TNC 355 Heidenhain Main spindle: turning speed range - main spindle 20 - 4.000 min/-1 power capacity - main spindel 7 kW transmission ratio 3 Kodpfjtqmm Asx Ab Dsnb tool taper SK 40 distance spindle /table 127 - 567 mm spindle diameter in front bearing 55 mm stroke of quill vertical 75 mm tool clamping 10 kN swivellable +/- 90 ° work table: table surface area 900 x 458 mm T-slots 7x 63 x 14H7 feeds: feed range 1 - 5.000 mm/min Feed force 5,4 kN rapid traverse ( X / Y / Z ) 7 / 7 / 6 m/min total power requirement 13 kW weight of the machine ca. 3,0 t dimensions of the machine ca. 4,0 x 4,0 x 2,1 m Tool Room Milling Machine - Universal HERMLE - UWF 900 E - Spindle-Head swivable +/- 90°

Condition: used, Table size 900 x 460 mm X/Y/Z - 600/400/420 mm Spindle speeds 20-4000 rpm Spindle taper ISO 40 Hydraulic tool clamping Quill stroke in vertical head Vertical head swivels +/- 90 deg. Tool changer w/32 stations Control: Heidenhain TNC 407 Equipped with: Vice 19 tool holders Coolant Knjdsl Dvx Ejpfx Ab Deb

Condition: not inspected (used), x-travel 850 mm y-travel 440 mm z-travel / mm Control TNC 355C Knodsud Illjpfx Ab Djb
