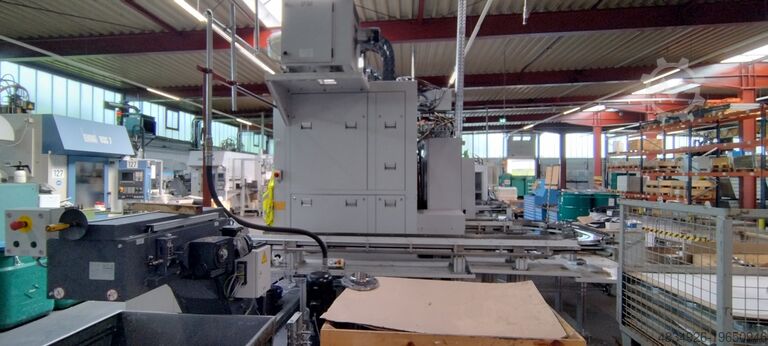

Vertical lathe

HESSAPP DVT 400

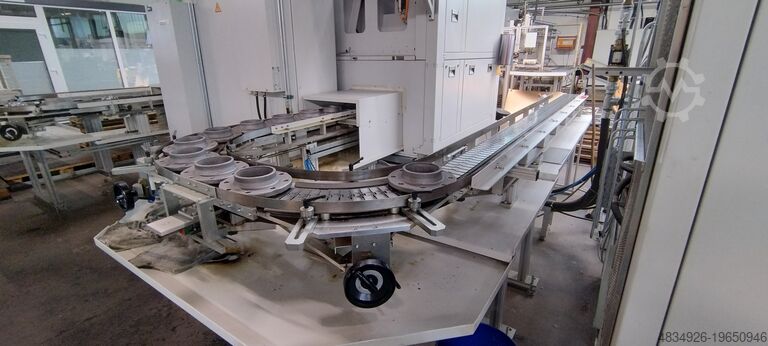

Condition: used, Year of construction: 2012, turning diameter 400 mm swing diameter 420 mm x-travel 850 mm z-travel 315 mm spindle head DIN 55026 - Size 11 spindle bearing diameter 140 mm turning speeds max. 4000 U/min tool turret 12 times C5 Capto rapid traverse x + z axis 45 / 30 m/min feeding force 11 kN total power requirement 58 kW Fsdpfx Afevxwx Asuepn weight of the machine ca. 9 t dimensions of the machine ca. 9,5 x 4,5 x 3 m Hard turning Dry machining Chip conveyor Promot Portal and Cellmaster No clamping device available No tools available no Cellmaster accessories available

Condition: used, TECHNICAL DETAILS - Max. turning Ø : 520 [mm] - Strokes (X/Z) : 1000 / 400 [mm] - Max. push on X and Z : 1100 [daN] - Quick feeds (X/Z) : 45 / 30 [m/min] - Ball screw diameter (X/Z) : 50 [mm] - Spindle nose : A2-11 - Spindle motor power : 71 [kW] - Spindle speed : 0 - 3400 [Rpm] - Max. chuck torque : 750 [Nm] - Number of positions on turret : 12 - Number of motorized positions : 12 - Tool-holder type : VDI50 - Machine alone dimensions : 4.050 x 1.960 [mm] - Installation dimensions : 8.500 x 5.000 [mm] - Machine weight : 13.500 [kg] - Installed power : 45 [kW] Fjdpfx Afouhbfgsuopn - Electric supply : 400 V, 50 Hz EQUIPMENT - CN SIEMENS 840D - Interface : RS232 / RJ45 / USB - Touch part sensor Marposs - 1 fixed tool support on table : Capto C6 - Lubricating tank - HP coolant tank : 23 [bars] - Cooling tank - Chip conveyor KNOLL - Part conveyor capacity : 70 - 320 [mm] - Rotary tool holders number : 6 - Fixed tool holders number : 6 - Chuck 3 jaws Forkhardt Ø : 400 [mm]

Condition: used, Year of construction: 2020, turning diameter max. 3.800 mm diameter of spindle flange 1.900 mm max. swing diameter 3.800 mm control 840 D sl Siemens turning speed range - main spindle max. 100 min/-1 power capacity - main spindel 200 kW max. Torque 67.000 Nm gear box 1:30 tool taper Capto C8 swivellable B: 0 - 270 ° Spindle speed - driven tool pos. max. 6.000 min -1 max. Torque 120 Nm tool taper Capto C8 number of toolpositions 41 pos. max. tool weight 20 kg max. tool length 400 mm max. tool diameter 120 mm 0 125 mm tool taper Capto C8 number of toolpositions 25 pos. workpiece diameter at full load 150 mm max. tool weight 20 kg max. tool length 400 mm x-axis 1: 2.800 mm x-axis 2: 3.200 mm z-axis 1.000 mm rapid traverse X: 32 / Z: 20 m/min feed power X/Z: 22 kN total power requirement 280 kVA weight of the machine ca. 155 t dimensions of the machine ca. 10,4 x 6,3 x 5,7 m CNC Vertical Turning Machine PITTLER - PV 4000 - Control Expansion / Software SINUMERIK 828D/840D SL ProgramSYNC Software Option - 12-Jaw Compensating Chuck by RÖHM - Retractable Step Guards - Coolant Circulation - Coolant Conditioning - Oil Hose Skimmer - SIEMENS Safety Integrated - Network Interface / Data Transfer DNC Option Fjdpfxeyrhl Do Afuepn - Remote Diagnostics for NC Functionality - Teleservice for Integrated PLC of the Sinumerik 840D - Ethernet Connection in the Control Cabinet - Variable Speed ??Range to Reduce Vibration - Air Purifier, Electrostatic Discharge - Probe for In-Process Workpiece Measurement - Walk-in Work Area

Year of construction: 2007, condition: ready for operation (used), A vertical EMAG CNC turning machine is available. Turning diameter: 400mm, swing diameter: 420mm, X/Z-axis travel: 850mm/315mm, spindle bearing diameter: 140mm, spindle speed: 4000rpm, rapid traverse X/Z: 45m/min/30m/min, feed force: 11kN, machine dimensions X/Y/Z: approx. 9500mm/4500mm/3000mm, weight: approx. 9000kg. Including hard turning function, dry machining function and chip conveyor. Documentation available. An on-site inspection is possible. Fedpeznmxtefx Afuspn

Condition: ready for operation (used), Year of construction: 2007, travel distance X-axis: 850 mm, travel distance Z-axis: 315 mm, spindle motor power: 58,000 W, spindle speed (max.): 4,000 rpm, total height: 3,000 mm, total width: 4,500 mm, overall weight: 9,000 kg, product length (max.): 9,500 mm, number of axes: 2, Vertical turning machine manufactured in 2007. This EMAG VSC 400 features a turning diameter of 400 mm and a swing diameter of 420 mm. It offers an X-travel of 850 mm and Z-travel of 315 mm, with a maximum spindle speed of 4000 rpm. If you are looking to get high-quality turning capabilities, consider the EMAG VSC 400 machine we have for sale. Contact us for further details regarding this machine. - Turning Diameter: 400 mm- Swing Diameter: 420 mm- Spindle Head: DIN 55026 - Size 11- Spindle Bearing Diameter: 140 mm- Rapid Traverse X + Z Axes: 45 / 30 m/min- Feed Force Z/X: 11 kN- Total Power Requirement: 58 kW- Installed Power (Nameplate): 54 kW- Frequency: 50 Hz- Voltage (Power): 400 V- Control Voltage: 230 V- Nominal Current: 104 A- Cos Phi: 0.83- Fuse Protection: 125 A- Features: Hard turning, Dry machining, Chip conveyor Fsdpjzrnwrofx Afuopn Technical Specification Driven Tools No

Condition: used, Year of construction: 2020, functionality: fully functional, travel distance X-axis: 1,700 mm, travel distance Z-axis: 500 mm, Technical specifications: Manufacturer: Weisser Type: Univertor AM-1L Year of manufacture: 2020 Control: CNC control Siemens SINUMERIK 840D sl Travel ranges: X 1,700 mm, Z 500 mm Spindle unit, left side of the machine Maximum speed: 3,500 rpm Rated speed: 780 rpm Torque: 430/610 Nm (100/40% duty cycle) Spindle bearing diameter: 120 mm Spindle flange: A8 according to DIN 55026 Fpodpfxjzrz Ids Afujn Grinding unit Maximum speed: 16,000 rpm Grinding wheel arbor: 40 x 10 mm Turret Disc turret: 12-position Drive: electric swivel drive Internal grinding spindle with grinding software Tool holder: D28/43 (M28x2 thread) Spindle bearing diameter: 45 mm, hybrid design Maximum speed: 45,000 rpm Rated speed: 30,000 rpm Drive power: 15/18 kW (100/60% duty cycle) Torque: 4.7/5.7 Nm (100/60% duty cycle)
