Planer-Type Milling M/C - Double Column

HEYLIGENSTAEDT Heynumill ECOFLEX

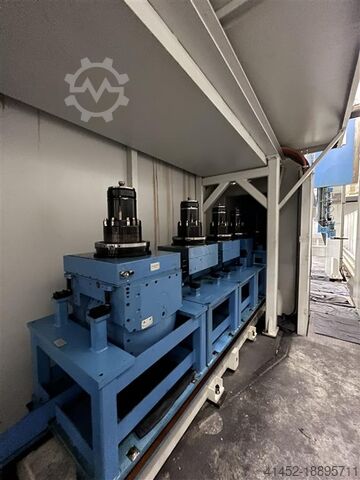

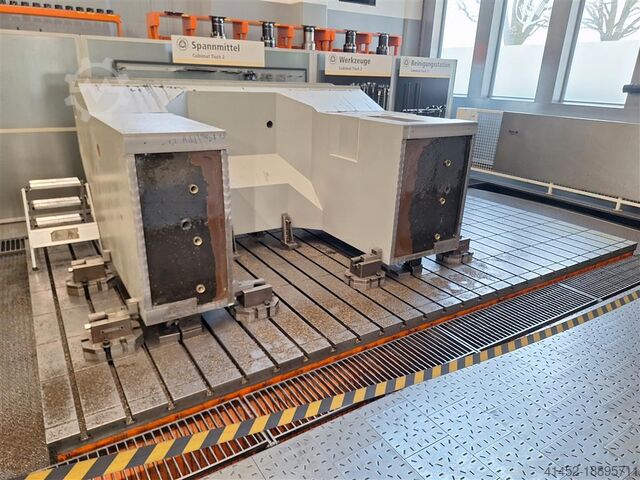

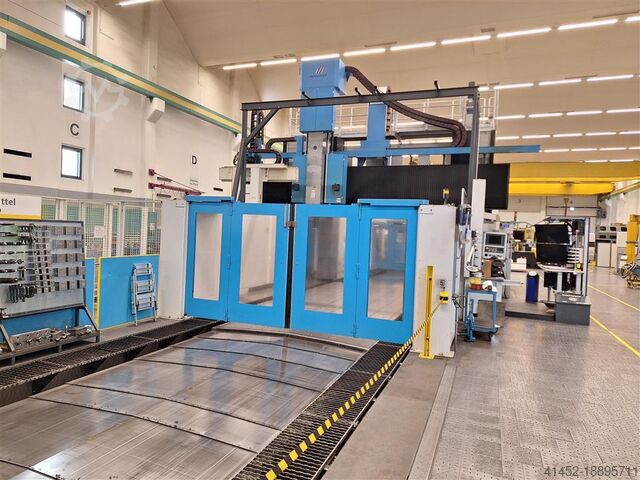

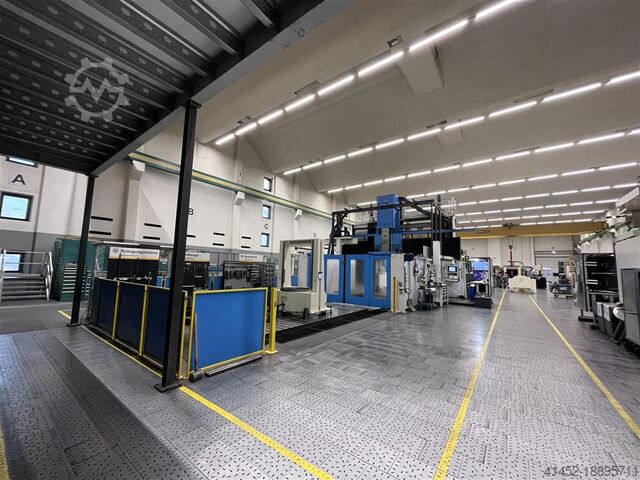

Condition: used, Year of construction: 2010, x-travel 6500/13500 mm y-travel 4000 mm z-travel 1500 mm w-travel 2250 mm Control SIEMENS 840 D table surface area 5500/12500 x 3000 mm distance between columns 3800 mm max. distance between table and spindle-nose 3000 mm max. workpiece weight 50000/75000 kg ram head dimension 520 x 625 mm spindle speed 5000 U/min milling spindle motor 63 kW max. torque on the spindle 2900 Nm Tool bore DIN 69893 HSK-A 100 feeds x/y/z 24 m/min feed w-axis 6 m/min rapid traverse x/y/z 40 m/min total power requirement 120 kW weight of the machine ca. 250 t dimensions of the machine ca. 29,5 x 9,5 x 8,2 m Equipment / Accessories: - automatic tool magazine for 212 tools - automatic milling head magazine for 6 milling heads - Machining modules/ Milling heads: 1. Machining module -straight- 67 kW, 2900 Nm, 5000 rpm, HSK-A 100 2. Machining module -straight extended- 40 kW, 1700 Nm, 5000 rpm, HSK-A 100 3. Machining module -angle BM extended- 40 kW, 4000 rpm, 1800 Nm, HSK-A 100 4. Machining module -angle BM - 67 kW, 4000 rpm, 2900 Nm, 360 x 1°, HSK-A 100 5. Machining module -angle BM - 67 kW, 4000 rpm, 2900 Nm, 360 x 1°, HSK-A 100 6. Machining module -Universal Index BM - 40 kW, 4000 rpm, 2100 Nm - C-axis 360 x 1°, B-axis +/- 110 x 1°, HSK-A 100 - Measuring probe - Coolant device - Chip conveyor Dodpfx Aewa Dxqsdmewf - Technical documentation

Condition: ready for operation (used), controller manufacturer: Siemens, empty load weight: 55,000 kg, 2-koloms portaalfreesmachine tussen de kolommen: 2550 mm!! 5-assige freeskop koeling door spindel totaal vermogen: 90 kVa Longitudinal travel X-axe: 8000 mm Cross travel Y-axe: 2500 mm Travel Z-axe: 800 mm Dimensions clamping space- table: 9000 x 2500 mm Max height workpiece: 1200 mm Power on spindle: 20 kW Power needed (KVA): 90 ACCESSORIES & TOOLING: toolchanger - 28 toolpositions Dodpfx Aev Sfkaedmswf

Condition: used, CNC Gantry-Type Boring and Milling Machine ANAYAK Type HVM-3800-P Bed type milling machine, structure similar to a plate-type boring mill with fixed table Machine No.: M-20021203 Year of manufacture: 2002 ("Refurbished 2025") The machine will be completely workshop overhauled in 2025 and can then be inspected in storage at 37235 Hessisch Lichtenau. Travel distances: X: 3,200 mm, Y: 1,200 mm, Z: 1,500 mm Table size: 3,800 x 1,200 mm T-slots: 8 pieces, 22 mm, spacing 130 mm Table load: max. 25 tons (stationary table – virtually unlimited load capacity) Spindle taper: ISO 50 (DIN69871-A) (drawbar: DIN 69872-B) Spindle speed: 60 – 4,000 rpm, stepless Feed rate: up to 10,000 mm/min, stepless Rapid traverse X + Y: 20 m/min Rapid traverse Z: 10 m/min Spindle drive: 22 / 30 kW Electrical connection: 400 Volt, 50 Hz, 50 kVA - Automatic tool changer for 30 tools - Spindle drive with 2 speed ranges - With automatic tool changer and tool magazine - Orthogonal milling head with hydro-mechanical tool clamping - Orthogonal milling head fully automatic swiveling in two 45° planes – B+C axis - HEIDENHAIN iTNC 530 control, with electronic handwheel - Prepared for wireless touch probe (probe and receiver not included) - Additional HF-spindle, 18,000 rpm – for attachment - Free-standing control cabinet - Chip conveyor positioned between the gantry bed and the machine table - 32,078 operating hours recorded - Coolant system - Free-standing hydraulic unit Djdpfxjxcgtge Admswf - Operating manual with circuit diagrams Installation area (L x W): approx. 1,000 x 700 cm Installation height: approx. 410 cm Weight (total): approx. 33 tons Good condition

Condition: good (used), Year of construction: 2005, travel distance X-axis: 3,500 mm, travel distance Y-axis: 2,000 mm, travel distance Z-axis: 1,250 mm, In good technical condition. Year of modernization: 2005. Main electric motor power: 37 kW Installed machine power: 50 kVA Maximum machine length and width (including control cabinets): 7800 x 7200 mm Djdpfxswc Sm Io Admewf Maximum machine height: 4900 mm Assembled floor space: 50 square meters Required installation height: 5800 mm Maximum workpiece weight: 12000 kg Work spindle diameter: 130 mm Spindle taper: ISO 50 Work spindle throat: 800 mm Work spindle speed range: 5 to 1800 rpm Distance of spindle axis from table clamping surface (Y): 70 mm Table clamping surface: 2500 x 1800 mm

Condition: used, Year of construction: 1997, travel distance X-axis: 3,708 mm, travel distance Y-axis: 1,208 mm, travel distance Z-axis: 1,002 mm, feed length X-axis: 5,000 mm, feed length Y-axis: 5,000 mm, feed length Z-axis: 5,000 mm, rapid traverse X-axis: 15 m/min, rapid traverse Y-axis: 15 m/min, rapid traverse Z-axis: 15 m/min, spindle speed (max.): 3,000 rpm, spindle speed (min.): 35 rpm, CNC Bed-Type Milling Machine – Universal ZAYER 20 KF 4000 Year of manufacture: 1997 CNC control: HEIDENHAIN TNC 426/430 Technical specifications: X travel: 3708 mm Y travel: 1208 mm Djdpfx Aewtpfpodmowf Z travel: 1002 mm Table size: 4000 x 1000 mm Tool holder: SK 50 Spindle speeds: 35–3000 rpm Spindle motor: 22 kW Feed range: 6–5000 mm/min Rapid traverse: 15 m/min Machine weight: approx. 19.5 t ADDITIONAL INFORMATION Electronic handwheel Automatically swivelling milling head vertical/horizontal +/-120° (stepless) Milling head automatically swivelling in the rear axis / 90° rotation Coolant system The machine can be inspected under power. Delivery time: immediately Sale from location Westerkappeln Dismantling, loading available on request.

Condition: reconditioned (used), Year of construction: 2009, x-travel 3.000 mm y-travel 1.000 mm z-travel 1.000 mm control iTNC 530 HEIDENHAIN table-size 3.230 x 1.050 mm table load 8,0 t spindle taper ISO 50 tool change unit 24 Pos. spindle turning speed range 30 - 3.500 U/min Dedpfx Aovlzznjdmewf drive capacity - spindle motor 25 kW feed stepless 1 - 5.000 mm/min rapid traverse 10,0 m/min chip conveyor Spiralförderer voltage 380 V total power requirement 35 kVA weight of the machine ca. 13,5 t dimensions of the machine ca. 7,40 x 3,65 x 3,60 m hydraulic power unit 1,40 x 0,50 x 0,60 m 0,45 x 0,70 x 0,85 m - Serial No.: VH-30041 - Maschine ON 23.724 h - Spindel ON 7.968 h - CNC-Control: iTNC 530 HEIDENHAIN - Universal Milling Head (Huron-Type), manual - 2x Screw type chip conveyor at front and back of table - Oil chiller unit - Y-Axis guitde ways with new TURCITE - Ball screws and bearings in X/Y/Z axis renewed

Condition: ready for operation (used), Year of construction: 2005, functionality: fully functional, A used CNC portal milling machine with carousel turning unit / C-axis for turning Hirth gearing TRAVEL PATHS X: 3,000 mm Y: 2,500 mm Z: 1,000 mm Table diameter: 2,000 mm Max. turning diameter: 2,500 mm Max. turning height: 1,000 mm Machine: Uniport 6000 Boring work, also CNC turning, CNC milling and angle head machining. All in one clamping, combined with the speed and precision of a CNC portal milling machine. Dwsdpevvh T Sofx Admef C-axis for turning New price: €1.8 million Dismantling: by arrangement The machine comes with a protective cover so that no chips get into the Hirth gearing on the slide during milling. Then the rotary attachment head for the turning tools and an angle head for lateral machining on the plate field or on the rotary table. You can swivel this by 2.5° each time over the Hirth gearing. All holders (milling, turning, angle head) are clamped via HSK-100. A radio measuring probe from M&H (Hexagon) for measuring and probing the zero point is included with the machine. The machine is in operation and can be viewed on site. A video of the machine is available.

Condition: used, Year of construction: 2001, Technical details: Dwsdpfx Adju Ibvhsmef tube diameter: 74 mm wall strength: 5 mm tube diameter min.: 10 mm tube diameter max.: 74 mm round material: Stahl max: 40 mm control: Trumpf-Rohrtechnik IsoBend 2.0 bending radius max.: max: 300 / min: 65 mm bending angle max.: max: 195 / min: 0,1 ° bending speed: (°/s): 90 / (°/s²): 190 °/s tube pipe draw up length: 3000 mm work pressure of hydraulic: Betriebsdruck max: 300 bar total power requirement: 43 kVA weight of the machine ca.: 8,5 t dimension machine xH: 6,5 x 1,6 x 1,6 m dimension control panel: 0,8 x 0,6 x 1,4 m It is a multi radius bending machine with bending head and swivel arm. (Cold bending machine) Possible applications: only for processing pipes, round steels and wires made of steel, stainless steel and non-ferrous metals. Due to the cross slide of the bending head, the following advantages can be listed: -free programmable X and Y axes -level change cross slide: tical travel = 300mm (vert. position freely programmable) and max. horizontal movement 350mm -Bending forms of different sizes within a stack of bending forms can be approached as required. The bending direction is to the right. Control software Trumpf-Rohrtechnik IsoBend 2.0 Hydraulic unit with high-pressure multi-flow pump Mandrel retraction unit Slide rail (speed max. 362mm/sec. and acceleration max. 1100 mm/sec.) i.D. *

Condition: used, Year of construction: 2017, pipe diameter (max.): 80 mm, mandrel length: 4,500 mm, Mandrel bending machine S8004 ----- For the production of dimensionally accurate pipe geometries with bending radii of up to 1.5XD → maximum bending performance pipe 76 x 4 mm (400 N/mm²) → maximum bending performance pipe 60 x 60 x 3 mm (400 N/mm²) → maximum bending performance pipe 76 x 2.9 mm (stainless steel) → total connected load 7 kW → pipe length 4.5 mtr Robust and durable steel construction in a force-locking connection - no construction susceptible to torsion due to, for example, the split construction of the bending head and mandrel carrier. Maintenance-free electromechanical drive of the bending axis. The touch display of the control enables simple and intuitive programming and use of the system. After the pipe has been pushed on, it is fixed in the carriage by the chuck. This enables the pipe to be positioned precisely and thus the creation of dimensionally accurate geometries. The standard also includes checking the pipe geometry before the bending process: If the bending process is started in the wrong position, the machine does not give permission for this. This prevents incorrect operation. Optional additional features provide more convenience and increase the output and thus the efficiency of the system. Data is exchanged from the optional pipe calculation program TBS-3D (PC version) via USB stick or via FTP access from the computer to the machine control system. USB or LAN connectors (RJ45) are available as standard. Existing pipe geometries can be converted quickly and easily, for example, using the STEP format. Standard equipment: → Electromechanical drive of the bending axis 4 kW → Speed 2.9 rpm (=17°/sec.) → Bending direction left → Bending angle resolution 0.1° → Max. bending radius 200 mm → Bending shaft diameter 50 mm → Electronic length measurement ±0.1mm → Electronic twist measurement ±0.1° → Manual stop system (overtravel stops in length) → Manual locking system (15° in twist) → Three-jaw chuck for locking the pipe in the carriage → External control panel PLC control: → Touchscreen 10.1" → ETH 10/100, X2X Link, USB → Foot switch operation Dwsdpfx Aettah Rsdmsf → Data transfer via network (W)LAN or USB → Material database Unique graphic programming: Simple geometries can be calculated directly on the machine. The control calculates the feed values directly after entering the length and angle and the bending angles. Hydraulics: → Hydraulic power 3 kW → Hydraulic pipe clamping with adjustable clamping pressure → Programmable early mandrel retraction Options (can be ordered as additional equipment): → Variable bending speed using frequency converters or servo motors → Automatic tool retraction (manual or controlled) → Pneumatic chuck → Automatic mandrel lubrication → Pneumatic stop system (length + twist) → Mobile version (rollers) → Radius extension Pictures show new machine

Condition: used, Year of construction: 2007, control Siemens Sinumerik 840 D weight 57.000 kg voltage 400 V Gleason PFAUTER CNC gear hobbing machine P 2400/2800 for gear cutting of cylindrical and worm gears as well as all other regularly occurring rollable profiles and shapes on the cylindrical workpiece circumference. Large gear hobbing machines from Gleason offer maximum productivity for roughing and finishing cylindrical gears for many industries: wind turbines, industrial gearboxes, mining and shipbuilding, gear machining and many more. The power range of the drive takes future tool developments into account. Of course, the gear hobbing head drive is also backlash-free. These machines are particularly well suited for use with state-of-the-art, cutting materials, regardless of whether dry or wet machining is preferred. The machine can be used for dry or wet machining and is also equipped with the appropriate chip conveyor for both machining methods. The machine is equipped with an internal profile milling head as a motorised milling head. --> Working range and technical data Nominal workpiece diameter: 2.400 mm --> Largest millable diameter approx.: 2.800 mm --> Smallest/largest distance between cutter and workpiece axis: 100/1.200 mm --> Largest axial slide travel (special design): 1.300 mm --> Largest clampable cutter (internal milling head): --> Diameter max: 440 mm --> Max. cutter width: 90 mm --> Swivel range of the internal profile milling head/vertical axis: +/- 15° --> Milling mandrel taper: HSK-B160 --> Maximum milling cutter travel: 300 mm --> Table diameter: 2.500 mm --> Part wheel diameter: 2.200 mm --> Table bore --> Diameter: 800 mm --> Depth: 875 mm --> Maximum table load approx.: 40.000 kg --> Max. feed and rapid traverse speeds: --> axial (Z-axis): 4.000 mm/min --> radial (X-axis): 3.000 mm/min --> tangential (Y-axis): 3.000 mm/min --> Milling cutter cooling lubrication device/electric centrifugal pump: approx. 150 l/min --> Increased drop height of magnetic chip conveyor: 1,600 mm --> Increased main stand: 1,300 mm axial slide travel --> Internal profile milling head as motor milling head instead of standard motor milling head --> Max. millable profile depth in steel with approx. 600 N/mm² strength: approx. 65 mm --> Infinitely variable milling speed: 50 - 150 min?¹ --> Max. milling cutter diameter: 440 mm --> Min. milling cutter base circle diameter: 310 mm --> Max. milling cutter width: 90 mm Dwjdpfx Adswzyp Ijmsf --> Min. internal diameter at 0° bevel angle: 800 mm+) --> Max. workpiece height at 0° bevel angle: 600 mm --> Max. workpiece ring thickness (including clamping device): 500 mm
