Mandrel tube bending machine

TRUMPF-PULZER MR65R

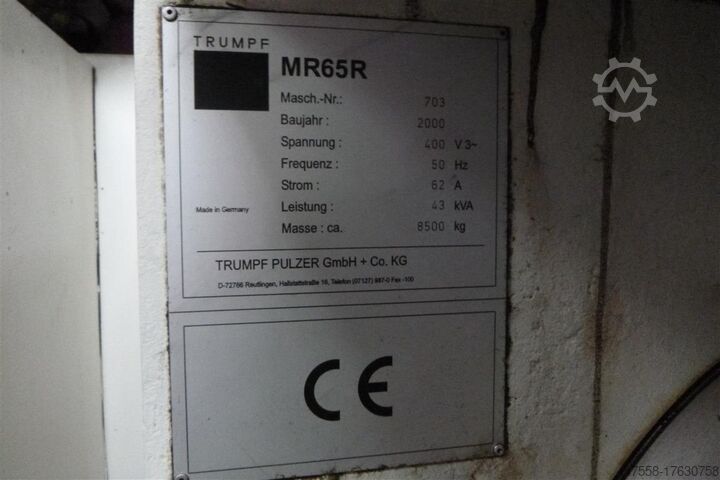

Technical details:

tube diameter: 74 mm
wall strength: 5 mm
tube diameter min.: 10 mm
tube diameter max.: 74 mm
round material: Stahl max: 40 mm
control: Trumpf-Rohrtechnik IsoBend 2.0
bending radius max.: max: 300 / min: 65 mm
bending angle max.: max: 195 / min: 0,1 °
bending speed: (°/s): 90 / (°/s²): 190 °/s
tube pipe draw up length: 3000 mm
work pressure of hydraulic: Betriebsdruck max: 300 bar
total power requirement: 43 kVA
Csdpfxju Ibvho Abwehc
weight of the machine ca.: 8,5 t
dimension machine xH: 6,5 x 1,6 x 1,6 m
dimension control panel: 0,8 x 0,6 x 1,4 m

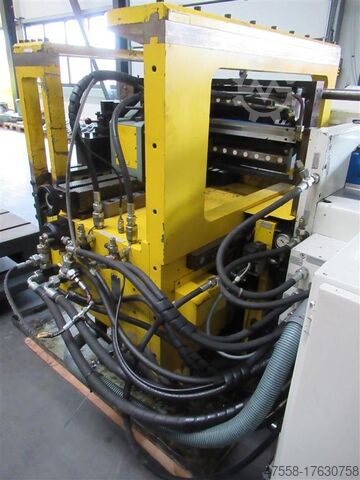

It is a multi radius bending machine with bending head and swivel arm. (Cold bending machine)
Possible applications: only for processing pipes, round steels and wires made of steel, stainless steel and non-ferrous metals.

Due to the cross slide of the bending head, the following advantages can be listed:
-free programmable X and Y axes
-level change cross slide: tical travel = 300mm (vert. position freely programmable) and max. horizontal movement 350mm
-Bending forms of different sizes within a stack of bending forms can be approached as required.
The bending direction is to the right.
Control software Trumpf-Rohrtechnik IsoBend 2.0

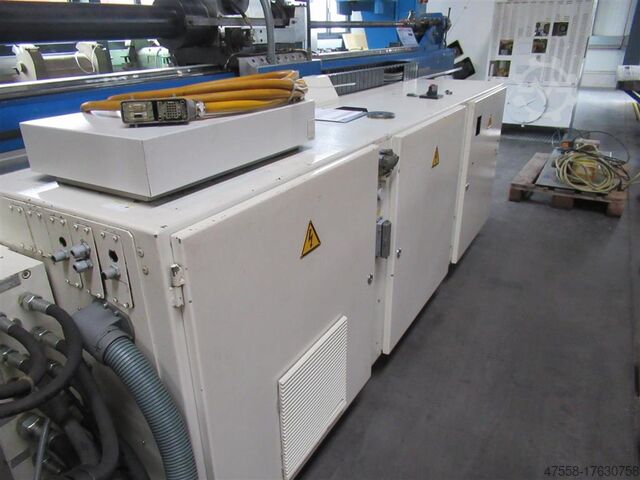

Hydraulic unit with high-pressure multi-flow pump

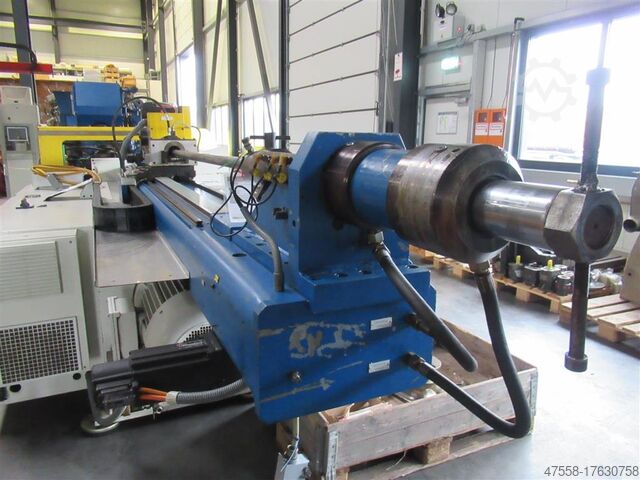

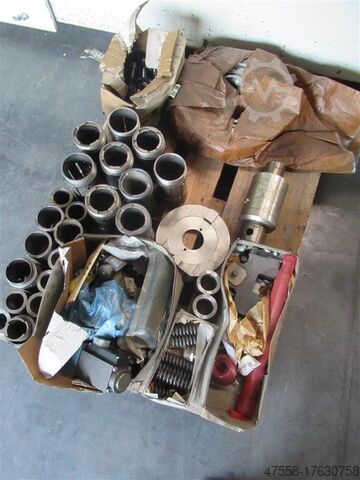

Mandrel retraction unit
Slide rail (speed max. 362mm/sec. and acceleration max. 1100 mm/sec.)
i.D.

*
