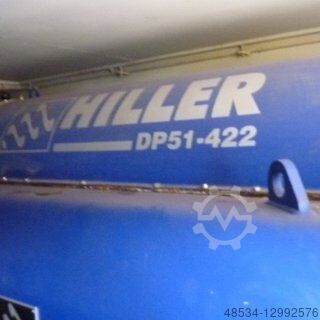

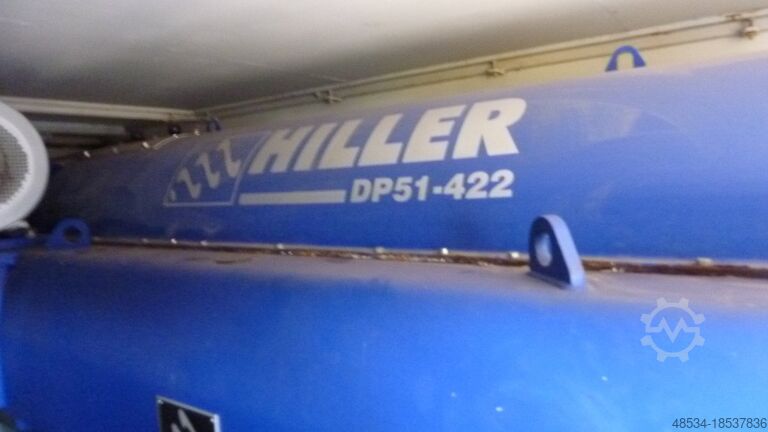

DRAINAGE SYSTEM DECANTER DP51, MOBILE

Hiller DP 51 mobil

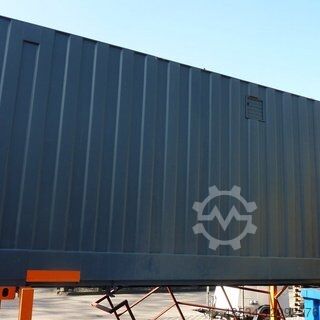

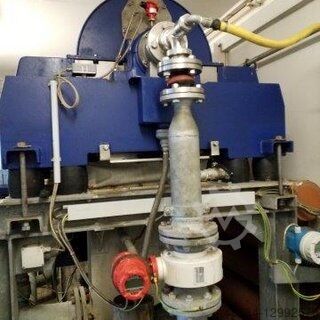

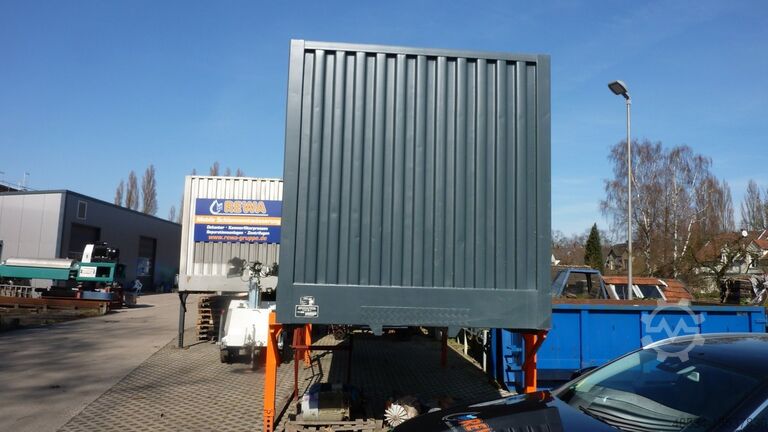

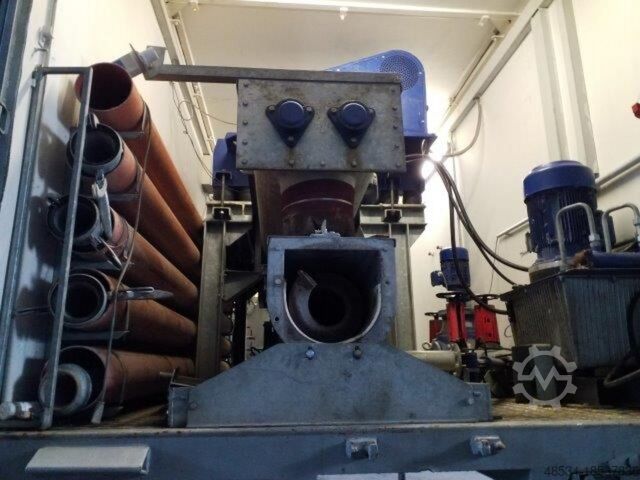

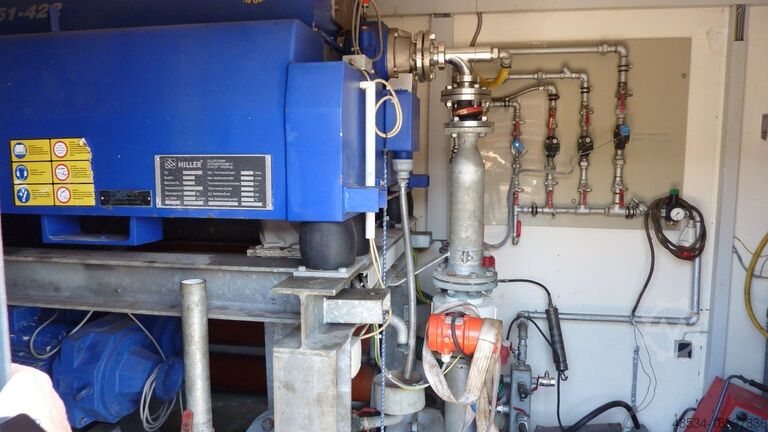

Year of construction: 2007, condition: used, Plant: Mobile sludge dewatering plant, decanter / centrifuge mobile Manufacturer:Hiller Model: Solid bowl screw centrifuge Type: DP51 Machine No.: H3991 Year of construction: 2007 Maximum permissible: Drum speed 3400 I/min Hfedpfx Ajppucajc Noh Inner diameter of bowl: approx. 505 mm Reel material: ST52,0 drum wall thickness:13,0 mm Other: steel exchange case with reinforced bottom, Accessories: pump for sludge inlet, flocculant suction pump, flocculant discharge pump Flocculant station: 2 chamber system for liquid polymers with agitator , adjustable Double shaft paddle mixer: galvanized steel Total mass: approx. 4200 kg Purchase and rent possible.

Condition: used, Plant: Mobile sludge dewatering plant, decanter / centrifuge mobile Manufacturer: Hiller Model: Solid bowl screw centrifuge Hfodoppddyepfx Ac Nsh Type: DP45-422 Machine No.: H3480 Year of construction: 2006 Maximum permissible: Drum speed 3800 I/min Inner diameter: Drum 450 mm Drum material: H2/St52 Electric motor: yes Other: steel exchange case with reinforced bottom, accessories: pump for sludge inlet, flocculant suction pump, flocculant release pump Flocculant station 2 chamber system for liquid polymers with agitator , adjustable Double shaft paddle mixer galvanized steel Total mass : approx. 3200 kg Purchase and rent : possible.

Condition: used, Year of construction: 1991, Flottweg three-phase decanter, Z4D-3/441, last used in a fruit juice plant. Inner drum diameter: 420 mm Inner drum length: 1245 mm Drum wall thickness: 10 mm The medium to be separated is fed into the hollow center axis of the decanter. Centrifugal force causes the solids to collect on the drum shell. A cylindrical-conical screw conveyor transports the ring of solids to the discharge openings, where it is ejected into the solids housing. The two liquid components separate according to their specific density and form two hollow liquid cylinders. The diameter of the liquid rings can be adjusted using a peeling disc and overflow weir. One of the two phases is discharged without pressure and one is discharged under pressure via the paring disc. The moisture content of the solids and the purity of the liquids can be controlled by: - Varying the phase separation discs and paring diameter - Decanter speed - Screw speed Additional title: 3-phase decanter Max. bowl speed: 4000 r/min Max. sediment-density: 1 g/cm³ Max. ambient temperature: 100 °C Mass moment of inertia: 15.5 kgm2 with an empty drum Weight: 2250 kg Hfedpfx Aoyr Iccoc Nsh Material: housing from stainless steel 1.4301 (AISI 304); drum made of high-strength cast stainless steel 1.4463 Position: free standing Base construction: Horizontal decanter drum in steel frame, on square tube frame with dome feet Features: Base with rubber mountings, electric motor (Loher 180 M, 22 kW)

Condition: good (used), Year of construction: 1995, shredding by 3 HARDOX-coils (spirals) diameter x length: approx. 500 x 1.700 mm opening: approx. 1.100 x 1.700 mm new base frame with steel construction new feed-hopper 8 m³ Hfjdpfx Ael I Dx Noc Neh new control cabinet incl. 7 unused spare coils

Condition: excellent (used), Year of construction: 2000, functionality: fully functional, inner diameter: 260 mm, wall thickness: 10 mm, overall weight: 870 kg, year of last overhaul: 2025, operating temperature: 100 °C, Decanter centrifuge, 5500 RPM, 1.5 m³/h, 11 kW, refurbished, bearings replaced, liquid discharge under pressure, in excellent working condition, documentation available. WESTFALIA Decanter CA 22.00.00 (green one), in excellent condition, excellent working order. Hfedpfjxlpwtox Ac Nsh Live video call demonstration or personal inspection possible.

Condition: used, Machine No.: 010.013.04 Hedpfx Ajppa S Rjc Njfh Year of manufacture: 1999 Drum: max. speed. 2800 min-1 Perm. sediment density: 1,3 kg/dm3

Year of construction: 2003, condition: reconditioned (used), Overhauled machine Disassembled ready for transport in container (2) Anti-wear linings New bearings Hfodpfx Acjizkxwo Neh Passing capacity 160 Tm hour Motor from 50 kw to 150 Kw depending on needs. Current motor installed 75 kw

Year of construction: 2022, operating hours: 975 h, condition: used, functionality: fully functional, overall weight: 9,600 kg, total length: 6,050 mm, total width: 2,450 mm, total height: 2,700 mm, machine/vehicle number: B0501, The MAGNETIC DRUM consists of a two-stage drum magnetic separation system designed to remove all magnetic particles from a material stream. Because the intensity of both magnetic drums can be selected and each drum can be activated or deactivated as needed, this module is highly flexible and can always be adapted to the specific properties of the feed material. The dual magnetic separation enables higher purity levels while maintaining constant throughput. This module is part of our rental fleet. Hfsdpfxsxt Dqqs Ac Noh

Year of construction: 2025, condition: new, The Zig-Zag Air Separator by Koltex Plastic Recycling Systems enables efficient separation of bulk materials into fractions with different densities. The material to be separated is fed into the device via a rotary valve, ensuring even distribution across the entire cross-section of the separation channel. Sorting is carried out using an upward airflow generated by a high-performance blower. The air flows through the separator channel, lifting lighter particles while heavier fractions fall downward due to gravity. Hodpfxevmxvfe Ac Nefh The specially designed Zig-Zag channel forces the material to pass through the airflow multiple times at each turn. Lighter fractions are effectively lifted and discharged through the top airflow, while heavier particles remain and fall, ensuring precise and efficient separation. The separator is equipped with advanced dust extraction cyclones with filters that eliminate dust emissions throughout the process. This ensures not only high separation efficiency but also environmental safety and workplace cleanliness. Koltex Plastic Recycling Systems also offers high-quality shredders, which can be integrated at the start of the process to create a complete grinding line with the separator. This solution enables comprehensive material processing, from shredding to precise separation, providing full control over the recycling process.

Condition: not inspected (used), ISS 100 with vibrating chute and control cabinet more photos to follow the sorting machine will be handed over in working order sorting tests in manual feeding method can be carried out Hfodpfov Duv Nsx Ac Noh
