Standing panel saw

Holz-Her 1255

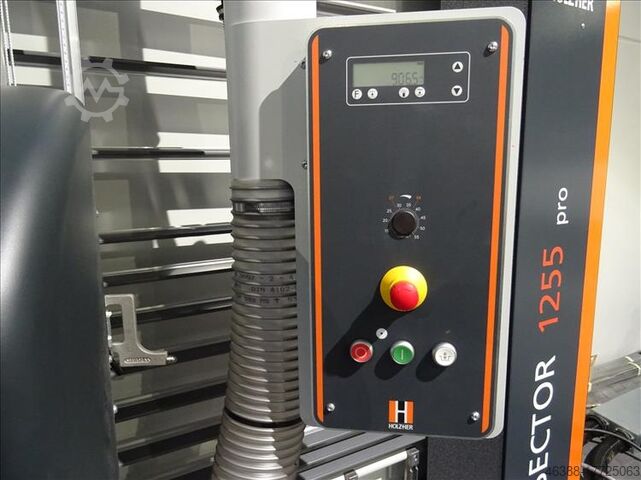

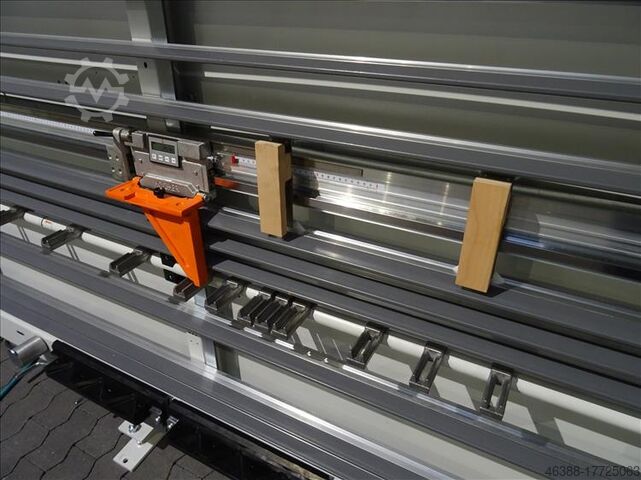

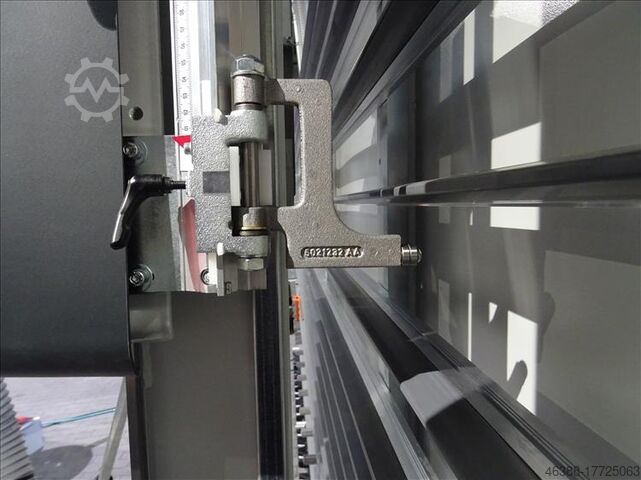

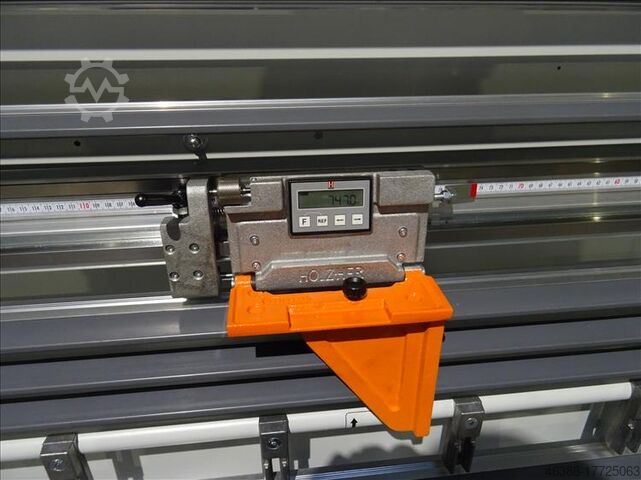

Condition: new, Panel saw HOLZ-HER 1255 SECTOR pro - Exhibition machine - Cutting height 2,200 mm Cutting length 5,300 mm Vertical perfection from HOLZ-HER The vertical panel saws from HOLZ-HER combine proven technology from over 50 years of experience and a rock-solid design that offers you a unique price-performance ratio. offer you a unique price-performance ratio. Your advantages: - Fully welded frame Extremely high rigidity - Precise cutting quality - Finished cut for immediate edge banding - Powerful saw motor with 4 kW output - Space-saving panel layout with a installation area from 4 m² - Smooth and ergonomic operation TRK extraction system (optional in all CE countries): Workstations must meet the highest requirements when it comes to health and safety. HOLZ-HER saws are among the cleanest and safest in the safest in the world. Accessories The extensive range of accessories extends from convenient digital dimension displays through to our our patented Super Cut plus scoring system. TECHNICAL DATA Vertical panel saw for cutting panel-shaped wood materials wood-based materials such as chipboard, MDF, veneer panels, multiplex, etc, veneer panels, multiplex etc. Basic machine: Completely welded frame with extremely high rigidity. Precise guidance of the saw beam / saw unit saw unit for an accurate cut. Manual feed feed for vertical and horizontal cutting. Cutting depth: max. 60 mm Saw beam: Sturdy saw beam guided on precision guides. Pneumatic locking of the saw beam at the top and bottom. Electrically monitored in vertical cut Saw unit: Smooth and ergonomic operation for plunging and and removal of the saw unit. Immersion lever can be lever can be folded down in the upper position for precise immersion of the saw unit. Generously dimensioned lever for easy pivoting. Housing cover opens the complete opens the complete saw unit for easy tool change change incl. ProLock quick-action chuck. Light cut-out: Riving knife can be retracted. Control panel: Efficient operation of the machine. Godpfx Aou R Syisa Iobg Ergonomically positioned at eye level. Lower workpiece support: Sturdy, wear-free stainless steel support. Support up to the cutting line: Narrow workpieces cannot tip or fall through Extraction: Effective extraction with two connections: Saw unit Ø 120 mm, frame end Ø 100 mm (with TRK variant) Lifting roller transport system: Manually liftable and lowerable rollers for easy and and gentle panel transport. Measuring tape: For displaying dimensions for horizontal cutting with three manual dimension displays: Absolute dimension from the lower workpiece support Absolute dimension from the middle workpiece support Serial cuts from the top edge of the panel This offer is an equipment package. The following items and options are already included in the price: - Sliding grid - Manual longitudinal stop for vertical cutting - Digital dimension display for horizontal cut - 3 adjustable stop points in the saw beam - TRK SH 2.200 suction device - Strip stop for recurring horizontal cuts - new exhibition machine -

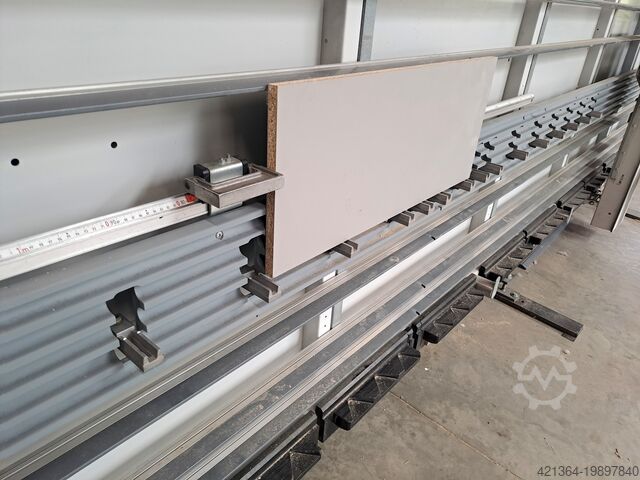

Condition: good (used), Year of construction: 2011, Panel saw HOLZ-HER Model: 1255 Condition: used Year of manufacture: 2011 Cutting length: 6300 mm (max) Vertical cutting height: 2200 mm (max) Horizontal trimming height: 2200 mm (max) Workpiece thickness: 60 mm (max) Scoring height horizontal: trimming height Gbsdpfex Hyr Hsx Aa Isg Scoring height horizontal: 2040 mm (max) Voltage: 400V 50 Hz Weight: 920 kg Equipment: - Operating manual - Next UVV safety inspection: 05/2026

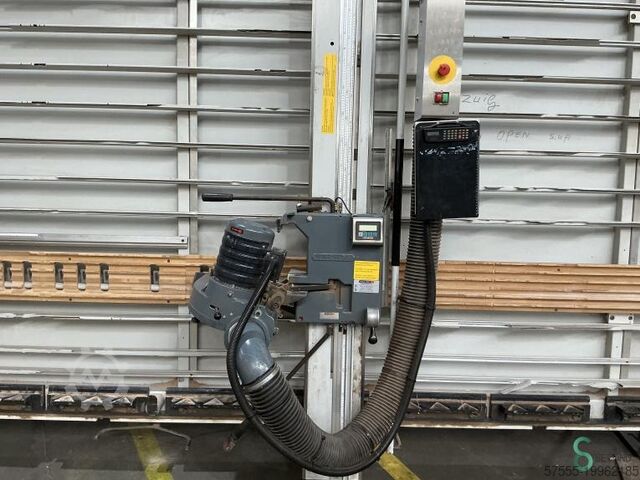

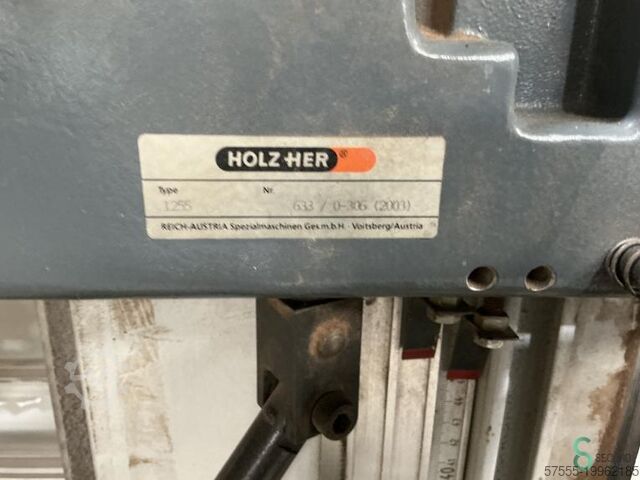

Condition: used, Year of construction: 2003, total height: 2,900 mm, total length: 5,100 mm, total width: 1,700 mm, Weight: 650 kg Gbsdpfexbhmlox Aa Isg - Year: 2003 - Documentation available: No - CE certificate present: No - Serial number: 633/0-306 - Max. cutting height vertical [mm]: 2200 - Max. cutting width [mm]: 4300 - Min. saw blade diameter [mm]: 240 - Max. saw blade diameter [mm]: 250 - Arbor saw blade diameter [mm]: 30 - Horizontal cutting: Yes - Vertical cutting: Yes - Transport dimensions: 5100mm x 1700mm x 2900mm (l x w x h) - Transport weight [kg]: 650kg - Transport packages [pcs.]: 1 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Yorick Diebels

Condition: new, Year of construction: 2019, functionality: fully functional, I am offering a new, originally packaged saw for sale. Gbjdpfswxr Dxox Aa Ijg

Condition: used, Year of construction: 2009, Used machine Year of manufacture: 2009 Features and technical data: Cutting range: Cutting length: 4300 mm Cutting height: 2100 mm Cutting depth: max. 60 mm Extraction: Saw unit: 120 mm Frame end: 100 mm Workpiece support: Stable plastic support for optimal positioning, including for narrow workpieces Chips are removed via slanted slots Roller transport system: Gbjdpsxllv Ejfx Aa Ijg Manual for easy and material-friendly transport Indexing: Manual, vertical and horizontal Feed: Manual, vertical and horizontal Circular saw blade: Carbide-tipped (HM), 250 mm, hollow ground alternate top bevel, 48 teeth Saw motor: 4 kW at 5,450 rpm, 400 V, 50 Hz Crosscut fence: Incl. workpiece support for narrow parts (4 positions) Extraction unit in accordance with BG guidelines TRK (less than 2 mg fine dust / m³ air) Dimensions: to follow Weight: to follow Availability: short-term Location: Flörsheim
