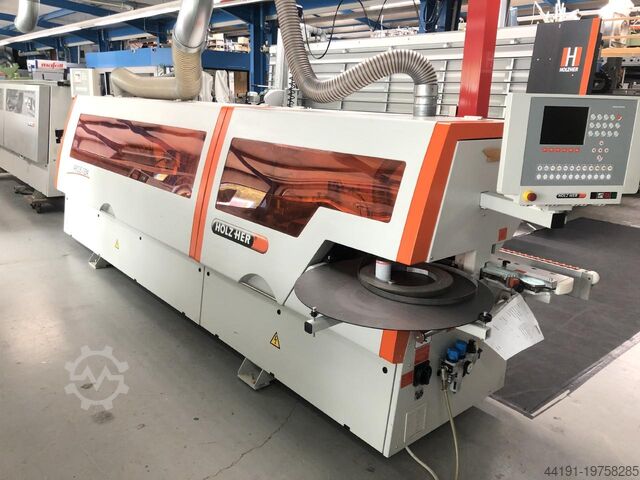

Edge banding machine

Holz-Her Arcus 1334

Condition: used, Year of construction: 2009, operating hours: 2,216 h, What are Presale Items at Second Owner? Presale items are machines that we sell in their current condition ("as-is"). We have purchased these machines based solely on photos and sell them with the information provided in the advertisement. Unfortunately, we do not have additional details, such as exact dimensions or machine specifications. Additionally, these machines are often not yet in stock and have not been inspected by us. These machines are offered at competitive prices, which means the prices are lower than usual, but the risk lies entirely with the buyer. Please carefully review the information in the advertisement before making a purchase. If you have any questions, feel free to contact us! - Machine available from: 2026-01-19 - Year: 2009 - Documentation available: No - CE marking present: Yes - CE certificate present: No - Serial number: 26 - Operating hours: 2216 - Number of units [pcs]: 7 - └ 1st unit type: Pre-milling unit - └ 2nd unit type: Glue unit - └ 3rd unit type: Cap unit - └ 4th unit type: Rough milling unit - └ 5th unit type: Corner rounding unit - └ 6th unit type: Radius scraping unit - └ 7th unit type: Flat scraping unit Gtsdox Aq Dpopfx Aa Iot Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Yorick Diebels

Condition: used, Year of construction: 2004, Used machine Year of manufacture: 2004 Equipment and technical data: Godpfxevymdqs Aa Ijtt Edge feed for rolls and strips Joining milling unit with 2 milling heads Adhesive application system cartridge 3-roll printing unit Cross-cut saw unit Radius milling unit Radius scraper unit Corner copying unit Surface scraper Buffing unit Workpiece thickness min./max.: 6/50 mm Edging thickness: 0.4-15 mm Edging height max.: 55 mm Edging length strip min.: 350 mm Edging projection per side max.: 3 mm Workpiece width min.: 60 mm Workpiece length min.: 180 mm Feed speed: 12.5 m/min. Machine dimensions L x W x H 6480 x 1250 x 1690 mm Availability: short term Storage location: Flörsheim

Condition: used, Year of construction: 2011, Used machine Year of manufacture: 2011 Condition: Machine completely overhauled and serviced Equipment and technical specifications: Infinitely variable feed speed: 10–18 m/min Edge Control 19 control system with 18.5" touchscreen color display Jointing milling unit Edge feeding Cartridge adhesive application station with sensing nozzle and automatic glue height adjustment Pressure unit End trimming unit Multifunctional milling unit Corner copying unit Radius scraper unit Surface scraper Buffing unit Workpiece thickness: 6–60 mm Edge thickness: 0.4–8 mm Minimum workpiece width: 60 mm Shortest workpiece length: 180 mm Dimensions: 5300 x 1500 x 1600 mm Weight: 2,200 kg Godpowka N Tsfx Aa Istt Location: 65439 Flörsheim Availability: short notice

Condition: new, feed rate X-axis: 7 m/min, workpiece height (max.): 50 mm, type of input current: three-phase, input voltage: 400 V, With corner copying, suitable for plastic edges from 0.4 - 3 mm, solid wood edges up to 3 mm, and workpieces from 8 - 50 mm, with pneumatic adjustment. Panel thickness: 8 – 50 mm Gjdpfx Asxxvanea Iett Edge thickness: 0.4-3 mm (coil material) Jointing unit: Yes Radius milling unit: Yes Corner copying unit: Yes Scraper: Yes Buffing unit: Yes Premium equipment for high productivity with minimal space requirements! Intuitive operation with eye-S control and 10" large touchscreen: HMI Maestro Active Edge; graphical representation of all processing units and their operating status; graphical simulation of operations; control of all processing units; regulation of glue pot temperature; assistant functions for machine setup according to the processing program; error diagnosis for quick resolution of simple faults; statistics on processing parameters; USB connection; network connectivity ready; prepared for Industry 4.0 with API REST data transfer protocol. Outstanding accessibility to work units thanks to the large hood, which also provides protection and noise reduction Monoblock steel construction ensures high stability and rigidity of the machine Automatic unit positioning when changing panel thickness Cut-off saw unit with corner rounding (me 35 tr s): for trimming the edge and rounding corners on the top and bottom; for edging solid wood, trimming is done with the radius milling cutter; high-frequency motor with 12,000 rpm; saw blade Ø125mm Z12 Panel feed via feed chain with rubber sliding shoes Extendable workpiece support Adjustment of infeed fence via spacer plates Dimensions and Weights Length (product) approx. 3314mm Width/depth (product) approx. 1085mm Height (product) approx. 1300mm Weight (net) approx. 623kg Flush radius milling unit Rated output: 2 x 0.35kW Cutter diameter: HW55.3mm Spindle speed: 12000min⁻¹ Extraction port diameter: 60mm Number of extraction ports: 2 Corner copying unit Rated output: 0.35kW Tool diameter: 58mm Speed: 12000min⁻¹ Electrical data Connection voltage: 400V Mains frequency: 50Hz Glue unit Glue pot rated output: 0.25kW Glue pot operating temperature: 190°C Glue pot extraction port diameter: 60mm Glue pot capacity: 0.8kg Pneumatic connection Operating pressure: 6.5bar Air consumption: 470l/min Feed Feed rated output: 0.55kW Feed speed: 7m/min Edges Edge thickness (coil material): 0.4 – 3.0mm Pre-milling unit Extraction port diameter: 2 x 80mm Rated output: 3kW Cutter speed: 7200min⁻¹ Diamond cutter diameter: 80mm Cutter height: 56mm Material removal: 0.5 / 1 / 1.5 / 2mm Scraper units Radius scraper: 2mm Buffing unit Rated output: 2 x 0.14kW Speed: 2800min⁻¹ Workpiece Workpiece thickness: 8 – 50mm Minimum workpiece length: 120mm Minimum workpiece width: 110mm

Condition: used, Holz Her Sprint 1317-1 FÜ + PU heavy-duty design – edge thickness 0.4 – 5 mm SPS screen control Gtedpox It Hmsfx Aa Ist large LCD display pre-milling unit before gluing area fully automatic edge magazine for coil and strip material glue application station for cartridges + PU gluing maximum edge height 51 mm automatic glue height adjustment press unit 1913, motorized pneumatic trimming unit for coils and strips with pneumatic adjustment for miter saw angle from 0–10° multifunctional milling unit 1942 MOT 2 milling unit with motorized adjustment axes for various radii – chamfering – flush milling via SPS copy milling unit 1832 for corner copying up to R 3 mm + postforming up to R 6 mm scraping unit for chamfers and radii pneumatic infeed and outfeed finish – surface scraper regular maintenance by Holz Her machine is FACTORY SERVICED, in EXCELLENT CONDITION available from stock in Lieboch

Condition: used, Year of construction: 1999, Holz-Her SPRINT 1411 edgebander Description Workpiece thickness min./max. 6/45mm Automatic edge feeder (coil up to 5mm) Workpiece min. 60mm Workpiece length min. 180mm Cartridge glue system (short heat up time 2-3 min.) End trimming unit Flush trimming unit Scraping unit (flat) Buffing (brushing) unit CE Gedpfx Aajw Ebrxs Ijtt (Despite our great care all changes, mistakes in technical data, prices and all information is subject to (typing) errors. No guarantee on printed data! Availability subject to prior sales). (Alle Änderungen und Irrtümer in den technischen Daten, Angaben und Preisen vorbehalten! Keine Garantie auf gedruckte Daten!. Verfügbarkeit vorbehaltlich Zwischenverkauf).
