Machining center

HOLZ-HER DYNESTIC 7535

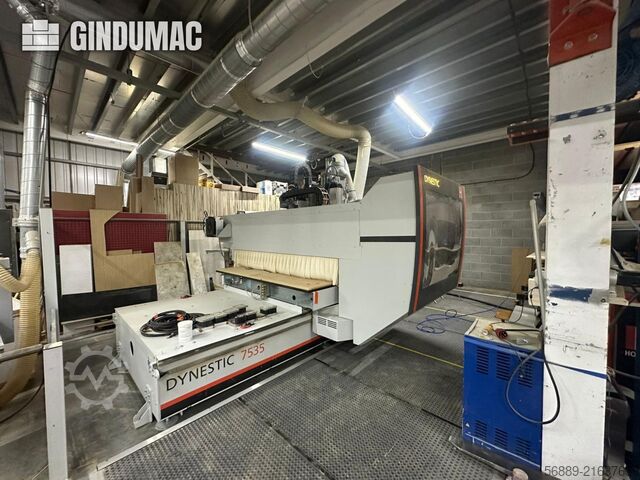

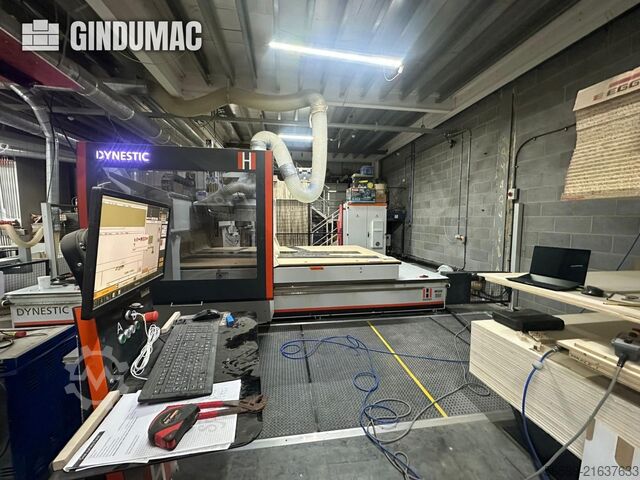

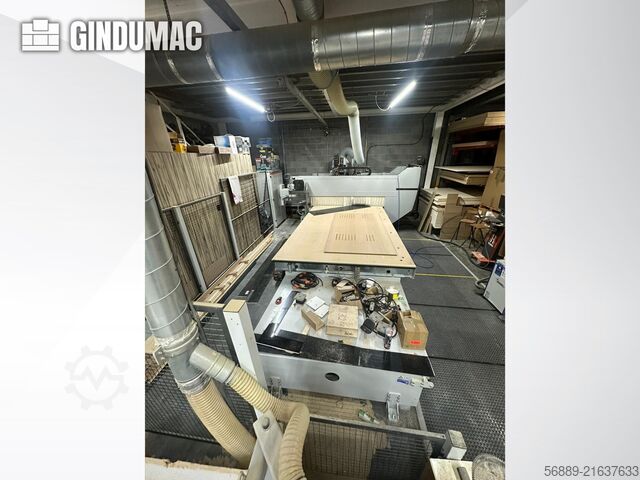

Year of construction: 2018, condition: ready for operation (used), travel distance X-axis: 3,700 mm, travel distance Y-axis: 2,100 mm, travel distance Z-axis: 120 mm, total width: 4,600 mm, total height: 2,500 mm, spindle motor power: 10,000 W, product length (max.): 13,500 mm, spindle speed (max.): 24,000 rpm, number of axes: 5, This 5-axis HOLZHER Dynestic 7535 was manufactured in 2018. It features a working area of 3700 x 2100 x 120 mm and a powerful 10 kW spindle with a speed of 24,000 rpm. The machine includes an 18-position tool changer and a complete CNC nesting solution for high-performance cutting and drilling capabilities. If you are looking to get high-quality woodworking capabilities, consider the HOLZHER Dynestic 7535 wood mill we have for sale. Contact us for further details. • Control: Beckhoff TwinCAT 2 (PC-based) • Software: WorkCentre, NC-Hops, Cabinet Control, CAMPUS v7 • Tool holder: HSK-F63 • Tool changer: 18 positions (gantry-mounted) • Drilling unit: 10 vertical, 3 horizontal (4 X, 2 Y) • Saw unit: Groove saw integrated in X direction • Table type: Matrix table (gantry construction) • Automatic tool measurement: up to Ø20 mm • Power: 22 kW Ljdpfx Aszug D Aogtjhk • CE marked • Key features: Complete CNC nesting solution; high-performance cutting and drilling; advanced control with DXF compatibility; auto lubrication and cooling system; offline programming capability included • Additional services available upon request: • Mechanical and electrical decommissioning, as well as installation support • Basic application training (HOPS), depending on the operator’s experience • After-sales service, including warranty and potential service interventions handled by the seller (T&Cs apply)Please feel free to ask us for detailed pricing regarding these additional services. Additional equipment • Vacuum system: Becker, 250 m³/h • Air cushion table for easy material handling • Zoned safety mats for safe loading during operation • Additional saw blade holder (up to Ø350 mm)

Condition: used, Year of construction: 2019, Used machine Year of manufacture: 2019 Video available at: Base machine - Dynestic 7535-R Automatic 12.7 Dynestic table For classic nesting machining with wear plate Machining length: 3700 mm Working direction: from right to left Machine frame in welded construction with ground and hardened prism guides for the traversing carriage, aggregate head and consoles Traversing carriage in gantry design Rack and pinion drive, helical, in X and Y direction, Ball screw spindles Z-axis for precise positioning Technical data: Machining dimensions: Max. load on nesting table X = 3700 mm Y = 2200 mm Max. travel distances X = 5295 mm Y = 2935 mm Z = 565 mm Max. clearance height DYNESTIC table Z = 250 mm from the top of the table (without wear plate) Maximum programmable speed Vector speed: 128.0 m/min Ljdpfxozt Twys Agtshk X = 80 m/min, Y = 100 m/min, Z = 25 m/min 4-stage extraction hood with pneumatic height adjustment and viewing window Voltage 400 V, 50/60 Hz CONTROL: Dual-core processor Operating system: Windows XP 80 GB hard drive / 1 GB RAM RJ45 network connection 10/100 Base-T Fast Ethernet US keyboard and Microsoft IntelliEye mouse (optical) CD-ROM / CD-RW drive (CD burner) Remote maintenance Integrated network card for data transmission of control and program data. Data transmission via high-speed internet connection Requirement: High-speed internet connection to the machine. DYNESTIC table Solid, continuous machining table with grid spacing, continuous grooves in X and Y direction, Groove spacing: 50 mm with 25 meters of sealing cord for securing the wear plate 1 machining field with stop strips / stop Height: 30 mm, pneumatically lowerable 2 stop strips in Y direction and 1 stop in X direction on the right (when viewed from the front of the machine) Vacuum fields 1-circuit vacuum system Drilling unit 7881-R, 24 spindles Drive power 3.0 kW, incl. saw unit 18 vertical spindles individually selectable Arrangement in L-shape, 11+2 in X and 6 in Y direction 32 mm grid Max. drill diameter: 35 mm Total drill length: 70 mm from the mounting end (depending on plate thickness) Spindle extension stroke: 70 mm Rotation direction: alternating clockwise / counterclockwise n(max.) 1000 - 5710 min-1, infinitely variable Mount: M 10 thread - clearance fit 11 mm without tool, without mount 6 horizontal spindles 2 twin drill spindles in X direction (distance 32 mm between 1st and 2nd horizontal drill spindle) 1 twin drill spindle in Y direction Mount: M 10 thread, clearance fit 11 mm Total drill length max. 70 mm from the mounting end without tool, without mount Pressure booster, increases the standard pressure from 6 to 8 bar 5-axis milling unit 7844, Power: 10.0 kW (S6) cardanic, C-axis rotatable +/- 360°, A-axis rotatable +/- 180° n(max.) = 0 - 24000 min-1, infinitely variable, max. power at 12000 min-1 to 24000 min-1 Liquid cooling (cooling unit included) with HSK-F 63 tool holder with right-hand thread (for right-hand cutting tools) with collet chuck with HSK shank Ceramic ball bearings (hybrid bearings) Tool weight max. 6 kg (incl. holder) Tools:

Condition: like new (used), Year of construction: 2021, functionality: fully functional, workpiece length (max.): 4,600 mm, workpiece width (max.): 2,200 mm, workpiece height (max.): 250 mm, Equipment: rotational speed infinitely variable, Holz-Her 5-Axis CNC Nesting Machining Center DYNESTIC 7535 Working area: 4600 x 2200 mm. Vector speed is 128.0 m/min. The milling spindle has a power output of 13.0 kW (S6) and accommodates tools with a maximum diameter of 350 mm via HSK interface. Drilling unit with 24 spindles – 18 vertical and 6 horizontal. The maximum drilling diameter is 35 mm. For grooving, the drilling head is equipped with an integrated saw unit for blades with a maximum diameter of 125 mm and a maximum width of 4 mm. 18-position disc tool changer, pneumatically liftable and covered to protect the HSK 63F holders, as well as a single-position pick-up changer for saw blades up to 350 mm in diameter. Pneumatically retractable stops in the table for special machining either on the nesting table or using vacuum pods. Vacuum capacity of 750 m³/h, distributed across 2 pumps with 500 m³/h and 250 m³/h respectively, intelligently controlled by ECO-VAC software. To optimize vacuum efficiency, the table features a 16-zone vacuum system. The pre-installed pusher unit is connected to the extraction system and can be used for panel cleaning and/or clearing the nesting table. Ledpfxex E Ah Is Agtjhk Delivery, installation, and machine commissioning training available directly through us at additional cost. The machine is currently located at our shipping warehouse in Gratwein, Austria. In case of discrepancies between the German version and any foreign language version, the German version shall prevail. Our general terms and conditions can be found on our website at holzher.de/de/agb.
