Machining center

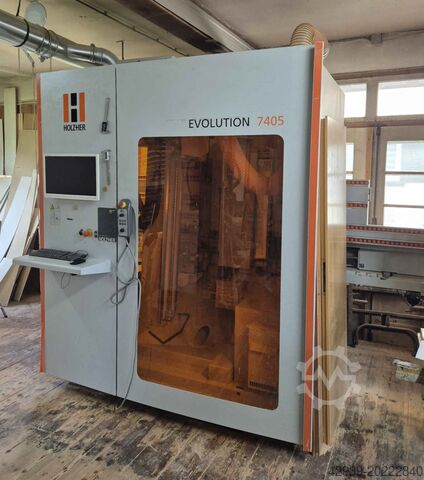

HOLZ-HER EVOLUTION 7405

Condition: excellent (used), Machining Centre HOLZ-HER Evolution 7405 - used - Through-feed processing, 4-sided edge trimming possible, automatic suction cup positioning, hardened, dust-protected prism guides, ball screw drives on all axes, network card for remote maintenance, integrated control cabinet, control cabinet cooling with heat exchanger, manual control device, saw unit for grooving in the X direction, pick-up tool changer Chedpfx Aboxddhkswsc ----- Technical Data ----- Minimum workpiece length X: 200 mm Minimum workpiece width Y: 70 mm Minimum workpiece thickness: 8 mm Maximum workpiece length X: 3,200 mm Maximum workpiece width Y: 920 mm Maximum workpiece thickness: 70 mm Machine control software: CAMPUS HOPS Main spindle motor power: 6.5 kW Main spindle speed: 1,000 - 18,000 rpm Main spindle mount: HSK-F63 Drilling unit motor power: 1.7 kW Drill spindle mountings: M10, precisely fitted 11 mm Number of vertical drill spindles: 9 pcs Number of horizontal double drill spindles in X direction: 2 pcs Number of horizontal double drill spindles in Y direction: 1 pc Saw blade diameter of saw unit: 120 x 20 mm Number of tools in changer: 6 pcs Extraction connection diameter: 2 x 120 mm + 1 x 140 mm Required air volume flow: 4,100 m³/h Required static negative pressure: 2,500 - 3,000 Pa Required air velocity: 30 m/s Compressed air connection: 6 bar Compressed air requirement: 300 NL/min Dimensions (LxWxH): 3,673 x 1,924 x 2,340 mm Quality info: - Completely basic cleaned - Electrical system checked - Pneumatics checked - Adjusted according to manufacturer specifications - Immediately ready for operation

Year of construction: 2014, condition: used, Used machine Year of manufacture: 2014 Condition: well maintained Technical data: Processing length in X = 200 - 3200 mm Max. travel without re-clamping 1300 mm in Y = 70 - 920 mm Material thickness Z = 8 - 70 mm Equipment: Milling unit: 6.5 kW (S6-40), air-cooled with HSK-F 63 tool holder Drilling unit: 1.7 kW, 15 spindles Tool changer: 6-way magazine pick-up system, pneumatic 19" flat screen Campus software 1 machine license inc. Cabinet Control light ECO vacuum system, 1-circuit vacuum system 8m³/h Automatic central lubrication combined lubrication points for all linear guides in X, Y and Z directions Milling tools are not included Scope of delivery! Cjdpfx Abew Nafwswohc Availability: short term Location: Röllbach

Condition: excellent (used), Year of construction: 2014, operating hours: 8,969 h, functionality: fully functional, travel distance X-axis: 3,200 mm, travel distance Y-axis: 920 mm, travel distance Z-axis: 70 mm, rapid traverse X-axis: 68 m/min, rapid traverse Y-axis: 68 m/min, rapid traverse Z-axis: 68 m/min, spindle speed (max.): 24,000 rpm, number of spindles: 15, TECHNICAL DETAILS Machining dimensions Max. Workpiece size: 3,200 mm x 920 mm x 70 mm (without additional support) Min. workpiece size: 200 mm x 70 mm x 8 mm Milling and drilling capacities Milling (minus milling cutter radius): 1,500 mm Complete machining depth: 1,300 mm Number of spindles (9 vertical / 6 horizontal): 15 spindles, incl. sawing unit for grooving in X-direction Milling spindle Power: 7.5 kW Tool holder: HSK Speed range: 1,000 - 24,000 rpm Linear changer: 6-fold X-Y changer: Yes Tool dimensions Tool diameter: Ø 110 mm Tool length: 80 mm Feed and speed Infeed guide: Height-adjustable for 4-sided routing and profiling Feed speed: 68 m/min Safety standards CE conformity: Yes Cjdpfxeu R N Rls Abwshc Material handling Solid roller conveyors: Yes Stops: 2 stops Workpiece clamping: Fully automatic positioning vacuum suction cups, ECOMODE MACHINE DETAILS Software: CAMPUS / NC-Hops, incl. aCADemy CAD/ CAM module machine license Dimensions L x W x H: 3,675 x 2,470 x 1,660 mm Weight: 2,200 kg Suction connections: 2 x Ø 120 mm + 1 x Ø 140 mm

Condition: new, HOLZ-HER 7405 EVOLUTION CONNECT machining center -Exhibition machine- This offer is an equipment package. The following items and options are already included in the price: - Material support - Height-adjustable infeed roller conveyor - EVOLUTION diamond formatting cutter set - CAMPUS V8 EVOLUTION CAD/CAM software - Flat screen 21.5", 16:9 - Workpiece length measurement LASER - Milling unit 7830 - 7887 tool changer 6-position magazine pick-up - ECO vacuum system - Air conditioning unit for switch cabinet cooling - Tool changer 7874 - Angular gear 7869 - Adapter for Clamex milling cutters - Tool set - 4-axis CLAMEX - Tool holder HSK-F 63 - Drilling unit XL 7885, 19 spindles - Manual control unit - Tool set - EVOLUTION for XL drilling head 7885 Chodou Tid Hopfx Abwjc - new exhibition machine -
