Machining center

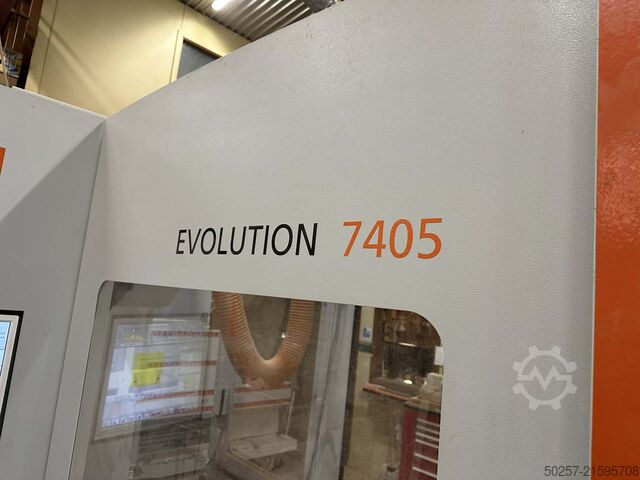

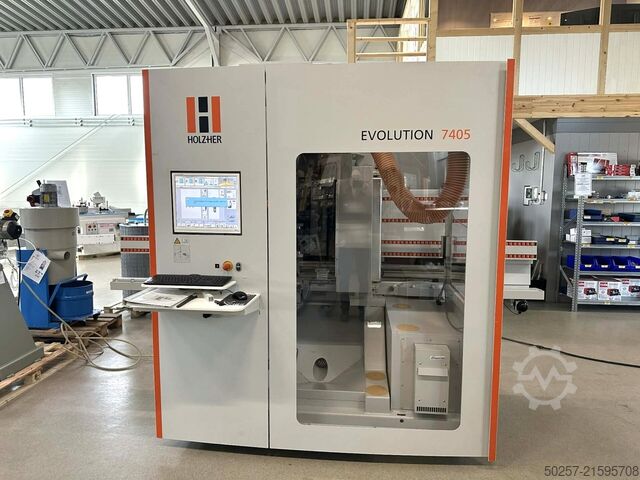

HOLZ-HER Evolution 7405

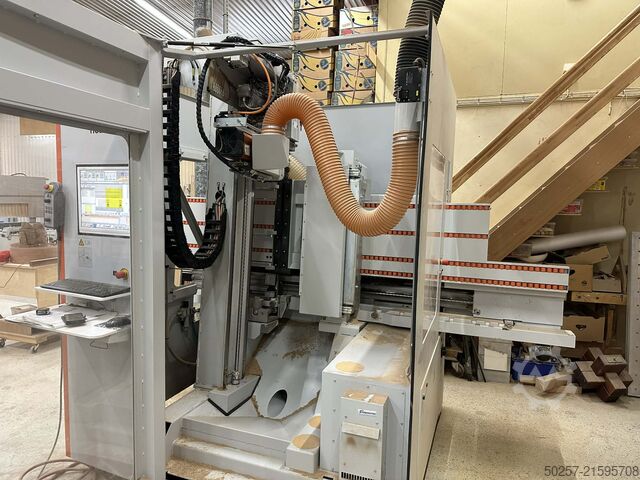

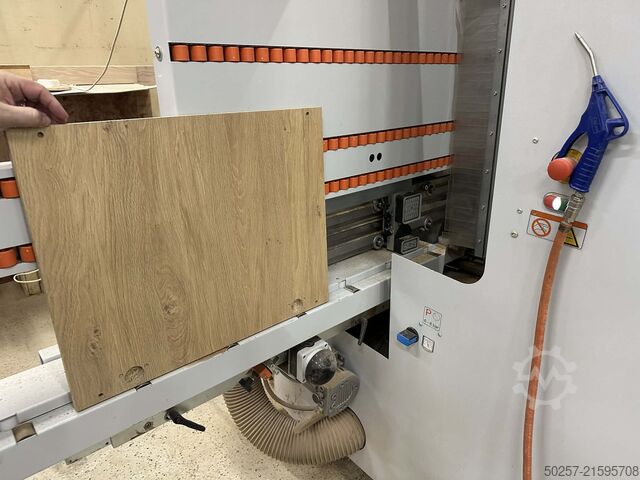

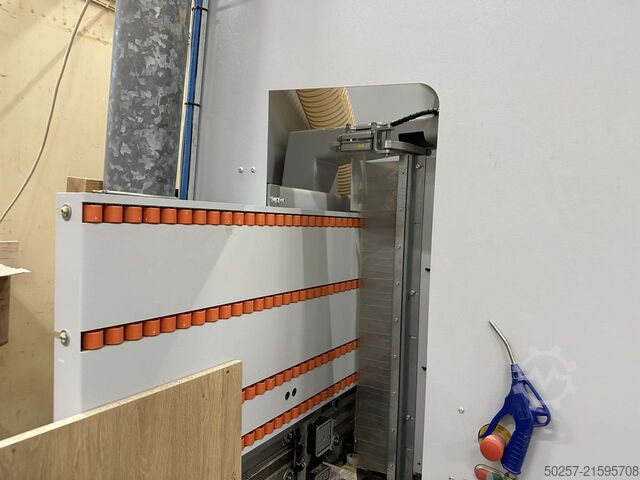

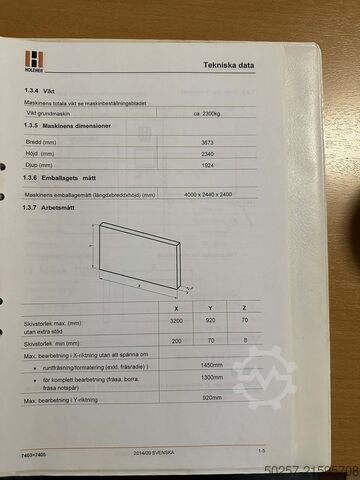

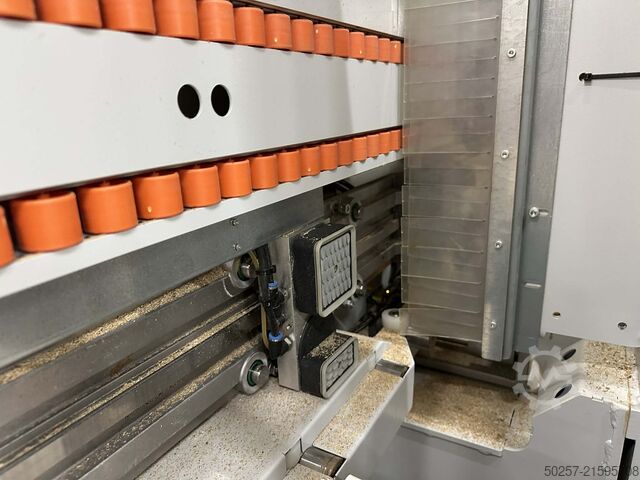

Condition: ready for operation (used), Year of construction: 2014, The HOLZ-HER EVOLUTION 7405 is a compact yet powerful vertical CNC machining center that delivers complete machining in a single setup—with precise milling on all four edges for perfectly finished parts. The machine processes materials from 8 to 70 mm thick and up to 3200 mm in length, while taking up minimal floor space, making it an extremely flexible and efficient solution for modern furniture and woodworking production. Brand: Holz-Her Model: Evolution 7405 Year of manufacture: 2014 Stock No.: 2002879BXA TECHNICAL DATA Machining dimensions Maximum material thickness: 8 – 70 mm. Vertical through-feed (width): 1,200 mm. Length: Unlimited (1,500 mm without repositioning). Minimum workpiece: approx. 200 x 70 mm. Working dimensions (X, Y, Z) Max board size (without additional support): X: 3,200 mm Y: 920 mm Z: 70 mm Minimum workpiece size: X: 200 mm Y: 70 mm Z: 8 mm Maximum machining In the X direction (without re-clamping): Circular milling/formatting (excl. milling radius): 1,450 mm Complete machining (milling, drilling, milling groove): 1300 mm Redoyxbv Rjpfx Afpsr In the Y-direction: 920 mm Performance & Spindle Spindle power: 7.5 kW (4-axis) / 6.5 kW (standard) / 10.3 kW (optional) HSK mounting. Tool changer: 6-position (standard on 4-sided). Spindle speed: Variable, high-performance. Vector speed: 68 m/min. Features & Equipment 4-sided machining: Complete formatting and edge profiling. Drilling unit: Standard with milling spindle and drill head. Vacuum system: Intelligent, automatic positioning of suction cups. Control system: CAMPUS/NC Hops. Requirements Floor space: Less than 5 m²

Condition: new, HOLZ-HER 7405 EVOLUTION CONNECT machining center -Exhibition machine- This offer is an equipment package. The following items and options are already included in the price: - Material support - Height-adjustable infeed roller conveyor - EVOLUTION diamond formatting cutter set - CAMPUS V8 EVOLUTION CAD/CAM software - Flat screen 21.5", 16:9 - Workpiece length measurement LASER - Milling unit 7830 - 7887 tool changer 6-position magazine pick-up - ECO vacuum system - Air conditioning unit for switch cabinet cooling - Tool changer 7874 - Angular gear 7869 - Adapter for Clamex milling cutters - Tool set - 4-axis CLAMEX - Tool holder HSK-F 63 - Drilling unit XL 7885, 19 spindles Redpeu Tid Hofx Afpsr - Manual control unit - Tool set - EVOLUTION for XL drilling head 7885 - new exhibition machine -

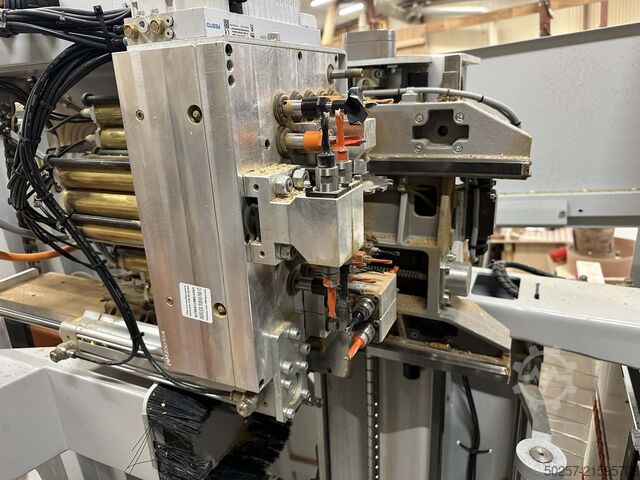

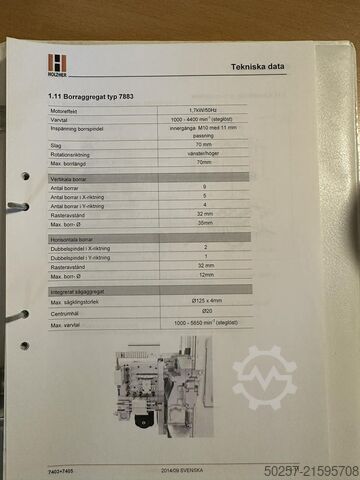

Condition: excellent (used), Machining Centre HOLZ-HER EVOLUTION 7405 -used- Continuous feed machining, 4-sided edge routing possible, integrated vacuum pump, automatic positioning of suction cups, hardened, dust-protected prism guides, ball screw drives on all axes, network card for remote maintenance, integrated control cabinet, control cabinet cooling with heat exchanger, manual control device, XL drilling head, saw unit for grooving in the X direction, pick-up tool changer, automatic central lubrication. ----- Technical Specifications ----- Min. workpiece length X: 200 mm, Min. workpiece width Y: 70 mm, Min. workpiece thickness: 8 mm, Max. workpiece length X: 3,200 mm, Max. workpiece width Y: 920 mm, Max. workpiece thickness: 70 mm, Machine control software: CAMOUS HOPS, Main spindle motor power: 6.5 kW, Main spindle speed: 1,000 - 18,000 rpm, Main spindle interface: HSK-F63, Drilling unit motor power: 1.7 kW, Drill spindle interface: M10, H7 fit 11 mm, Number of vertical drilling spindles: 13 pcs, Number of horizontal double drill spindles in X direction: 2 pcs, Number of horizontal double drill spindles in Y direction: 1 pc, Saw blade diameter (saw unit): 120 mm, Number of tools in changer: 6 pcs, Extraction port diameter: 2 x 120mm + 1 x 140 mm, Required air flow rate: 4,100 m³/h, Required static vacuum: 2,500 - 3,000 Pa, Required air velocity: 30 m/s, Compressed air connection: 6 bar, Compressed air consumption: 300 l/min. Quality information: - complete basic cleaning - electrics checked Rsdpfx Afoyrp Srspjr - pneumatics checked - set according to manufacturer’s specifications - ready for immediate use

Condition: used, Year of construction: 2015, functionality: unexamined, workpiece width (max.): 920 mm, number of slots in tool magazine: 6, rotational speed (max.): 18,000 rpm, rotational speed (min.): 1,000 rpm, tool diameter: 80 mm, Equipment: rotational speed infinitely variable, Holz-Her EVOLUTION 7405 4mat (Customer machine / Brokerage offer) - Milling spindle 7.5 kW - Campus NC-Hops V6 software - Hand scanner - Vacuum pump 8 m³/h - Workpiece length measurement (laser) TECHNICAL SPECIFICATIONS Workpiece size: X = 200 - 3200 mm (longer with additional support) Y = 70 - 920 mm Material thickness: Z = 8 to 70 mm Max. travel distance in X-direction without reclamping: X = 1500 mm Z stroke: Z = 240 mm Maximum programmable speed: Vector speed: 68 m/min X = 25 m/min, Y = 60 m/min, Z = 20 m/min Machine can be refurbished by us (the manufacturer), as well as dismantled, installed and operators trained. Rsdpox I A Elofx Afpjr No warranty / guarantee from the manufacturer, as this is a brokerage offer!
