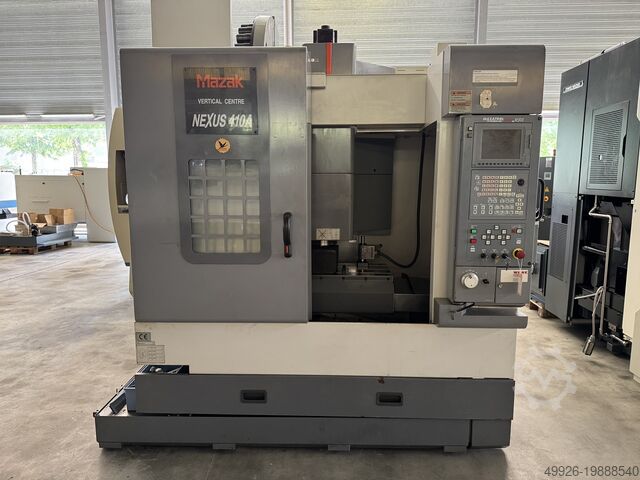

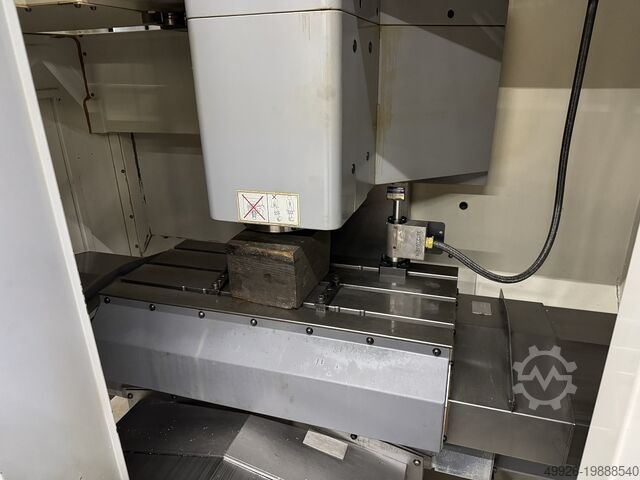

Vertical machining center

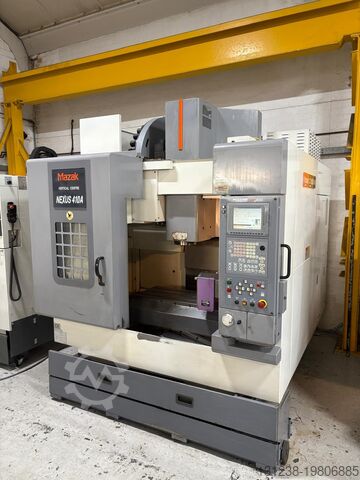

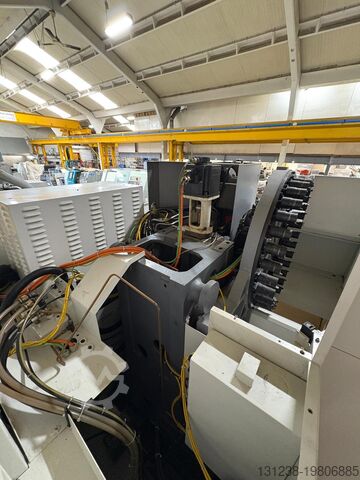

Mazak VCN 410A

Condition: good (used), Year of construction: 2003, functionality: fully functional, machine/vehicle number: 163341, Country of manufacture: UK Voltage: 400V 3-phase AC 50/60Hz, max 58A Dimensions: 200x260x250 cm Net machine weight: 5010 kg TECHNICAL SPECIFICATIONS Capacities Dsdpfxjw T Tp Re Ah Sskg Table dimensions: length 900 mm / depth 410 mm X-axis: 560 mm Y-axis: 410 mm Z-axis: 510 mm Distance from spindle nose to table surface: min. 150 mm, max. 660 mm Distance from spindle center to column: 540 mm Maximum table load: 500 kg Spindle Speed: 40 – 12,000 rpm Power (5 min): 18.5 kW Power (10 min): 15 kW Power (30 min): 10 kW Continuous power: 7.5 kW Feed Rapid traverse: 36,000 mm/min Cutting feed rate: 1 to 8,000 mm/min Table Dimensions: 900x410 mm T-slot size (ISO R299): 18 mm / Number: 3 / Spacing: 125 mm Permissible load: 500 kg Distance from floor to table surface: 780 mm ATC Tool Magazine Number of tools: 30 pcs Tool selection: free choice of station number; automatic bi-directional search Tool holder: MAS BT-40 Max. tool diameter in magazine: Ø 80 mm (without adjacent tool: Ø 125 mm) Max. tool weight: 8 kg Max. magazine load: 120 kg Max. tool length: 350 mm Tool change time: 2.9 s (chip-to-chip) Lubricant tank: 1.8 L Feed lubricant tank: 260 cm³ Spindle coolant tank: 16 L Hydraulic pressure tank: 460 cm³ Coolant tank: 200 L Compressed air: 0.5 to 0.9 bar Capacity: 200 L/min Subject to errors or omissions, all technical specifications are provided without guarantee.

Condition: excellent (used), Year of construction: 2009, functionality: fully functional, working width: 1,350 mm, Costa calibration machine Dkjdpfxswmxh To Ah Sjg

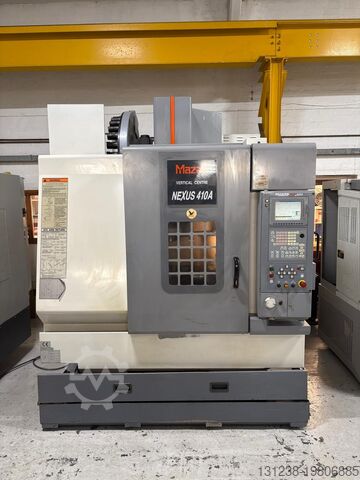

Condition: excellent (used), Year of construction: 2011, functionality: fully functional, MAZAK VCN 410A Nikken 5AX-201 rotary table, 5-axis in continuous mode except tilt, which is managed via the Nikken x21 remote control Table diameter: 200 mm Travels: 560 x 410 x 510 mm Table size: 900 x 410 mm 30-tool magazine Spindle: 12,000 rpm Dodpfoxvra Ssx Ah Sekg Chip conveyor

Year of construction: 2007, condition: good (used), machine/vehicle number: 1380-1207, >with Siemens Sinumerik Panel Control >with chip conveyor Dkedpfx Ajm Nb Rijh Sog >control panel >electric cabinet >capacity through spindle 60 mm >max. piece length 340 mm

Condition: used, machine/vehicle number: 008113, Max. panel width: 3800 mm Max. panel length: 3200 mm Main saw blade projection: 75 mm Dodpfxow Iddho Ah Sokg No of Grippers: 7

Condition: used, Year of construction: 2007, machine/vehicle number: 36585, feed length X-axis: 800 mm, feed length Y-axis: 800 mm, feed length Z-axis: 600 mm, table load: 1,000 kg, overall weight: 15,500 kg, input current: 55 A, input frequency: 50 Hz, 2007 Alzmetall CNC milling machine (with Kuka robot) The machine has been dismantled and is ready for loading. Dedewpu D Aopfx Ah Sekg The card has been removed!

Condition: excellent (used), Year of construction: 2019, UV ink printer, year of manufacture and installation 2019 - production Japan According to the attached counter capture - 1,551 operating hours and 37,000 sqm printed. Perfect working condition - equipment is in production and can be viewed / tested Working table and material dimensions: Fixed table with dimensions of 125 X 250 cm and payload of 34 KG; Maximum material thickness - 5,08 cm; High power vacuum system - 6 vacuum zones; 5 pneumatic guides. Minimum per support with guides 60X80 cm; Printing heads: 2 piezoelectric heads 636 nozzles per channel and variable drop between 6 and 42 picolitres; Maximum print area covered by the heads is 126 X 251 cm for edge to edge printing; Nozzle detection and compensation system; Automatic self-cleaning optional not mandatory. Number of colours : Digital Printer UV ink; 4 colours - CMYK (Cyan, Magenta, Yellow, Black) with the possibility to reactivate 6 colours white + transparent colourless lacquer. Resolution and Productivity : Maximum resolution 1440 dpi; Express speed - 58,7 mp/hour; Production speed - 35,7 mp/hour; Dksdpfjmcw S Sex Ah Sog Quality speed - 25,3 mp/hour; Quality speed 2 layers - 12,5 mp/hour; UV ink barrels - minimum 1 litre. Accuracy: Line thickness: Maximum error +/- 0.8 mm per 2.5 m side; Maximum error +/- 0.4 mm on 1.25 m side. Straightness: Maximum error +/- 0.7 mm on 2.5 m side; Maximum error +/- 0,5 mm on 1,25 m side. Diagonal error: Maximum error +/- 1,0 mm on 2,5 X 1,25 m. Other: Patented solution to achieve grey gradients; Stand/Working stand Ionizing bar (electrostatic discharge) Special bridge for loading and moving equipment. EXW - old price 49.000 euro - new price 35.000 (without VAT in EU)

Year of construction: 2015, condition: used, W and C Profile Production Line for Sale Designed for the production of road barriers, posts, and fastening elements. Fully equipped line suitable for continuous industrial manufacturing. The line consists of: - Two decoilers - Post production line - Parapet (guardrail) production line - Two presses for fastener manufacturing Technical specifications: Length: 17 m Width: 1 m Height: 1 m Motor power: 22 kW Weight: 18 t Year of manufacture: 2015 Manufacturer: Chengxing Machinery (China) Purpose and advantages: Dkodpfx Ahsxhf R Ij Seg This W and C profile production line is designed for manufacturing various road safety components: detachable road barriers, support posts, and fastening parts. The equipment ensures a reliable, stable, and consistent production process. The machine is available for inspection. If you have any further questions, please do not hesitate to contact us.

Year of construction: 2023, condition: new, functionality: fully functional, We are offering Brand new Kreuzmayr KEB 750 full fruit processing line which is located in Baku,Azerbaijan. All details you can find in document which will be included below. Dodpfx Ahouikf Eo Sekg

Year of construction: 2023, condition: like new (used), functionality: fully functional, 4 axis stone CNC machine for edge finishing/ tap and sink holes - fits BT40ER40/80 - 15 tool holders included - vacuum pump included - including automatic zero point determination via compressed air cylinders - excluding water installation - control cabinet dimensions 900x600x1800 mm Dsdpfxov Dulqo Ah Sjkg
