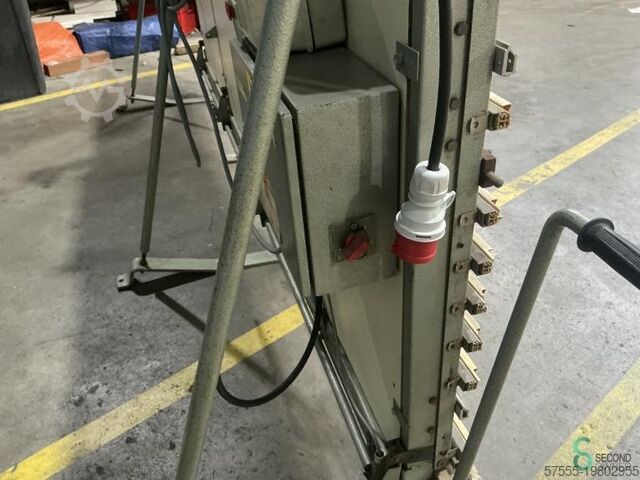

Vertical panel saws Holz-her 1987

Holz-her

Condition: used, Year of construction: 2014, For inquiries: Zoltán Utasi +36 30 205 7380 • motorized pressure bridge adjustment • Electrical system for stepless feed 400 V / 50 Hz, 2.2 kW • “Control PPC 221 – with 8.4'' VGA color display” High-performance control with very simple operation • Edging pre-milling unit 1802, 400 V (2 x 2.0 kW, 200 Hz, 12,000 rpm) with 2 milling units for pre-milling the panel edge • Cutter, diamond Ø 70 x 64 x 30 mm, Z2, left-hand rotation For pre-milling unit 1801 / 1802 • Cutter, diamond Ø 70 x 64 x 30 mm, Z2, right-hand rotation For pre-milling unit 1801 / 1802 • Edge feeding unit 1903 SYNCHRO automatic transport of rolls and strip material • Glue application station Glu Jet GJ301 automatic (2.3 kW, 50 Hz) • Pressure unit 1913 pneumatic first roller driven, 2 additional pressure rollers with pneumatic individual control • Cut-off unit 1918 (60 mm) pneumatic (2 x 0.45 kW, 12,000 rpm) pneumatically swivelable 0/10° • Multifunction milling unit 1827 pneumatic (2 x 0.65 kW, 200 Hz, 12,000 rpm) • Vertical tracing rollers manual manual adjustment of the vertical tracing roller by 0.1 mm for milling edge overhang, e.g. for plastic edges • Cutter, diamond Ø 56 / 60 mm, Z = 2, R = 2.0 mm, left-hand rotation Diamond-coated, solid tool with CM technology (LEUCO system) with integrated chip extraction, patented ProLock-E • Cutter, diamond Ø 56 / 60 mm, Z = 2, R = 2.0 mm, right-hand rotation Diamond-coated, solid tool with CM technology (LEUCO system) with integrated chip extraction, patented ProLock-E • Corner copying unit 1832 (1 x 0.35 kW, 200 Hz, 12,000 rpm), for edge thickness up to 3 mm • Cutter, diamond Ø 53 mm x 10 mm x 16 mm, Z = 3, R = 2 mm, with CM technology (LEUCO system) with integrated chip extraction, for profiling unit 1832 • Scraper unit 1929 pneumatic including pneumatic adjustment (separately for top and bottom) • HW reversible knives for scraper holder 1929 / 1927 Podpfex Huhcsx Ag Degk R = 2.0 mm (2 pcs required) • Flat scraper unit 1964 Removing glue residue for a clean glue joint. • Buffing unit 1940 (2 x 0.12 kW, 50 Hz, 1400 rpm) For final cleaning and edge polishing. With 2 textile discs, swivel range 0–5°

Condition: excellent (used), Year of construction: 2020, For inquiries: Pgsdpfx Aexayvpeg Djk Zoltán Utasi +36 30 205 7380 158.000 running metres BASE MACHINE AURIGA 1308XL TECHNICAL DATA Edge banding machine for edgebanding and finishing of sheet materials Edge thickness of roll material: 0.4-3mm (depending on material) Edge thickness of strip material: 0.4-8mm (depending on material) Edge cross-section: max. 6x42mm Edge height: max. 65mm Workpiece thickness: 8-60mm (restrictions possible for individual units) Workpiece width: min.65mm Workpiece length: min.160mm (without corner copying 1832) Workpiece length: min.180mm Feed speed: 10m/min. MACHINE OPERATION Edge Control 19 with 18.5" touchscreen colour monitor 16:9 Powerful control system with extremely simple operation for efficient machine set-up and changeover. Rotating and swivelling control panel at eye level Motorised pressure bridge adjustment iTronic - Adaptive pressure and adhesive quantity control Automatic, programme-dependent fine adjustment Optimum adaptation to edge thickness, edge materials and adhesive types guarantees the best processing results Automation package consisting of - Automatic glue quantity control - adaptive snipping knife - adaptive printing unit incl. residual adhesive quantity display incl. fully automatic PUR flushing routine Premilling unit FG201 with 2 milling heads for joining the panel edge 1x counter-rotating, 1xsynchronised, Milling cutter, diamond Ø70x64x30 mm,Z2+2 Edge feeder 1903 automatic transport of rolls and strips max. loading capacity: 40 mm Glu Jet GJ301 glue application system (2,3kW,50Hz) Automatic glue height adjustment Glu Jet hybrid technology for EVA and PUR adhesives Adhesives in cartridge and granulate form for neutral and coloured adhesives Hopper for 1.4 kg cartridges (4 cartridges) Hopper for 1.5 kg granulate Pneumatic pressure unit 1912-3 First roller driven with pneumatic immersion control, 2 conical holding pressure rollers Cutting unit 1918 (60 mm) pneumatic (2 x 0.45 kW, 12000 min-1) pneumatic swivelling 0/10° Dust extraction hoods for end trimming unit 1918 Multifunctional trimming unit 1827 MOT4 for trimming the top and bottom longitudinal edge with motorised positioning of the horizontal tracing shoes with motorised positioning of the trimming motors in axial direction incl. pneumatic adjustment (top and bottom separately) for flush-radius routing incl. blow nozzles - Flush cutting unit - Radius - Tilt the chamfer 0 - 15°, manually (with max. edge thickness 6 mm) Pneumatic swivelling device for trimming unit 1827 MOT4 Pneumatic swivelling to bevel 15° from the control unit Pneumatic vertical tracer rollers Adjustment of the vertical tracer roller by 0.1 mm for routing with edge overhang Corner rounding unit (1x0,35kW,200Hz,12000min-1) Corner copying function up to 3 mm edge thickness Workpiece thickness: 12 - 60 mm, with DIA tool R=2mm Scraper unit 1929 MOT4 incl. high-gloss package with motorised adjustment of the horizontal feeler rollers, incl. pneumatic adjustment (separate top and bottom) Surface scraper FK701 With pre- and post-scraping for removing the adhesive residue along the complete panel length for a clean glue joint. Buffing unit 1940 (2 x 0,09 kW, 50 / 60 Hz, 1400 min-1) For finishing and polishing edges, with 2 textile discs, swivelling 0 - 5°

Condition: used, Year of construction: 2019, Used machine Year of manufacture: 2019 Condition: Good (machine has been thoroughly serviced every year!) Equipment: - iTronic – Adaptive pressure and glue quantity control, automatic, program-dependent fine adjustment - MOT SPS adjustment for infeed fence - Automatic chain lubrication – Intelligent automatic transport chain lubrication - Edge Control 19 control system Pgedpfx Agjy Hyl Ts Dek - EL GRM stepless, 400V/50Hz, 2.2kW, V2 SPRINT 1329 PERFORMANCE, 400V/50Hz - Edge Control 19 control system with 18.5" touchscreen color display, 16:9 format - ECO MODE energy-saving mode This energy-saving mode is an automatic standby function - Jointing cutter unit 1802 (2 x 2.0 kW, 200 Hz, 12,000 rpm) With 2 cutter units for processing panel edges - Diamond cutter, Ø 70 x 64 x 30 mm, Z2+2, left rotation Air Stream System (HOLZ-HER / LEUCO patent) - Diamond cutter, Ø 70 x 64 x 30 mm, Z2+2, right rotation Air Stream System (HOLZ-HER / LEUCO patent) - 1901 SYNCHRO edge feeding Automatic transport for coil and strip material - Glu Jet GJ301 automatic glue applicator station (2.3 kW, 50 Hz) - DW501 SPS MOT. SPRINT - motorized - GM501 spray unit after pressure unit with lubricant Recommended for high-gloss edges - Kapp unit 1918 (60 mm), pneumatic (2 x 0.45 kW, 12,000 rpm), pneumatically tiltable 0/10° - FR701 milling unit 100% repeat accuracy at push of a button due to play-free mechanics - Air Stream System Multi-cutter, diamond Ø 70.9 x 16 mm, Z = 2+2 - Air Stream System Multi-cutter, diamond Ø 70.9 x 16 mm, Z = 2+2 - FF701 contour milling unit 100% repeat accuracy at push of a button due to play-free mechanics - Diamond cutter, Ø 72.5 mm x 19 mm, Ø 20 mm, Z = 4, radius R = 2 mm, left rotation, with CM technology - Diamond cutter, Ø 72.5 mm x 19 mm, Ø 20 mm, Z = 4, radius R = 2 mm, right rotation, with CM technology - 1929 MOT4 scraper unit incl. high-gloss package with motorized adjustment of tracing rollers - HW reversible plates for scraper holder, R = 2.0 mm (2 pcs required) - FK701 flat scraper With pre- and post-sensing for removal of glue residue - TR501 spray unit for infeed and outfeed (release agent + cleaning agent) Location: Hesse Availability: Approx. July 2026

Condition: excellent (used), functionality: fully functional, Edge banding milling machine with Holz Her 3-roller feed unit, 30 mm spindle, 50 mm milling width. Machine dimensions: 1000 x 1000 x 1300 mm, weight: 250 kg, in good condition, fully functional. Shipping available at additional cost. Pgsdovkgdrjpfx Ag Dek

Condition: good (used), Year of construction: 1997, functionality: fully functional, - PVC Primus, 3 mm PVC cartridge system - Gluing, flush trimming, flush milling, chamfer milling, radius milling - Scraper blade, buffing unit - Dimensions: 4700 x 1400 x 1650 mm - Weight: 1300 kg - Working dimensions: Length: 4500 mm Depth: 1020 mm Height: 1630 mm Podpfx Aowv Uq Ajg Dogk - Connection nozzle: 140 mm Ø - Workpiece width: min. 60 mm - Feed rate: 11 m/min - 6 bar - 400 Volt compressed air - Edge thickness: 8 mm for strip material, 2 mm for roll material - WITHOUT pre-milling unit - New pneumatic cylinder Shipping possible at additional cost

Condition: used, Year of construction: 2009, HOLZ-HER edge banding machine CONTRIGA 1366 Edge thickness: 0.4-30 mm (depending on equipment) Edge height: 51/66 mm (depending on equipment) Panel thickness: 6-45/60 mm (depending on equipment) Edge types: Rolls and strips Feed speeds: Continuous feed from 12-30 m/min (depending on equipment) With adjustable infeed level in the magazine area (max. adjustment range 30 mm) With height-adjustable magazine plate for changing the lower edge overhang With large magazine plate Ø 820 mm for edge rolls up to Ø 800 mm With transport chain including automatic central lubrication With motor-driven, position-controlled bridge height adjustment With pneumatic locking roller for the shortest workpiece sequence With extendable workpiece support (extension width 1600 mm) With space-saving, pneumatically controlled sliding hoods over the entire machine (Deviations for individual units are possible) with motorized infeed guide with injection oiler for lubricating all joints and bolts (including operating hours counter) with central connection for extraction (2x Ø 200 mm) with integrated chip collection box at the end of the machine (when radius scraper unit is installed) PPC 231 control system - Power PC for efficient setup and changeover - 15" SVGA screen with touchscreen - 128 MB CF memory card - USB connector on board - Ethernet network connection - Keyboard connector on board - Windows-like user interface - all information in plain text and/or graphics - Rotatable and pivoting control panel at eye level - Dust-proof membrane keyboard with softkeys (pushbuttons) - LED display for unit preselection - Program list with program names and numbers - Extensive program memory - Individual selection of the units with the functions as basic setting options for setpoints, route points and tool corrections as well as the fixed route points - Centralized and clear setup processes for units and their axis settings via fine adjustment (depending on the equipment) - Interval display for the shortest workpiece distance - Integrated path control - Path points are controlled generally or program-specifically - Clear and complete recording of all operating data - Service messages in plain text - Diagnostic system - including integrated synchronous bus system for high precision in unit control - Individual administration for up to ten users, including password protection - Online maintenance (optional), data exchange with HOLZ-HER Service - Barcode interface (optional) BASIC MACHINE CONTRIGA 1366 - Belt bridge Options and accessories for the basic machine Spraying device 1856 for the inlet and outlet area For the inlet area: Electronically controlled release agent sprayer with Riepe-LPZ/II release agent For the outlet area: Electronically controlled cleaning agent sprayer with Riepe-LP163/93 cleaning agent (only in conjunction with pre-milling unit 1961 and surface scraper 1964) Joint milling unit Joint milling station 1803 (2x 2.6 kW, 200 Hz, 12000 min-1) With two plunge-controlled milling units 1 unit in up-cutting direction 1 unit in down-cutting direction Plunge path 5 mm With static frequency converter 200 Hz Without milling tool With ProLock screw-in clamp for fast tool changes Tool for 1803 (workpiece height up to 60 mm) Diamond milling cutter PRO UT 2 pieces (front and rear) including protective covers Ø 100-63 - Ø 30 mm, Z = 3 + 3 + 3, 1x left-hand rotation, 1x right-hand rotation Noise-reduced milling cutter with integrated chip guide DFC technology (Leitz syst Pedpfx Agjvvkfde Degk

Condition: used, Year of construction: 2002, Machining dimensions (tool diameter 25mm): X=3015 mm Y=1483 mm Z=325 mm Max. travels: X=3268 mm Y=1483 mm Z=325 mm Max. programming speed: X/Y = 75 m/min / Z = 30m/min Tool holder HSK 63F Drilling unit 7964, 14 vertical drilling spindles with 32 mm grid (10 in x / 4 in y) Sawing unit 7946 3.6 kW, 90° pneumatically pivotable Milling unit 7933 9 kW Wood Her Vector axis (C-axis) Tool magazine (6 disk places) Hand control unit Laser device (positioning of the suction cups) PC control panel with 17" monitor Operating system Windows 2000 Software: TwinCAM32 - office version Vacuum pump 100 m³/h Dry running Selective safety mats (3-field division) Pjdpfxevvi Nbs Ag Dogk Storage location: Nattheim

Condition: used, Storage location: Nattheim Pgedpfx Asvvkrdsg Dek

Condition: used, Year of construction: 2006, EVA glueing, 2 pressure rollers, cross-cutting station, pre-milling cutter and rounding cutter, surface scraper, transport device Storage location: Nattheim Pedpfx Ajvvkg Ijg Djgk

Condition: used, Year of construction: 2009, Automatic central lubrication Milling unit 7833 2-stage, 11 kW power 1000 - 24000 rpm 1 double drilling spindle in X-direction 1 integrated sawing unit for sawing / grooving in X-direction, traveling Tool changer 7892, 16-way Linear Pick-up changer, permanently installed on the right-hand side of the machine Laser pointer consisting of 2 laser pointers for positioning the vacuum suction cups or tracing the workpiece contour Automatic console - suction cup positioning 6 consoles including 3 suction cup holders per console including 1 vacuum suction cup 80x80 mm per suction cup holder including 4 feeding aids Additional processing fields at the front for 6 consoles Basic unit pneumatics for frame clamping system 7974 (6 consoles) 2D barcode scanner Video camera in the processing head Vacuum pump 140 m³/h Vario tool Change changing unit package consisting of Consists of: Vector axis 7899 (C-axis), fully interpolating, 0-360° continuously rotatable, including pneumatic tool changer 7890, single-slot magazine pick-up system, permanently installed in front of the machine frame on the left. Tool changer 7894, 6-slot pick-up magazine specifically for Vario Tool Change tool holders, permanently installed in the machine frame on the left, can be equipped with a Vario Grip KSJ F 40 collet chuck, 3 Vario Grip KSJ F 40 tool holders (for 2-20 mm ER32 collets), 1 saw blade holder, 3 collets according to customer selection, 1 carbide circular saw blade, max. 220 mm diameter. Pjdpsvvi Spsfx Ag Djgk Storage location: Nattheim
