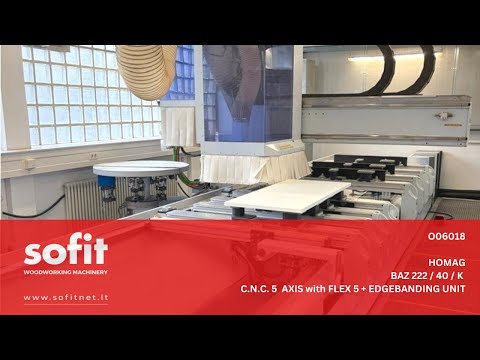

CNC ROUTER (with Edge Banding Unit)

HOMAG BAZ 222 / 40 / K

C.N.C. WORKING CENTER (POINT TO POINT) 4 axis (5 axis with FLEX 5)
Gantry-drive (axe X) machine
Numerical Control Control Powertouch (PC85) Software woodWOP
Safety cabin (enclosure) of the working head
Working table with pods and rails Mod. K-Table
Support rails (No.) 8 Table dimensions (mm) 1340
Automatic deplacement by CNC (X axis) of the Supports rails
LED system (on the rails) for the vacuum pods positioning
Clamps for workpieces fixing - POWERCLAMP
Automatic Tools Changing System Tools storage plate (No. of folds-positions) 18
Max. useful working area (X - Y - Z) mm 4000 x mm 1550 x mm 60
Max. useful working area (X - Y - Z) in edge banding (mm) 4000 x mm 1500 x mm 60
No. 2 Working areas - Vacuum pump (capacity m3/h) 100/140
Separate electric and command cabinet
Motorized carpet to evacuate chips and wastes
Total installed power (52 A)
Bwsdpfx Afjw Dc Nio Hon

WORKING GROUPS (TOP):
No. 17 Independent vertical boring spindles (High Speed 7500)
No. 4 Independent horizontal boring spindles (No.2 in X-axe + No. 2 in Y-axe)
Drilling head motor-power (Kw) 2,2
No. 1 Vertical electro-spindles HSK63. Vertical electro-spindles motor power (KW 15)
No. 1 Edge Banding head on board (axe Y) Power Edge, Glueing Unit (Hot Melt + Quick Melt Unit)
Edges (tape) thickness in rolls (min/max) mm 0,4 - 3
Edge coils supporting unit (N. 1 reels/Coils)
Pre-End cutting unit
Crosshead aggregate (4 horizontal drilling spindles)
N° 1 Circular saw aggregate (diam. mm 125)
Combined aggregate (Flush-Trimming/Scraping)
