Double-sided edge bander

HOMAG KFL 526

Condition: ready for operation (used), Year of construction: 2006, This HOMAG KFL 526 / C was manufactured in 2006. A robust double-sided edgebander, it handles workpiece thicknesses from 12 to 40 mm and sizes up to 2500 x 1200 mm. Features include a gluing unit, profile trimming, and a finish unit for precise edge finishing. Ideal for efficient edge banding with speeds up to 35 m/min. Contact us for more information about this machine. Additional equipment • Seperating agent spray device on top/bottom / Double Hogger Longitudinal/Cross: 6.6 kW with electropneumatic control / Gluing Unit A3 - 2 rolls / Profile Trimming Unit FF12 on top/bottom with motors at 12000 rpm / Finish Unit FA11 on top/bottom / Stepless stop cams with maximum cam projection of 25 mm / Standard Trimming Unit SF20 6.6 kW / Rough Trimming Unit 0.55 kW Kljdpfsx U Uzrox Ahuol • PUR Nordson Melting Station / Tool Set / Suction Tube Machine Benefits Technical Machine Benefits • Workpiece thickness: 12 - 40 mm / minimum workpiece size (lxw): 250 x 240 mm / maximum workpiece size (lxw): 2500 x 1200 mm / maximum workpiece weight: 50 kg • Roller material edge thickness: 0. 4 - 3 mm / maximum edge cross section (plastic): 135 mm² / maximum edge cross section (veneer): 100 mm² / maximum roller diameter: 830 mm • Longitudinal processing speed: up to 35 m/min for thin edge up to 0. 6 mm /up to 30 m/min for thick edge up to 3 mm • Cross processing speed: up to 30 m/min for panel sizing/ up to 20 m/min for edge processing • Minimum workpiece gap: 500 mm

Condition: ready for operation (used), Year of construction: 2004, functionality: fully functional, workpiece weight (max.): 50 kg, workpiece height (max.): 40 mm, edge thickness (max.): 3 mm, workpiece length (max.): 2,500 mm, rotational speed (max.): 12,000 rpm, TECHNICAL DETAILS Workpiece thickness: 12 - 40 mm Minimum workpiece size (L x W): 250 x 240 mm Maximum workpiece size (L x W): 2,500 x 1,200 mm Maximum workpiece weight: 50 kg Edging material (roll stock) - Material thickness: 0.4 - 3 mm Maximum edge cross-sectional area (plastic): 135 mm Maximum edge cross-sectional area (veneer): 100 mm Maximum roll diameter: 830 mm Kledpjx Ezz Hjfx Ahuol Longitudinal processing speed: up to 35 m/min for thin edging up to 0.6 mm Longitudinal processing speed: up to 30 m/min for thick edging up to 3 mm Cross processing speed: up to 30 m/min for panel sizing Cross processing speed: up to 20 m/min for edge processing Minimum distance between workpieces: 500 mm MACHINE DETAILS Connected load: 6.6 kW (double planer longitudinal/cross) Standard milling unit: 6.6 kW EQUIPMENT Top/bottom separating agent spray unit Glue application unit A3 with 2 rollers Profile milling unit FF12 top/bottom with motors 12,000 rpm Finishing unit FA11 top/bottom Steplessly adjustable positioning cams with a maximum cam stroke of 25 mm Pre-milling unit: 0.55 kW PUR OTT 2-kg melting station

Condition: excellent (used), Double side - Independent Machine (or 1st and/or 2nd in a line) Edges (band in rolls) thickness (Min/Max) mm 0,3 / 3 Panels thickness (min/max) mm 12 / 60 Working width (min/max) mm 225 / 2500 Numerical Control PC 22 /Software WoodCommander Adjustable feeding speed (m/min) 15 - 40. Safety and sound-proof enclosures/cabins Distance (center-axes) of the Disappearing Dogs (mm) Ksdpfx Ahewxwyfeuell SIZING PART (for each side): Spraying unit (Anti-sticking liquid) Anti-chipping Milling Unit 1 x Kw 4,5 Hogging Units KD 11 (2 x Kw 6,6) . Free space EDGE-BANDING PART (for each side): Glueing Unit (P.U.R. Glue + Quick Melt unit) QA 34 (FeMa-Tech) Pressure zone (N.C. adjustment) "A" Edge coils supporting unit (No. of reels) 6 Snipping (end-cutting) unit HL84 (2 x Kw 0,22) 0°-30° Rough Trimming unit (2 x Kw 0,55) Multi-Profile Copying unit by N.C (fine and contour trimming) FK 13 (2 x Kw 0,4) revolver 8+8 Free space Profile Scraping unit (Multi-profile, by N.C.) MN 21 Finish processing unit (Glue scraper + Buffing unit) FA 11 OPTIONAL: Milling grooving unit UF11 (1 x Kw 4)

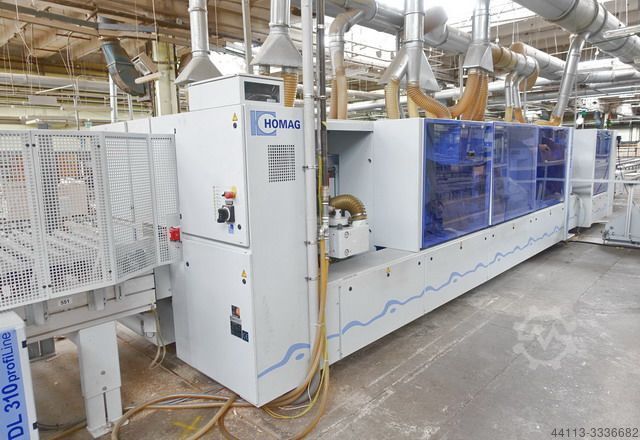

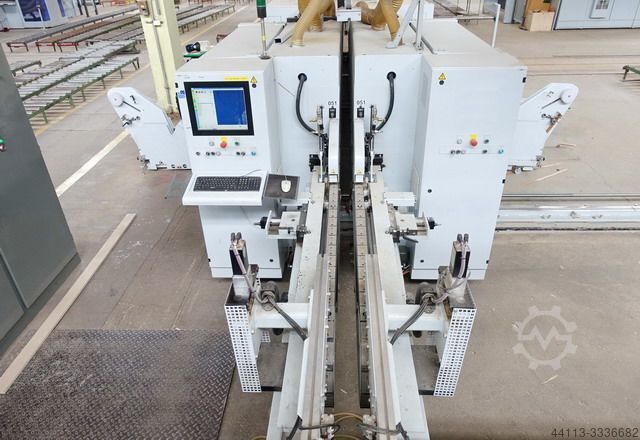

Condition: excellent (used), LINE of Double-side SIZING-SQUARING and EDGE BANDING, max working width mm 2500 Composed of the following machines: U06051) Motorized rollers Table "HOMAG" Mod. TBL 100/25/12/S to infeed workpieces/panels U06052) 1st Double-side Sizing & Edge Bander "HOMAG" Mod. Profi KFL 525/8/A3/15 Ksdpedg Itmefx Ahuell U06053) In-feeding Rollerway "HOMAG" Mod. Profi TDL 310/25/12 with 90° Turning device (from lenghtwise direction to crosswise direction) with double cone system U06054) 2nd Double-side Sizing & Edge Bander "HOMAG" Mod. Profi KFL 526/9/A3/25

Condition: excellent (used), LINE (half line) of Double-side Sizing-Milling & Edge Banding, with max working width mm 2500, with automatic fast handling system. Composed of the following machines: A) DOUBLE LOADER (BRIDGE-FRAME) "BARGSTEDT" TBH 270 / D / 25 / 12 B) TURNING DEVICE FOR PANELS (LENGTHWISE TO CROSSWISE) "HOMAG" TDL /310 /25 /12 Klsdpfernrrbsx Ahusl C) Double-side SIZING and EDGE BANDING machine "HOMAG" Mod. KFL 526/9/A3/25 D) TURNING DEVICE FOR PANELS (CROSSWISE TO LENGTHWISE) "HOMAG" TDL 510/25/12 E) DOUBLE UNLOADER (BRIDGE-FRAME) "BARGSTEDT" TSH 270 / D / 25 / 12 With LINE CONTROLLER - WOODLINE CONTROL PC52

Condition: excellent (used), Double side - Independent Machine (or 1st and/or 2nd in a line) Edges (band in rolls) thickness (Min/Max) mm 0,3 / 3 Panels thickness (min/max) mm 12 / 40 Working width (min/max) mm 225 / 2500 Numerical Control POWERCONTROL PC23 Power Touch /Software WoodCommander Adjustable feeding speed (m/min) 15 - 40 Distance (center-axes) of the Disappearing Dogs (mm) 1000 Working line (work units support tables), manual adjustment mm 30 – 80 SIZING PART (for each side): Anti-chipping Milling Unit (1 x Kw 4,5) Hogging Units KD 11 (2 x Kw 6,6) + Free Space EDGE-BANDING PART (for each side): Glueing Unit (Hot Melt + Quick Melt Unit) A3 + QA65 Edge coils support (No 2 reels) Band Pressure zone (adjustable by N.C.) Type A Snipping (end-cutting) HL PK30 (2 x kW 0,8), speed 30 m/min Rough Trimming unit BF20 (2 x kW 0,55) Multi Function Unit (Profile contour Trimming unit) FF30 + FF32 (4 x kW 0,4) with FlexTrim Free Space Profile edge scraping unit PN 20 Kedpfov Rpdnox Ahujll Finish processing unit (Glue scraper + Buffing unit) FA 21. Spraying Unit (for polishing liquid) No. 3 Milling grooving unit SF20 (1 x Left + 2 x Right) (3 x kW 6,6) (N.C. adjustment)

Condition: as good as new (ex-display), FULL LINE of Double-side Sizing-Milling & Edge Banding. Composed of the following machines: VZ0200A) Gantry-portal Loader (Double pick-up station) "BARGSTEDT" Mod. TBH 500/D/30/12 VZ0200B) 1st Double-side Sizing & Edge Bander "HOMAG" Mod. KFL 525/8/A3/15 Kledpfxsdt Rgvo Ahuel VZ0200C) In-feeding Rollerway "HOMAG" Mod. TDL 310/30/12 with 90° Turning device (from lenghtwise to crosswise) with double cone system VZ0200D) 2nd Double-side Sizing & Edge Bander "HOMAG" Mod. KFL 526/10/A3/30 VZ0200E) In-feeding Rollerway "HOMAG" Mod. TDL 510/25/12 with 90° Turning device (from crosswise to lenghtwise) with double cone system VZ0200F) Cleaning machine "WANDRES" VZ0200G) Gantry-portal Stacker (Double pick-up station) "BARGSTEDT" Mod. TSP 410/D/25/12

Condition: excellent (used), Year of construction: 2021, 4-SIDE EDGE BANDING LINE Workpieces dimensions: min. mm 195 x 250 x 60 / max. mm 1200 x 2500 x 60 Composed of the following machines: O12044a) Infeed table "HOMAG" Mod. TBL 100/25/12 with motorized rollers Klodpfjx Aqbhjx Ahuel O12044b) 1st Double-side Sizing & Edge Banding machine "HOMAG" Mod. EDGETEQ D-610 (KFL 525/5/A3/15) O12044c) Turning Station "HOMAG" Mod. TDL 310 / 25 / 12 (from lengthwise to crosswise) O12044d) 2nd Double-side Sizing & Edge Banding "HOMAG" Mod. EDGETEQ D-610 (KFL 526/6/A3/25)

Condition: as good as new (ex-display), FULL LINE of Double-side Sizing-Milling & Edge Banding. Composed of the following machines: O06027A) Gantry-portal Loader (Double pick-up station) "BARGSTEDT" Mod. TBH 250/D/25/12 O06027B) 1st Double-side Sizing & Edge Bander "HOMAG" Mod. KFL 525 / 6 / A3/ 15 O06027C) L shaped connecting roller conveyor "HOMAG" Mod. TWL 310 / 25 / 12 O06027D) 2nd Double-side Sizing & Edge Bander "HOMAG" Mod. KFL 526 / 9 / A3 / 25 O06027E) Connecting Roller Conveyor "HOMAG" Mod. TBL 100 / 25 / 25 O06027F) Connection transfer (on rails) "HOMAG" Mod. TWL 120 / 30 / 02 S Kedpfx Ahjwxvdcousll O06027G) Connection transfer (on rails) "HOMAG" Mod. TWL 120 / 34 / 02 S O06027H) Gantry-portal Stacker (Double pick-up station) "BARGSTEDT" Mod. TSP 410/D/25/12

Condition: excellent (used), LINE (half line) of Double-side Sizing-Milling & Edge Banding, with max working width mm 2500, with automatic fast handling system. Composed of the following machines: O02006A) PANEL INFEED roller table "HOMAG" PROFI TBL100/30/12 O02006B) TURNING DEVICE FOR PANELS (LENGTHWISE TO CROSSWISE) Kedpfx Aev D U Urjhusll "HOMAG" PROFI TDL /310 /25 /12 O02006C) Double-side SIZING and EDGE BANDING machine "HOMAG" Mod. PROFI KFL 526/10/A3/25 O02006D) TURNING DEVICE FOR PANELS (CROSSWISE TO LENGTHWISE) "HOMAG" PROFI TDL 510/25/12
