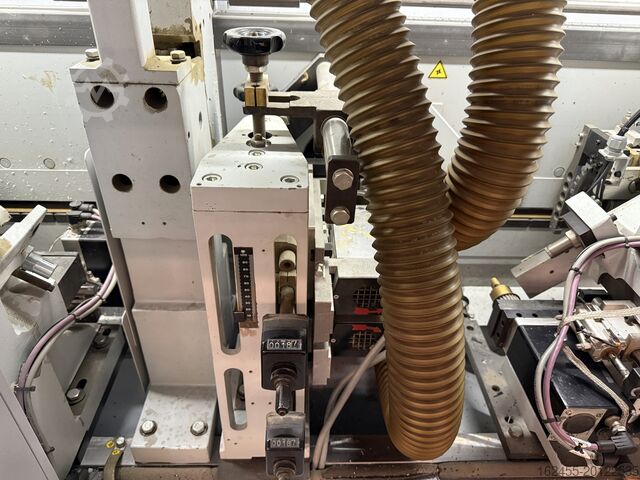

Homag edge banderHomag
Optimat KAL /310/8/A20/S2
Machine data
Price & Location
- Location:
- D - Hessen
Details about the offer
- Listing ID:
- A195-19501
- Reference number:
- ISS20250707-5399
- Update:
- 25.10.2025
Description
Year of manufacture: 2008
Condition: The machine was operated in Germany and regularly maintained (last service by Homag in 11/2024)
Features and technical data:
- Workpiece thickness min.: 12 mm
- Workpiece thickness max.: 60 mm
- Workpiece min. (L×W): 240 × 55 mm (at 22 mm thickness) / 100 mm (at 60 mm thickness)
- Edge thickness min.: 0.3 mm (coil material) / 0.4 mm (strip material)
- Edge thickness max.: 3 mm (coil material) / 20 mm (strip material)
- Feed speed: steplessly adjustable 18–25 m/min (frequency-controlled)
- Gluing system: EVA hot-melt adhesive
- Glue application (tank / cartridge / nozzle): Melting unit with granulate hopper
- Glue volume / cartridge size: Granulate hopper, melting capacity 18–35 kg/h, level-controlled
- Heating time: approx. 8–10 min
- Edge magazine (positions): 2 coils (automatic coil change)
- Automatic edge change: yes (automatic via PC22, can be switched manually)
- Pre-milling: 2 × 1.5 kW, 200 Hz, 12,000 rpm, pneumatically adjustable
- Pressure section: 1 pre-press roller Ø 150 mm + 6 post-press rollers Ø 70 mm, automatic adjustment
- End trimming: HL84 trimming unit, 2 × 0.8 kW, pneumatically adjustable (bevel / straight)
- Flush milling: via pre-milling unit, pneumatically adjustable
- Radius milling: FK13 profile milling unit, automatic 8-position tool changer (R = 2 mm)
- Bevel / profile milling: yes, via FK13, pneumatically adjustable
- Scraper: integrated in multi-finishing unit MN21
- Polishing: buffing unit in FA11 finishing unit
- Jointing unit: KAL310/A20/S2 jointing milling unit, 2 × 3 kW
- Workpiece pre-heating: available
- Release agent spray device: top / bottom, type 2929 (F.01)
- Extraction nozzles: multiple Ø 100 mm (individual extraction per unit)
- Control system: power control PC22 (industrial PC, woodCommander running Win XP embedded)
- Operating voltage: 400 V, 50 / 60 Hz
Fjdswx Aaqepfx Aa Njgi
- CE / standards: CE-compliant per EU directive 98/37/EC
Dimensions / required floor space: approx. 8,000 × 1,400 × 1,600 mm
Weight: approx. 3,000 kg
Please note: The return conveyor shown in the pictures is not included in the scope of delivery!
Availability: short-term
Location: Lithuania
The listing was translated automatically. Translation errors are possible.
