HOMAG PROFI BAZ20/30/16/V/D

HOMAG PROFI BAZ20/30/16/V/D

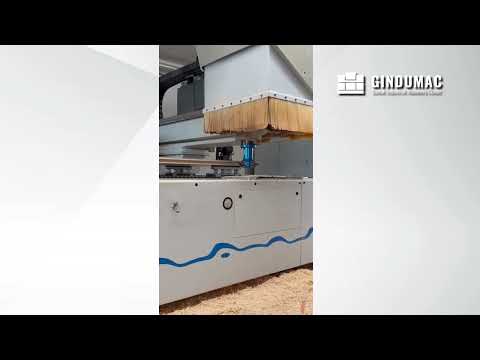

This 4-axis HOMAG PROFI BAZ20/30/16/V/D was manufactured in 2003. It features a Homatic CNC control, WOODWOP CNC programming, an 18-position disk changer, and a main spindle with a 12 kW three-phase motor. Capable of handling workpieces up to 3000 mm in length and 1400 mm in width, it includes a continuous table with adjustable vacuum clamps. Consider the opportunity to buy this HOMAG PROFI BAZ20/30/16/V/D CNC Wood Machining Centre. Contact us for more information.

• Control/Software: Homatic CNC control; WOODWOP CNC programming system; Postprocessor
• Workpiece capacity:
• Length 800–3000 mm; Width 350–1400 mm; Thickness max. 70 mm with edge / 80 mm milling
• Frieze width min. 120 mm; Weight max. 150 kg
• Table/Clamping:
• Continuous table (D-table)
• Longitudinal console 1 fixed; Longitudinal console 2 manual Y-width adjustment
• 8 vacuum clamps 125 x 50 x 100 mm
• Working height lower edge of workpiece 950 mm
• Unit for moving vacuum clamps on unit carrier with pneumatic extension console (max. 4 clamps per longitudinal console)
• Width adjustment (longitudinal console/D-table): Servo drive, per longitudinal console
• Stop bolt for top layer overhang: Lifting/rotating device, max. 20 mm top layer, stroke 110 mm, individually selectable, end-position monitored (for manual door placement)
• Main spindle:
• Speed 1500–18000 rpm (VFD 15 kW), full rated power from 12000 rpm
• Tool diameter max. 180 mm (milling) / 200 mm (grinding); Room extraction for all tools/units
• Aggregate interface/C-axis:
• Pneumatic and swivel drive interface
• C-axis with torque drive and 3-point support
• Tool changer:
• 18-position disk changer for HSK F63; tool weight 6 kg; tool length max. 200 mm
• Configurations: 18 x Ø max. 130 mm; or 9 x Ø max. 180 mm + 9 x Ø max. 70 mm; grinding tools Ø max. 200 mm
• Changer raisable for traveling pickup (left side)
• Units/aggregates (for tool changer unless noted):
• Drilling/milling unit, 4 spindles: ER25 up to Ø16 mm shank, protrusion max. 50 mm, speed max. 13500 rpm, unlimited swivel via C-axis
• Lock case milling unit, 2 spindles D=16/20: counter-rotating, 12000 rpm, integrated blow-out, unlimited swivel via C-axis
• Swiveling saw/drill unit: manual 0–90°, flange Ø30 mm, TK Ø52 mm, prepared for crosscut saw Ø max. 180 mm, drill chuck with Weldon D=10 mm, speed max. 9000 rpm, C-axis swivel
• Milling cutter holder D=30 with chip guide: mandrel length 45/80 mm, chip guide plate controlled via C-axis, changer space Ø 140 mm
• Flush milling unit: simultaneous top/bottom, edge radius max. R12 mm, min. outer radius ~R5 mm / inner radius ~R30 mm at 90°, scanning top/bottom/side, unlimited C-axis swivel, speed max. 12000 rpm, workpiece thickness max. 50 mm, min. overhang ~35 mm, with narrow feeler shoes
• WPL knife head: run-out angle 5°, Ø 70 mm
• Gluing/edgebanding equipment:
• Drive spindle/V for gluing units: mounted right side of boom; cross slide with Y anti-reb and Z extension stroke; anti-reb spindle with C-axis and electrical/electronic interface; dedicated Z-axis
• Gluing unit 4 sides, 90 mm (for main spindle): straight edges with direct glue application; 1 pre-press roller + 1 pneumatic post-press roller (programmable); inner radius min. R40 at 90°; edge height max. 90 mm; veneer thickness 0.4–1 mm; folding pressure zone on main spindle with hot-melt reactivation
• Edge hold-down device, manual adjustment
• Magazine/pickup:
• Pickup space on X-support for interchangeable special unit (e.g.
