Edgebander

HOMAG S 500

Condition: used, machine/vehicle number: 008587, Type of edging: Thin edge, Thick edge, Solid wood, Veneer Gluing System: EVA Hotmelt, PUR Premilling Unit: yes Lhedpfsy In Dgox Akujg Corner Rounding Unit: yes Grooving Unit: yes Max feed speed: 25 m/min Maximum panel thickness: 60 mm Operating Units: 8 nr

Condition: good (used), Year of construction: 2020, Rotor 260 mm Feed opening approx. 800 x 1200 mm Rotor length approx. 800 mm Motor 18.5 kW Lhjdpfxjwzaizo Akuog Technical data upon request Required space approx. 2050 x 1550 mm All information without guarantee

Condition: used, machine/vehicle number: 008586, Type of edging: Thin edge, Thick edge, Solid wood, Veneer Gluing System: EVA Hotmelt, PUR Premilling Unit: yes Corner Rounding Unit: yes Lhedpfoy In A Njx Akueg Grooving Unit: yes Max feed speed: 25 m/min Maximum panel thickness: 60 mm Operating Units: 8 nr

Condition: used, machine/vehicle number: 008585, Type of edging: Thin edge, Thick edge, Solid wood, Veneer Gluing System: EVA Hotmelt, PUR Premilling Unit: yes Corner Rounding Unit: yes Grooving Unit: yes Max feed speed: 25 m/min Maximum panel thickness: 60 mm Operating Units: 8 nr Lhsdpfx Akjy In A Aousg

Condition: used, machine/vehicle number: 006622, Max. panel width: 2100 mm Max. panel length: 2850 mm Max. panel stack height from the ground: 2100 mm Lhedpfou T Tt Tox Akuog Lifting capacity: 250 Kg Movement system: suction cups.

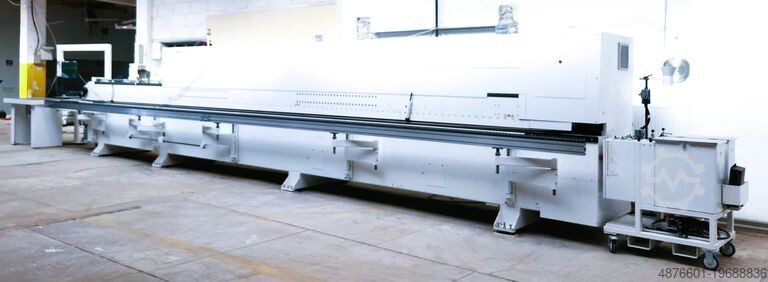

Condition: excellent (used), Year of construction: 2023, machine/vehicle number: 0-200-87-0913, functionality: fully functional, input voltage: 400 V, input frequency: 50 Hz, type of input current: three-phase, edge thickness (max.): 3 mm, height adjustment type: electric, total length: 10,825 mm, Equipment: documentation/manual, Used single-sided HOMAG edge-banding machine for straight edges – EDGETEQ S-500 For pre-milling (jointing trimming), gluing and post-processing of various kinds of edging materials. Fixed stop on the left side. Year of Manufacture: 2023 EQUIPMENT / SPECIFICATION BASIC MACHINE - with 80 mm wide conveyor chain with rubber-coated chain pads, Lodpfsy D A Swex Akuohg - workpiece thickness 8 to 60 mm - top pressure with compound V-belt, automatic height adjustment (to workpiece thickness) - panel support with roller guide, extractable approx. 700 mm - glue roller drive in case of feed stop - hand switch /remote control for setup – mode - adjustable infeed fence with NC-axis (CAN-bus) - Jointing trimming 2 motors each 3 kW (clockwise, counterclockwise), jumping function GLUING SECTION V20, consisting of: - QA65 glue application unit, with PTFE-coating (Teflon), with pneumatically operated glue gates - pneumatic clamping of glue application - Pre-melter for PUR glues - Edge magazine, edge thickness min. 0,4 mm to max. 3 mm Edge width (height) max 65 mm - 2-fold automatic edge roll changing magazine - Pressure zone with automatic horizontal adjustment (NC CAN-axis) to edge thickness, 1 driven & 4 non-driven pressure rollers. POST-PROCESSING SECTION: - Snipping (end-trimming) unit PK25 horizontal, 2 motors, with straight/chamfer cutting function - Edge Trimming MS40 2x0.55 kW, top/bottom - Multifunction Corner Rounding MF60, 2 motors 0.4 kW (top/bottom) with linear motors, soft-touch - Profile (radius-) Scraping MN11, multi scraping tool, automatic positioning and adjustment (NC) - Flat Scraping (glue joint) FA20, top/bottom, (version with 3 tracer rollers), automatic adjustment - Buffing Unit FP10, top/bottom Control / software: - powerControl PC 23 PowerTouch - woodCommander 5 - Edge sequence control - change-over in the gap Machine dimensions 1085 x 180 x 235 cm (with opened doors)

Condition: used, machine/vehicle number: 008325, Position 1: Single Edgebanders HOMAG-EDGETEQ S-390 - LOOPTEQ O-300 Lhsdpfxsx Hpkle Akueg Position 2: Panel Return Systems HOMAG-EDGETEQ S-390 - LOOPTEQ O-300

Condition: excellent (used), functionality: fully functional, Single-sided edge processing line HOMAG with feed speed up to 32 m/min, precise workpiece positioning with a rolling block chain (instead of standard chain), extended mechanization, fully automatic workpiece infeed WZ14, with belt sanding unit for solid wood edges. Comprises: Lhodpfx Aswvlhljkuog Edgebanding and sizing machine HOMAG, type: PROFI KFL350/13/A3/WZ Loading station / infeed table HOMAG POWER TBL100/30/30/S Return system / BOOMERANG LIGMATECH, type: ZHR 30/L/185/F

Year of construction: 2004, condition: ready for operation (used), - USED - 8-AXIS SYNCHRONIZED CNC PRESS BRAKE WITH HYDRAULIC CROWNING AXIS: Y1 - Y2 - X1 - X2 - R1 - R2 - Z1 - Z2 BENDING LENGTH: 3100 mm TONNAGE: 150 ton THROAT DEPTH: 400 mm DISTANCE BETWEEN UPRIGHTS: 2750 mm OPEN HEIGHT: 500 mm UPPER BEAM TRAVEL: 215 mm APPROACH SPEED: 200 mm/sec RETURN SPEED: 150 mm/sec WORKING SPEED: 1-10 mm/sec MOTOR POWER: 11 kW Lhsdpfx Aowqibrskuog CONTROL UNIT: CYBELEC ModEva 10S WEIGHT: 10000 Kg OVERALL DIMENSIONS: 4100 x 2050 x 2600 mm

Condition: used, machine/vehicle number: 008246, Position 1: Single Edgebanders HOMAG-KAL 310 + ZHR 05 Lhodpfxex A Hi Ie Akuog Position 2: Panel Return Systems HOMAG-KAL 310 + ZHR 05
