Folding Machine

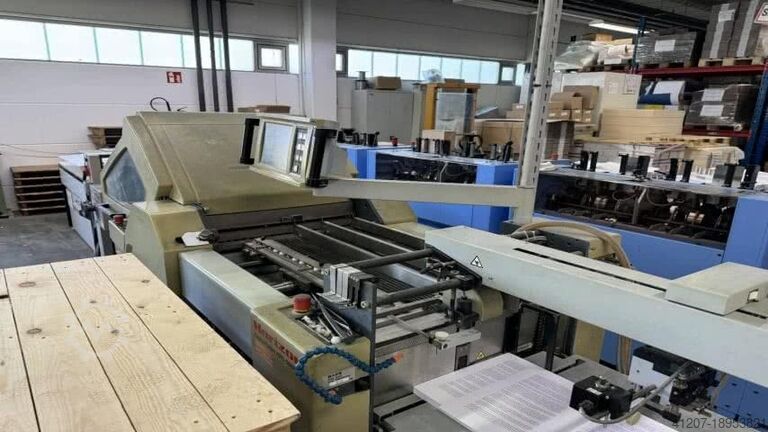

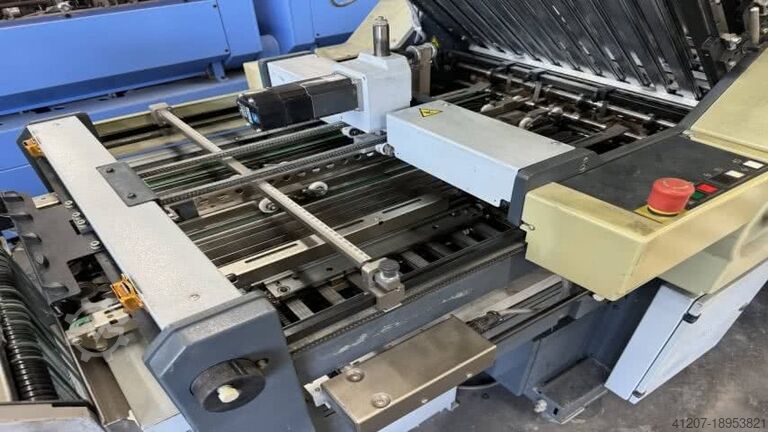

Horizon AFC 566 FKT + PST-40

Condition: used, Year of construction: 2015, Horizon AFC-566 AKT with LCV-54 shingle delivery 1st folding unit: 6 buckle plates 2nd folding unit: folding knife plus 2 buckle plates Paper weights : 40 - 250 g/sqm Stack height feeder: 740 mm Format (max.): 558 x 850 mm (1,100 mm*) Format (min.): 128 x 148 mm (105 x 148 mm*) Weight: 1,200 kg Machine dimensions: 3,100 mm x 1,090 mm x 1,680 mm (LxWxH) Delivery dimensions: 1,320 mm x 550 mm (LxW), variable height Power connection: 400 V 5.6 A, 3.1 kW Gslhccsv D I Sqoqqjbl Top condition - little used available from April 25

Condition: used, Schuppenauslage mit Presswalzen / Stream Delivery with integrated Pressing Horizon PST-40 Baujahr / Year 2006 - Serial-No. 028008 Format / Size min. 60 x 64mm - max. 440 x 310mm Golhccqovkkhnsqjbl Höhe / High 280 - 1000mm mit Markiereinrichtung / with marking device Leistung / Geschwindigkeit 50-230m/min Online-Video-Inspection by WhatsApp - MS Zoom - Telegram On Stock Emskirchen/Nürnberg - Available Immediately - Can be test

Condition: good (used), Year of construction: 2003, buckles 4 0 knives 1 0 Total counter ca. 8,2 Mio Horizon AFC-544AKT Folding machine with cross fold - Total counter only approx. 8.2 mio - Freshly rubberized Rollers in the cross fold unit Technical data: 4 Buckles + Fold Knife + 2 Buckles Below Knife - Max. Sheet size: 540 x 750 mm - Min. sheet size: 128 x 148 mm Gbolhcsv Uq Ucocqqsl

Year of construction: 1999, Condition: good (used), machine/vehicle number: 027012 , Flatpile Feeder 4 Pockets 1 Knife 1 Side Pocket Golhccsf Swnleqqjbl

Condition: good (used), Year of construction: 2007, working width: 566 mm, Horizon AFC-566FKT with 6 buckle +1 knife crossfolder + 2 buckel folder under the knife Gbolotxzr Rohccqqjl The machien was checked by our Horizon service department The machine is used, every function working well. Optionally we can renew the folding rollers.

Condition: as good as new (ex-display), Functionality: fully functional, Very nice paper folding machine for sale. 2 buckle and cross folding 16 page high pile table. This machine look like new and working 100%. Of course you are welcome to test this machine with us. Gelhswbr Ntsccqqsbl We can arrange the transport/packaging for you and load it into a truck or container. Ask for a price including transport (location the Netherlands). Regards Henk Hoos.

Condition: ready for operation (used), Year of construction: 2006, Functionality: fully functional, machine/vehicle number: 011003, paper width (min.): 210 mm, paper width (max.): 738 mm, paper height (min.): 297 mm, paper height (max.): 1,300 mm, No reserve price - guaranteed sale at the highest bid! TECHNICAL DETAILS Construction: 4 folding pockets in the first folding unit, 2 knife folding stations Maximum paper format: 738 x 1,300 mm (with round pile feeder) Minimum paper format: 210 x 297 mm Folding length: 35 - 560 mm (58 mm in pocket 1) Performance: Up to 230 m/min, 25,000 cycles/h in cross fold Gslhccqev Imiceqsbl Paper thickness: 40 g/m² and more MACHINE DETAILS Dimensions (L x W x H): 485 x 166 x 165 cm Total weight: 2,235 kg Power connection: 400 V Power consumption: 4.0 kW EQUIPMENT - Automatic setting for quick and precise setup - Round pile feeder with 80 mm stack height for continuous reloading - Glue station HHS-C220 for additional processing options - Touch screen operation for easy handling

Condition: good (used), Year of construction: 2000, max. size 49 x 65 cm age 2000 flat pile feeder with suction head Gslhsvxkvbeccqqebl 4 folding pockets in the parallel fold section 1 folding knife in the cross fold section 1 additional folding pocket after the 1st cross fold stream delivery

Condition: good (used), Offer consists of: Horizon AFC-566FKT, fully automatic folding machine, 6 pockets, 2 swords, mobile sword folding unit (rotatable) Golhccjvn Snqeqqjbl

Condition: excellent (used), Year of construction: 2003, Folding machine Horizon AFC-504 KT - Flat pile feeder - Delivery Horizon AFC-504 KT 4-pocket folding machine - Technology: Touch & Work - Error prevention: Missing sheet, double sheet and jam control - Standard fold types: 11 standard fold types preset - Job memory: 50 memory locations for repeat jobs - Sword: fully automatic - Number of buckle plates: 1st folding unit: 4 buckle plates + knife 2nd folding unit: 2 buckle plates - Format: max. 490x650mm; min. 120x172mm - Processing thickness: 40-250g/sqm - Stacking height: 650mm - Output: max. 27,000 sheets/h Gelhccjh Ix Ipoqqsbl - Power: 400V / 50Hz - 2.5kW - Dimensions: 2,540x1,790x1,440mm - Weight: 870kg

Condition: excellent (used), Year of construction: 2005, Horizon AFC-546 AKT Folding Machine + MKU-54 Mobile Knife year 2005 Gelhjvmm Dqoccqqsbl 6 folding buckle plates 1 electronic knife 2 cassettes after the knife Format max. 540x760mm; min. 120x172mm

Year of construction: 2011, Condition: used, Horizon AFC-746F Folding Machine with Pallet Feeder, used The Horizon AFC-746F is an advanced combination folding machine designed for efficient paper processing in various formats and weights. This machine has been thoroughly refurbished and offers a premium solution for demanding folding tasks in print shops. Key features: - PFU-74F pallet feeder: allows easy handling of large paper stacks directly from the printing press Gbelhsu Un Nroccqqsl - User-friendly operation: The machine has a large, color touchscreen control panel for intuitive operation. All common fold formats and paper sizes can be easily selected. - Advanced automation: Automatic setup includes up to 47 adjustments, including feed, roller gap, pocket fold, and knife fold. This allows for quick changeovers without tools. - Versatile folding options: With 6 fold pockets, a first knife and 2 pockets under the knife, plus a second knife, the AFC-746F offers flexible folding options. Technical specifications: - Paper formats: Max. 738 x 1,300 mm (pallet feeder); Min. 210 x 297 mm - Maximum stack height: 1,200 mm when using the pallet feeder - Paper weight: 35 to 209 g/m² - Power supply: Three-phase, 400 V, 12.6 A; 5.3 kW - Dimensions: Length approx. 4,380 mm, Width approx. 1,870 mm, Height approx. 1,680 mm The Horizon AFC-746F is ideal for print shops looking for a reliable and versatile solution for large format processing. With its advanced technology and high flexibility, it efficiently and precisely meets the requirements of modern production environments. All-Inclusive Service Package We take care of everything: from secure packaging and transportation to customs clearance. Upon request, we can also provide a customized leasing offer. Sustainable and Economical Choose a used machine and benefit twice: Save the environment and your budget. Despite possible signs of use, you receive a quality product at an attractive price.

Year of construction: 2004, Condition: good (used), machine/vehicle number: 018002 , 4 Pockets 1 Knife 1 Side Pocket Screen Display Double Sheet Control - electronic Stream Delivery Gbelhccqefh Nqreqol Technical Details: Largest Sheet Size X : 530 mm Largest Sheet Size Y : 750 mm Min. Sheet Size X : 120 mm Min. Sheet Size Y : 172 mm Production Capacity Max : 230 m/min Technical data can vary according to job, consumables and possible other factors

Condition: good (used), Year of construction: 2010, HORIZON CROSS FOLDER AFC 746F · Ser. No. 001001 · Year of production 2010. · 6 pockets + 2 knives + additional pocket (side) +press stacker - paper weight: 40-250 g/sqm Gbjlhjpl Ufvsccqqol - stack height palette feeder: 1.200mm - sheet size: max. 738x1.100mm with palette feeder min. 210x297mm

Condition: ready for operation (used), Year of construction: 2005, Horizon folding machine AFC-746F, year of construction 2005 Gslhst Uwicjccqqobl Pallet feeder 1.station fully automatic 6 buckle plates Downstream slitter shaft Horizontal automatic buckle plate 2 folding blades Shingled delivery transformer

Condition: used, Year of construction: 2001, Horizon AFC-504 AKT - 4-Pocket Cross Folding Machine Unlike combo folding machines that mix different folding techniques, the Horizon AFC-504 AKT is a specialized cross folding machine. It offers excellent precision and efficiency for complex folding tasks. This machine is perfect for demanding jobs like brochures, inserts, and pharmaceutical products. Gbjlsu Srmrshccqqjl Our offer includes: Horizon AFC-504 AKT cross folding unit Flat pile feeder Delivery connector Special Features 4-pocket cross folding unit with knife fold 1st folding unit: 4 pockets + knife, 2nd folding unit: 2 pockets High production speed for maximum efficiency Built for long-lasting performance Flexibility for various fold types and paper sizes Specifications Sheet size: max. 490 x 650 mm, min. 120 x 172 mm Paper weight: 40-250 g/m² Stack height: 650 mm Speed: up to 27,000 cycles/hour Power supply: 400V / 50Hz - 2.5kW Dimensions: 2,540 x 1,790 x 1,440 mm Weight: 870 kg 3 MONTHS WARRANTY We guarantee that the machine operates perfectly and we take responsibility for 3 months. Even after this period, we are always there for you and support you in solving any problems. All-Inclusive Service Package We take care of everything: from secure packaging and transportation to customs clearance. Upon request, we can also provide a customized leasing offer. Sustainable and Economical Choose a used machine and benefit twice: Save the environment and your budget. Despite possible signs of use, you receive a quality product at an attractive price.

Condition: used, Year of construction: 2001, 3 MONTHS WARRANTY offer consist of: - cross folder Horizon AFC-504 AKT - flat pile feeder - delivery connector Horizon AFC-504 AKT 4-buckles cross folder - roller condition: 0% - technology: touch & work Gelhju Sr Ehsccqqjbl - error avoidance: misfeed-,doublefeed- and jamming control - memory folding types: 11 standard-types of folding preprogrammed - saveable jobs: 50 memories for repeat orders - knife: full automatic - numbers of buckles: 1. folding unit: 4 buckles + knife 2. folding unit: 2 buckles - sheet size: max. 490x650mm; min. 120x172mm - paper weight: 40-250g/sqm - pile height: 650mm - speed: max. 27.000 cycles/h - power: 400V / 50Hz - 2,5kW - dimensions: 2.540x1.790x1.440mm - weight: 870kg We can also organize the following for you: packaging, loading, transport ( by ship or plane) including customs

Condition: used, Year of construction: 2014, Used Horizon PF-40 Folding Machine The Horizon PF-40 is a small, fully automatic folding machine designed for small to medium print runs. It's perfect for print shops and binderies with limited space who need a versatile and efficient folding solution. Key features: - Compact design for easy integration into existing production lines - Versatile: Can do various fold types like single fold, double parallel fold, letter fold, and more - Memory for up to 10 commonly used jobs - Automatic fold plate setting for standard paper sizes - LCD display shows fold settings, counter, and error messages, controlled by buttons and dials Technical specs: - Paper sizes: Min. 128 x 125 mm, Max. 470 x 320 mm - Paper weights: 52.3 to 157 g/m² (normal paper) - Fold lengths: First fold 65-335 mm, Second fold 68-245 mm - Max speed: Up to 390 sheets per minute (A4 single fold) - Feeder capacity: Max. 105 mm - Size: 1,380 x 630 x 770 mm (L x W x H) - Weight: 124 kg Gbelou Sr A Hshccqqel 3 MONTHS WARRANTY We guarantee that the machine operates perfectly and we take responsibility for 3 months. Even after this period, we are always there for you and support you in solving any problems. All-Inclusive Service Package We take care of everything: from secure packaging and transportation to customs clearance. Upon request, we can also provide a customized leasing offer. Sustainable and Economical Choose a used machine and benefit twice: Save the environment and your budget. Despite possible signs of use, you receive a quality product at an attractive price.

Condition: used, Year of construction: 2009, DIRECT FROM PRINTING SHOP We sell this machine on behalf of our customer and try to realize his asking price. However, we are open to offers from your side. Offer consists of: - cross folding machine AFC-746 AKT - round pile feeder unit RFU-74 Horizon AFC-746 AKT 6-buckles cross folder technology: touch & work - roller adjustment: automatic - memory folding types: 20 standard-typs of fold preprogrammed - saveable jobs: 200 memories for repeat orders Gslhcceu Sr D Djqqsbl - numbers of buckles / knife: 6 buckles 1 knife 1 knife - knives working method: full automatic - sheet size: max. 738x1.100 mm; min. 210x297 mm - papier weight: 40-250 g/sqm - speed: max. 40.000 cycles/h - stack height: max. 1.200mm - pile weight: max. 1000kg - power: 400V/50Hz - 3,4kW - dimensions: 4.320x1.700x1.690mm - weight: 1.920kg We can also organize the following for you: packaging, loading, transport ( by ship or plane) including customs

Condition: used, Year of construction: 2001, 3 MONTHS WARRANTY offer consists of: Horizon AFC-544 AKT 4-buckles cross folder - parallelfold rollers condition: 10% - crossfold rollers condition: 50% - rollers refurbished: 1.868€ - technology: touch & work - memory folding types: 17 standard-typs of fold preprogrammed - saveable jobs: 200 memories for repeat orders - numbers of buckles: 1. folding unit: 4 buckles + knife 2. folding unit: 2 buckles - knife: full automatic - sheet size: max. 540x760mm; min. 120x172mm - fold length: 1. buckle: min. 58mm all other buckles: min. 35mm - paper weight: 40-250g/sqm - pile height: 650mm - speed: max. 40.000 cycles/h Gbslhsu Stdrjccqqjl - power: 400V/50Hz - 2,5kW - dimensions: 2.700x1.050x1.650mm (without conveyor) - weight: 1.050kg We can also organize the following for you: packaging, loading, transport ( by ship or plane) including customs

Condition: used, Year of construction: 2002, 3 MONTHS WARRANTY offer consists of: Horizon AFC-546 AKT | folder | 6+knife+2 | 30 mio Horizon AFC-546 AKT 6-buckles cross folder - parallelfold rollers condition: % - crossfold rollers condition: % technology: touch & work - roller adjustment: automatic - memory folding types: 17 standard-typs of fold preprogrammed - saveable jobs: 100 memories for repeat orders - knives working method: full automatic - sheet size: max. 540x760 mm; min. 120x172 mm - papier weight: 40-250g/sqm - speed: max. 40.000 cycles/h - stack height: max. 650mm Gbolhju Srwdsccqqol - power: 400V/50Hz - 2,7kW - dimensions: 2.780x1.050x1.680mm - weight: 1.350kg We can also organize the following for you: packaging, loading, transport ( by ship or plane) including customs

Condition: good (used), Horizon AFC-546 AKT Folding Machine Fully functional device, ready for production. Machine from the first owner. Very good condition. Horizon production, Japan Equipment: 6 parallel pockets 1 electronic knife 2 pockets after the knife Max. format 540x760mm; min. 120x172mm The machine is set entirely from the touch panel. The set includes: – set of tools Gjlhcswhaz Docqqebl – additional elements – user manual – compressor

Condition: used, offer consists of: Horizon delivery for AFC-504 AKT - compatible with AFC-504 AKT We can also organize the following for you: Gbjlsu Sr Ayshccqqel packaging, loading, transport ( by ship or plane) including customs

Condition: good (used), Horizon Digital Printing Booklet Line The machine consists of the following modules: HOF-400 + CF-400 + CR-400 + AC-400+ SPF-200L + FC-200L The machine is in perfect condition, ready for production. Mileage of only 0.5 million booklets. This is one of the latest models of Horizon machines. Setting the entire machine from the desktop. Production Japan. The ideal machine for efficient production of booklets in a digital printing house. The line consists of: – Horizon HOF-400 sheet feeder – Horizon CF-400 cover feeder – Horizon CR-400 creasing machine with top/bottom trimmer – Horizon AC-400 accumulation module – Horizon SPF-200L sewing and folding unit – Horizon FC-200L front trimmer – LC-200L delivery Horizon HOF-400 – Speed: Up to 45,000 sheets per hour – Maximum stack height: Sheet feeder: 620 mm; Cover feeder: 200 mm – Minimum sheet dimensions: 203 x 203 mm Horizon SPF-200L Gbjlhccqowdpf Deqel Touchscreen, colour display with a diagonal of 10.4” Non-stop work thanks to the function of ejecting incorrectly collected sets Max format: max. 356 x 610 mm; Min format. 120 x 180 mm Max speed 4500 booklets/h Weight 500 kg wire sewing folding two Hohner 43/6 s heads (max.4) Ability to save up to 200 jobs to the machine’s memory. The machine has a block sewing module. Horizon FC-200L Cutting thickness 4-5 mm power supply 230 V Weight 244 kg Touchscreen panel for quick change of formats. With one click we retool the machine to other format. The machine comes with: LC-200 delivery, tools, spare parts, documentation.

Condition: used, Year of construction: 2014, Functionality: fully functional, input voltage: 200 V, year of last overhaul: 2024, Paper feeding system - air hole belt Paper size(Before Processing) - maximum : width 400 x length 550mm - minimum : width 200 x length 275mm Product size(after-process) - With seperation device (*1) - maximum : width 376 x length : 530mm - minimum : width 50 x length : 80mm - Without seperation device (*2) (with connection) - maximun : width 384 x length : 530mm - minimum : Depends on mold shape Material - High qualith, Art, Coat, Cardboard, etc (However, back laminated(PP pasted) and plastic sheets cannot be processed) Material Thickness - 127.9 ~ 400gsm - extraction processing : Maximum 0.5mm - pressed rule processing : Maximum 0.4mm Paper loading capacity - 500mm Disconnectable range - maximum : width 376 x length 530mm Mold size (upper mold) - maximum : width 400 x length 560mm - minimum : width 160 x length 100mm Upper die cutting edge height - 0.6 x 0.8mm Bite allowance during forward feed processing - 170mm or more (including punched product dimensions) Processing speed - 2000 to 6000 revolutions per hour Bucket load - BT-4055 when used(80mm) Power supply - Single Phase AC200V50/60Hz Rated current - With seperation device (*1) - Single phase 200V, 7.5A, 50/60Hz - Without seperation device (*2) - Single phase 200V, 7.0A, 50/60Hz Power consumption - With seperation device (*1) - Single phase 200V, 1.4kW, 50/60Hz - Without seperation device (*2) - Single phase 200V, 1.3kW, 50/60Hz Rated current - With seperation device (*1) - 3,400 kJ(810kcal) - Without seperation device (*2) - 3,310 kJ(790kcal) Motor capacity and number - FFU-4055 : 420W x 1 / 60W x 1 - RD-4055 : 400W x 2 - SPC-4055 : 90W x 1 / 15W x 1 Machine dimensions - With seperation device : Width 3,584 x depth 820 x heigth 1,195mm - Without seperation device : Width 2,510 x depth 820 x heigth 1,195mm Noise level - Laeq : 73.7dB Weight - With seperation device : 890kg - Without seperation device : 770kg Gbolhccov T I S Noqqsl Recommanded compressor - With seperation device - Prime motor rated output: 0.75kW - Maximum pressure : 0.8MPa - Mininmum required pressure : 0.6MPa or more - Minimum air discharge : 85L/min - Method : Oil-free method - Without seperation device - Prime motor rated output: 0.2kW - Maximum pressure : 0.8MPa - Minimum required pressure : 0.6MPa or more - Minimum air discharge: 20L/min - Method : Oil-free method Usage Environment - Temperature: +0°C-40°C - Humidity: 20%-80% RH - No condensation --- Please note that specifications and appearance may be changed without notice for improvement purposes. * 1: With seperation device indicates the system configuration of FFU-4055+RD-4055+SPC-4055. * 2: Without sepration device indicates a system configuration of FFU-4055+RD-4055+BT-4055.
