KVH plant

HOWIAL + Cook Bolinder + Gann komplette Anlage

Finger jointing line for cross sections up to 200 cm² (80/240 mm or 100/200 mm), with the following. components:
1. HOWIAL tilt unstacking - SH/4t - 1,75x1,75x6,00m - 4t - short. Length 2,50 m, semi-automatic separation of the package.
For tilting the wood pile up to 45°. Electric motor drive. stack dim. max. 1,75 x 1,75 x 6,00 m
max. stacking load 4 t
shortest wood length 2,5 m
Dcsdpfx Aei Ezx Djcwsn
2. HOWIAL - VE 1 lamella separator for crosscut saw. With pneum. controlled tongues, on which the material is marked for defects, deposited on the roller conveyor below.
3. HOWIAL - evaluation roller conveyor RO-1
digital wood moisture measuring, control and recording system for autom. recording and control of wood moisture in cycle measuring method according to electric resistance principle.
4. gann DMT-8
dig. Wood moisture measuring, control and recording system for automatic detection and control of wood moisture in the cycle measuring method according to the electrical resistance principle. Plant in large switchboard complete with ink jet printer.

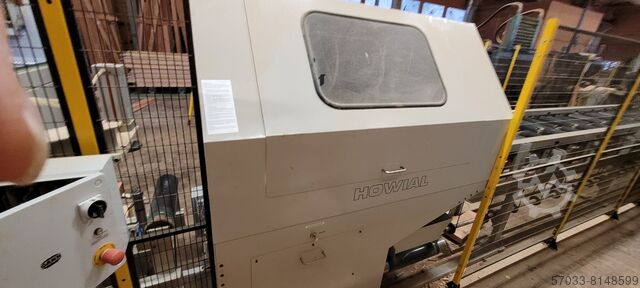

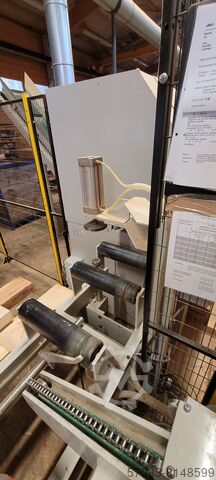

5. HOWIAL - crosscut saw AS-30 B
pneum. Under table crosscut, with 2 autom. feed units, autom. crosscut. Special photocell control for detection of fluorescent line markings. Automatic waste disposal possible.
Saw motor power 7,5 kW
saw blade diameter 700 mm
feed drive approx. 2 x 1,5 kW
Air pressure 8 bar
feed speed max. approx. 60 m/min.
6. HOWIAL - conveyor belt cut off waste, with studded belt and guide plates
belt width 350 mm
belt 2000 mm long
belt speed 0,4 m/sec.
7. HOWIAL - double roller conveyor RO-2 6,00 m long
incl. transversal transport, drive by round belt, all rollers driven. Cross transport chain conveyor. Ejection ± moisture right Transport speed adjustable 100 m/min.
length approx. 6,00 m
Width of rollers approx. 400 mm
Diameter 112 mm
8. compact finger jointing machine Cook Bolinder
The technical data are original from Cook Bolinder: wood width from 75 to 245 mm
Timber thickness from 20 to 105 mm Input lengths from 1m to 6 m Cross sections from 30 cm² to 200 cm² Pressing force 5 - 22 to Spindle diameter 50 mm
tine profile 15/15
spindle speed approx. 6000 upm
Total electrical connected load approx. 62 kW Machine weight approx. 9 to.
Gluing OEST comb system for PU
Modern Telemechanique SPS control.
9. HOWIAL - Roller conveyor with destacking system
Driven roller conveyor with autom. ejector and hydr. driven destacking arms.
Technical data:
H: 920 mm
L: approx. 12.000 mm
10. safety fences incl. circuit breaker
11. finger joint testing machine BSPLT-100
Testing machine for finger joint bending test according to DIN 1052-1/A1 and EN 385 Support distances freely adjustable, attached dimension scale, autom. calculation of support distances in the software. Fully automatic test procedure by mouse click on PC (not included). Alternatively, the test procedure can be started by key operation on the front panel. Connection of any commercially available PC or laptop (Win 2000/XP) via the supplied RS232 serial cable. Fully automatic measured value logging as well as automatic logging in MS-Excel with graphical display. Representation
max. wood width: 300 mm
max. wood thickness: 140 mm
max. compression force: < 100 kN
max. support length: 2100 mm
Measuring accuracy
WITHOUT DISMANTLING
