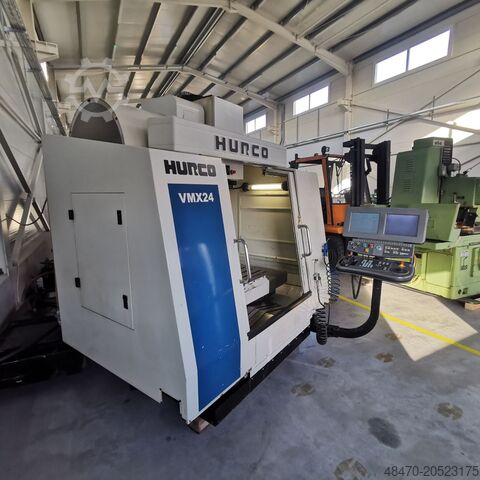

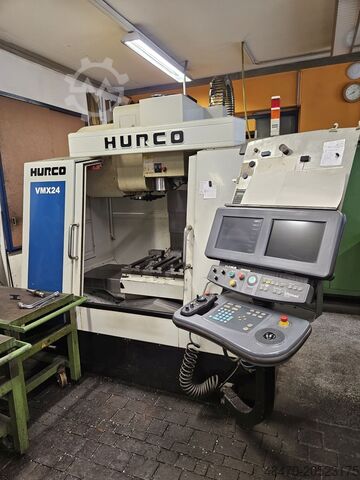

Vertical machining center

Hurco VMX 24

Condition: good (used), Year of construction: 2003, functionality: fully functional, travel distance X-axis: 610 mm, travel distance Y-axis: 510 mm, travel distance Z-axis: 610 mm, Controller ULTIMAX4 DSM Double screen Table size 762 x 510 mm Table load max 1350 kgs X travel 610 mm Y travel 510 mm Z travel 610 mm Gsdpfxsxwmgie Abpokd Spindle speed 10000 rpm Spindle taper SK40 Spindel power 9,4/11 kW Weight 4300 kgs Dimensions LxWxH = 2300 x 2400 x 2600 mm Accessories - Coolant unit - Chip auger - SW options: pocket islands, rigid tapping, DXF, Ultipro - machine mounths Under power in our showroom in Hungary.

Condition: good (used), Year of construction: 2016, HURCO CNC Machining Centre VMX 24 i Travels X-axis (mm): 610 Y-axis (mm): 508 Z-axis (mm): 610 Main Spindle Spindle taper (DIN 69871): SK 40 Max. spindle speed (rpm): 12,000 Max. spindle power (kW): 9 Max. spindle torque (Nm): 95 Feed Rapid traverse X/Y/Z-axis (m/min): 38 / 38 / 32 Tool Changer Magazine positions / optional: 30 Max. tool diameter (mm): 80 Max. tool length (mm): 300 Max. tool weight (kg): 7 Additional Data Required installation space (mm) (doors open, incl. control unit and chip conveyor): 3,930 x 4,041 x 2,725 Godpfx Abjxvtihopokd Machine weight (kg): 4,750 Coolant tank capacity (l): 367 Scraper belt conveyor: Standard Technical specifications subject to change without prior notice.

Condition: good (used), Year of construction: 2004, Travel paths X/Y/Z: 600/500/600 mm Gkodpoxlctnsfx Abped max. spindle speed: 10,000 rpm.

Condition: ready for operation (used), Year of construction: 2008, General Data Measurements width 2400 mm Measurements depth 2300 mm Measurements height 2600 mm Machine weight 4300 kg Main Drive Spindle speed range 12000 Number of axis 5 Movement X-Axis Movement 610 mm Y-Axis Movement 510 mm Z-Axis Movement 610 mm Table Table load 1350 Additional Equipment Gkedpfexc Rdvex Abpjd Coolant system with IKZ (20 bar) Spindle cooler Large chip conveyor This 5-axis Hurco VMX 24t was manufactured in 2008, featuring a Winmax Version 9 control system, a robust table size of 762 x 510 mm, and a high-speed spindle at 12000 rpm. It supports a maximum table load of 1350 kg and offers extensive X, Y, and Z travels of 610 mm each. Accessories include a coolant system with IKZ, spindle cooler, and a large chip conveyor. Contact us for more information about this machine. Application Types Milling

Condition: used, Year of construction: 2001, functionality: unexamined, travel distance X-axis: 610 mm, travel distance Y-axis: 510 mm, travel distance Z-axis: 610 mm, total height: 2,500 mm, total length: 2,200 mm, total width: 2,400 mm, table width: 510 mm, table length: 760 mm, table load: 1,000 kg, For sale is a 3-axis CNC milling machine from the Hurco brand and the type VMX 24 Technical data: - Year of manufacture: 2001 - Control: Winmax 4 - X axis: 610.0 mm - Y axis: 510.0 mm - Z axis: 610.0 mm - Table length: 760.0 mm - Table width: 510.0 mm - Max. part weight: 1000.0 kg - Length: 2200.0 mm - Width: 2400.0 mm - Height: 2500.0 mm - Weight: 4700.0 kg - Number of tool pockets: 24.0 Pull bolts, which can be seen in pictures, are not part of the offer Transport and loading can be organized throughout Europe on request for an additional charge. Prices plus VAT Viewing possible by appointment. Contact us, our team will be happy to help you. Trade-in or exchange possible! Machine purchase/sale PURCHASE/SALE OF PRODUCTION & METALWORKING MACHINES AND MUCH MORE. Do you need a high-quality but inexpensive metalworking machine for your production? Or do you want to sell yours? Godpfx Aev Tcfkobpekd For more information or contact options, visit us on our website

Condition: good (used), Year of construction: 2007, functionality: fully functional, travel distance X-axis: 610 mm, travel distance Y-axis: 510 mm, travel distance Z-axis: 610 mm, rotational speed (max.): 10,000 rpm, Equipment: rotational speed infinitely variable, Vertical Machining Center Hurco VMX 24T Year of manufacture: 2007 Control: Winmax Technical Data Spindle speed: 0 - 10,000 rpm Drive power: 9 kW Tool holder: SK 40 Number of tool magazine positions: 24 pcs. Travel distances X-axis: 610 mm Y-axis: 510 mm Z-axis: 610 mm Accessories: Chip conveyor Several tool holders The vise is not included Gkodjxbrz Topfx Abpod

Condition: ready for operation (used), A CNC 3-axis machining center is available. Travel X/Y/Z: 610mm/510mm/610mm, table dimensions X/Y: 760mm/610mm, max. table load: 700kg, tool positions: 24, tool holder: SK40, spindle speed: 10000rpm, rapid traverse: 24m/min. Machine dimensions X/Y/Z: approx. 2300mm/2400mm/2600mm, weight: approx. 4300kg, control: Ultimax 4. Includes coolant system, protective cabin, and a set of machine feet. Documentation available. An on-site inspection is possible. Gkedpfx Aoxc Nidebpsd

Condition: good (used), Year of construction: 2006, Hurco machining center VMX 24 i IKZ chip worm spindle mount Sk 40 Gedpfx Aboudb I Tjpskd

Condition: ready for operation (used), Year of construction: 2003, Travel X/Y/Z: 610mm/508mm/610mm, rapid traverse X/Y/Z: 35m/35m/30m, feed: 7600mm/min, table dimensions X/Y: 760mm/510mm, max. table load: 700kg, tool holder: SK40, tool positions: 24, spindle speed: 10000rpm, power: 7.5kW. Machine dimensions X/Y/Z: approx. 2200mm/2400mm/2500mm, weight: approx. 5000kg, control: Ultimax 4, documentation available. On-site inspection is possible. Godowpu Ihepfx Abpskd

Condition: ready for operation (used), Year of construction: 2006, TECHNICAL DATA Travel X 610 mm Travel Y 510 mm Travel Z 610 mm Table dimensions 760 x 510 mm Table clamping surface 760 x 510 mm T-slots 5 x 18 mm x 100 mm Distance spindle to table min./max. 150/760 mm Spindle holder steep taper DIN 69871 ISO 40 Spindle speeds 10 - 10,000 rpm Torque (at 500 rpm) 142 Nm Drive power (30 min/const. ED) 7.5 kW Ball bearing mounted linear guides in X,Y,Z axes Coolant tank 150 l Rapid traverse for X/Y/Z axis 30/30/20 m/min Feed rates programmable 3.0 - 7600 mm/min Positioning accuracy +/- 0.010 mm Repeat accuracy +/- 0.005 mm Milling feed in mm/min 3.0 - 11'400 Table load 700 kg Automatic tool changer with double arm 24 stations Max. tool diameter Tool diameter 80 mm Godpjr Ar N Uefx Abpskd Max. Tool length 300 mm Max. Tool weight 6.8 kg Machine weight 4100 kg Space requirement L x W x H (footprint) 3470 x 1980 x 2730 mm Power fuse 24 A Renishaw NC4 Laser
