Cold Circular Saw

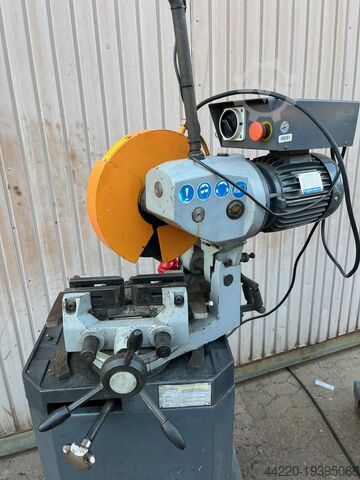

HUVEMA HU 315 ASK

Condition: used, Year of construction: 1980, machine/vehicle number: 258695, Lg.no. 24444 Technical data: - E.- Hydr. raising/lowering of the saw bow - Saw blade dimensions 400 x 30 x 1.5 mm - Cutting range at 90° - round approx. 210 mm - flat approx. 240 x 190 mm - square approx. 210 x 210 mm - Cutting range at 45° - round approx. 150 mm - flat approx. 150 x 100 mm - approx. 130 x 210 mm - square approx. 145 x 145 mm - Adjustable stroke speeds + cutting speeds - Stroke speeds 62 / 125 m/min - Average cutting speed 16 / 32 m/min - Mitre-adjustable vice with opening width up to 260 mm Bcsdpfx Aju H Acyogiet - E.-Mot. coolant device - Drive 400 V / 1.1 kW - Space requirement approx. W 600 x H 1250 x D 1300 mm - Weight approx. 250 kg

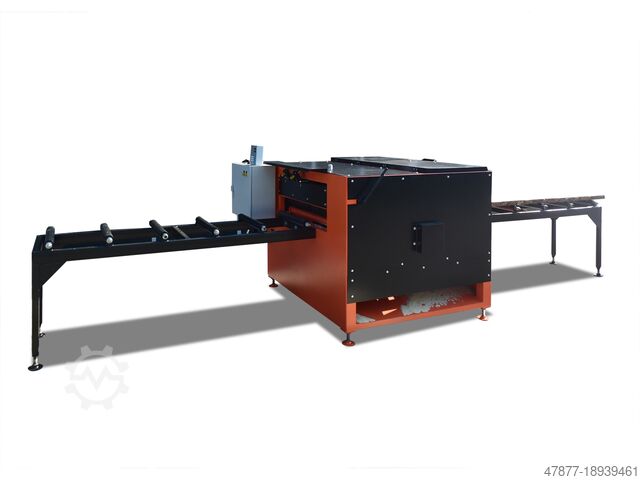

Condition: new, The edger is used for double-sided edge trimming of boards and logs. The use of automatic width adjustment, smooth feed, and laser markings on the cutting guide enable optimal use of edged boards. Technical specifications: Minimum cutting width: 60 mm, maximum cutting width: 500 mm (horizontal clearance: 700 mm) Edge thickness: max. 65 mm Infeed table: 2000 mm Pick-up table: 2200 mm Distance between electric saws can be adjusted via the control panel Feed speed: uniform Saw diameter: 350 mm Number of saws on the spindle: 2 Main motors: 2 x 5.2 kW Bcsdewb Uwgspfx Agijt Machine weight: 1000 kg – Laser for marking the cutting line (2) – Electronic width measuring controller ANP 05

Condition: used, machine/vehicle number: 102 039 1024 07265, cutting area at 90° round: 245 mm cutting area at 90° flat: 220 x 240 mm cutting area in mitre at 45°: 150 mm saw blade measures: 400 x 31 x 2 mm stroke speeds: 55 - 155 /min electrical connection: 380 V, 1,1 kW space needed: 1200 x 650 x 1250 mm weight: 340 kg Bedpfx Ajcd Tmyegijct

Condition: new, The KKS 275 T, a Manual Circular Saw Machine from KNUTH, is your essential tool for precise cutting in any workshop. Designed for machining smaller tubes and profiles, it features a robust yet easy-to-operate design, allowing for accurate miter cuts of up to +/- 45 degrees. The KKS 275 T is equipped with a high-precision rigid vise, which incorporates a quick-action clamping feature that is ideal for small batch production. With its built-in coolant system and an integrated rust-proof gear mechanism, it ensures durability and minimal maintenance. This model not only handles solid materials, tubes, and sections of steel and light metals efficiently but also provides a large cutting capacity with dimensions of up to 70 mm for round and 90x45 mm for flat workpieces. For optimal performance, request a quote for the KNUTH KKS 275 T, a reliable choice in the Circular Sawing Machines product group. Bjdsuyifnepfx Agioct

Condition: used, Year of construction: 1990, saw blade diameter 350 mm dimensions of saw-blade 350 x 32 x 2,5 mm cutting diameter 115 mm capacity 90 degrees: square 95 mm capacity 90 degrees: flat 180 x 95 mm capacity 45 degrees: round rechts & links 110 mm capacity 45 degrees: square rechts & links 95 mm Bsdpswvl E Rsfx Agioct capacity 45 degrees: flat rechts & links 125 x 95 mm capacity 60 degrees: round 90 mm capacity 60 degrees: square 80 mm capacity 60 degrees: flat 90 x 95 mm cutting speed 15 - 90 m/min total power requirement 2,5 kW weight of the machine ca. 400 kg dimensions of the machine ca. 1000 x 950 x 1800 mm Features: - With miter adjustment 60° left / 45° right - Machine base

Condition: new, ELMAG metal circular saw MKS 315 RLSS-N- SUPER-SET-ACTION SUPER-SET-ACTION - MKS RLSS-N standard equipment - Universal or sheet steel base - Material stand for circular metal saws - Quality saw blade HSS/DMo5 - Coolant concentrate 1:10, 5 liters Standard equipment - MKS RLSS-N metal circular sawing machine - Material support with roller - Bar stop with material stop - WSS quick angle clamp/angle scale - Adjustable cutting depth stop - DSS double quick-clamping vice - Quick clamping lever - Adjustable clamping jaw(s) - High-performance drive - Gearbox with permanent oil bath lubrication - Cooling system with diaphragm pump - ERGO operating lever with reset - Permanent safety switch on the handle - Self-closing saw blade guard - Emergency stop/zero voltage release - Tool/Operating instructions/CE ADVANTAGES High accuracy for series cutting - with bar stop and material stop Quick miter adjustment with a lever handle - with quick angle clamp and 45-0-45° angle scale Flexible miter setting - gear head and/or vice can be swiveled Cutting depth can be precisely limited - with cutting depth stop Powerful - two-speed drive motor 40/80 rpm Smooth-running and durable - quality gearbox with oil bath for permanent lubrication Optimum cooling - coolant circulation system with diaphragm pump, dosing valve and return filter Compact - coolant tank integrated in chip tray Stable cutting guide - with ERGO operating lever Safe - self-closing saw blade guard, permanent switch, emergency stop, zero voltage release, CE-compliant TECHNICAL DATA Round tube cutting range at 0° Max. 90 mm Round tube Cutting range at 45° right mitre Max. 80 mm Square tube Cutting range at 0° Max. 80 mm Square tube Cutting range at 45° right miter Max. 70 mm Rectangular tube Cutting range at 0° Max. 115x70 mm Rectangular tube Cutting range at 45° right mitre Max. 70x70 mm Saw blade outer diameter 315 mm Saw blade inner diameter 32 mm Vice clamping width max. 120 mm Cutting angle 45-0-45 ° Speed level 1 / 2 40 / 80 rpm Motor power speed level 1 / 2 1500 / 2200 W Mains connection 400/50 V/Hz Infeed height for roller conveyors 1030 mm Length 1475 mm Bjdjt Hkbpjpfx Agijct Width 1000 mm Height 1150 mm Weight 150 kg

Condition: reconditioned (used), functionality: fully functional, saw blade length: 300 mm, cutting range round steel at 45°: 150 mm, cutting height (max.): 150 mm, The fully hydraulic high-speed production hacksaw has universal hydraulics for the exclusive or alternating cutting of thin and thick-walled profiles as well as solid material without changing the saw blade with the uniform tooth pitch of 3 or 4 teeth per inch. Pre-tensioned bow guide, closed oil hydraulics, triple swivel bearing, separate coolant system, infinitely variable hydraulic cutting pressure, lift-off movement and accelerated return stroke, equipped with infinitely variable mitre device as standard. mitre device as standard. Lifting of the saw arm in rapid traverse. Pendulum vice for perfect utilization of the saw blade. Longitudinal guide with ground and and hardened guide rails to transfer the cutting pressure forces to the saw frame. Automatic limit stop. Push-button operation for on, off and up functions of the saw arm Manufacturer KASTO Metal hacksaw Machine type WBS 150/170 U Drive power: 0,75 KW Bsdperrvgxjfx Agisct Stroke rates: 85/170 min Cutting speed: 16/32 m/min Universal hydraulics: standard Saw feed hydraulics Cutting range round: 150 mm Cutting range flat: 150/170 mm Mitre 0-45 ° Material support height: 700 mm Weight: 170 kg. Length/width: 770x700 mm Height: 1370 mm Saw blade dimensions: 300x30x1.5 mm Machine for notching Accessories. coolant device

Condition: good (used), Year of construction: 2019, saw-blade dia. 370 mm cutting capacity - round 115/ 90° mm cutting capacity - square 110 x 110 /90° mm cutting capacity - flat 110 x 110 / 90° mm cutting capacity - flat 100 x 100 / 45° mm cutting capacity - round 115 / 45° mm cutting capacity - square 100 x 100 /45° mm saw blade turning speeds 22 / 44 U/min voltage 400 V / 50 Hz Motor output 3 kW machine weight ab. 0,27 t Dimensions (L/W/H) 980 x 790 x 780 mm • New, unused saw • saw is fitted on a lower frame, • 2-step motor, • pneumatical quick clamping vise, • material back stop, • coolant device, Bedpfxovxli Ne Agioct • mitre ability: 45° left, 45° right
