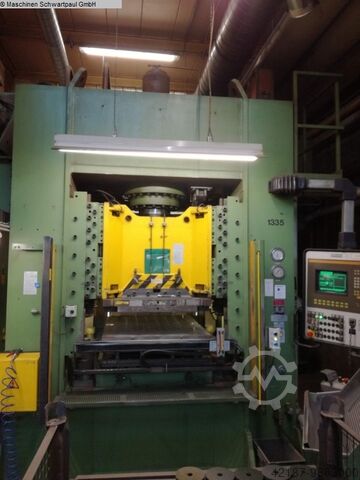

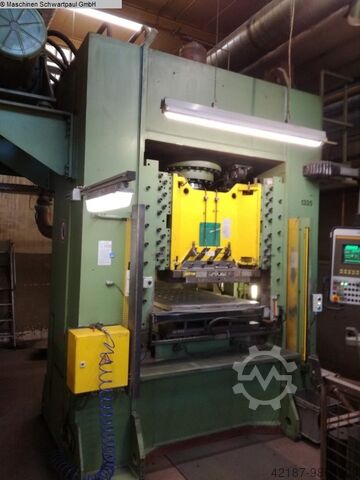

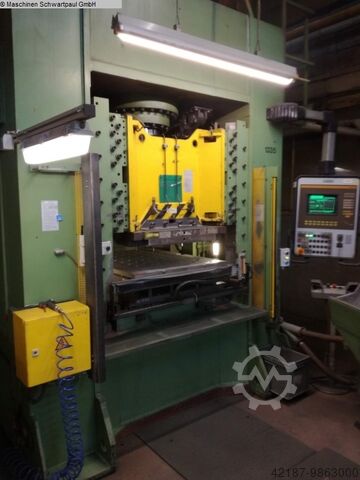

Double-Column Presse

HYDRAP HPDB 250

Condition: used, Year of construction: 1996, pressure 250 t distance between columns 2100 mm Hjdovuuidopfx Ahuong stroke 300 mm Distance table/ram, stroke up 850 mm Table surface area 2000 x 1300 mm Table height above floor 900 mm Side window 1300 mm Ram surface 2000 x 1300 mm Oil volume 1300 l Power capacity 60,0 kW Weight 39,5 t Dimensions (WxDxH) 3,4 x 3,4 x 4,6 m permitted for manual loading according to the CE Regulations with oil-hydraulic drive, hydraulic cutting impact cushioning, hydraulic ram interlocking No foundation pit necessary can be offered without putting into operation, with putting into operation or alternatively with new control Siemens S 7-1500 F

Condition: used, Year of construction: 2018, Pressure 315 t stroke 750 mm distance between columns 1700 mm Distance table/ram, max. stroke up, adjustment up 1250 mm Table surface area 1600 x 1300 mm pressure of drawing cushion in table 125 t Die cushion stroke in table 350 mm Die cushion pressure in ram 1000 x 900 t Ram surface 1600 x 1300 mm Side window 1100 mm feed down 400 mm/s feed up 400 mm/s working feed 12 - 44 mm/s oil volume 2500 l power requirement 35,0 kW Weight 43,50 t Hedpfxjvuuf Ee Ahueng dimensions of the machine ca. 3,6 x 3,1 x 6,0 mxmxm height over floor 4,9 mm yom 1987 -> 2018: new electric control Siemens S 7 new ligh guard at the front (Sick C 4000) permitted for manual loading according to the German Safety Regulations (UVV) with oil-hydraulic drive, hydraulic drawing cushion in table, cutting impact cushioning, ram interlocking, controllable dependant on pressure/time and way, two-hand operation press can be inspected in running condition in our warehouse

Condition: used, Year of construction: 1982, pressure 350 t distance between columns 1350 mm Hedpfx Ahevuk Iieueng stroke 900 mm distance table/ram, max. stroke up, adjustment up 1300 mm table surface area 1300 x 1000 mm pressure of drawing cushion in table 100 t stroke of drawing cushion in table 380 mm die cushion area 350 x 285 mm capacity of ejector in ram 25 t ejector stroke in ram 200 mm table height over floor 750 mm ram surface 1300 x 1000 mm speed down 500 mm/s speed up 160 - 470 mm/s working speed 16 - 44 mm/s drawing speed 57 - 160 mm/s return capacity 32 t oil volume 1700 l power requirement 91,0 kW Dimensions (WxDxH) 3,75 x 2,8 x 7,2 m height over floor 5,28 m permitted for manual loading according to the German Safety Regulations (UVV) with oil-hydraulic drive, light-guard (Sick), controllable dependant on pressure/time and way, hydraulic drawing cushion in table (controllabe), hydraulic ejector in ram, ram interlocking in TDC, speeds controllable, two-hand operation stored in partly dismantled condition - can be offered without putting into operation, with putting into operation in given condition or alternatively with new control Siemens S 7-1500 F
