CNC Lathe - Horizontal

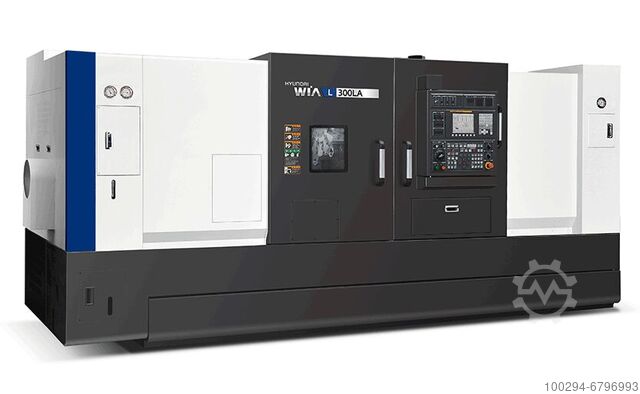

Hyundai-Wia L300LMA

This machine is only available to customers in the United Kingdom & Republic of Ireland

HEAVY DUTY 3-AXIS SLANT BED, EXTRA LENGTH CNC TURNING CENTRE WITH C-AXIS & DRIVEN TOOLS, HARDENED & GROUND BOX GUIDEWAYS, BMT65 TURRET & 10" STANDARD CHUCK SIZE

MACHINE CAPACITIES
Swing Over the Bed - Ø 750 MM
Swing Over the Carriage - Ø 480 MM
Maximum Turning Diameter - Ø 410 MM
Maximum Turning Length - 1,280 MM
Bar Capacity - Ø 76 MM

SPINDLE
Chuck Size - Ø (10”) 254 MM
Spindle Bore - Ø 95 MM
Spindle Speed (Rpm) - 3,500 RPM
Motor (Max / Cont.) - 22.0 / 18.5 KW
Torque (Max / Cont.) - 493.2 / 414.7 NM
Spindle Type - BELT
Spindle Nose - A2-8
C-Axis Indexing - 360° (0.001°)

FEED
Travel X - 290 MM
Travel Z - 1,350 MM
Rapid Speed (X) - 20 M / MIN
Rapid Speed (Z) - 24 M / MIN
Slide Type - HARDENED & GROUND BOX GUIDEWAYS

TURRET
Number of Tools - 12
Tool Size (OD) - Ø 25 MM²
Tool Size (ID) - Ø 50 MM²
Indexing Time - 0.3 SEC / STEP

LIVE TOOL
Motor (Max / Cont.) - 5.5 / 3.7 KW
Milling Tool Speed - 4,000 RPM
Torque (Max / Cont.) - 35.0 / 23.5 NM
Collet Size - Ø 20 – ER 32
Type - BMT65P
Djdpfxshtq Abj Aghoku

TAILSTOCK
Taper - MT 5
Quill Diameter - Ø 100 MM
Quill Travel - 120 MM
Travel - 750 MM

TANK CAPACITY
Coolant Tank - 270 L
Lubricating Tank - 1.8 L

POWER SUPPLY
Electric Power Supply - 27 KVA
Thickness of Power Cable - OVER 35 MM²
Voltage 415 V / 50 HZ / 3PH

MACHINE
Floor Space (L x W) 4,171 X 2,002 MM
Height 1,997 MM
Weight 7,700 KGS

FANUC 0IT CNC
