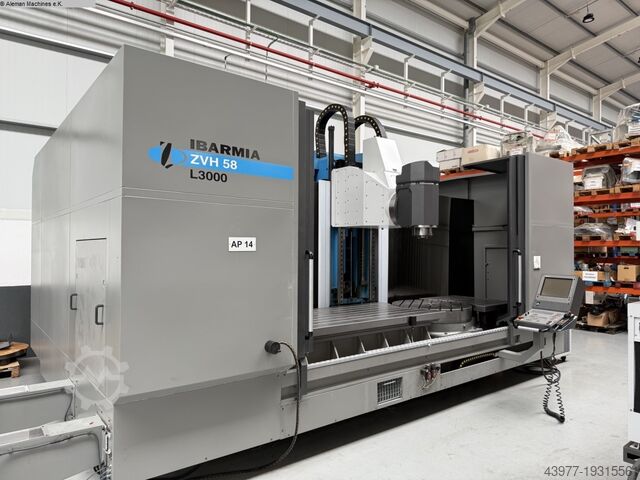

5 Axis Machining CenterIbarmia
ZVH58 L3000
Machine data
- Machine type:
- 5 Axis Machining Center
- Manufacturer:
- Ibarmia
- Model:
- ZVH58 L3000
- Year of construction:
- 2024
- Condition:
- excellent (used)
- Functionality:
- fully functional
Price & Location
- Location:
- Ctra. Castellón KM 5.2, 50720 Zaragoza, España
Details about the offer
- Listing ID:
- A194-01821
- Update:
- 20.06.2025
Description
Model ZVH 58 / L3000
Year 2004

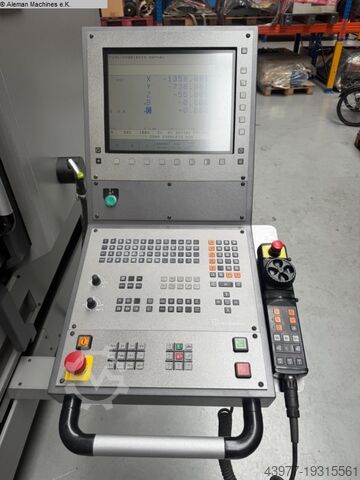

CNC Heidenhain iTNC-530
Table
Table Surface 3.600 x 1.050 mm.
T slots 7 x 18 H 18
Distance between T-Slots 125 mm.
Distance between spindle nose – table 25-366 mm.
Max Allowed Weight on Table 4.200 kg
Travels and feeds
Longitudinal Traverse (X Axis) 3.000 mm
Cross Traverse (Y Axis 1.000 mm
Vertical Traverse (Z Axis) 860 mm
Titling head range (B Axis) ± 105º
Max. Working Feed Axis (X, Y, Z) 30 m/min
Maximum Working Feed 30 m/min
Rapid Feed for B axis 170 rpm
Integrated Rotary Table
Rotary table diameter 1.000 mm.
Maximum swing diameter 1.400 mm.
Main Spindle
Main spindle speed 9.000 mm/min
Spindle taper ISO-50 DIN 69871-AD
Main spindle power 28,5 kW
Main spindle torque 240 Nm
Automatic tool changer
Manufacturer AITEK
Change type RANDOM
Magazine positions 40
Max tool weight 20 kg
Max tool Ø with full magazine 125 mm.
Max tool Ø with adjacent positions empty 175 mm.
Max tool length 365 mm.
Equipment
Axis Measuring System Heidenhain Optical Scales
X Travel Working 2 areas 2 x 1.150 mm.
Portable handwheel HEIDENHAIN HR-410

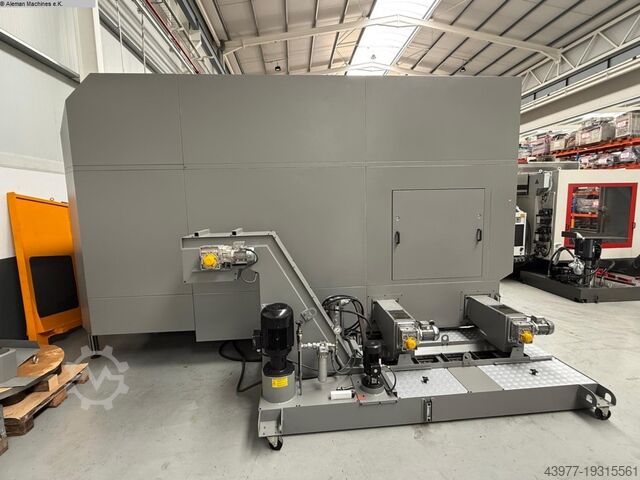

2 longitudinal chip conveyors INCLUDED
Dedpfxjwudc Ss Aa Newd
1 cross chip conveyor INCLUDED
Internal coolant 30 Bar INCLUDED
Part coolant gun INCLUDED
Cooled electrical cabinet INCLUDED
Lateral windows for long parts INCLUDED
Others
Total power 65 kW
Machine weight 24.800 kg
Machine Dimensions (LxWxH) 8.056 x 5.496 x 3.790 mm
