Column drilling machine
IBERDRILL AZ 34

Condition
New
Location
Mudersbach Germany

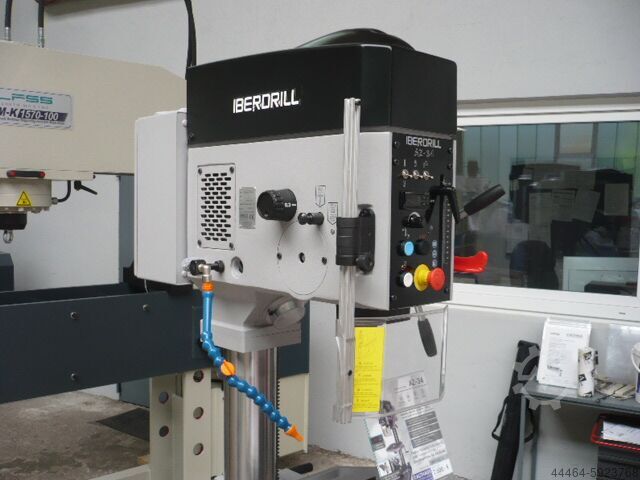

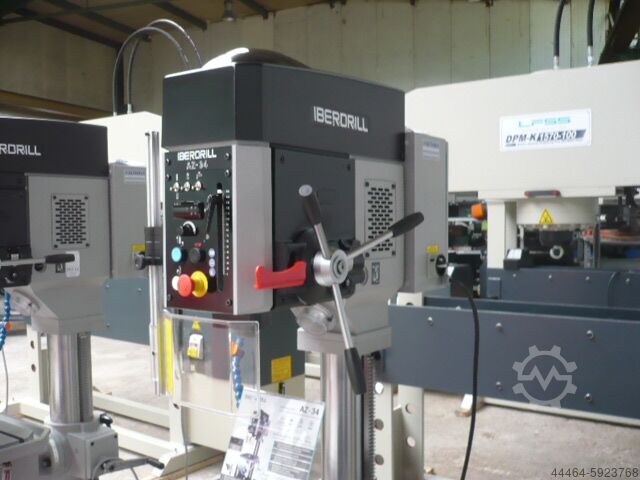

Column drilling machine IBERDRILL AZ 34
Column drilling machine IBERDRILL AZ 34
Column drilling machine IBERDRILL AZ 34
Column drilling machine IBERDRILL AZ 34
Column drilling machine IBERDRILL AZ 34
Column drilling machine IBERDRILL AZ 34
Column drilling machine IBERDRILL AZ 34
more Images
IBERDRILL AZ 34
IBERDRILL AZ 34
IBERDRILL AZ 34
IBERDRILL AZ 34
IBERDRILL AZ 34
IBERDRILL AZ 34
IBERDRILL AZ 34

Machine data

Machine type:
Column drilling machine
Manufacturer:
IBERDRILL
Model:
AZ 34
Condition:
new

Price & Location

Location:
Stahlwerkstrasse 4, 57555 Mudersbach, Deutschland Germany
Call

Details about the offer

Listing ID:
A592-3768
Update:
12.06.2024

Description

COLUMN DRILLING MACHINE IBERDRILL AZ 34

TECHNICAL DATA - STANDARD
Max. drilling capacity for steel (St 60) at continuous operation S1: Ø 34 mm
Max. drilling capacity for grey cast iron (GG 20) at continuous operation S1: Ø 40 mm
Max. thread cutting capacity for steel (St 60) at continuous operation S1: M 27
Max. thread cutting capacity for grey cast iron (GG 20) at continuous operation S1: M 33
Tool holder in the spindle: MK 4
Max. spindle stroke (drilling depth): 150 mm
Spindle motor power: 3 kW
Drive: V-belt
Speed adjustment: stepless
Speed range for 50 Hz motor, n = 1,500 rpm: 100 - 2,000 rpm
Feed: automatic or manual
Number of automatic feeds: 3 speeds
Range of automatic feeds: 0.1 – 0.2 – 0.3 mm/rev
Table dimensions (width x depth): 420 mm x 400 mm
Column diameter: 125 mm
Distance spindle center / column: 300 mm
Machine weight (net): 360 kg
Gross weight: 410 kg
Dimensions transport packaging (length x width x height): 2.3 m x 0.6 m x 1.1 m

STANDARD EQUIPMENT / BASE MACHINE
V-belt drive with frequency inverter
Stepless speed adjustment via potentiometer
Digital speed display
3 automatic feeds
Mechanical clutch
Scale with adjustable drilling depth
Automatic feed reversal during thread cutting
Automatic tool ejector
Adjustable fixed work table (Type MF)
Machine base plate with machined support surface, T-slots, and integrated coolant system
Integrated lighting
EMERGENCY STOP button
Chip guard with microswitch monitoring
Nwjdpfxjgy E S Eo Acfjh
Thermo-magnetic motor protection, control circuitry in low-voltage range
Color: RAL 7004 (signal grey), RAL 9011 (graphite black)
Control circuitry in low-voltage range
Documentation, operating and maintenance instructions

The listing was translated automatically. Translation errors are possible.
