Drilling machines

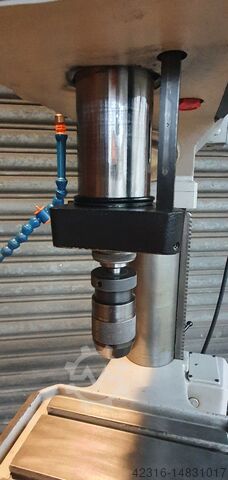

ERLO Iberdrill AZ 34

Condition: new, Year of construction: 2023, bore capacity in steel (diameter) 34 mm throat 300 mm bore stroke 150 mm bore capacity in cast iron (diameter) 40 mm thread capacity M 27 spindle taper MT 4 spindle speeds: Stufenlos 100 - 2000 U/min column diameter 125 mm automatic feeds 3 / 0,1 - 0,2 - 1,3 table: 400 x 420 mm Drive Keilriemen total power requirement 3 kW weight of the machine ca. 360 kg dimensions of the machine ca. 2,3 x 0,6x 1,1 m Column drilling machines - V-belt drive with foot switch - Drilling machine of circular column feed automaticmechanical - Drive by electronic wide V-belt - Spindle taper: CM 4 - Stepless speed adjustment with frequency converter - Potentiometer for speed adjustment - digital speed display - Automatic feed reversal when threading - Scale with adjustable drilling depth - automatic tool ejector - Push button for EMERGENCY STOP switch for right/left rotation - Electronic control integrated in the drill head - integrated coolant device Gjdpfx Ajt U Sc Rebpskd - Machine light - height-adjustable chip protection disc with micro switch - fixed table - CE marking

Condition: new, Year of construction: 2024, bore capacity in steel (diameter) 40 mm throat 360 mm bore stroke 200 mm thread capacity 33 M spindle taper MT 4 MK column diameter 175 mm bore spindle turning speed range 61-1169 U/min Gkjdpfxjwp Tpwo Abpjd table-size 550x550 mm

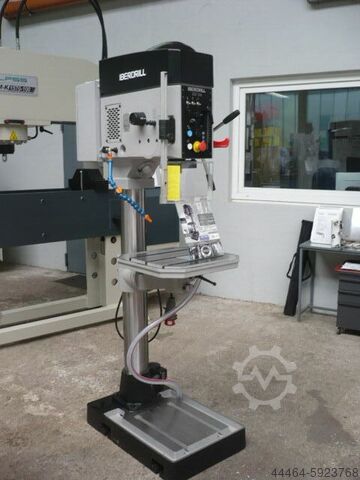

Condition: new, PILLAR DRILLING MACHINE IBERDRILL AZ 34 TECHNICAL DATA - STANDARD max. drilling capacity for steel (St 60) at continuous power S1 Ø 34 mm max. drilling capacity for grey cast iron (GG 20) at continuous output S1 Ø 40 mm max. tapping capacity for steel (St 60) at continuous output S1 M 27 max. tapping capacity for grey cast iron (GG 20) at continuous output S1 M 33 tool holder in spindle MK 4 Gksdpfx Absgy E S Espjd max. spindle stroke (drilling depth) 150 mm motor power spindle 3 kW Drive V-belt Speed adjustment stepless speed range for 50 Hz - motor, n = 1.500 rpm 100 - 2.000 rpm Feed automatic or manual Number of automatic feeds 3 gears range of automatic feeds 0,1 - 0,2 - 0,3 mm/rev Table dimensions (width x depth) 420 mm x 400 mm column diameter 125 mm distance spindle center / column 300 mm Machine weight (net) 360 Kg Gross weight 410 Kg Transport dimension (length x width x height) 2.3 m x 0.6 m x 1.1 m STANDARD EQUIPMENT / BASIC MACHINE V-belt drive with frequency converter infinitely variable speed adjustment via potentiometer digital speed display 3 automatic feeds mechanical clutch scale with adjustable drilling depth automatic feed reversal during thread cutting automatic tool ejector movable fixed work table (type MF) machine base plate with machined support surface, T-slots and integrated coolant device integrated lighting EMERGENCY STOP button chip protection device with microswitch monitoring thermoma
