Felling Grapple FMS 600, ICM - 1 unit
ICM

Fixed price plus VAT

€18,770

Condition

New

Location

Titisee-Neustadt Germany

Felling Grapple FMS 600, ICM - 1 unit ICM

Basic data

Machine type:: Felling Grapple FMS 600, ICM - 1 unit

Manufacturer:: ICM

Condition:: new

Price & Location

Fixed price plus VAT

€18,770

Seller location:: Feldbergstraße 37, 79822 Titisee-Neustadt, Germany

Call

Details about the offer

Listing ID:: A231-72526

Reference number:: FMS600

Update:: 21.10.2026

Description

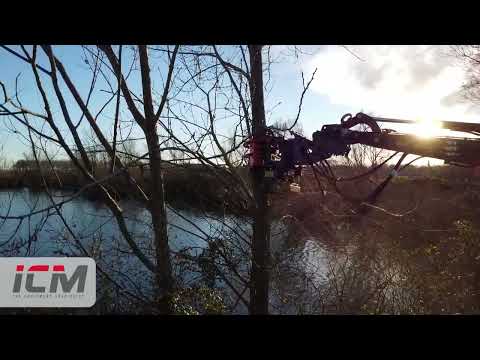

The FMS 600 tree felling grapple from ICM is a professional grapple for efficient tree felling and maintenance work. The rigid installation in combination with open fingers enables precise gripping of the trunk, while the modern felling system significantly reduces the need for personnel and simultaneously ensures safe operation.

The robust construction made of high-strength Strenx 700 steel ensures maximum stability with minimal weight. The optimized cutting process prevents uncontrolled toppling of the trunk, and the fully hydraulic operation – with only four hoses required and without any electrical components – guarantees reliable and low-maintenance operation.

- Rigid installation / Open fingers
- Modern and safe system for tree felling and maintenance – significantly reduces the need for personnel.
Rcsdpfx Aj Adgqrei Tsh
- Robust construction made of high-strength Strenx 700 steel for maximum stability with minimal weight.
- The cutting process prevents uncontrolled toppling of the trunk.
- Fully hydraulic operation – only four hoses required, no electrical components.

Required oil flow rate l/min: 60–100
Maximum cutting diameter (Ø) mm: 600
Max. oil flow rate l/min: 12
Working area m²: 0.26
C mm: 992
Maximum operating pressure bar: 250
H2 mm: 711
Maximum lifting capacity kg: 3000
A mm: 1595
Gripping force daN: 1700
B mm: 966
H1 mm: 841
Max. pressure bar: 120
Minimum gripping diameter (D) mm: 140

The listing was translated automatically. Translation errors are possible.

Seller

Registered since: 2026

14,349 listings online

Call

Send inquiry

Telephone & Fax

+49 7651 ... show
