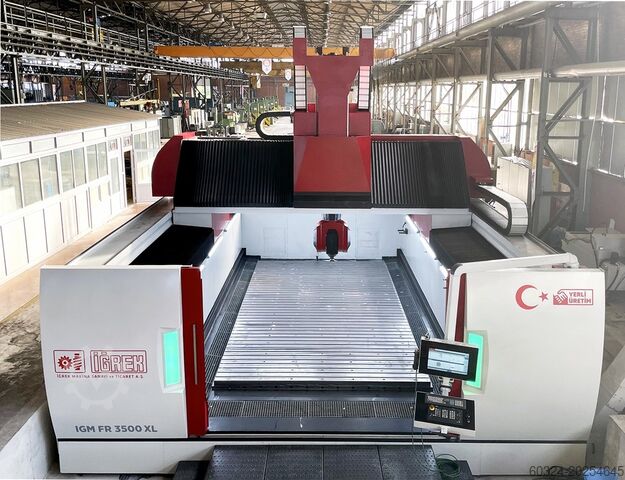

CNC portal milling machine - 5 axes - simultaneous
IGREK FR 3500 XL

Name: IGREK FR 3500 XL
Brand: IGREK
Availability: InStock

Year of construction

2025

Condition

New

Location

Halberstadt Germany

CNC portal milling machine - 5 axes - simultaneous IGREK FR 3500 XL

Machine data

Machine type:: CNC portal milling machine - 5 axes - simultaneous

Manufacturer:: IGREK

Model:: FR 3500 XL

Year of construction:: 2025

Condition:: new

Price & Location

Location:: 38820 Halberstadt

Call

Details about the offer

Listing ID:: A202-54645

Reference number:: 10463

Update:: 28.06.2026

Description

Ref. -No.: 10463
Manufacturer: IGREK
Type: FR 3500 XL
Year of construction: 2025
Type of control: CNC-Steuerung
Control: Siemens 840 D / Heidenhain iTNC 640
Storage location: Istanbul
Country of origin: Türkiye
X-Travel: 6500 mm
Y-Travel: 3500 mm
Z-Travel: 1400 mm
A-Axis: +/- 115 °
C-Axis: 360 °
Turning Speeds: 12500 RPM
Max. Torque: 235 Nm
Nodpfx Aexmd Szecfewh
Rapid Traverse X/Y/Z: 30 m / min
Table-Size (Lxw): 2290 - 6490 x 3580 mm
Drive power spindle: 54 kW
Table load max.: 4000 kg
Tool Taper: HSK-A100
Machine length: 11500 mm
Machine width: 7400 mm
Machine Height: 6600 mm
Weight: 120 t

Further information:
IGREK FR 3500 XL – Precision and performance at the highest level

The IGREK FR 3500 XL is a CNC-controlled 5-axis portal milling machine of the latest generation (year of manufacture 2024). It was specially developed for the demanding machining of large workpieces and impresses with its versatility and precision. With a modern control system from Siemens 840D or Heidenhain iTNC 640 and a robust construction, the machine offers optimal conditions for manufacturing in a wide range of industries.

Key features:

Large machining areas: With travel distances of 6,500 mm (X), 3,500 mm (Y) and 1,400 mm (Z), the machine is ideal for machining large components.
5-axis simultaneous machining: The A-axis with a swivel range of +/- 115° and the C-axis with a rotation of 360° enable highly precise machining of complex geometries.
Powerful spindle: The spindle reaches speeds of up to 12,500 rpm and a maximum torque of 235 Nm – perfect for demanding milling work.
High stability: The machine weight of 120 tons and the table load of up to 4,000 kg ensure low-vibration machining even with heavy workpieces.
Flexible tool holding fixture: The HSK-A100 tool holding fixture enables quick tool changes and optimal process times.
Rapid feed rate: High productivity is achieved with 30 m/min in the X, Y and Z directions.

Technical data at a glance:

Table size: 2,290 – 6,490 x 3,580 mm
Spindle power: 54 kW
Max. torque: 235 Nm
Tool holder: HSK-A100
Machine dimensions (LxWxH): 11,500 x 7,400 x 6,600 mm
Max. table load: 4,000 kg

The IGREK FR 3500 XL sets new standards in the machining of large parts. It is available immediately and offers comprehensive warranties and services directly from the manufacturer, internationally and across the board. Use the latest technology for your production – contact us for further details!
