CNC lathe

INDEX G200

Year of construction: 1997, condition: ready for operation (used), Turning diameter: 200mm, turning length: 400mm, turning diameter: 420mm, bar diameter: 60mm, max. spindle chuck diameter: 160mm, speed: 5000rpm, turret: 2, positions: 2x14, rapid traverse X/Z: 20m/min/30m/min. Machine dimensions X/Y/Z: approx. 7500mm/2100mm/2100mm, weight: approx. 4500kg. Documentation available. On-site inspection is possible. Dkodpfx Aju T Rgkjm Ujt

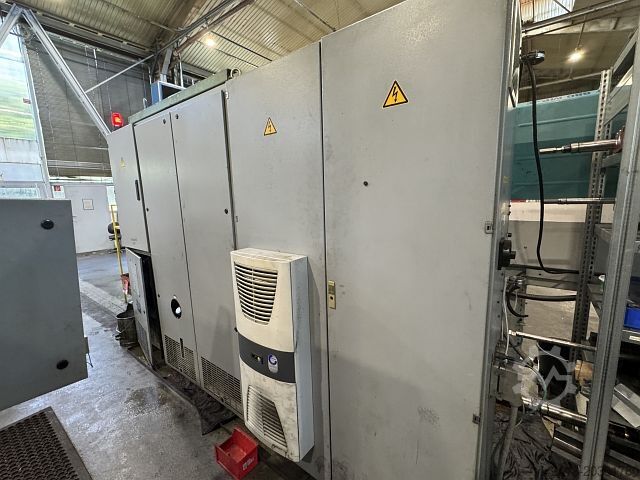

Year of construction: 1995, condition: ready for operation (used), Max. speed range: 5000 rpm, bar capacity: 65 mm, max. turning diameter: 200 mm, max. turning length: 400 mm. Number of spindles: 2, tool changer: 2x 14, Siemens control. Including outfeed conveyor, KNOLL 400S-1 chip conveyor (year of manufacture: 2016), switch cabinet with cooling unit, CO2 extinguishing system and INDEX bar loader. General overhaul in 2016. Dksdpfstdwwmsx Am Uet

Year of construction: 2003, condition: ready for operation (used), Max. turning diameter: 200mm, max. turning length: 400mm, spindle speed: 6000rpm, bar capacity: 42mm, weight: approx. 4300kg. Dksdpfx Aotdwwqom Uet

Year of construction: 1995, condition: ready for operation (used), A CNC counter-spindle lathe Index with Y-axis and bar feeder MBL 42 is available. Turning length: 400mm, turning diameter: 420mm, bar capacity: 60mm, speed: 6000rpm, machine dimensions X/Y: 4750mm/1950mm. Documentation available. An on-site inspection is possible. Dodpfx Asym Dgmsm Uskt

Condition: used, Year of construction: 2007, machine/vehicle number: 511966, Turning length: approx. 400 mm, bar passage: 60 mm, counter spindle, 2 x 14-position tool turret, cross slide X/Y/Z, B-axis slide control INDEX C 200-4 D, workpiece removal, conveyor belt, chip conveyor, manufacturer: KNOLL, bar feeder MBL 65/3700, the machine requires repair; repair costs according to the cost estimate: approx. €1,880.00 net; drilling emulsion/lubricants must be professionally extracted and disposed of by the customer. Dksdpfx Aezqy U Hom Ust

Condition: used, Year of construction: 2007, machine/vehicle number: 511979, Turning length: approx. 400 mm, bar passage: 60 mm, Y-axis, counter spindle, 2x 14-station tool turret, cross slide X/Y/Z, B-axis slide control INDEX C 200-4 D, workpiece removal, conveyor belt, chip conveyor, manufacturer: KNOLL, bar loader MBL 65/3700, machine requires repair, gear pump defective, repair costs according to quotation: approx. €6,000.00 net, drilling emulsion/lubricants must be professionally extracted and disposed of by the customer. Dsdpfxjzqy Uye Am Uokt

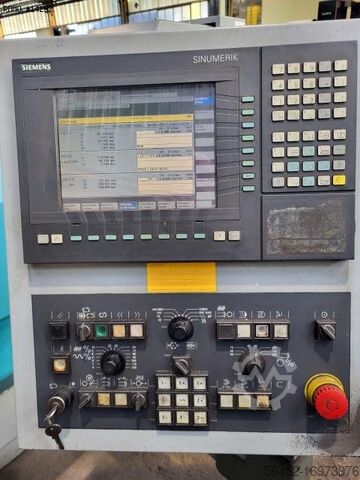

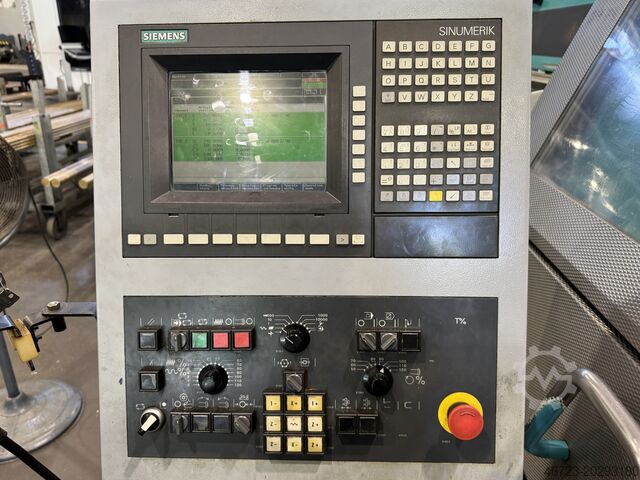

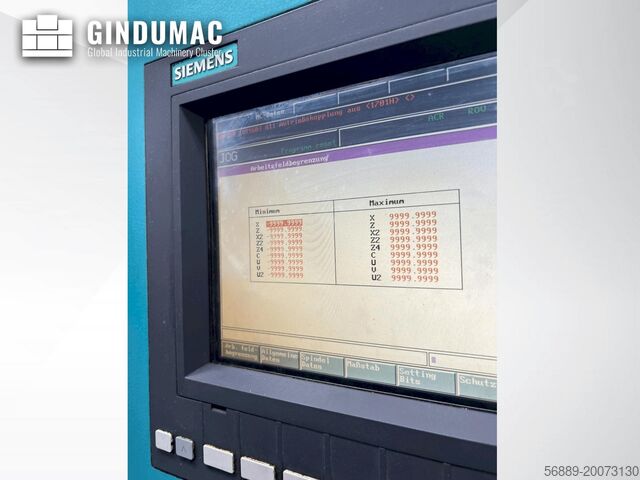

Condition: used, Year of construction: 1998, turning diameter 200 mm turning length 400 mm Dedpot Hw Rksfx Am Uekt control SIEMENS SINUMERIC 840 C total power requirement 40 kW weight of the machine ca. 6.500 kg dimensions of the machine ca. m

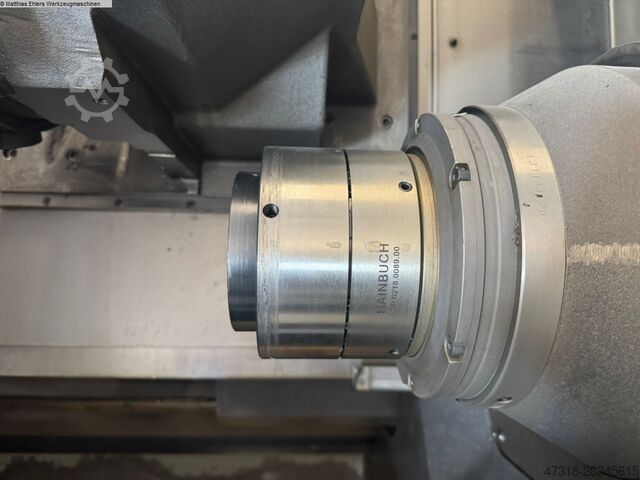

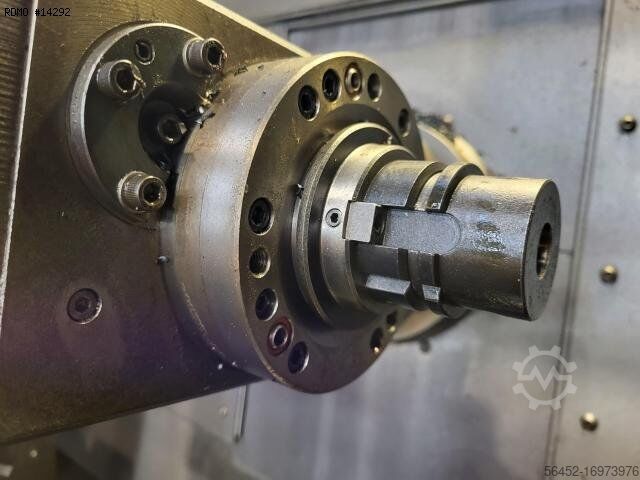

Condition: used, Year of construction: 1998, turning diameter 200 mm turning length 400 mm control Siemens type C 200-4 840 C spindle passage 65 mm Tool changer 2 x14 Pos. live tooling 2x Revoler weight of the machine ca. 4 t Main and counter spindle 3-jaw chuck with numerous jaws Hainbuch collets Many tool holders Various driven tools Bar loader "Index MBL" Chip conveyor with coolant unit Complete set of spindle reducers etc. see photo The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale; Our terms and conditions of sale apply exclusively. Dkjdpoyqvygofx Am Uot About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team

Condition: ready for operation (used), Year of construction: 2000, spindle motor power: 22,000 W, total height: 2,050 mm, overall weight: 4,000 kg, controller manufacturer: INDEX, controller model: C200-4 / C200-8, This 5-axis Index G200 C turn-mill centre was manufactured in 2000. Consider the opportunity to buy this Index G200 C turn-mill centre. Contact us for more information. Additional equipment • Synchronous device for counter spindle machining • Tool carrier 3 for synchronous spindle (rear end machining) Dedpfxsyailze Am Uokt • Additional milling spindle • Thread milling and polygon turning device • Gripperless tool changer (6 tools, HKS-50 B, KM40) • Workpiece handling WHU100 • with c-axis • no driven tools Machine Benefits Technical Machine Benefits • Space requirement (without material guide): 3580 x 3108 mm • Control unit: resolution: 0. 001 mm (input/output/correction) • Comprehensive movement range with multiple axes configuration • High precision with 0. 001 mm resolution in numerical control • Versatile expansion stages and additional equipment for enhanced functionality Extra Information Movement Cross slide 1 (top) - XYZB axes: X-axis: Slide path 155 mm, feed force 5000 N, rapid traverse 20 m/min, resolution 0.0005 mm Y-axis: Slide travel 120 mm, feed force 10000 N, rapid traverse 7.5 m/min, resolution 0.0005 mm Z-axis: Slide path 590 mm, feed force 5000 N, rapid traverse 30 m/min, resolution 0.001 mm B-axis (rotating): 360° swivel range, angular steps 5° (with locking), resolution 0.001° (with clamping), switching time for 180°: 1 s Cross slide 2 (bottom) - XZ axes: X-axis: Slide travel 105 mm, feed force 5000 N, rapid traverse 20 m/min, resolution 0.0005 mm Z-axis: Slide path 307 mm, feed force 5000 N, rapid traverse 30 m/min, resolution 0.001 mm Turret Turret right: X-axis: Slide path 120 mm Z-axis: Slide travel 400 mm Tail Stock Center distance: 400 mm Pressure force (max): 5500 N Drive: Hydraulic or electric Media Power supply: 400 V, 50/60 Hz Connected load: 20-45 kVA Current consumption: 35-80 A Hydraulic system: Delivery rate: 18 l/min System pressure: 90 bar Filling capacity: 70 liters Cooling lubricant system: Pump capacity (switchable): 20 l/min at 18 bar / 50 l/min at 3 bar / 60 l/min at 5-7 bar Filling quantity: Approx. 230 liters Chip conveyor: Hinged belt or scraper Workpiece holder: Main spindle: DB5 internal mount / D140 external mount, optional short taper Counter spindle: D140 external mount (only tensile clamping permitted for collet and chuck clamping) 1st spindle data (main/counter spindle): Spindle clearance (collet clamping): Variants: 30 mm / 42 mm / 60 mm / 65 mm Spindle Ø in front bearing: 75 mm (with 30 mm clearance) / 85 mm (42 mm) / 100 mm (60+65 mm) Speed (max): 7500 rpm (30 mm) / 6300 rpm (42 mm) / 5000 rpm (60 mm) Spindle nose: ISO 702/1 (size 4 or 5) Chip diameter (workpiece Ø): 110-130 mm (30 mm) / 140-160 mm (42 mm) / 165 mm (60 mm) Torque (Md max 100%): 33-62 Nm (30 mm) / 35-95 Nm (42 mm) Power (P max 100%): 7-13 kW (30 mm) / 7.5-20 kW (42 mm) Dimensions Machine Depth 3580 mm
