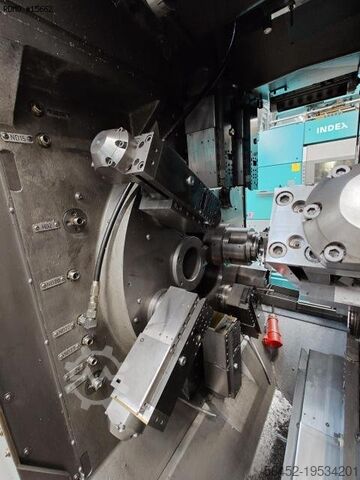

Cnc multispindle lathe

INDEX MS32P

Condition: used, Cnc multispindle lathe INDEX MS 32 P Hfodpfx Aaozpznfsiok

Condition: excellent (used), Year of construction: 2019, functionality: fully functional, We offer you: Manufacturer: INDEX Type: MS40-6 C Year of construction: 2019 Control: Index control C200-SL, MS40C Double-NCU Technical data: Working spindles: Number: 6 pcs. Spindle bore: max. 40 mm Max. speed: 7,000 rpm Power (100% / 25%): 13 / 24 kW Torque (100% / 25%): 31 / 57 Nm Synchronous spindle: Number: 1 pc. Spindle bore: 40 mm Max. speed: 8,000 rpm Power (100% / 25%): 10 / 14 kW Torque (100% / 25%): 16 / 22 Nm Slide travel z: 150 mm Number of tools for back-end machining: 3 pcs. Swiveling range b: 144 ° Tool holder: Number: 12 pcs. Slide travel x: 73 mm Slide travel z: 120 mm Tool holder, cut-off and back-boring slide: Number: 1 pc. Slide travel x: 82 mm Number of tools for back-end machining: 3 pcs. Electrical connection data: Rated power: 85 kW Connection power: 101 kVA Rated current: 145 A Max. pre-fuse: 160 A Note: Mains voltage: 400V Note: Electrical frequency 50 Hz Technical features & accessories: - Double-NCU - Signal light 'Smartlight' with LED - Machine designed for connection to a TN network. - Coolant: Cutting oil - NC option Synchronous spindle / Multi-sided turning incl. electronic shaft - INDEX loading magazine MBL40-6/3300/Strip loader/50Hz: - Strip loader 50Hz - for bar diameter D13 - D40 - Bar length 3300 mm - with pilot drilling unit - Material storage with 700 mm support area - Profibus-DP-Master interface. - 1 set (6 pieces) reducing sleeves manufactured for bar or corner dimensions, diameter D = * mm, Inner diameter range D14 - D41 - 1 set (6 pieces) material sliders for material diameter D24mm - D32mm, consisting of: - 6 material sliders D23 - 6 rotating sleeves D23 - 1 set (6 pieces) internal clamping sleeves D23mm - for material diameter D24mm - D32mm - pilot drilling diameter D15mm - 1 set (6 pieces) external stops D23mm - for material diameter D24mm - D32mm - pre-machined - 1 set (12 pieces) reducing sleeves for material sliders. The outer diameter of the reducing sleeves corresponds to the material diameter (D13 - D40) - 1 set (6 pieces) adapter sleeves, inner diameter range D13.5 - D40.5. The inner diameter of the adapter sleeves should be bar diameter + 0.5mm. - 1 set (6 pieces) two-part guide intermediate tubes, diameter 29 mm - Assembly aid for the sleeves of the guide intermediate tubes - UNIMAG - Interface for connecting a bar loader - Part discharge via slide into spindle position 6 - Workpiece conveyor belt in spindle position 6, machine-integrated - Hainbuch TOPlus Axfix D40 for synchronous spindle - Multi-sided and thread milling device - Reduction ratio i=5:1 - Inductive encoder for reference query - Internal oil lubrication - INDEX short taper connection - without converter Hsdpfx Aozlutmsaiofk - Back-end machining device on slide position 6.2 for max. three boring positions for fixed tools FURTHER INFORMATION IN THE PICTURES Accessories, tools and clamping devices shown are only included in the scope of delivery if this is stated in the additional information. Changes and errors in the technical data and information, as well as prior sale, are reserved!

Condition: good (used), Year of construction: 2014, functionality: fully functional, using Stäubli robots Specifications, information, price, images, etc. can be found in the PDF documents attached. Hfedpfx Aaszuc T Toiok

Condition: new, Index MS32 DRIVE Z-NC SPK1 Item ID: GM2602.1551 Ball Screw Hfjdpfx Aaowb Evmsisk Item ID: 10912112 Previous Item ID: GM2602.1551 From stock/wear - Offer as shown in pictures -
